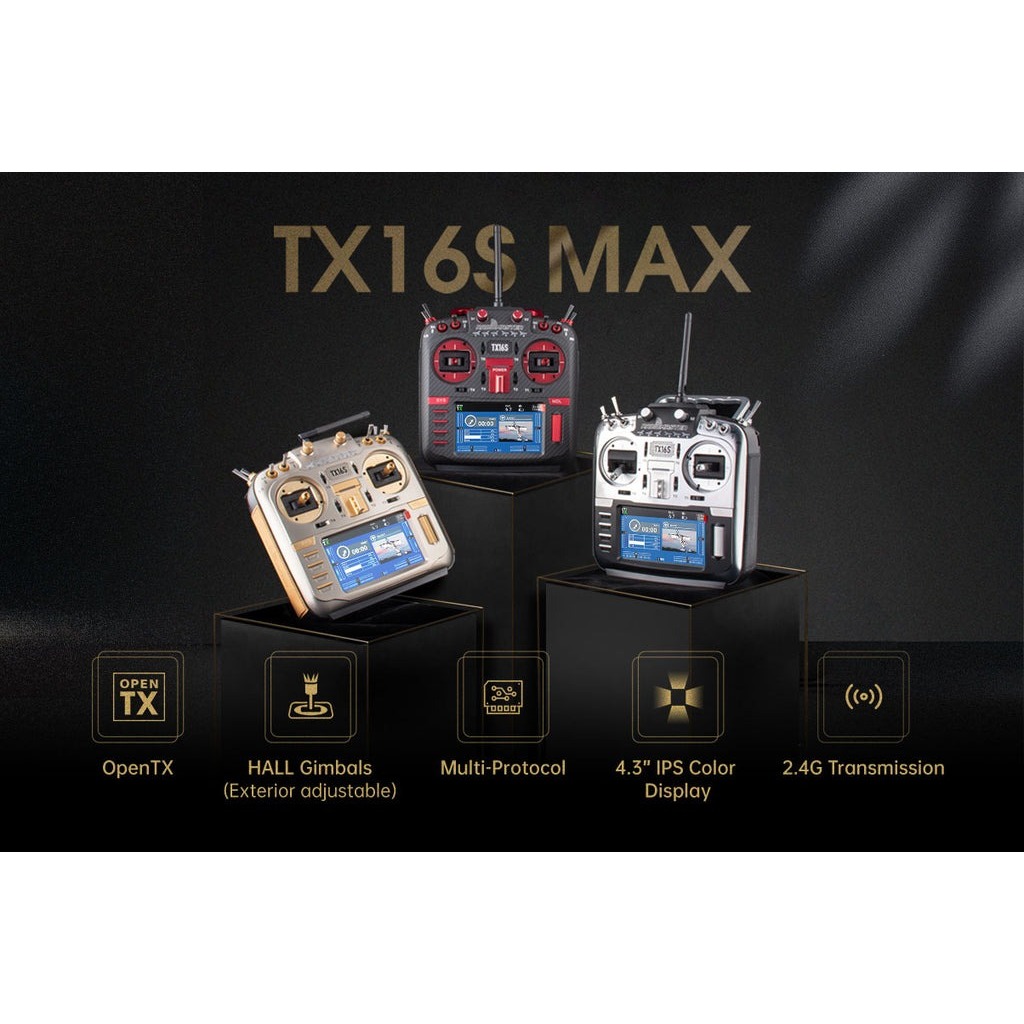

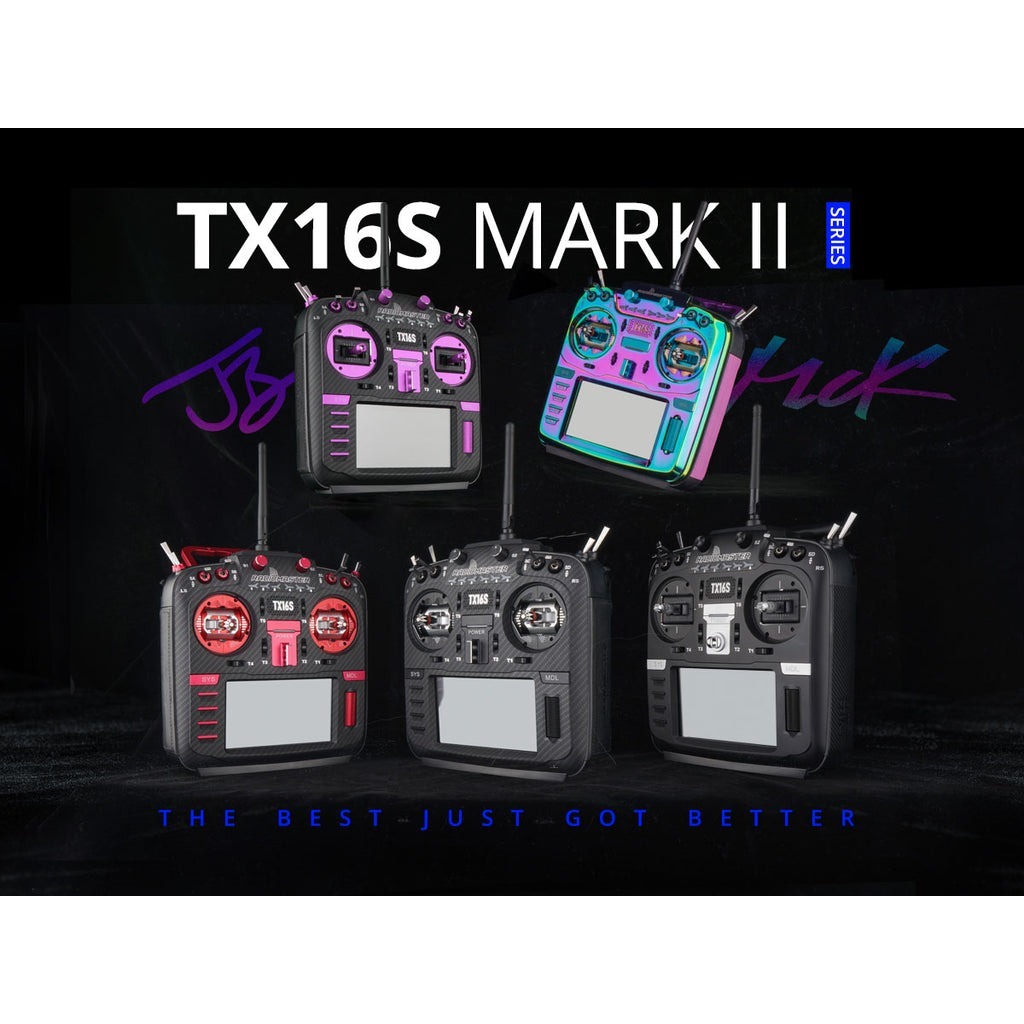

TX16S Mark II Max Radio Controller (M2) V4 Hall Gimbal 4 in 1

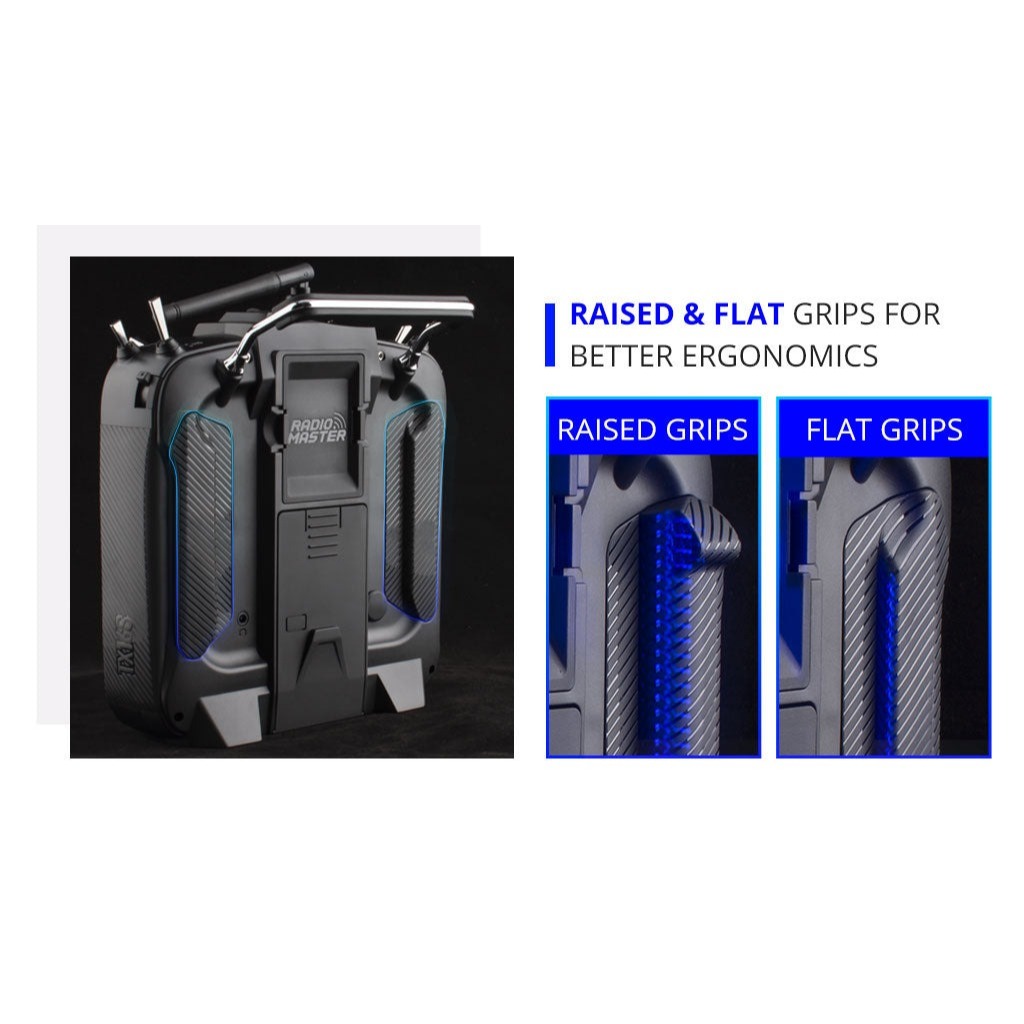

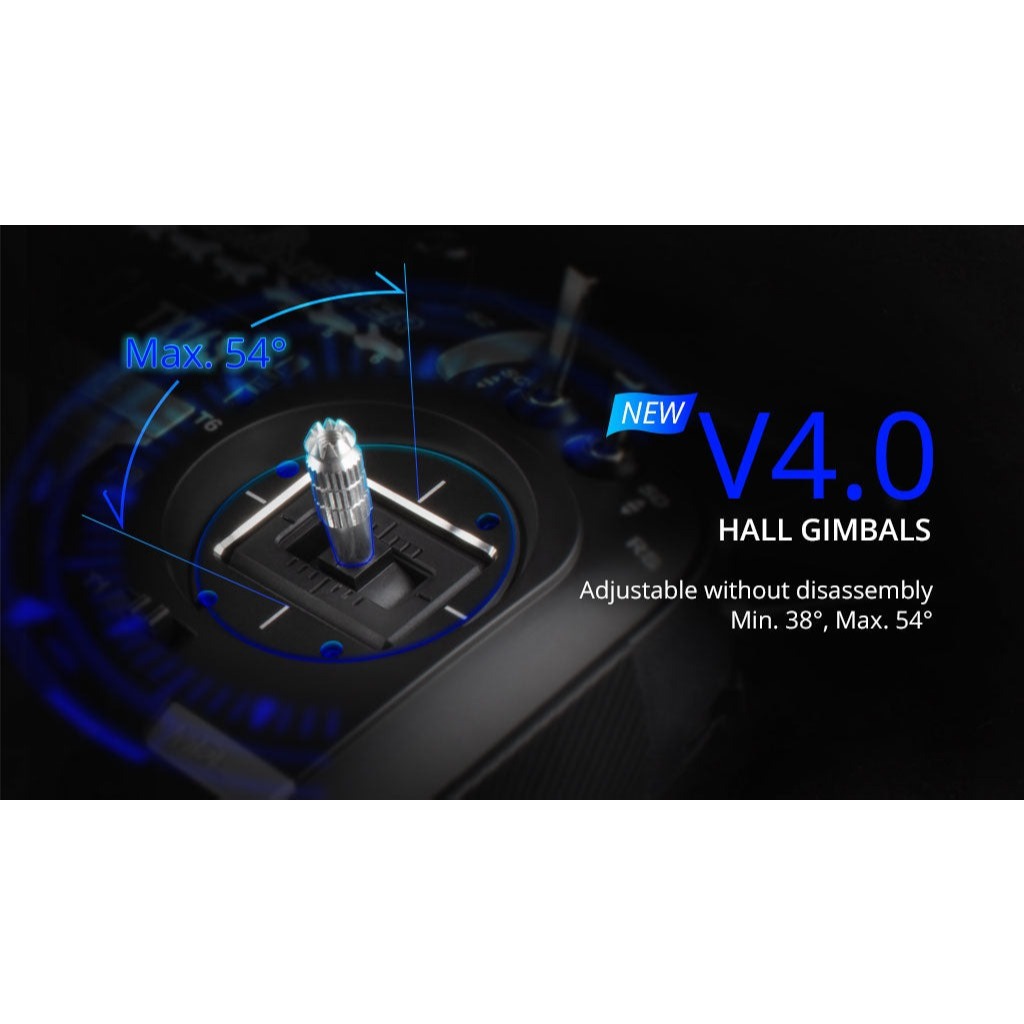

Features Improved internal circuitry and optimized power supply. New charge circuitry with integrated reverse-polarity protection. Optimized charge IC now allows up to 2.2A internal USB-C charge current. Rear-mounted audio jack provided headphone output. V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01). Optional high/low rear grips are included for improved ergonomics. Improved S1/S2 knobs with clear center detents. Improved LS/RS Sliders with smoother feel and better center detents. Redesigned battery cover for improved battery access. Retooled body shell with improved fit and finish. Trainer socket changed to standard TRS 3.5mm socket. Rear DIY Socket added for personalized mods. Improved internal plastics for better longevity. Built-in ExpressLRS Backpack and 4in1 versions. Specification Items: TX16S Mark II Max Size: 287x129x184mm Weight: 750g (without battery) Transmission frequency: 2.400GHz-2.480GHz Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280) SD card: 256MB by default, 8GB maximum Antenna gain: 2db (transmit power adjustable) Working current: 400mA Working voltage: 6.6-8.4v DC Radio firmware: EdgeTX Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS) Channels: Up to 16 channels (depending on the receiver) Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272 Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor Module Bay: JR compatible module bay Upgrade method: Supports USB-C online / SD card offline upgrade Support EdgeTX and OpenTX EdgeTX is installed by default (Touch screen enabled).  * Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.
