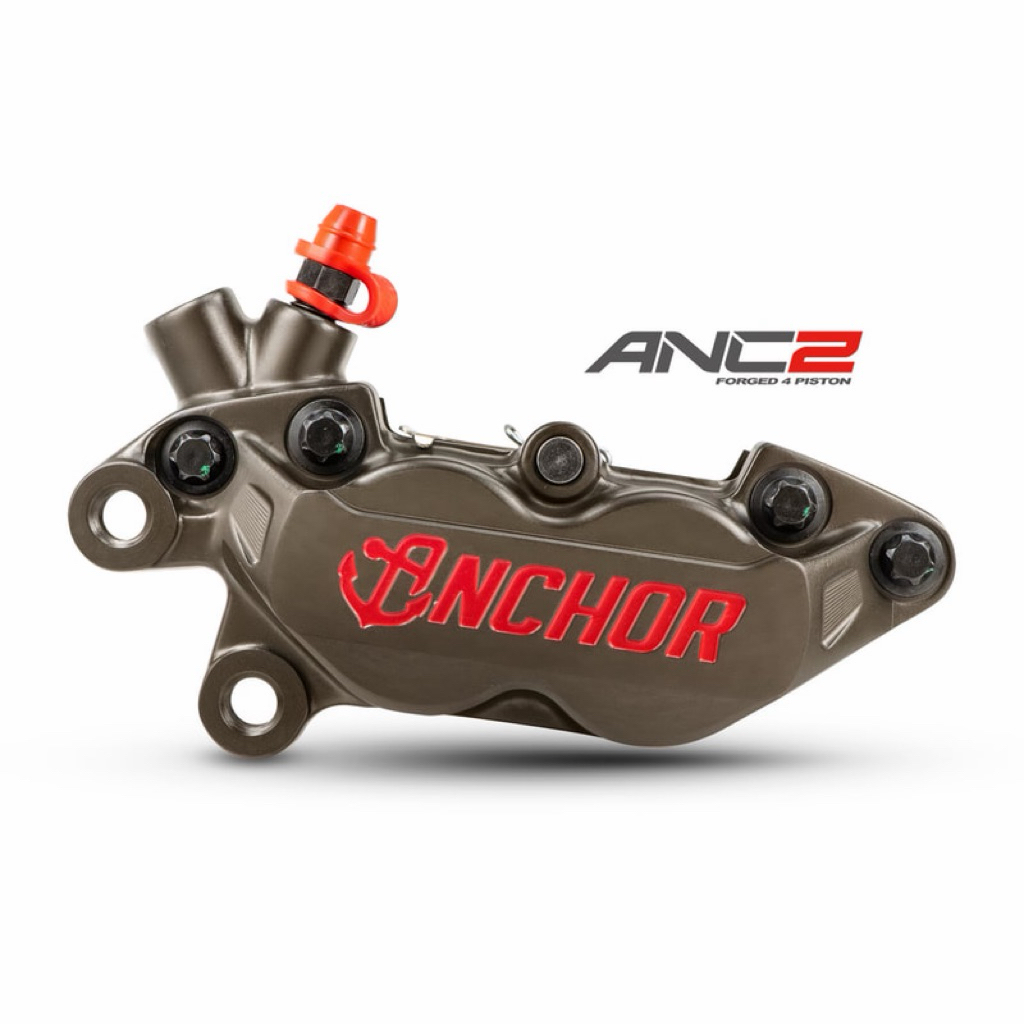

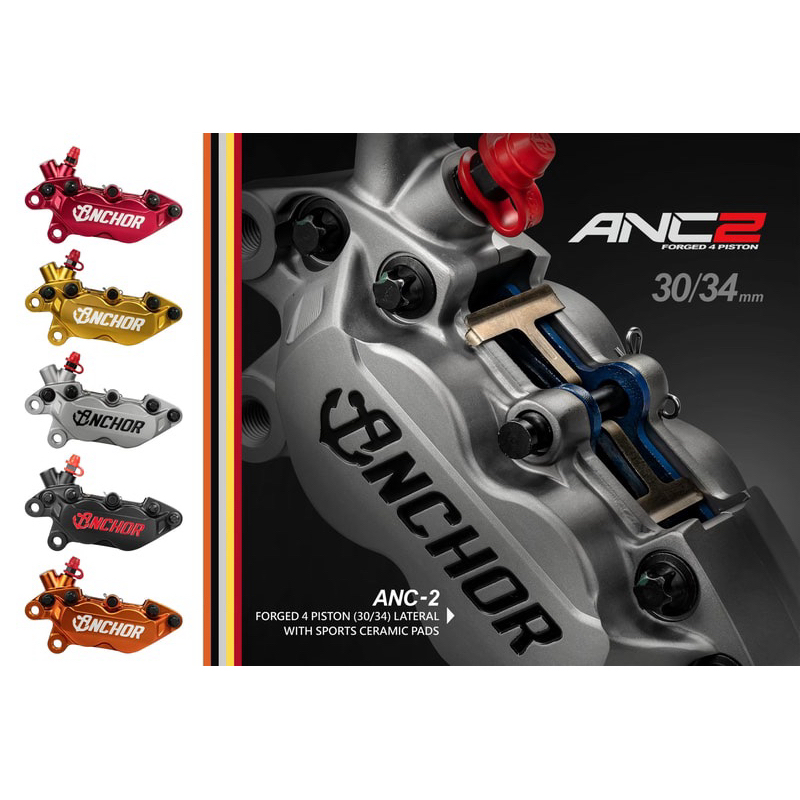

Anchor 🇹🇼 ปั๊มเบรค ANC-2 หูชิด 4 pot สำหรับ มอเตอร์ไซค์ Made in Taiwan ANC2

ANC-2 TECHNICAL SPECIFICATION Piston Size : ∅30.23mm*2+∅33.96mm*2 Piston Area : 16.2cm²*2 ‘PL’ Dimension : 42.5mm Piston Material : Aluminum Alloy Caliper Body : 2 pieces Disc Diameter : 320mm(Max) Caliper Material : Aluminum Alloy Forged Disc Thicknesses : 3.5(Min)~5mm(Max) Weight (No Pads) : 0.69kg Hydraulic Threads : M10*1.25 Mounting Axial(Lug) >Pitch : 40mm  >Offset : 26.5mm​ PAD FAMILY(UB01) PAD Area : 21.77cm² PAD Depth : 34mm  PAD Thickness - >Organic : 8.5mm (Plate Thickness 3mm) >Sinter : 8mm (Plate Thickness 3.2mm)  PAD Weight : 0.19kg (2 Pieces)
