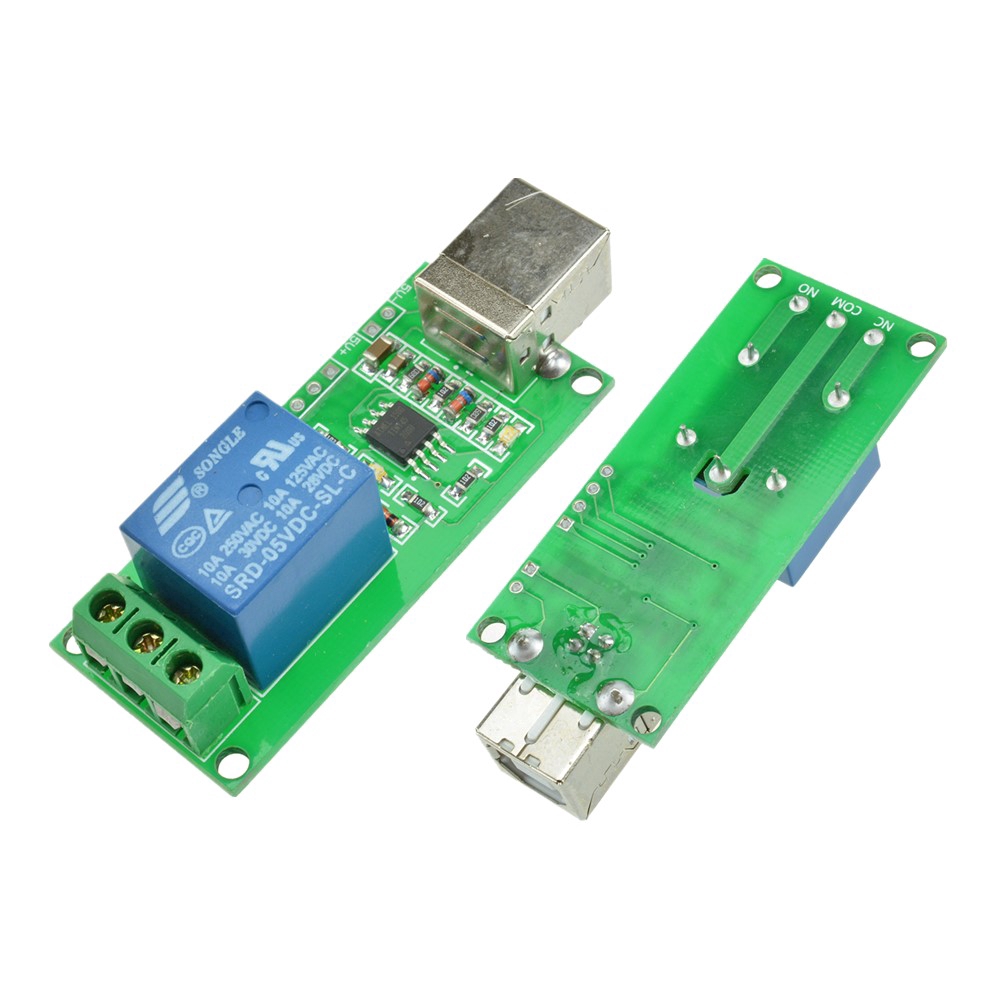

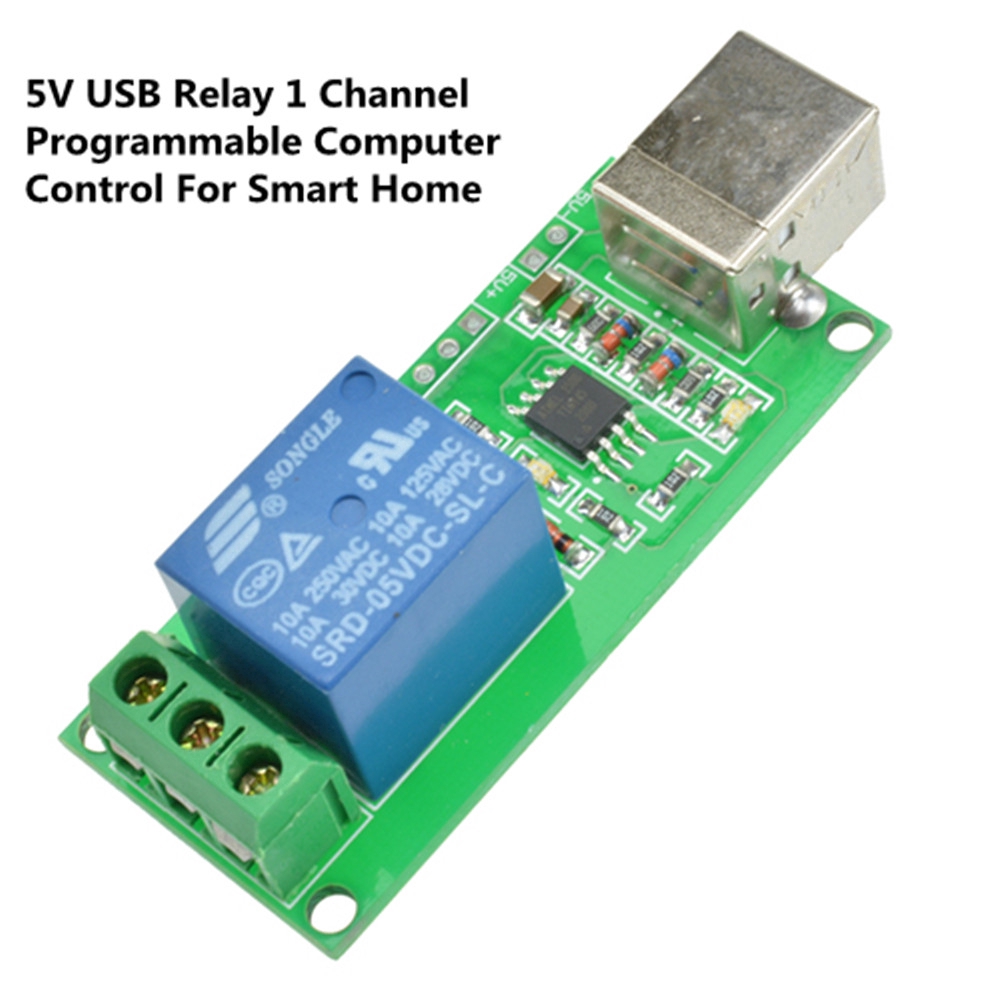

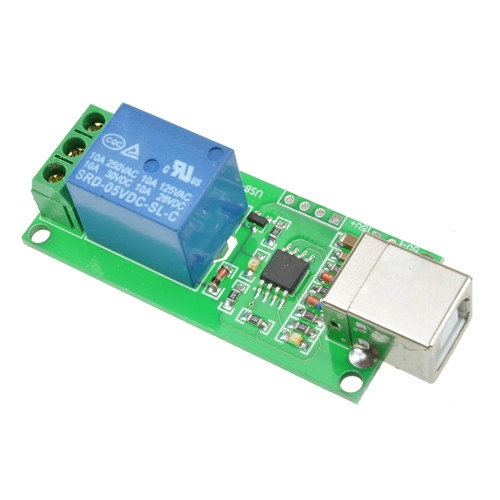

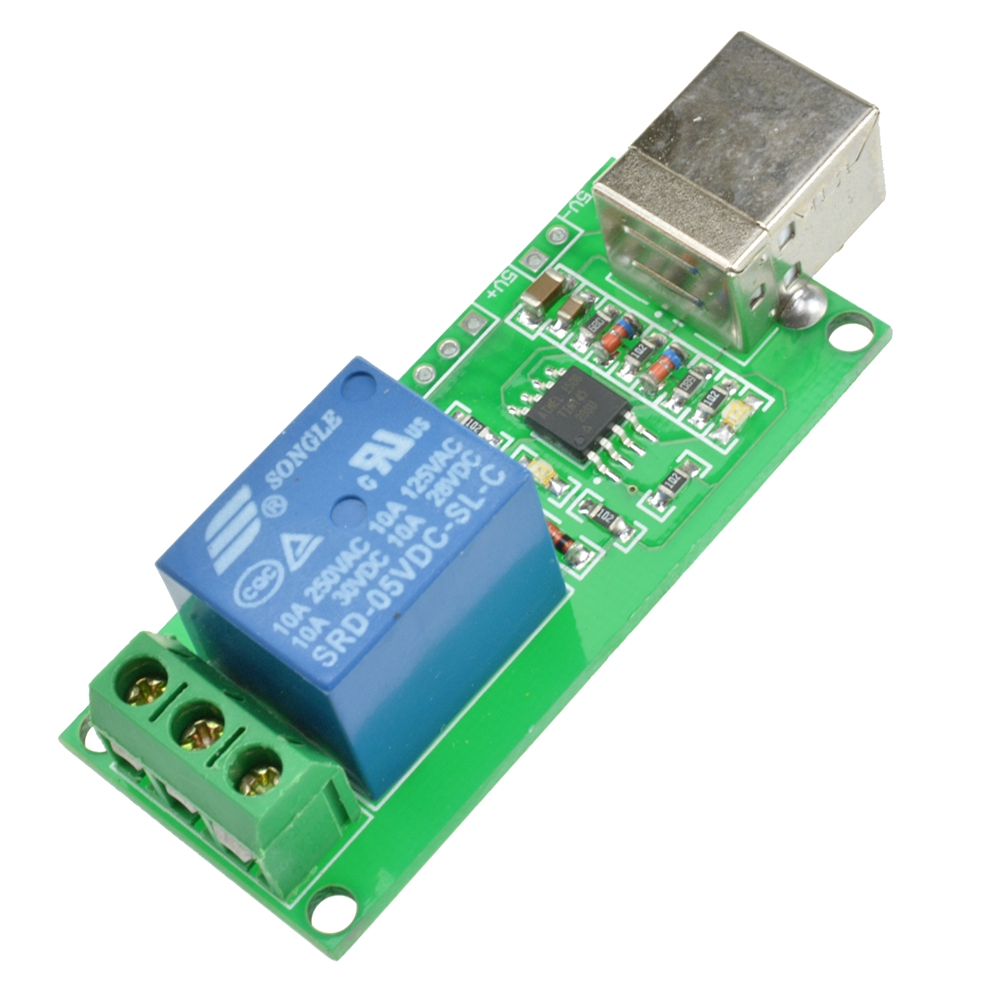

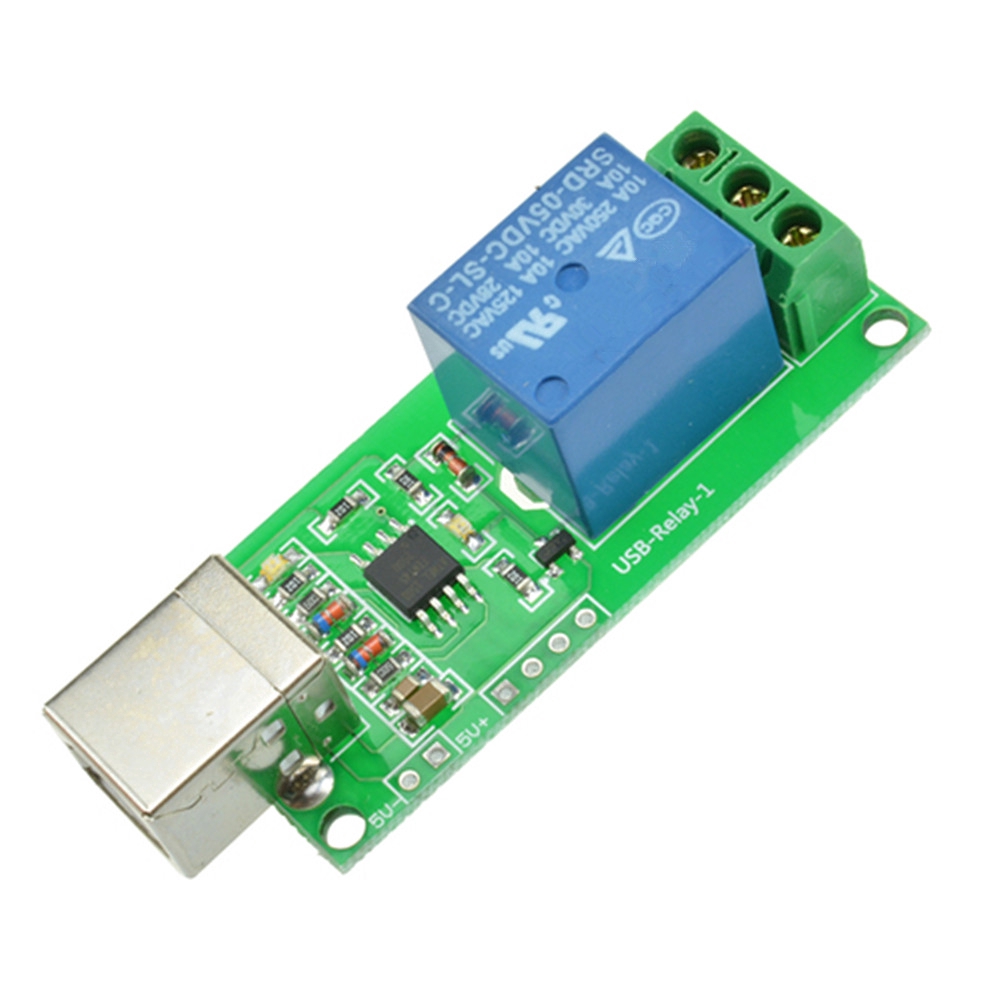

DIYMORE | 5V USB Relay 1 Channel Programmable Computer Control Relay Board For Smart Home

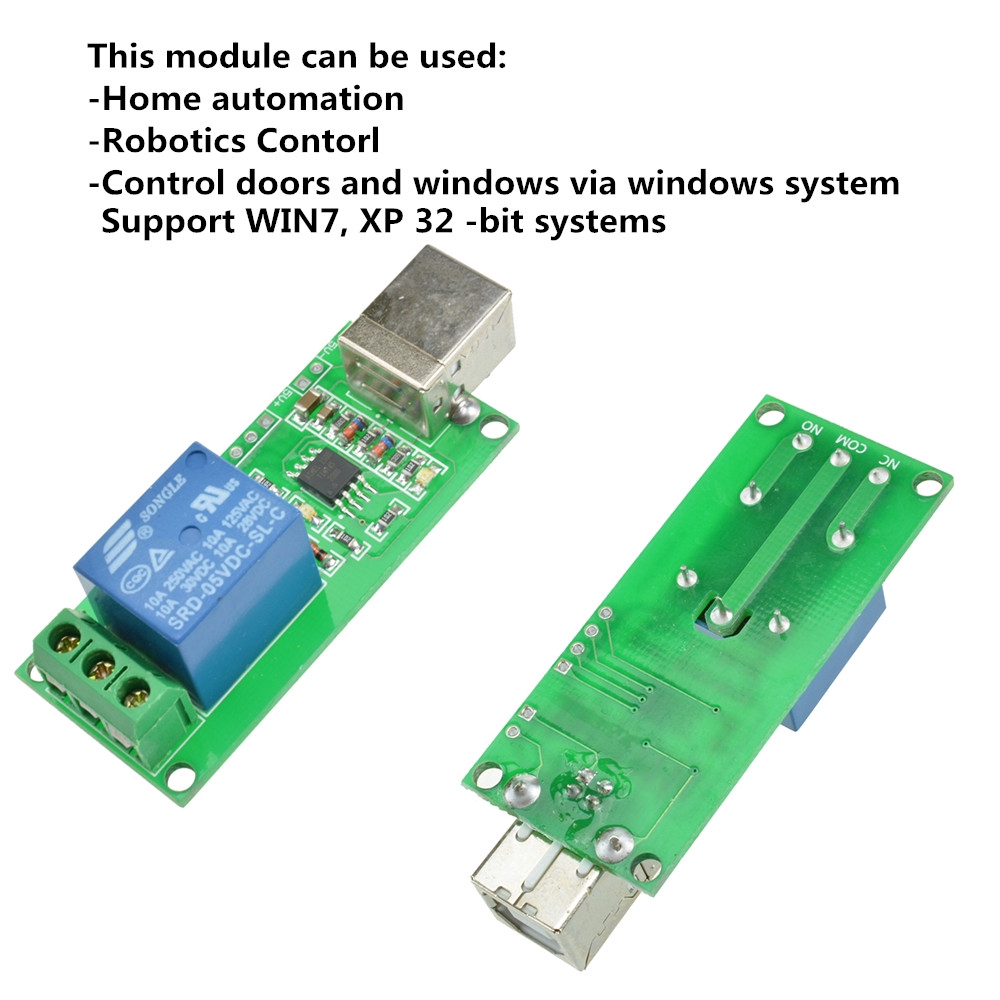

This is USB controlled relay Board with 1 channels. It’s used the HID technology, so no need to install any driver in windows system and you can easy to use. We also provide an application and the C++ develop library that you can easy to integrate this module to your project. The relay can control the maximum voltage 250V, 10A AC load and 30V, 10A DC load Support WIN7, XP 32 -bit systems This module can be used: -Home automation -Robotics Contorl -Control doors and windows via windows system -Contorler power supply PCB SIZE: 56mm*24mm Module Parameter Relay Type:Songle 5V Relay Relay QTY:1 Contack Type:NC/ COM/ NO Input Voltage:DC 5V Input Current:》300mA Application 1. Supply the application code (Green indicates that the relay is closed , the red disconnect) 2. Supply C++ lib and dll for building your own project (include usb_relay_device.dll, usb_relay_device.lib, usb_relay_device.h). Open the device , the software automatically obtain the current working state relay Package Included: 1 x  5V USB Relay 1 Channel Programmable Computer Control For Smart Home #DIYMORE #ComputerControl #Control #relayBoard #ControlBoard
