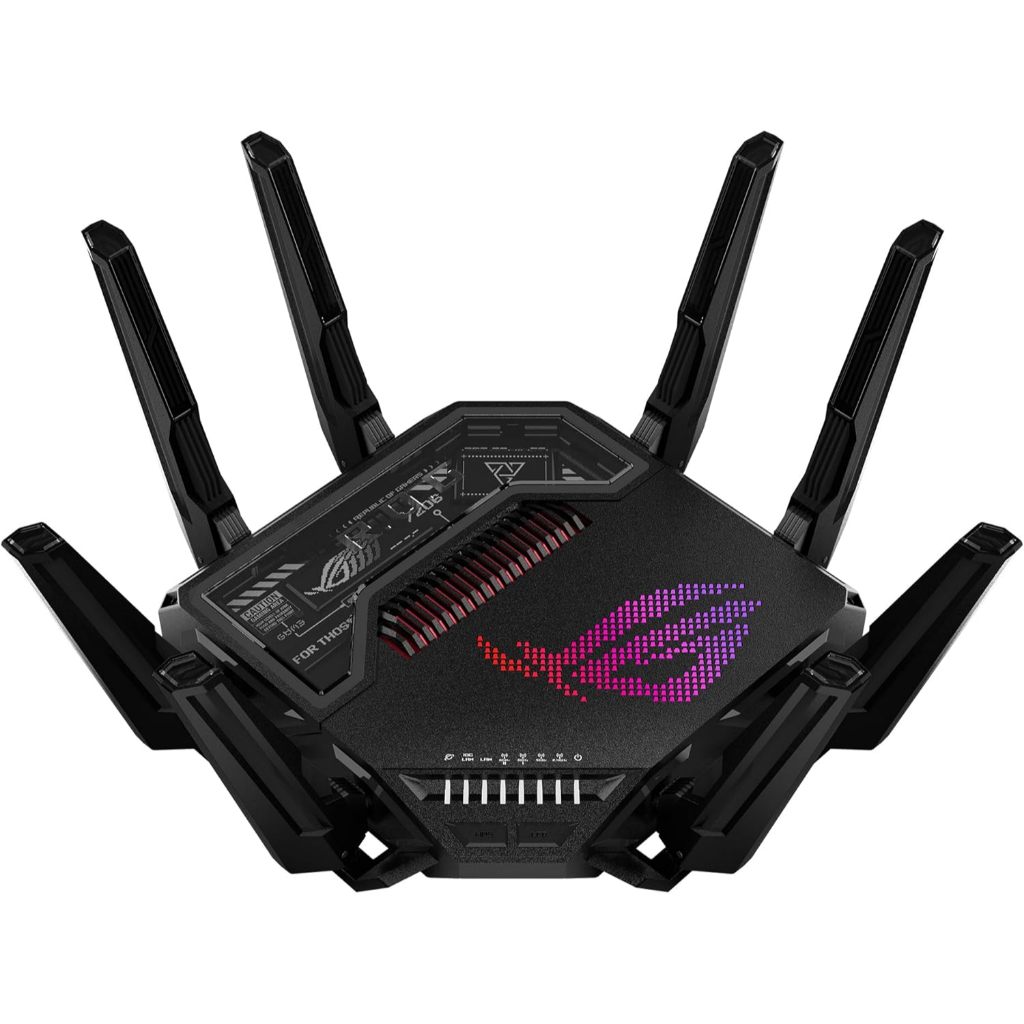

ROUTER (เร้าเตอร์) ASUS ROG RAPTURE (GT-BE98) - QUAD-BAND WIFI 7 GAMING ROUTER

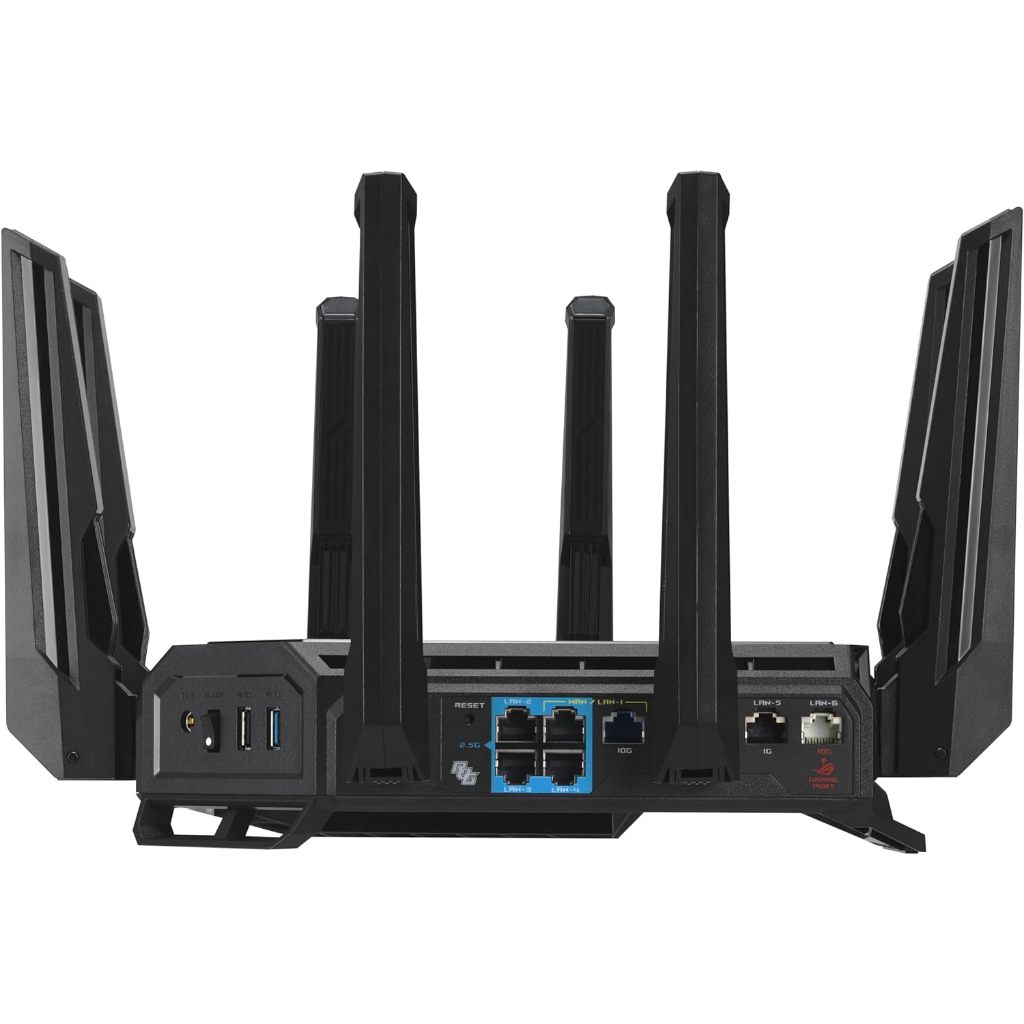

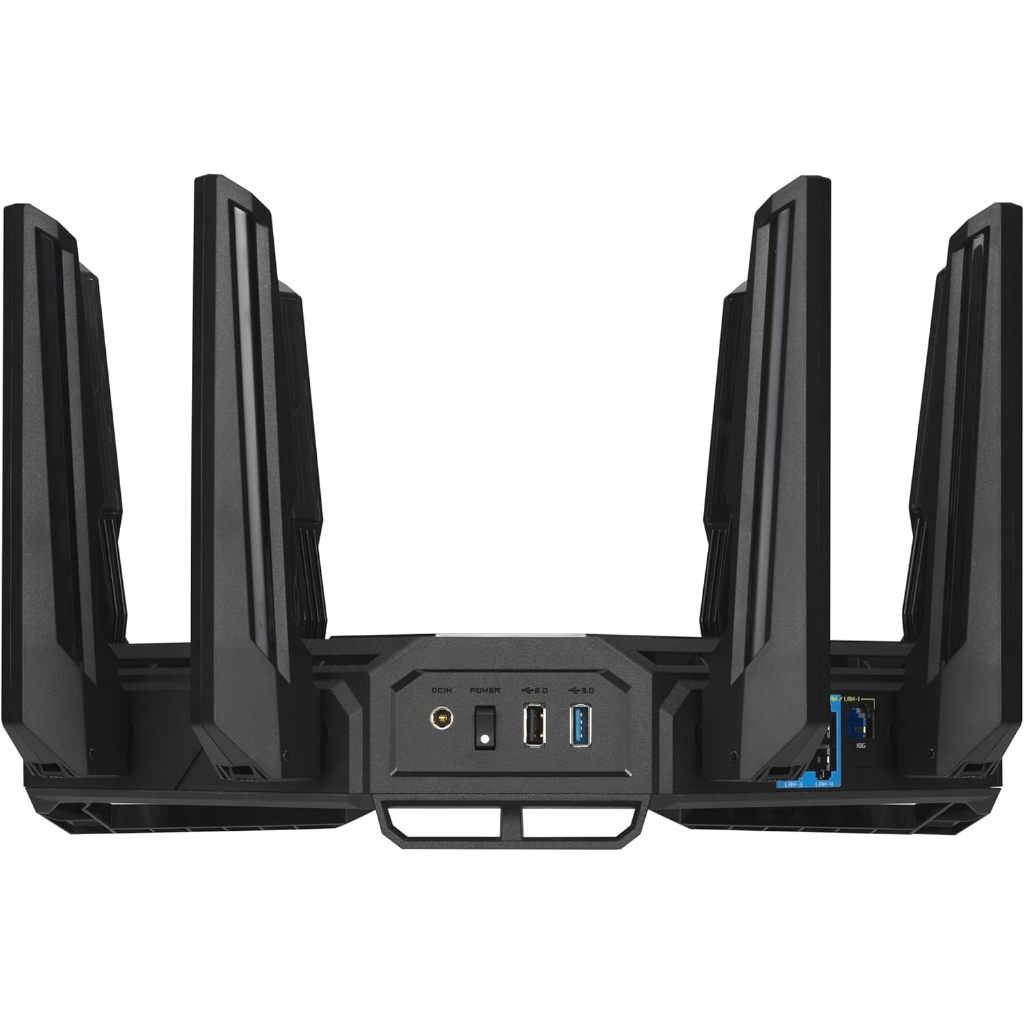

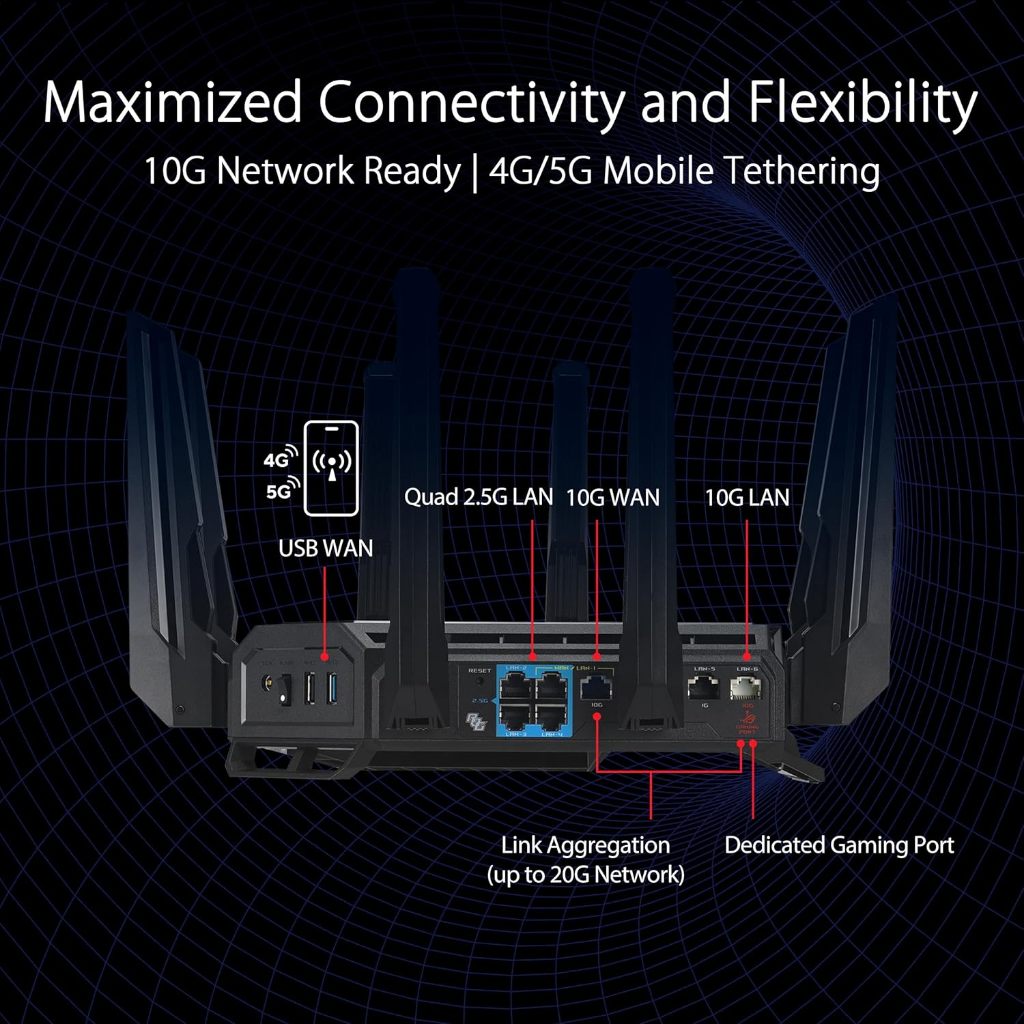

Specification Detail Model Name : GT-BE98 Network Standard • WiFi 6 (802.11ax) • WiFi 7 (802.11be) • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n • IEEE 802.11ac • IPv4 • IPv6 Product Segment : BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps WiFi Data Rate • 2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps • 5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp • 5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp • 6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp Antenna : External antenna x 8 Transmit / Receive • 2.4GHz 4x4 • 5GHz-1 4x4 • 5GHz-2 4x4 • 6GHz 4x4 Processor : 2.6GHz quad-core processor Memory : 256 MB Flash and 2 GB RAM Boosts Speed • OFDMA (Orthogonal Frequency Division Multiple Access) • Beamforming: standard-based and universal • 4096-QAM high data rate • 20/40/80/160/320 MHz bandwidth Operating Frequency : 2.4 GHz / 5 GHz / 6 GHz I/O Ports • 1 x 10Gbps for WAN/LAN • 1 x 2.5Gbps for WAN/LAN • 1 x 10Gbps for LAN • 3 x 2.5Gbps for LAN • 1 x RJ45 10/100/1000Mbps for LAN • 1 x USB 3.2 Gen1 • 1 x USB 2.0 Buttons : WPS Button, Reset Button, Power Switch, LED control Button LED Indicator • WAN(Internet) x1 • 10G LAN x1 • 1G/2.5G LAN x1 • 6GHz x1 • 5GHz-1 x 1 • 5GHz-2 x 1 • 2.4GHz x1 • Power x1 Power Supply • AC Input : 110V~240V(50~60Hz) • DC Output : 19.5 V with max. 3.33 A current Package Content • GT-BE98 quad-band gaming router • RJ-45 cable • Power adapter • Quick Start Guide • Warranty card Product Weight (g) : 2000 g Product Dimensions : 350.41 x 350.41 x 220.6 mm AiMesh • Primary AiMesh Router • AiMesh Node Game • Game Boost / Acceleration • WTFast • ROG_First • OpenNAT (Game Profile) • Gaming Port Parental Control (Allow you to block access to unwanted websites and apps.) (Parental Control Customized Internet Schedule) • Maximum Parental Control profile : 64 • Maximum Parental Control content filter rule : 64 Guest Network (The Guest Network provides Internet connection for guests but restricts access to your local network.) • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5 Guest Network Connection time limit Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal Security WiFi Encryption : WPA/WPA2/WPA3 Personal / WPA/WPA2/WPA3 Enterprise / Open System & OWE WPS / Let's Encrypt / DNS-over-TLS / SSH / Security Scan / Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 AiProtection AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking VPN • Instant Guard • VPN Client L2TP • VPN Client Open VPN • VPN Client PPTP • VPN Client WireGuard • VPN Server IPSec • VPN Server Open VPN • VPN Server PPTP • VPN Server WireGuard • VPN Fusion Traffic Control Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter Maximum Bandwidth Limiter Rule : 32 Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History WAN Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP Dual WAN • 3G / 4G LTE Dongle • 4G / 5G Auto Mobile Tethering Port Forwarding • Maximum Port Forwarding Rule : 64 Port Triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay LAN • DHCP Server • IPTV • LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 128 Wake on LAN (WOL) Wireless • MU-MIMO • UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 • Wireless Scheduler • Airtime Fairness • RADIUS Client • Universal Beamforming • Explicit Beamforming USB application • 4G / 5G Auto Mobile Tethering • File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 • Safely Remove Disk • AiCloud • Download Master • AiDisk • Media Server • Time Machine • Samba Server • FTP Server • Shared Folder Privileges User Interface Operating system : ASUSWRT Administration • Configuration Backup and Restore • Diagnosis Tools • Feedback System • System Log • New Device Connect Notification • Login Captcha • Connection Diagnosis • Auto Firmware Update
