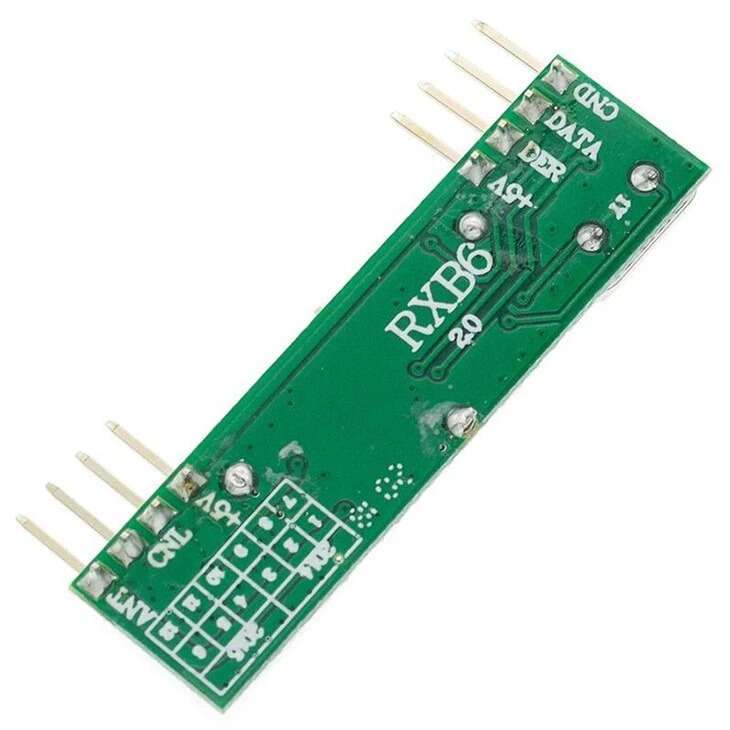

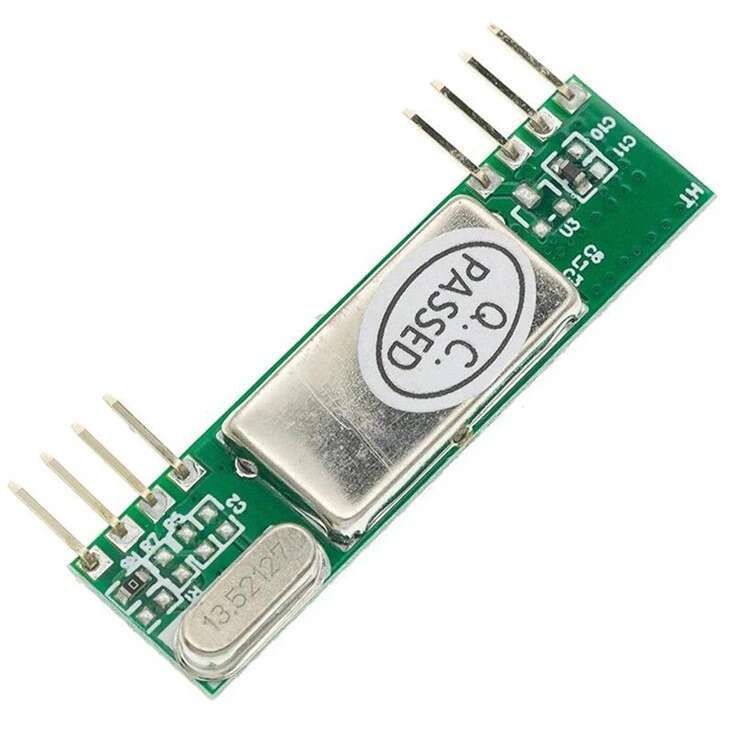

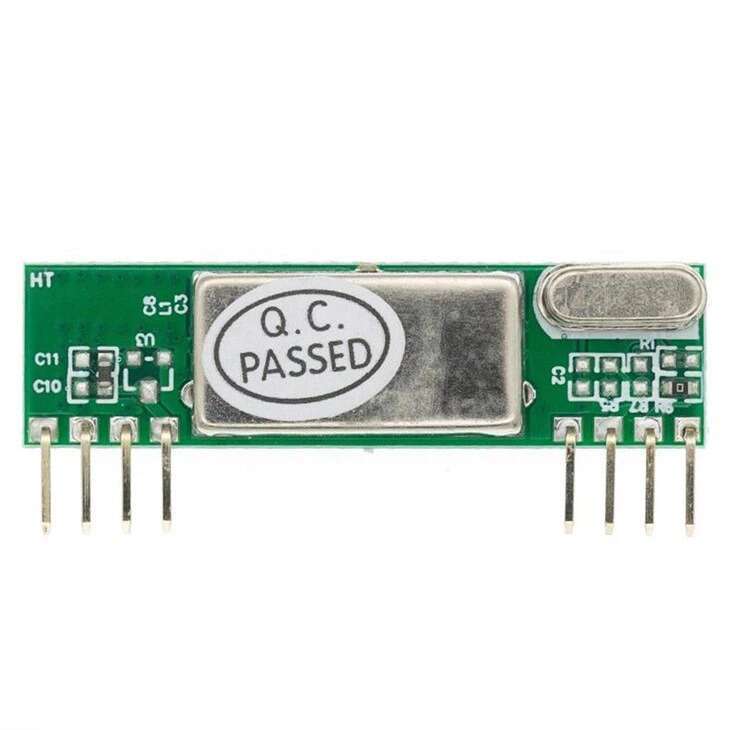

โมดูลรับสัญญาณไร้สาย ARM/AVR 433.92Mhz , RXB6 433Mhz Superheterodyne Wireless Receiver Module

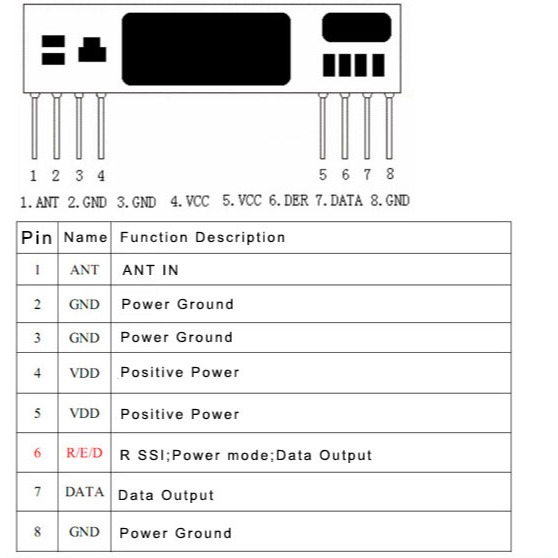

โมดูลรับสัญญาณไร้สาย ARM/AVR 433.92Mhz  , RXB6 433Mhz Superheterodyne Wireless Receiver Module  Specifications - Working Voltage: 2.7V ~ 5V DC - Data rate: 0kbps-9.6kbps - Current: 6mA(continuous operation) 0.9uA(standby) - Sensitivity: -112dBm - Frequency: 433MHz - Frequency tolerance of output: ±75KHz - Output Level: CMOS - Pin assignment: ANT, GND,GND,DATA,VDD - Dimension: 30mm(L)*9mm(W)*7mm(H) - Working temperature: -20.C~+70.C - Antenna Require to buy antenna separately, recommended 24 - 30cm long for a better result. RXB6 receiver pinouts Pin 1 = ANT - Antenna Pin 2 = Ground Pin 3 = Ground Pin 4 = Power Supply Pin 5 = Power Supply Pin 6 = DER - Options: 1) Data output-default;  2)Battery Saving Mode Pin 7 = Data Output Pin 8 = Ground
