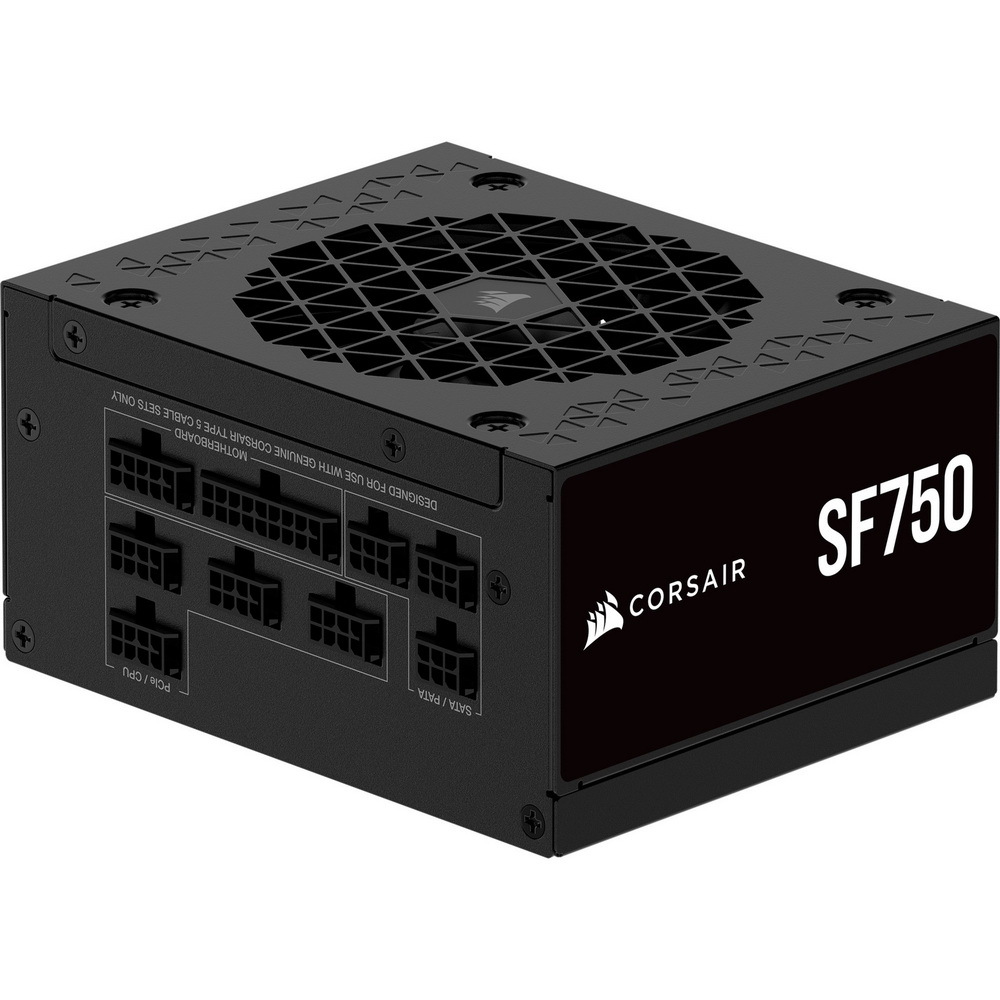

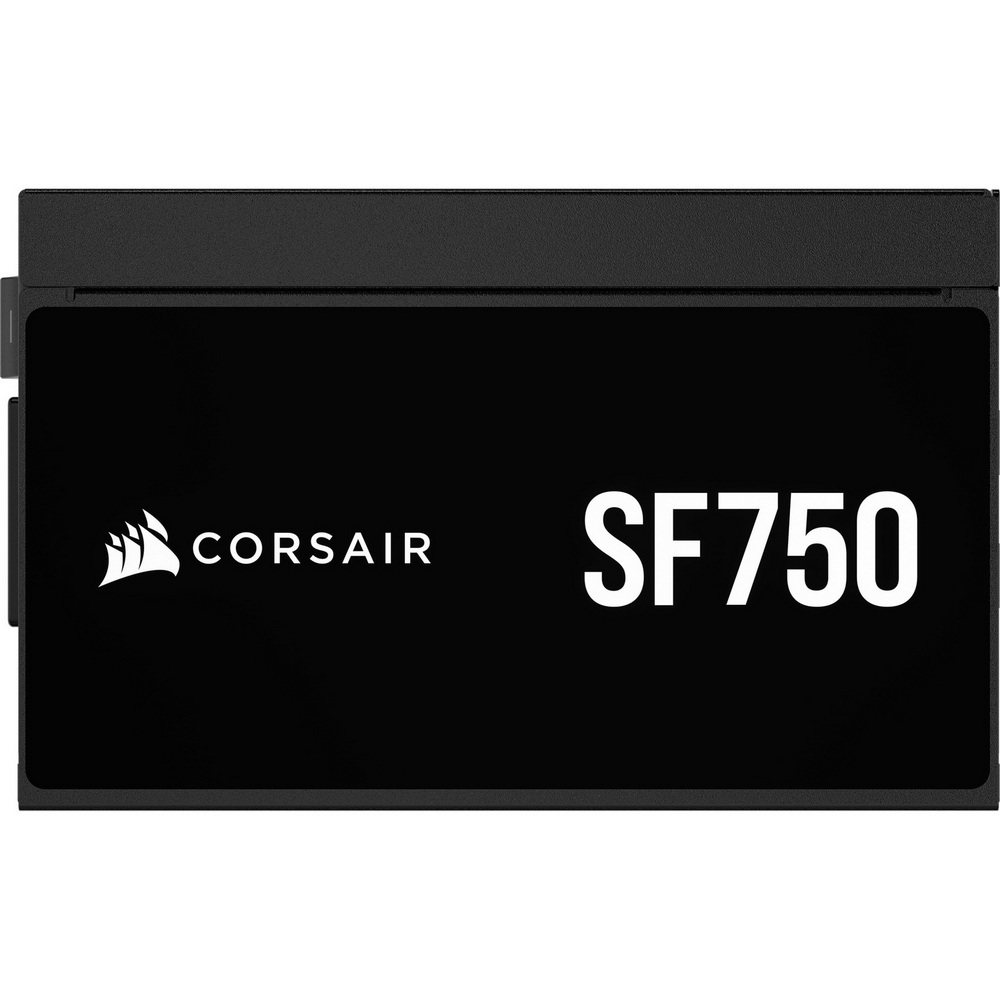

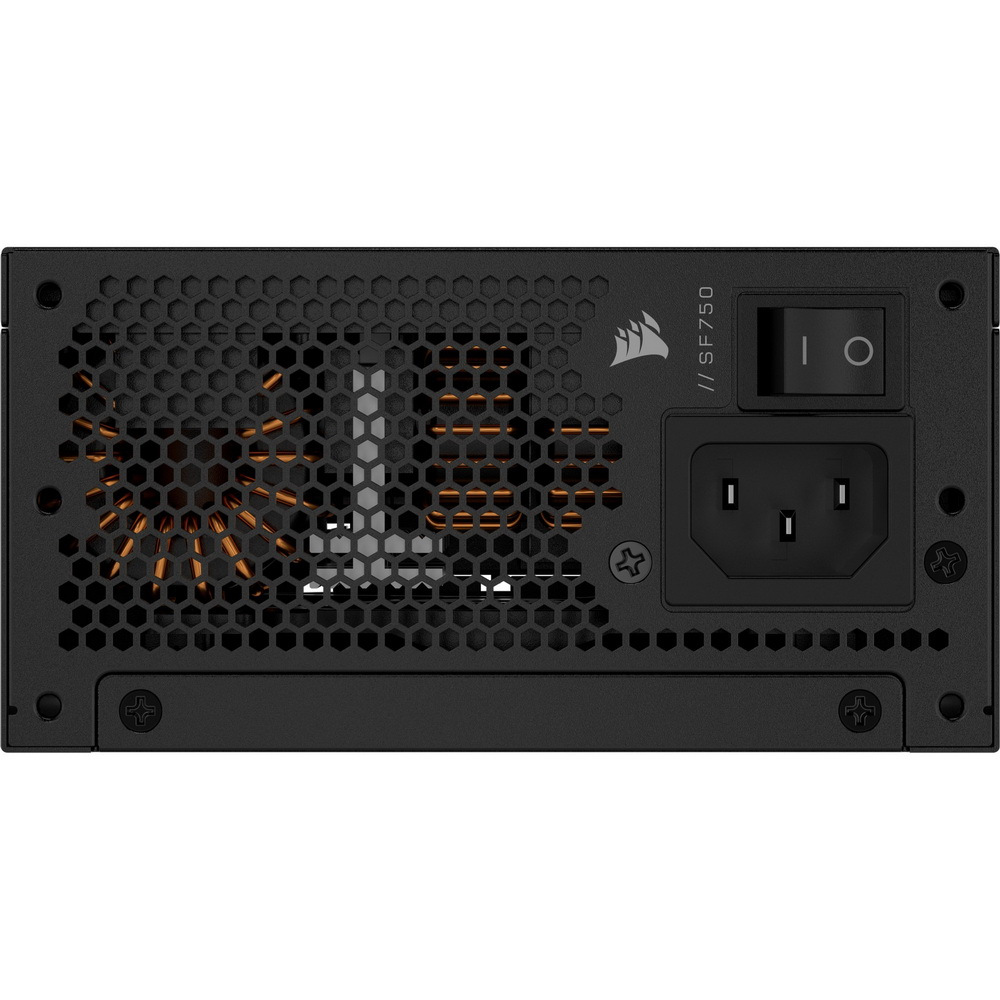

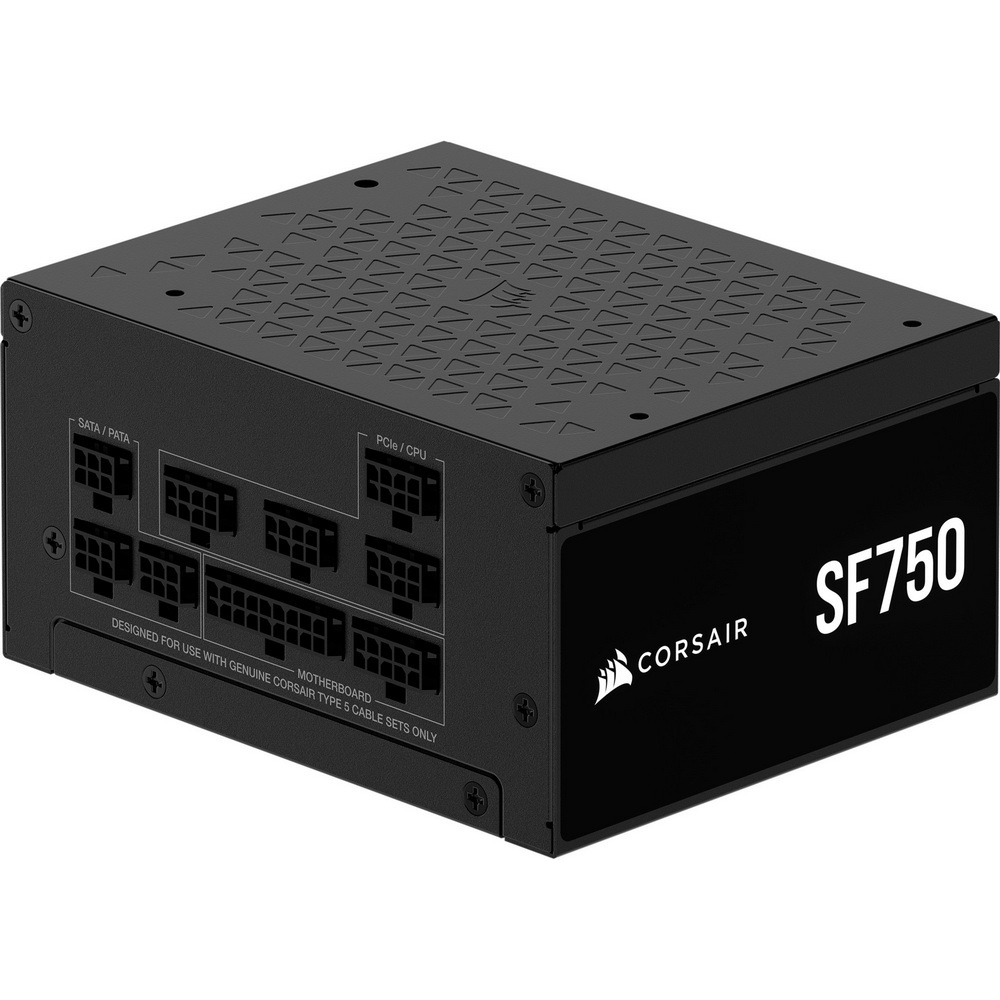

CORSAIR SF750 (2024) 750 Watt (80+ Platinum ) Fully Modular SFX POWER SUPPLY (CP-9020284-NA)

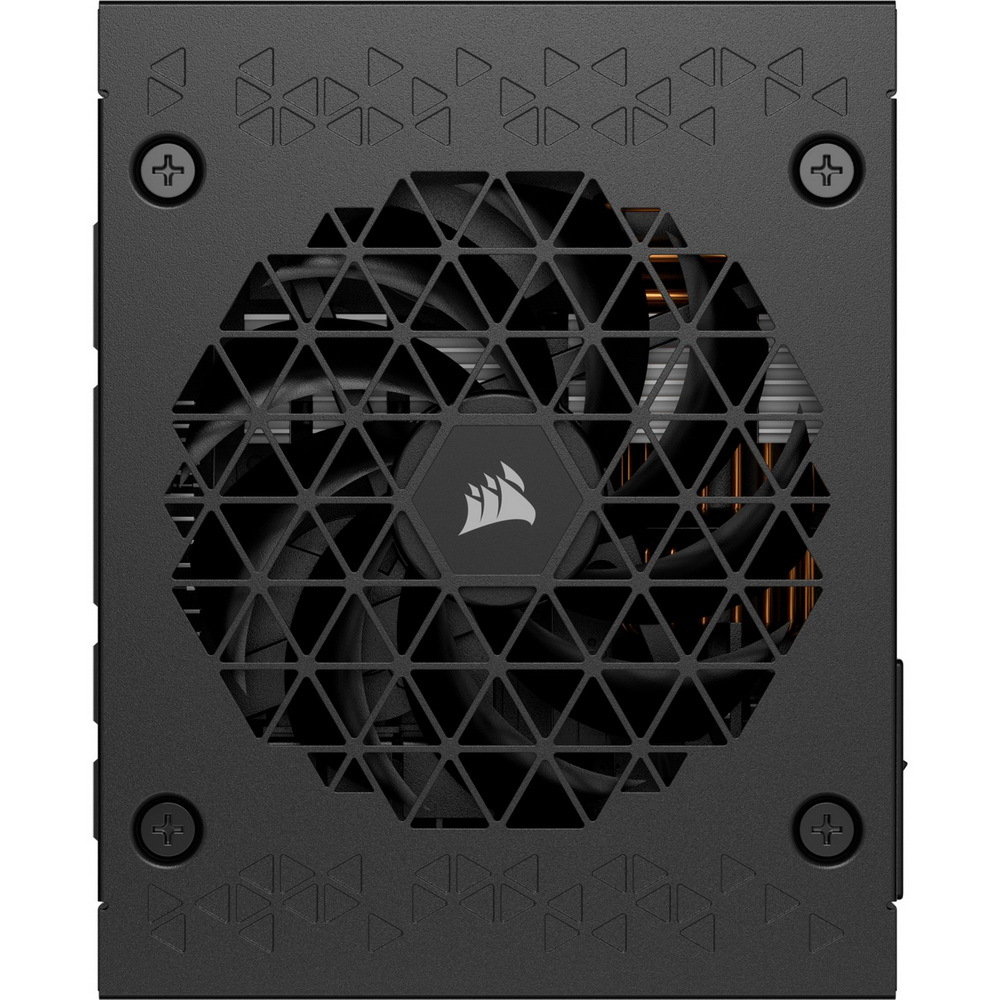

SF Series SF750 Fully Modular 80 PLUS Platinum SFX Power Supply Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power. Includes 80 PLUS Platinum rated efficiency ATX 3.1 compliant, supporting PCIe 5.1 Fully modular, Type-5 Micro-Fit PSU connectors 92mm PWM cooling fan with Zero RPM mode The Corsair SF750 (2024) is the lowest capacity member of the upgraded SF line, offering ATX v3.1 compatibility and enough power to handle a potent gaming system. and added compliance with the latest ATX12V version 3.1 and PCIe version 5.1 standards. The 92mm PWM fan with Zero RPM mode is still there, but now with a Fluid Dynamic Bearing for the quietest operation at low loads. POWER OUTPUT TABLE The power supply uses a single +12V power rail and comes with all necessary protections for safe operation. SF750 +5V 20A +3.3V 20A +5V & +3.3V Max Output 130W +12V 62.5A +12V Max Output 750W +5Vsb 3.0A +5Vsb Max Output 15W Total Power 750W CABLE CONFIGURATION All cables are individually sleeved and for graphics cards you have the option to use either PCIe 6+2 or 12V-2x6 aka 12VHPWR straight out of the box. The connectors on the power supply are only compatible with CORSAIR Type-5 Micro-Fit connectors. Do not use cables that are not 100% compatible with these units, as this could result in catastrophic failure. SF750 ATX 24-Pin 1 (300mm ± 10mm) EPS/ATX12V 4+4-Pin 2 (400mm ± 10mm) PCI-E 6+2-Pin 2 (400mm ± 10mm) PCI-E 12+4-Pin aka 12V-2x6/12VHPWR 1 (400mm ± 10mm) SATA Cable (4xStraight plugs per cable) 1 (445mm ± 10mm) SATA Cable (4x Angled plugs per cable) 1 (445mm ± 10mm) PATA (3x plugs per cable) 1 (330mm ± 10mm) FAN NOISE LEVELS These power supplies are equipped with a 92mm PWM controlled zero RPM fan that only starts spinning when the power supply load reaches 40% or more. The following applies to each model: SF750 – Zero RPM up to 300W load 80 PLUS Platinum efficiency Model SF750 SKU Number CP-9020284 Form Factor SFX Measurements 100mm x 125mm x 63.5mm AC Input 100V - 240V / 10A-5A 80 PLUS / Cybenetic Rating 80 PLUS Platinum / Cybenetics Platinum ATX12V Version 3.1 EPS12V Version 2.92 PCIe Version 5.1 Ready Modularity Fully Modular CORSAIR Connector Type (PSU) Type-5 Micro-Fit Cable Type Individually Sleeved Fan Size / Type 92mm / Fluid Dynamic Bearing Zero RPM Mode Yes 105°C Rated Japanese Capacitors Yes Continuous Operating Temperature 50°C Warranty 7-Years SFX-to-ATXAdapter Bracket Yes Protections OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temp), OPP (Over Power)
