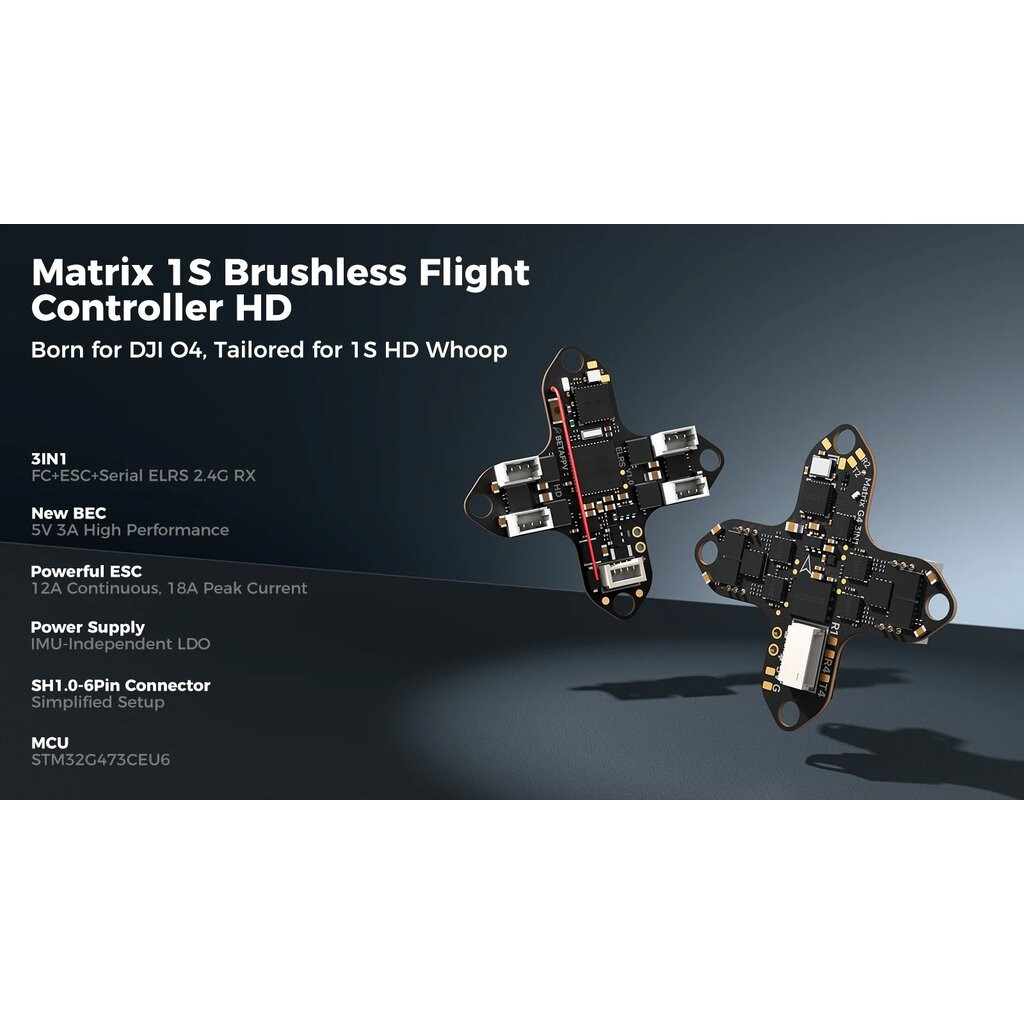

B3 B4 [AIO] Betafpv Matrix 1S Brushless Flight Controller (3IN1/4IN1) Meteor65 75 Pro O4 FC อุปกรณ์โดรน Drone

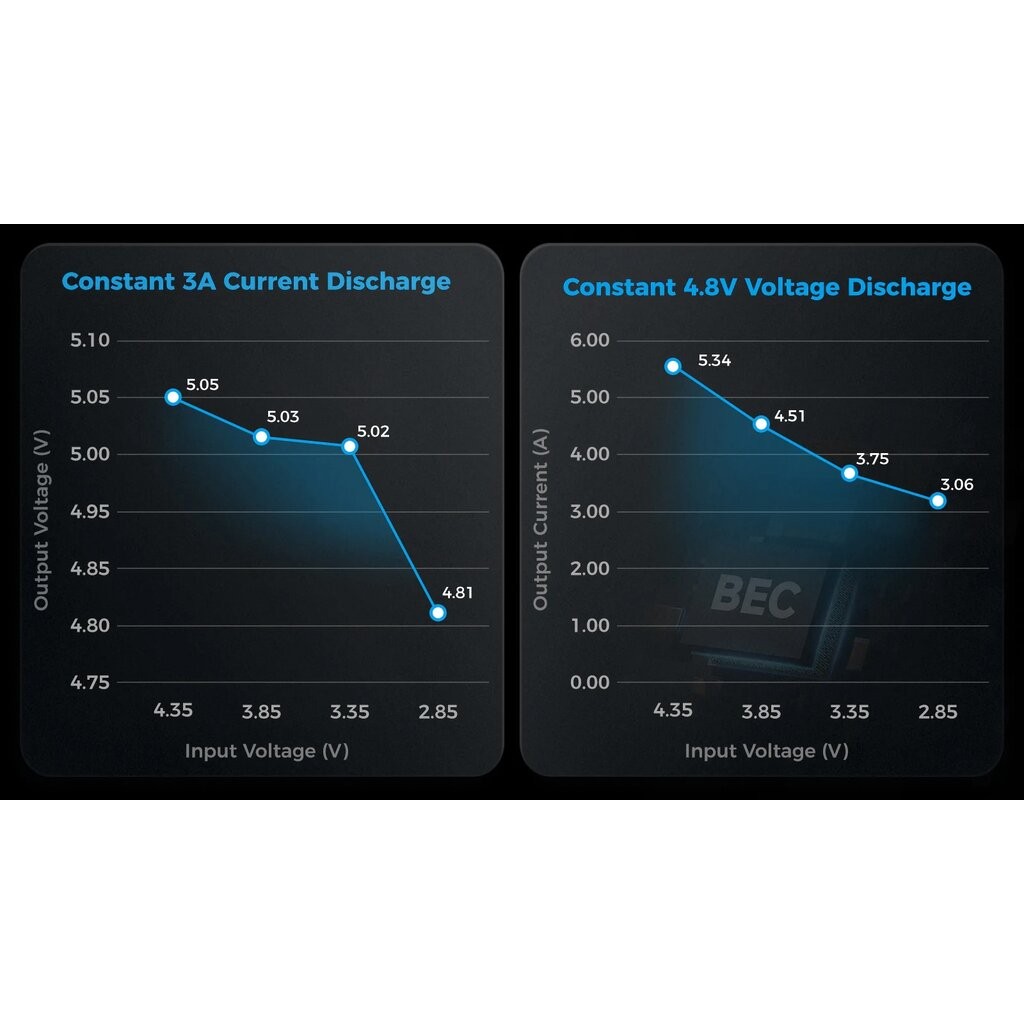

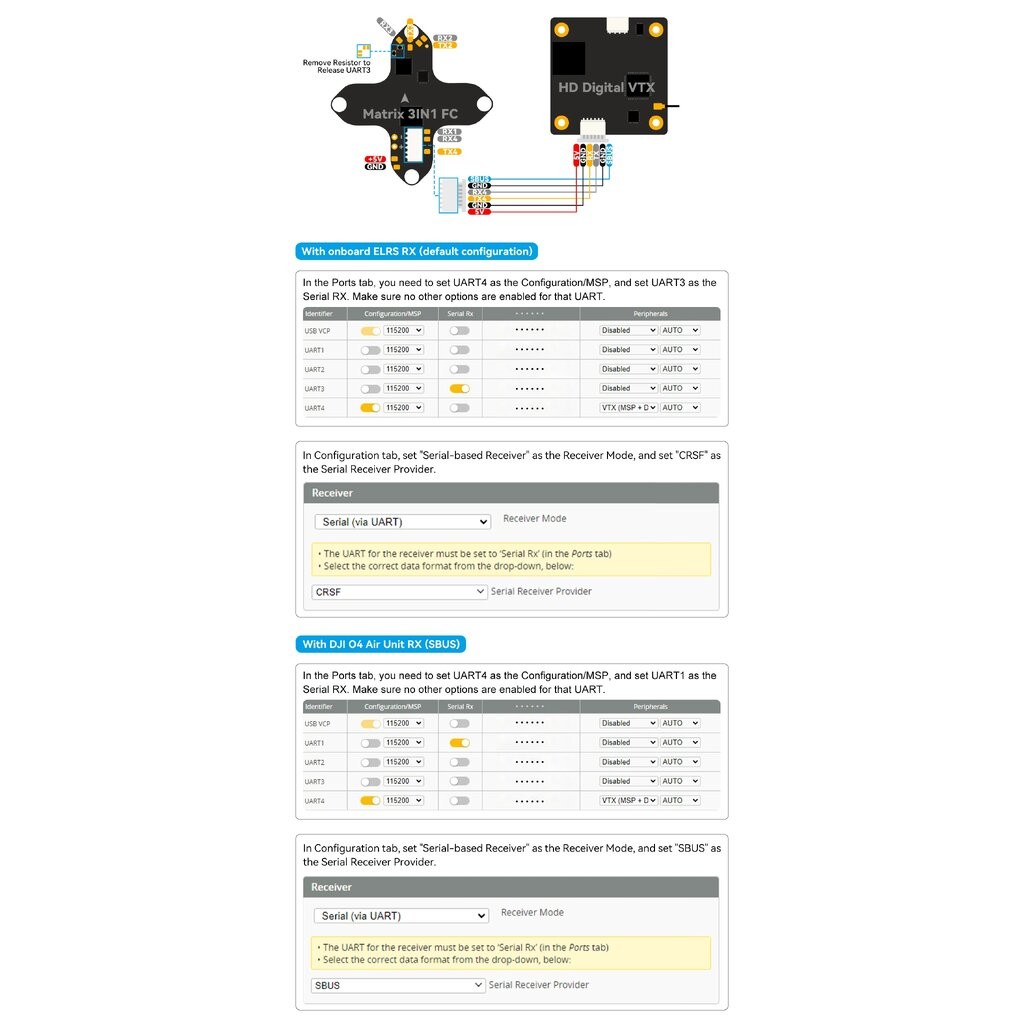

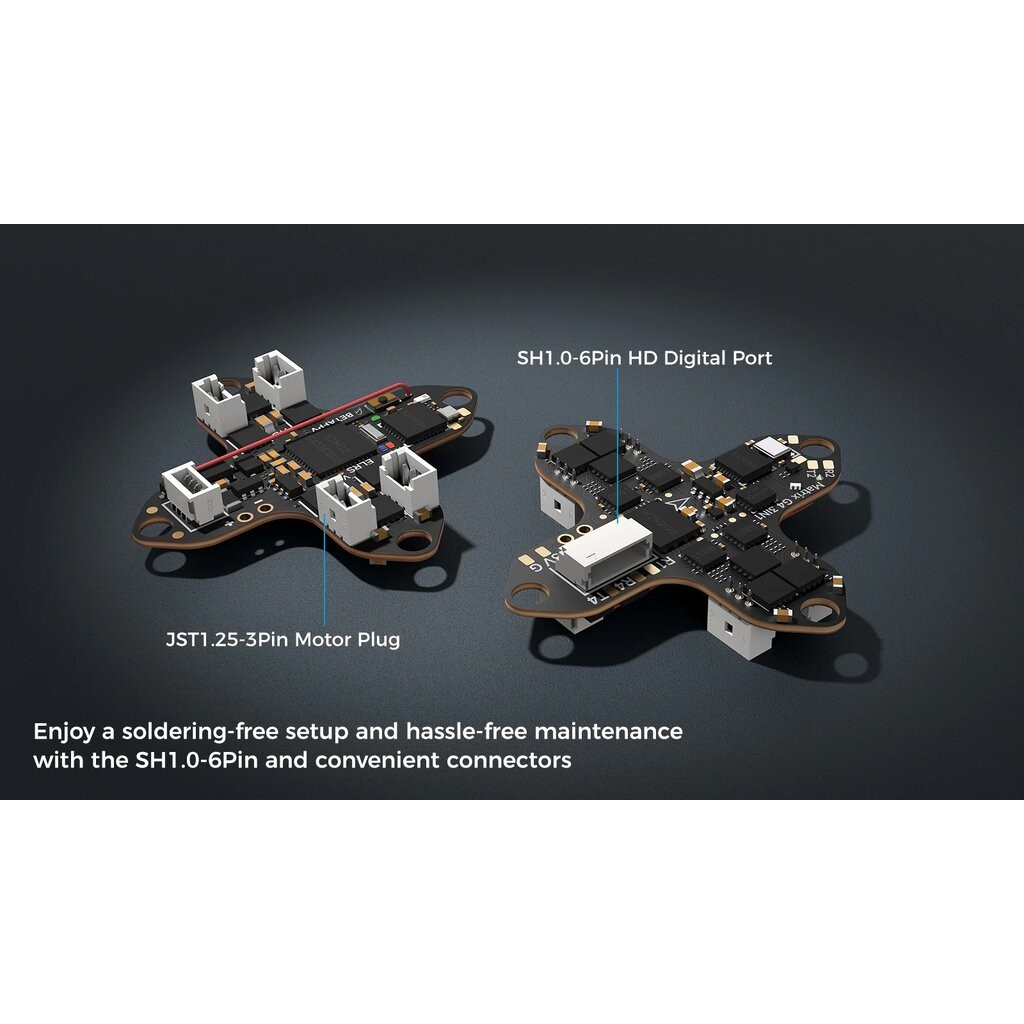

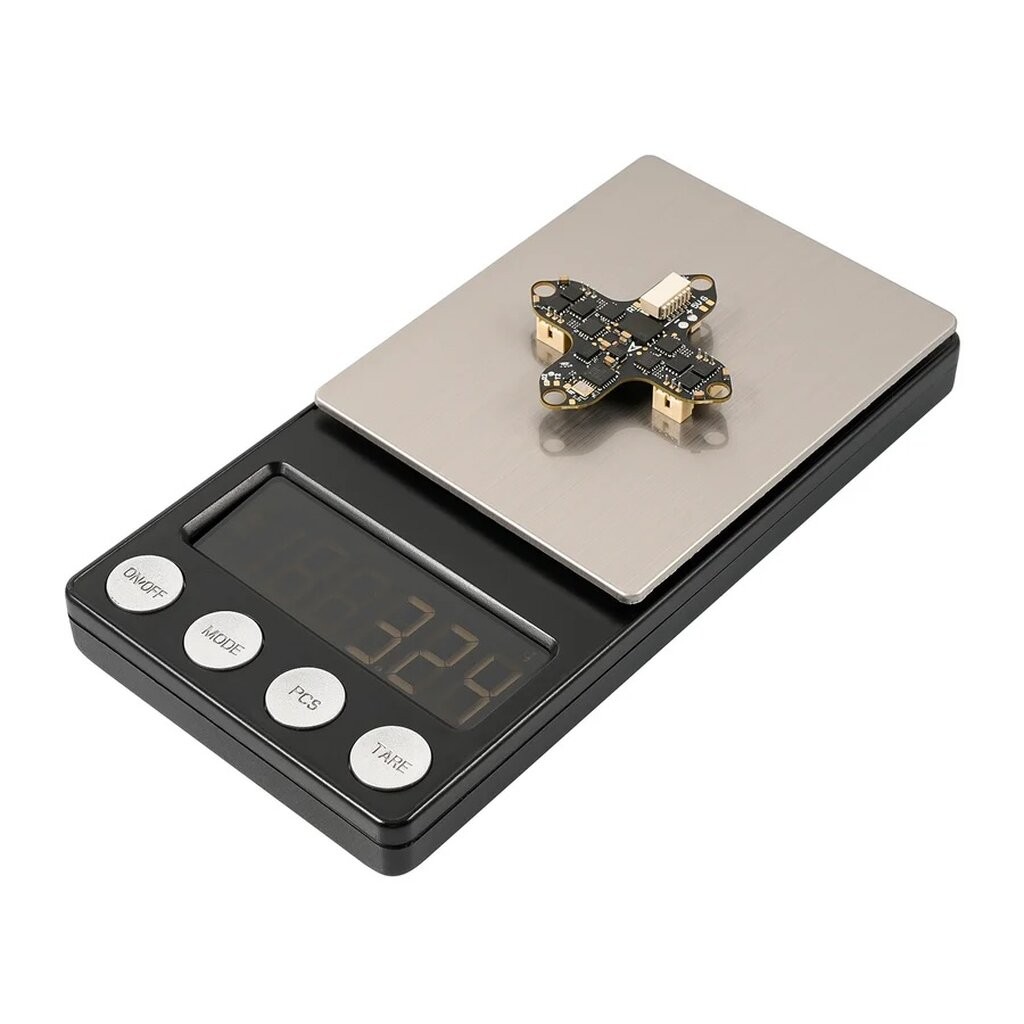

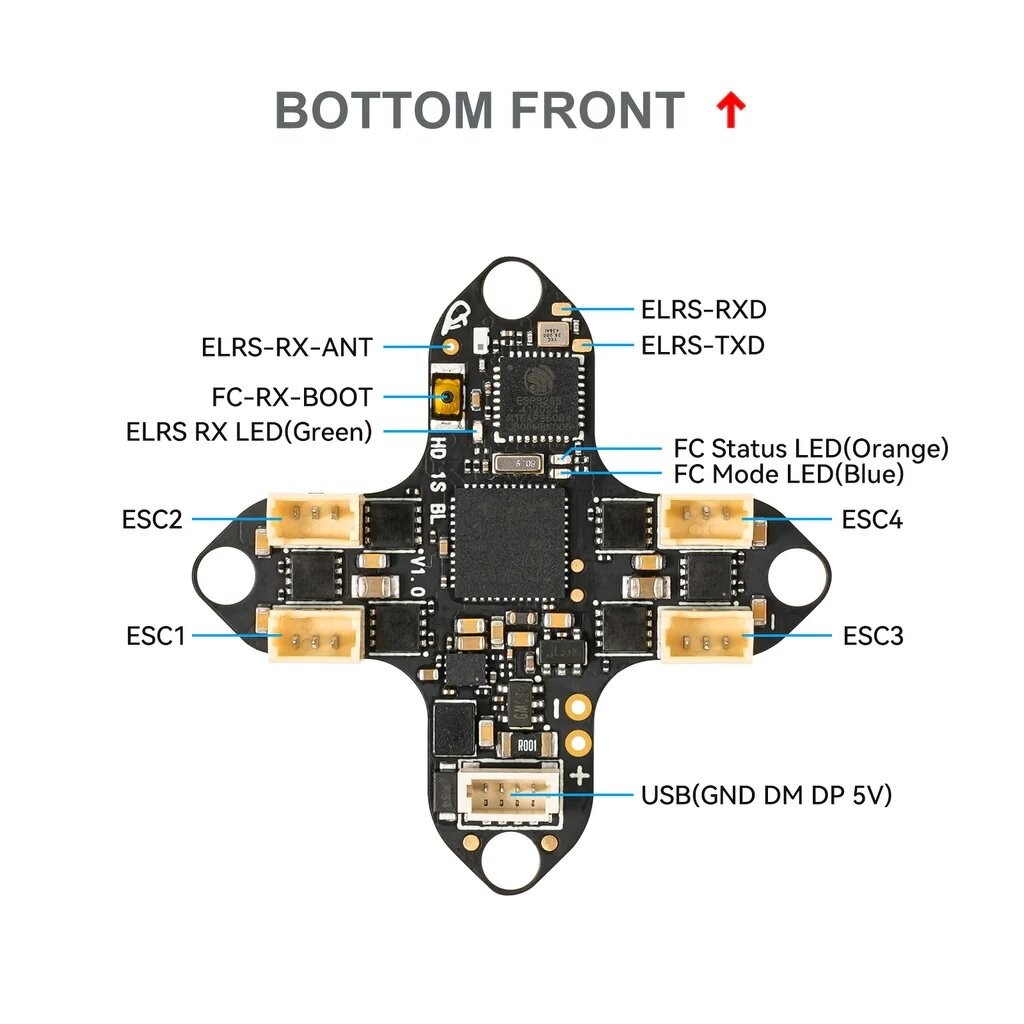

Specifications FC - MCU: STM32G473CEU6 (168MHz) - Gyro: ICM42688P - Blackbox memory: 16MB - Sensor: Voltage & Current - BEC: 5V/3A - UART: UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP) - ESC: 12A continuous - RX: Serial ELRS 2.4GHz (V3.4.3) - FC firmware: Betaflight_4.5.1_BETAFPVG473 - USB port: SH1.0-4Pin - HD Digital VTX Port: SH1.0-6Pin - Motor plug: JST1.25-3Pin - Battery connector: BT2.0 - Mounting size: 25.5mm x 25.5mm - Weight: 3.20.1g (battery connector excluded), 4.20.1g (battery connector included) ESC - Power input: 1S Only - Current: 12A continuous, 18A peak - ESC firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware - Digital signal protocol: DSHOT300, DSHOT600
