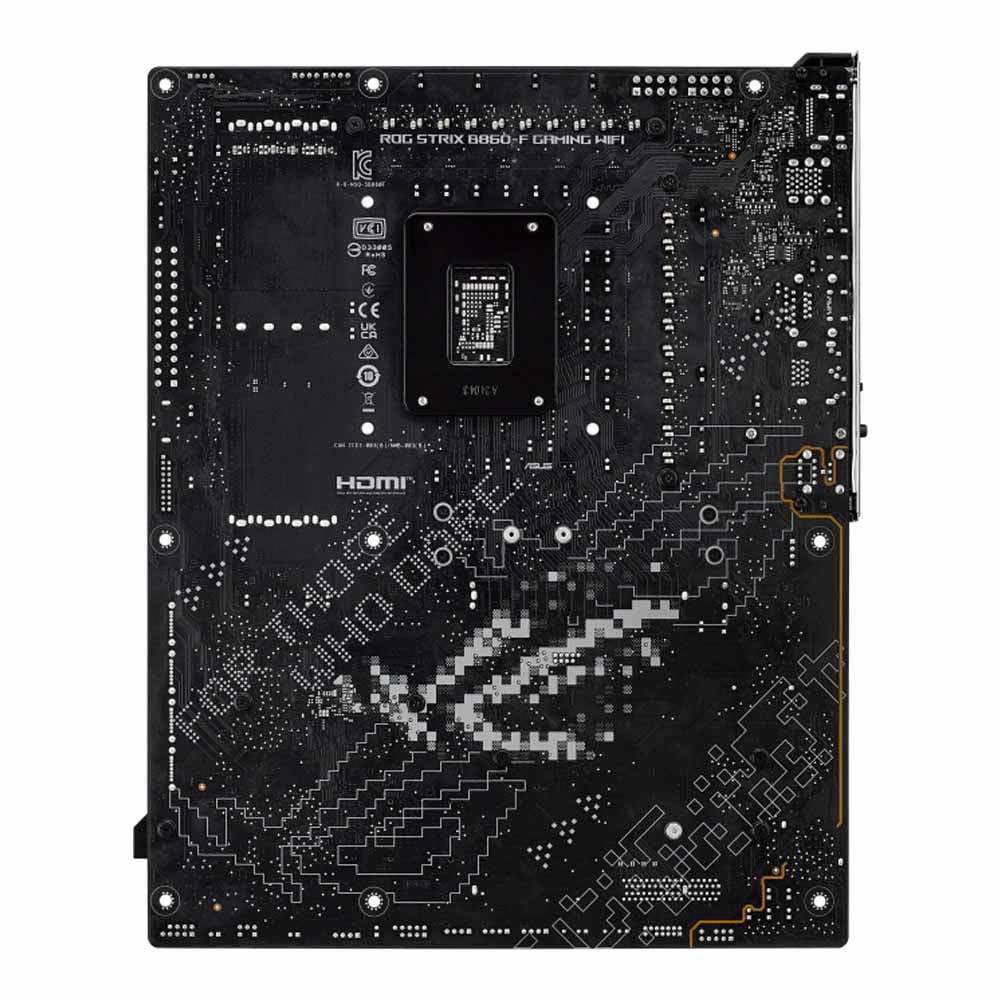

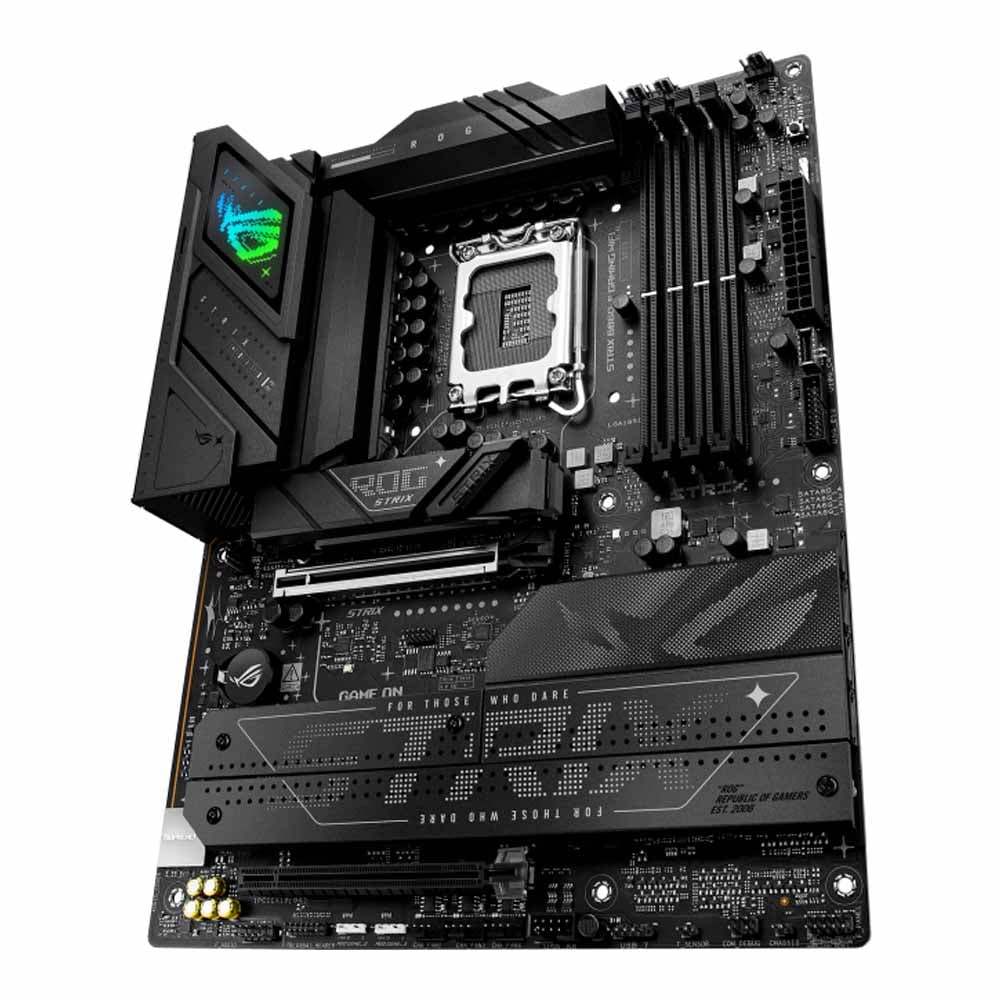

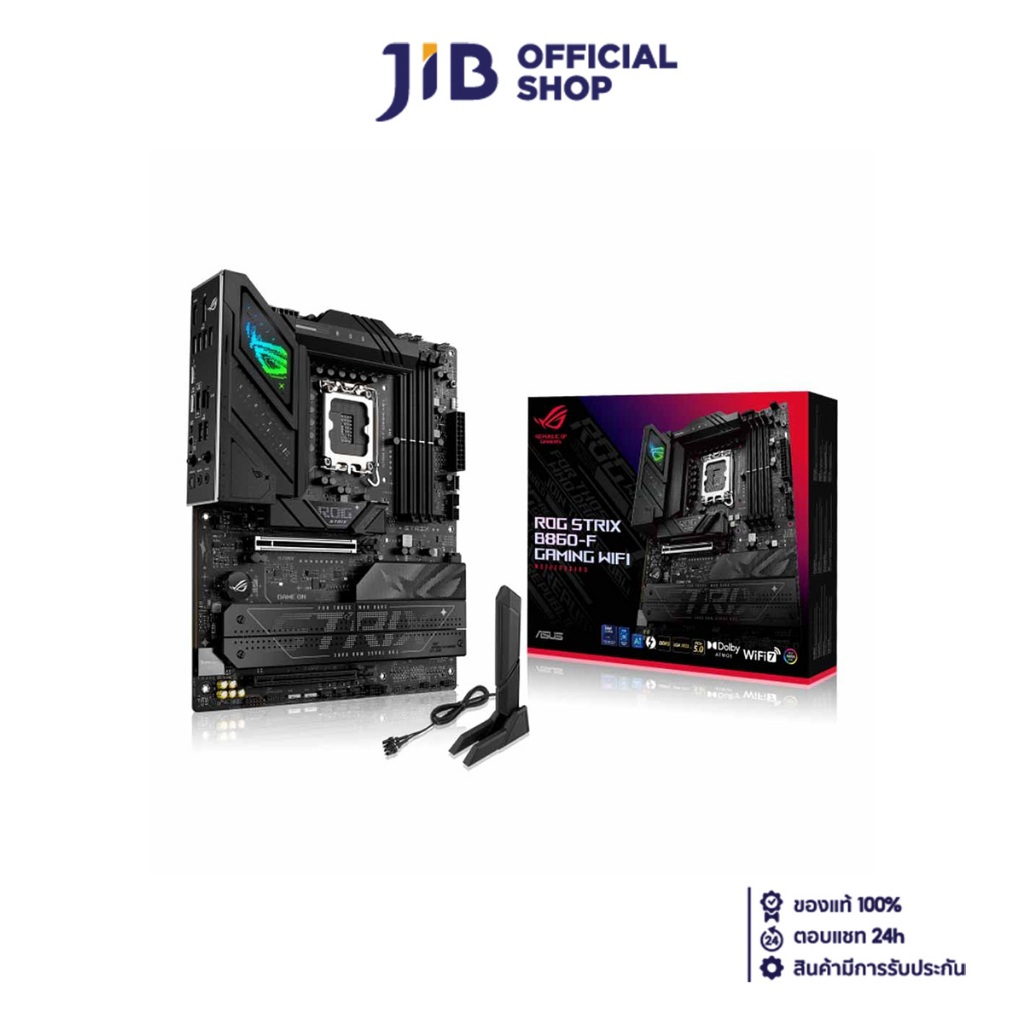

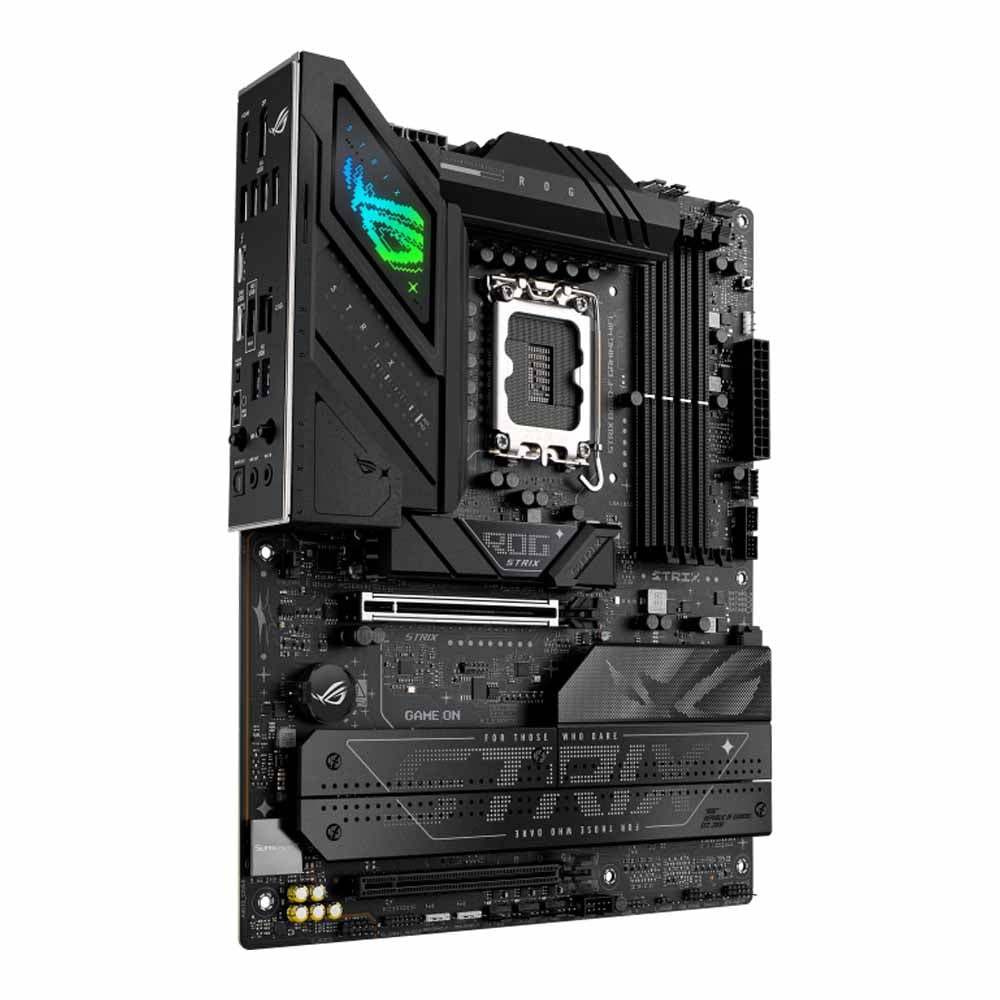

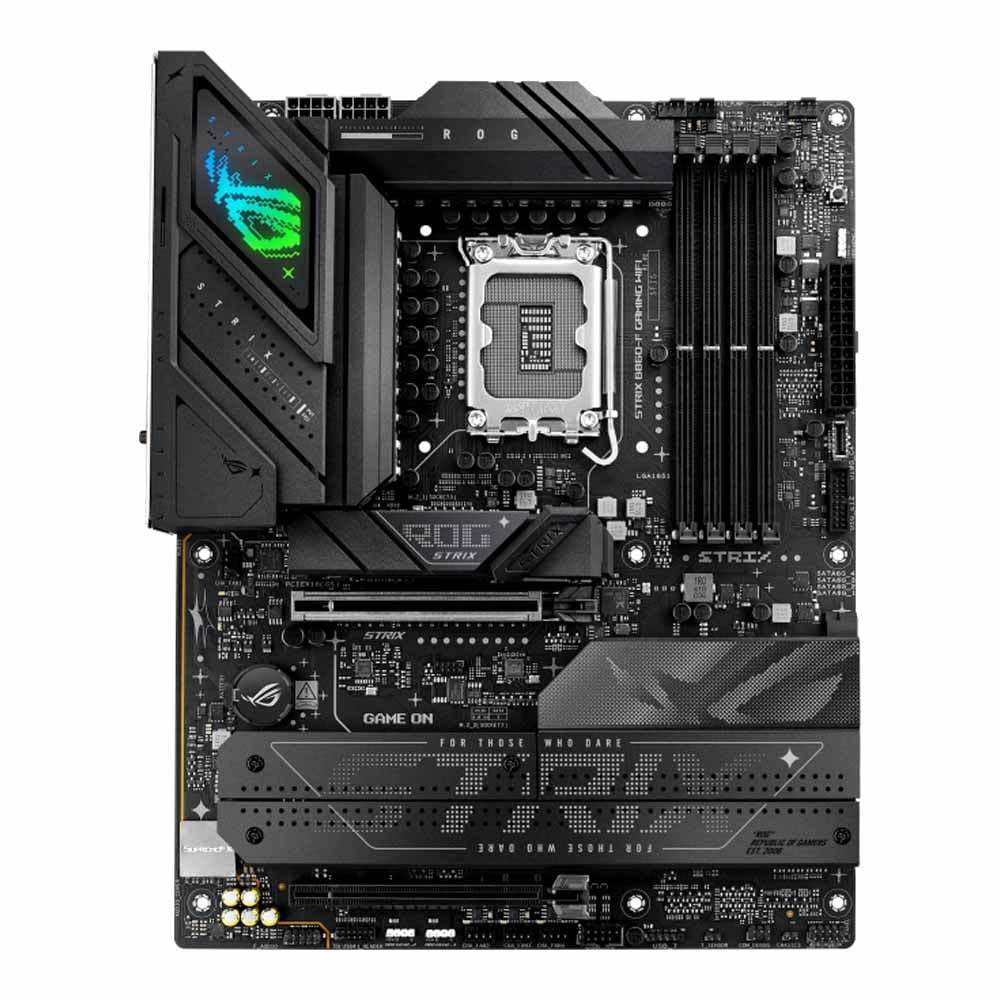

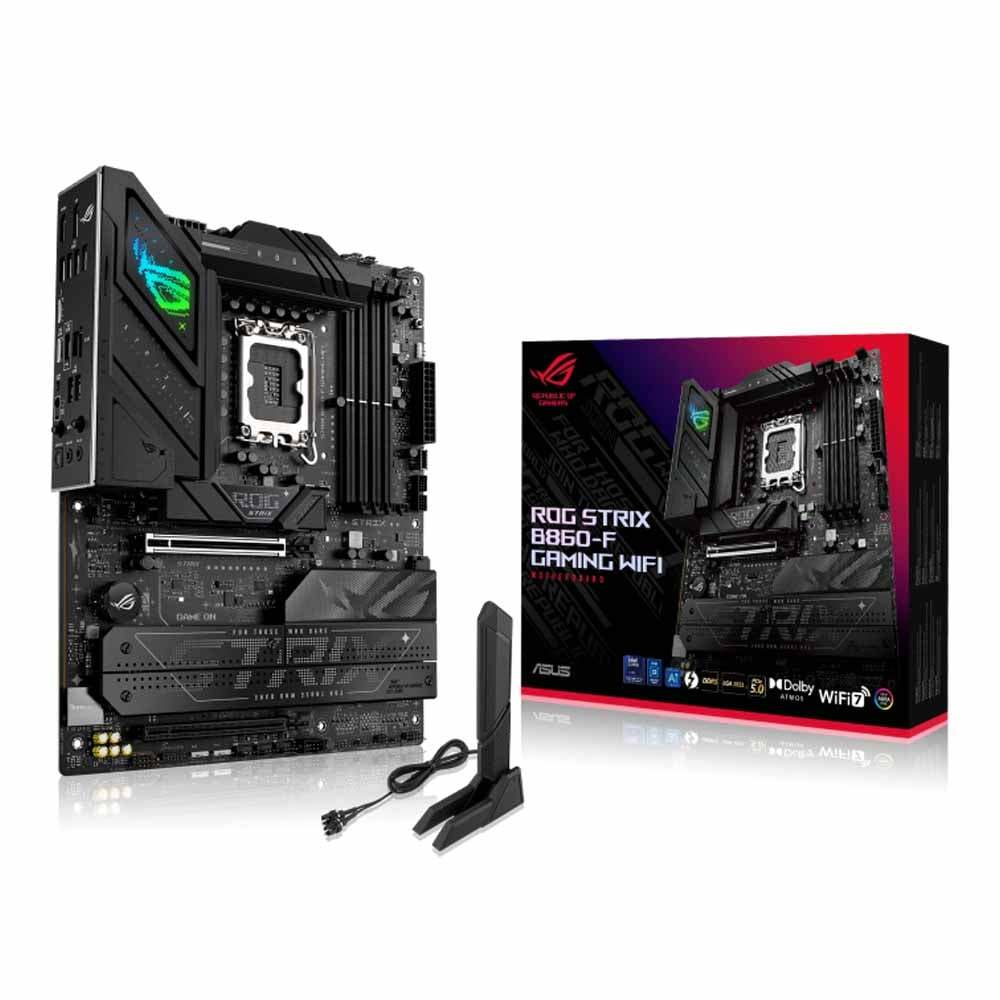

MAINBOARD (เมนบอร์ด) ASUS ROG STRIX B860-F GAMING WIFI (INTEL SOCKET 1851 DDR5 ATX)

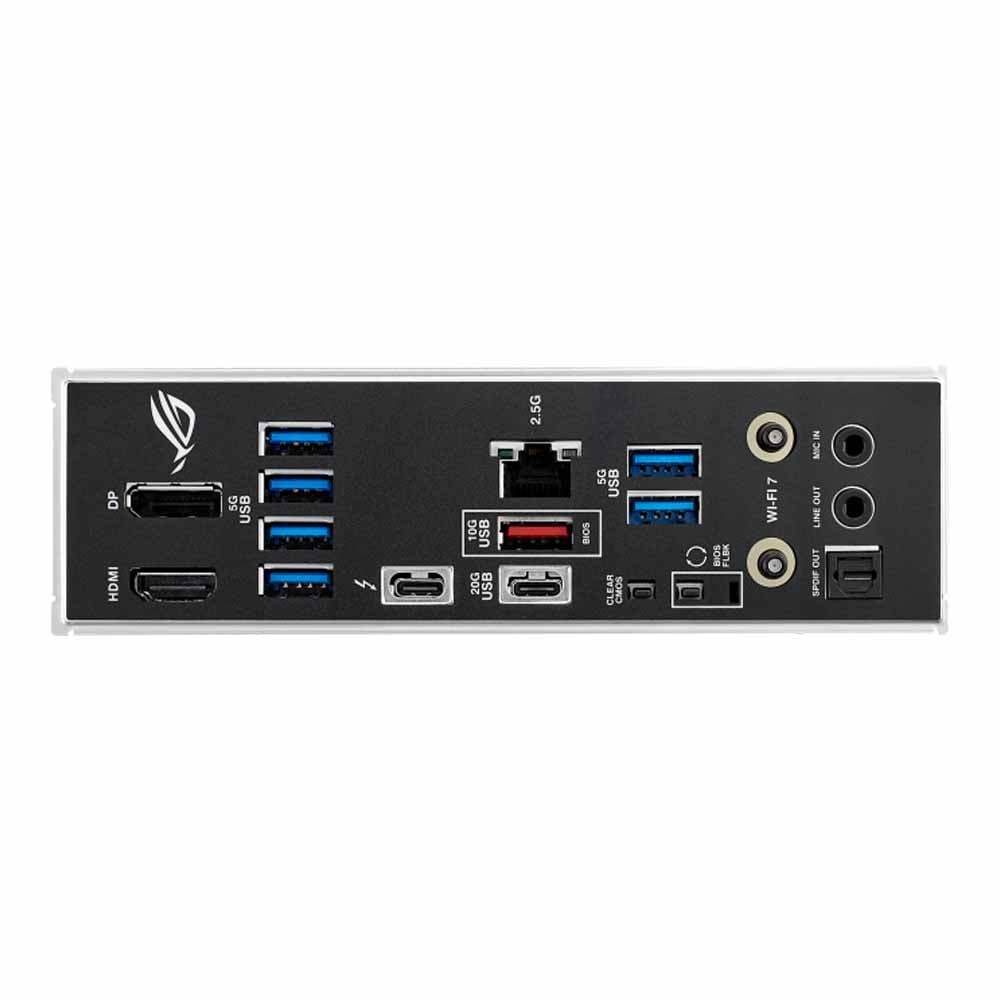

• Socket LGA 1851 for Intel Core Ultra (Series 2) Processors • Intel B860 • DDR5, 4 x DIMM • 1 x DP • 1 x HDMI • 4 x M.2 • 4 x SATA3 • 1 x USB 10Gbps Type-C connector (front) • 1 x Thunderbolt 4 Type-C + video outputs (rear) • 1 x USB 20Gbps Type-C (rear) • 1 x USB 10Gbps Type-A (rear) • 6 x USB 5Gbps Type-A (rear) • 2.5Gb Ethernet • Wi-Fi 7 • Bluetooth v5.4 SPECIFICATION Model : ROG STRIX B860-F GAMING WIFI Socket : 1851 (Arrow Lake-S) Memory Type : DDR5 Memory Slot : 4 Max. Memory Capacity : 256 GB Memory Speed : 4800 , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC) , 8200 (OC) , 8400 (OC) , 8600 (OC) , 8800 (OC) , 9000 (OC) , 9200 (OC) Graphics: • 1 x DisplayPort** • 1 x HDMI port*** • 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs**** — * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4. *** Supports 8K@60Hz with DSC as specified in HDMI 2.1. **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. ***** VGA resolution support depends on processors' or graphic cards' resolution. ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors- Audio cover — * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. M.2 : 4 x M.2 slots SATA 3 : 4 Port RAID : Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. Expansion Slots : 1 x PCIe 4.0 x16 Slot , 1 x PCIe 5.0 x16 Slot LAN : Intel 2.5Gb Ethernet Wireless : Wi-Fi 7* - 2x2 Wi-Fi 7 (802.11be) - Supports 2.4/5/6GHz frequency band** - Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. - Bluetooth v5.4*** — *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. BACK PANEL I/O : USB 2.0 : - Port USB 3.2: • 1 x Thunderbolt 4 (1 x USB Type-C) • 1 x USB 20Gbps (1 x USB Type-C) • 1 x USB 10Gbps (1 x Type-A) • 6 x USB 5Gbps (6 x Type-A) Port HDMI: 1 Port DisplayPort: 1 Port Audio: • 2 x Audio jacks • 1 x Optical S/PDIF out Port PS/2: No Additional: 1 x Wi-Fi module 1 x BIOS FlashBack button 1 x Clear CMOS button LAN : 1 Port Form Factor : ATX Power Connector : 24 + 8 + 8 Pin Dimension : 24.4 x 30.5 cm การรับประกัน : 3 Years
