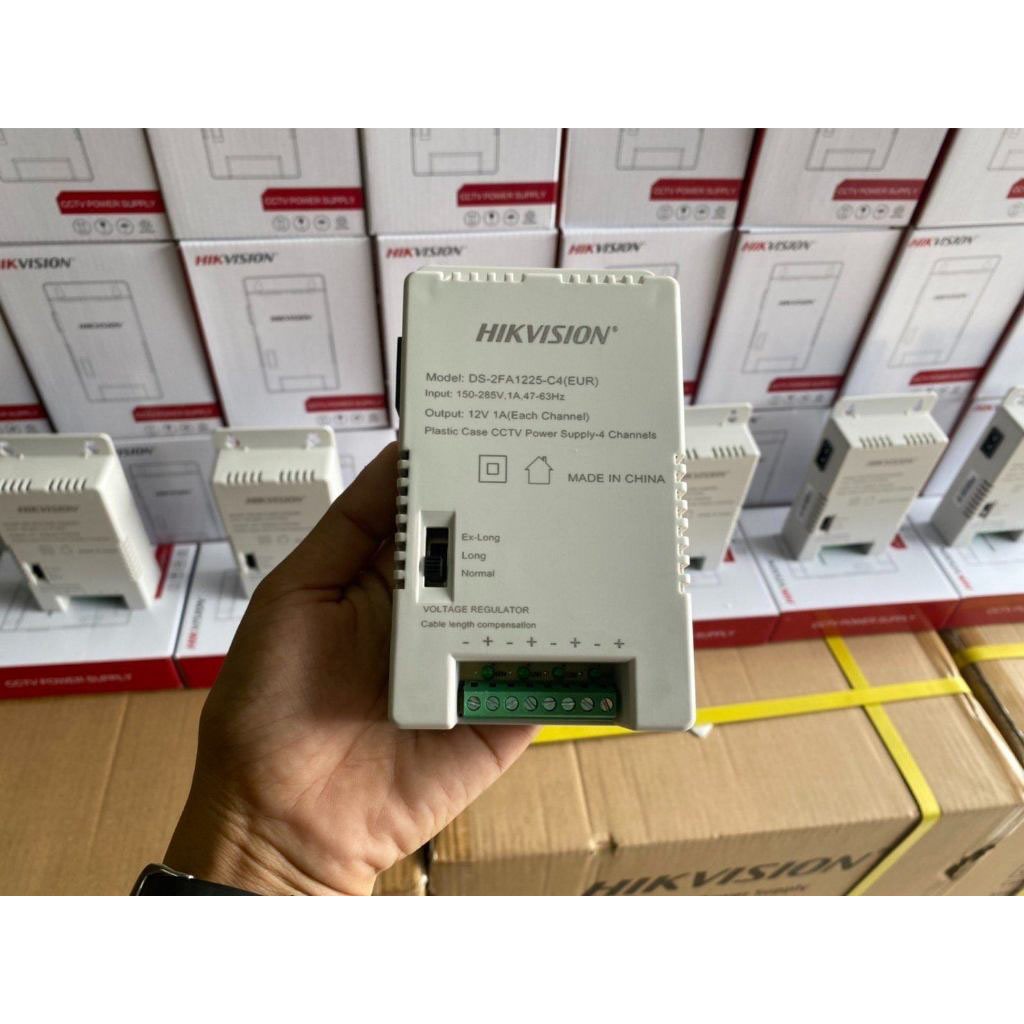

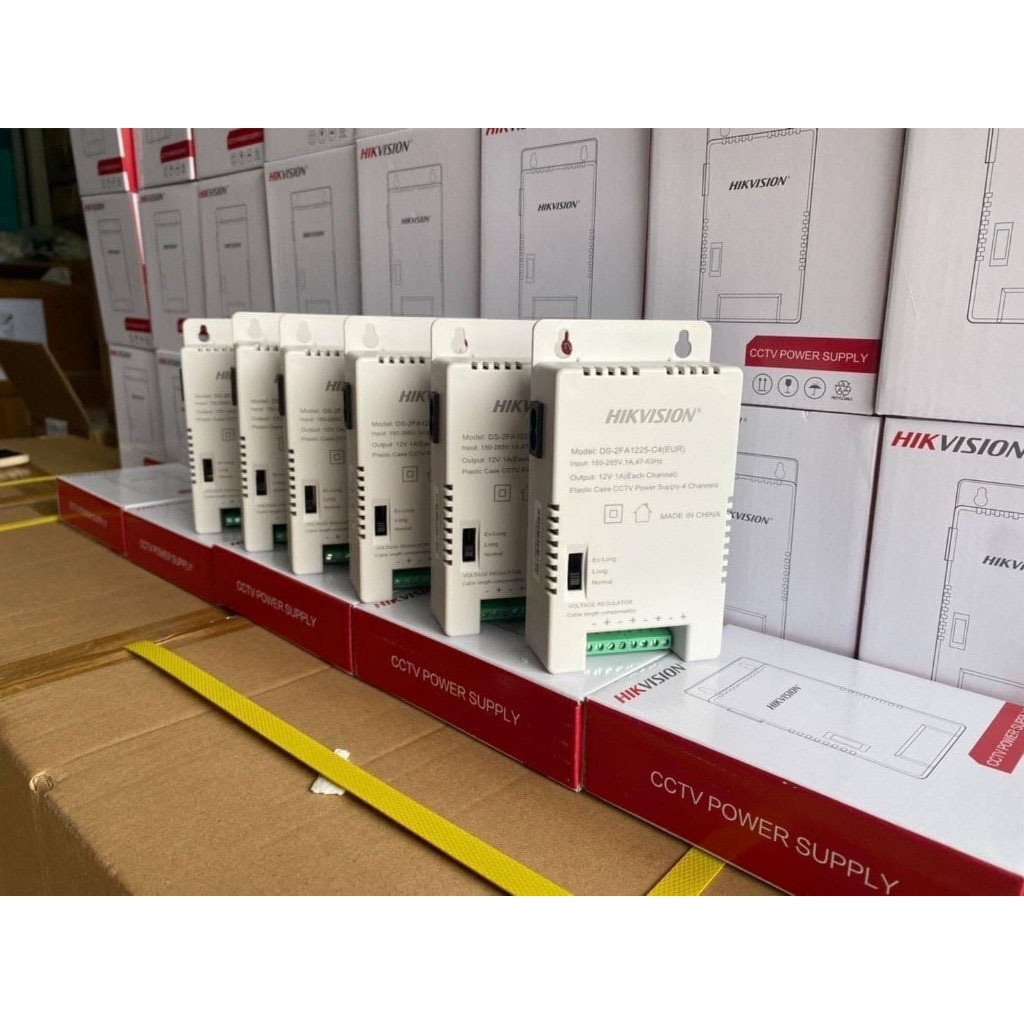

HIKVISION Power Supply 12V 4 A (48W) 4 ช่อง รุ่น DS-2FA1225-C4 Switching Mode Power Supply

HIKVISION Power Supply 12V 4 A (48W) 4 ช่อง รุ่น DS-2FA1225-C4 Multi-channel SMPS ● 48 W, 12 VDC/1 A per channel ● Over current/short circuit/over voltage protection ● Good EMC performance ● Compact size; applicable to cameras ● 150 to 285 VAC wide voltage input ● Parameters ● AppearanceWhite ● Dimension144 mm × 80 mm × 33 mm (5.67" × 3.15" × 1.30") ● Operating Conditions0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing) ● LED IndicatorGreen ● Input150 to 285 VAC, 47 Hz to 63 Hz ● Output12 VDC/1 A per channel ● Ripple & Noise 150 MVp-P0.15 Vp-p (150 mV) ● AC Input ConnectorC4 ● DC Output ConnectorDC Plug: grid terminal ● Storage Conditions-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing) ● Cable Length Compensation Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC
