บูสเตอร์ dmx booster DMX DMX splitter 4 CH Dmx

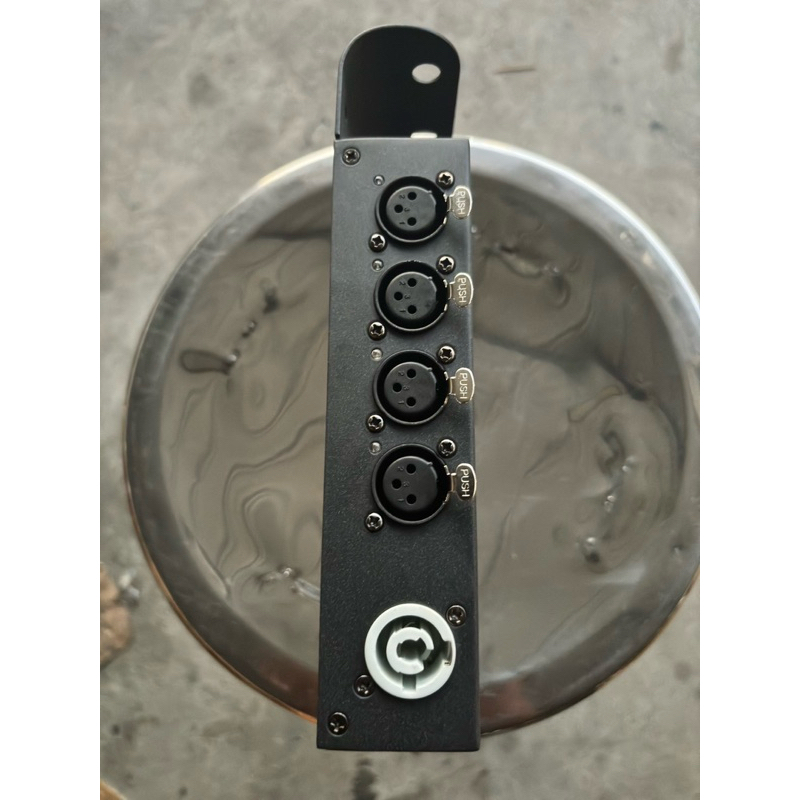

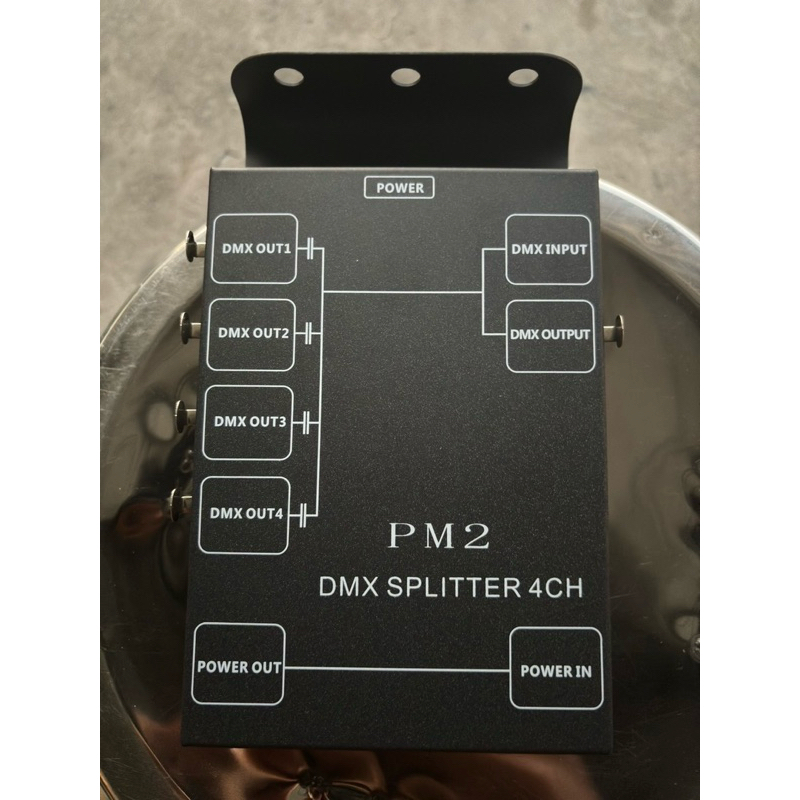

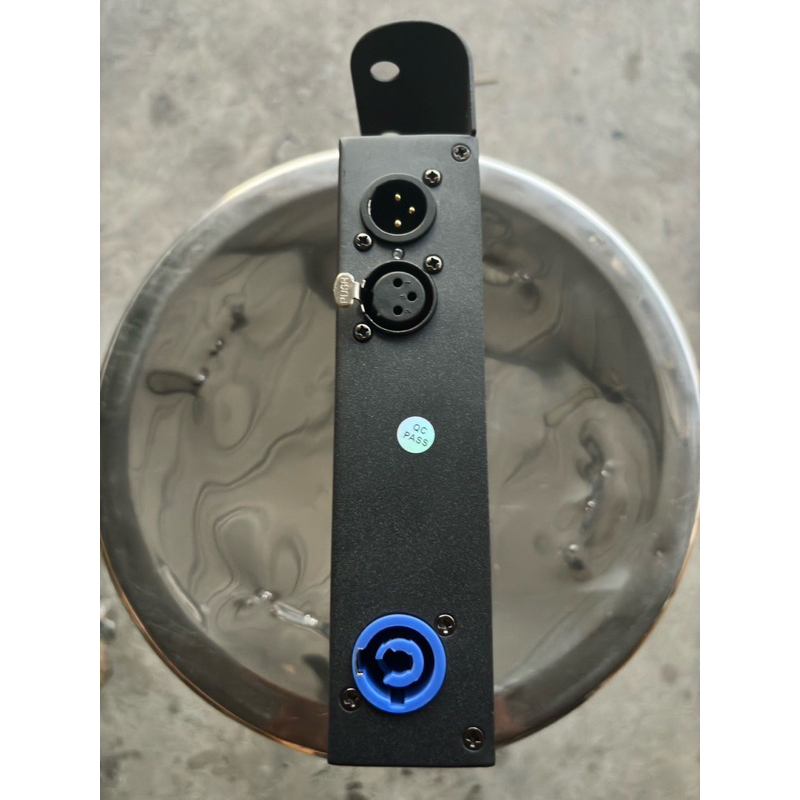

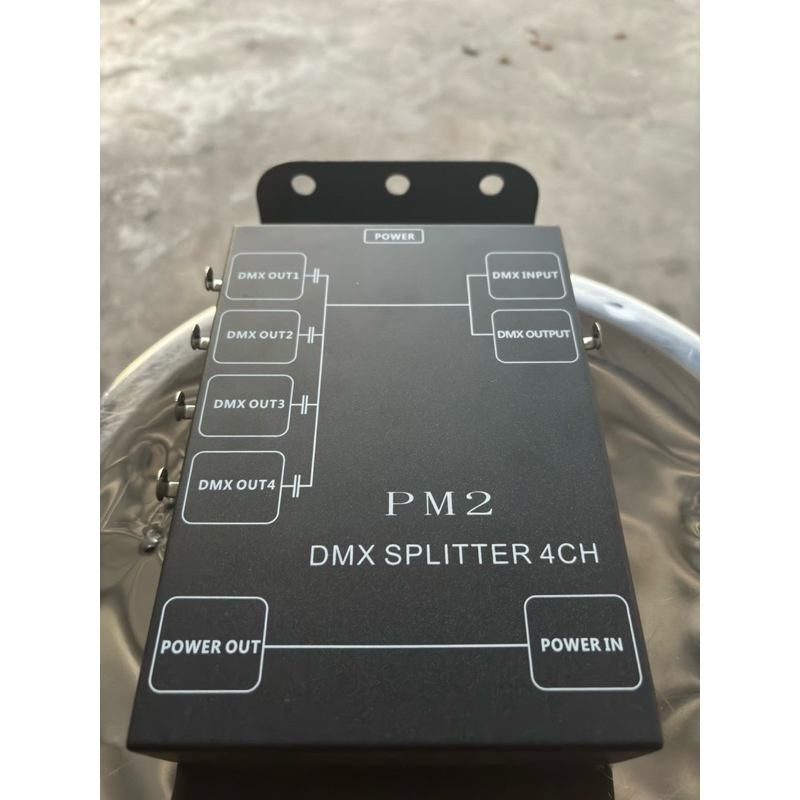

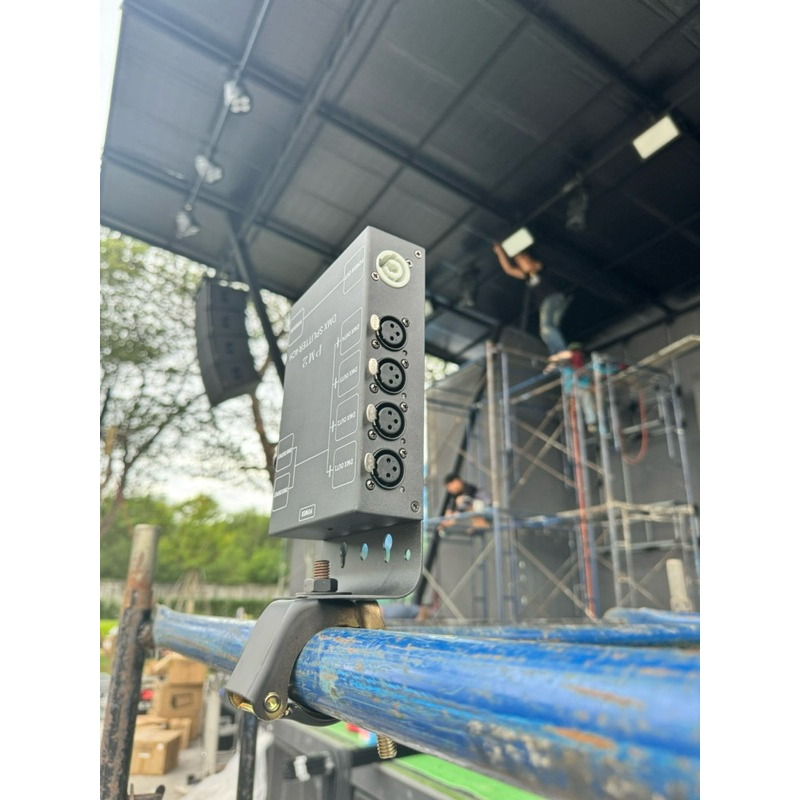

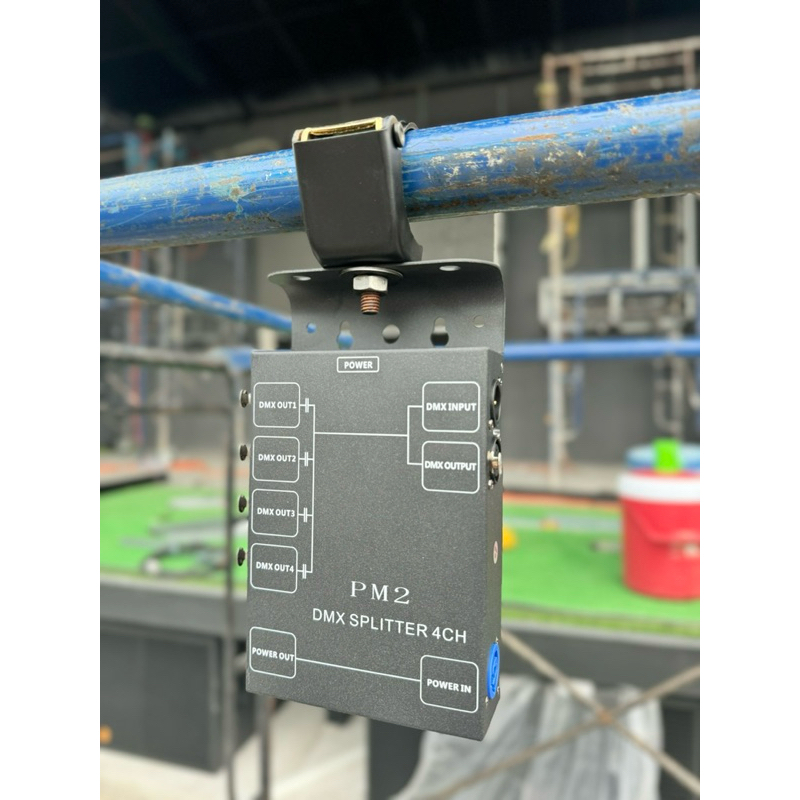

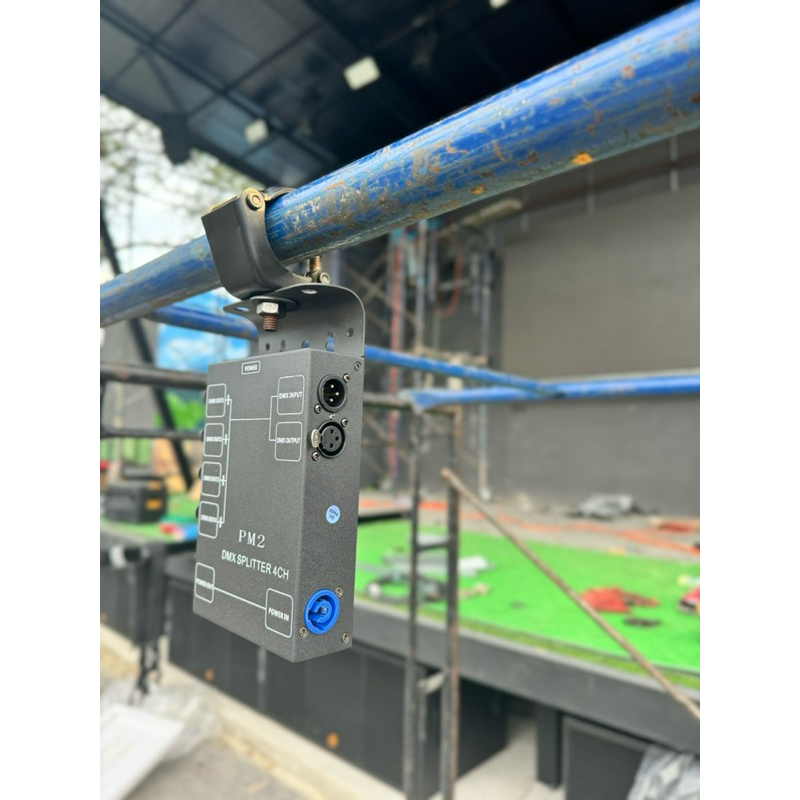

The hanging splitter is specially designed for shaping and amplifying DMX512 digital lighting control signals and 4-way distribution output. Each input interface adopts high-voltage isolation technology, suitable for shaping and amplifying DMX512 signals after distance transmission attenuation, as well as occasions where complete electrical isolation is required between distribution output interfaces, input interfaces, and distribution output interfaces. Due to the independent isolation between various interfaces, it is possible to avoid burning down the precise digital lighting control console due to issues such as control circuits, computer lights, and silicon boxes, ensuring the safe operation of the digital lighting control console. At the same time, it also ensures that the DMX signal can be transmitted to various lighting equipment normally, thereby improving the reliability of the entire digital lighting control system. The hanging installation method is very convenient. Product technical parameters： ★ Digital signal type: DMX512, and digital signals transmitted using RS-485 interface; ★ 1 signal input, 1 direct signal output (with electrical isolation between signal input and direct signal), with signal input indicator light; ★ Four signal distribution outputs through electrical isolation, each with signal indicator lights; ★ Signal connection socket: input XLR-3-M, output XLR-3-F ★ Electrical isolation and withstand voltage of input to output: ＞ AC300V ★ Power supply: AC90V~240V, 50Hz/60Hz, 15W, with power indicator light; ★ Size: 21.5×12.3×4.2 cm ★ Installation method: It can be fixed with screws or hung with a light hook for installation. ★ Weight: 0.85Kg
