TP-Link Omada EAP650 (EAP650) AX3000 Desktop Wi-Fi 6 Access Point

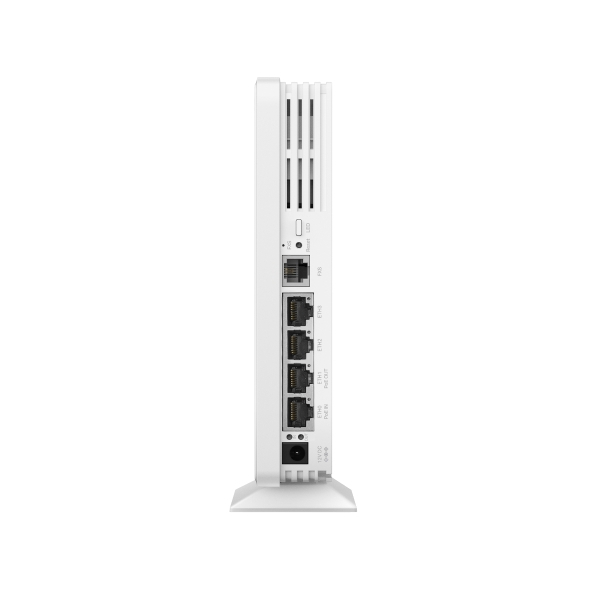

HARDWARE FEATURES Interface         • 4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) Button • Reset • LED Power Supply • 802.3 af/at/bt PoE or 12V/1.5A DC *PoE Out requires 802.3at/bt PoE power supply Max. Power Consumption     • 17.3W (PoE Out Off) Weight • 452g (excluding mounting base) Dimensions ( W x D x H )        • 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) Antenna          • Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 4.7 dBi Range  • 140㎡(1500 ft²)* Mounting        • Desktop / Wall mouting (Kits included) WIRELESS FEATURES Concurrent Clients     • 250+* Wireless Standards    • IEEE 802.11 a/b/g/n/ac/ax Frequency       • 2.4 GHz and 5 GHz Signal Rate      • 5 GHz: 2402 Mbps† • 2.4 GHz: 574 Mbps Wireless Functions     • 2×2  (2.4G & 5G) MU-MIMO‡ • HE160 (160 MHz Bandwidth)‡ • OFDMA‡ • Omada Mesh • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit (Based on SSID/Client) • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP Wireless Security        • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power   • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <29 dBm(5 GHz, band3, EIRP) • FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz) Management Features Omada App     • Yes Centralized Management      • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller Cloud Access   • Yes. Email Alerts    • Yes LED ON/OFF Control  • Yes Management MAC Access Control    • Yes SNMP  • v1, v2c, v3 System Logging Local/Remote Syslog • System Log SSH • Yes Web-based Management      • Yes Zero-Touch Provisioning        • Yes.Reauire the use of Omada Cloud-Based controller OTHERS Certification   • CE, FCC, RoHS, IC Package Content        • EAP650-Desktop • Desktop/Wall Mounting Kit • Installation Guide System Requirements • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment  • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
