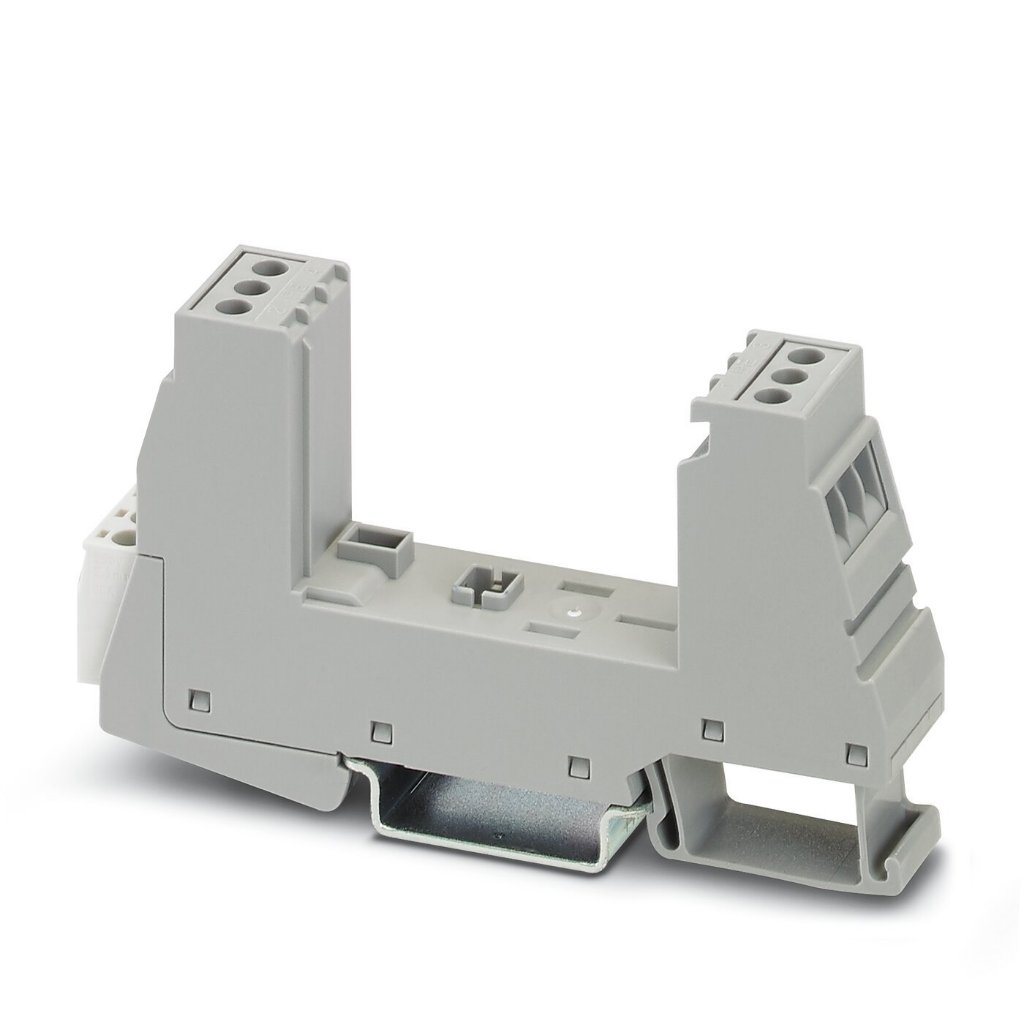

Type 3 surge protection base element - PLT-SEC-T3-BE-FM-UT (2907924) [เฉพาะbase ฐานรอง Surge ]

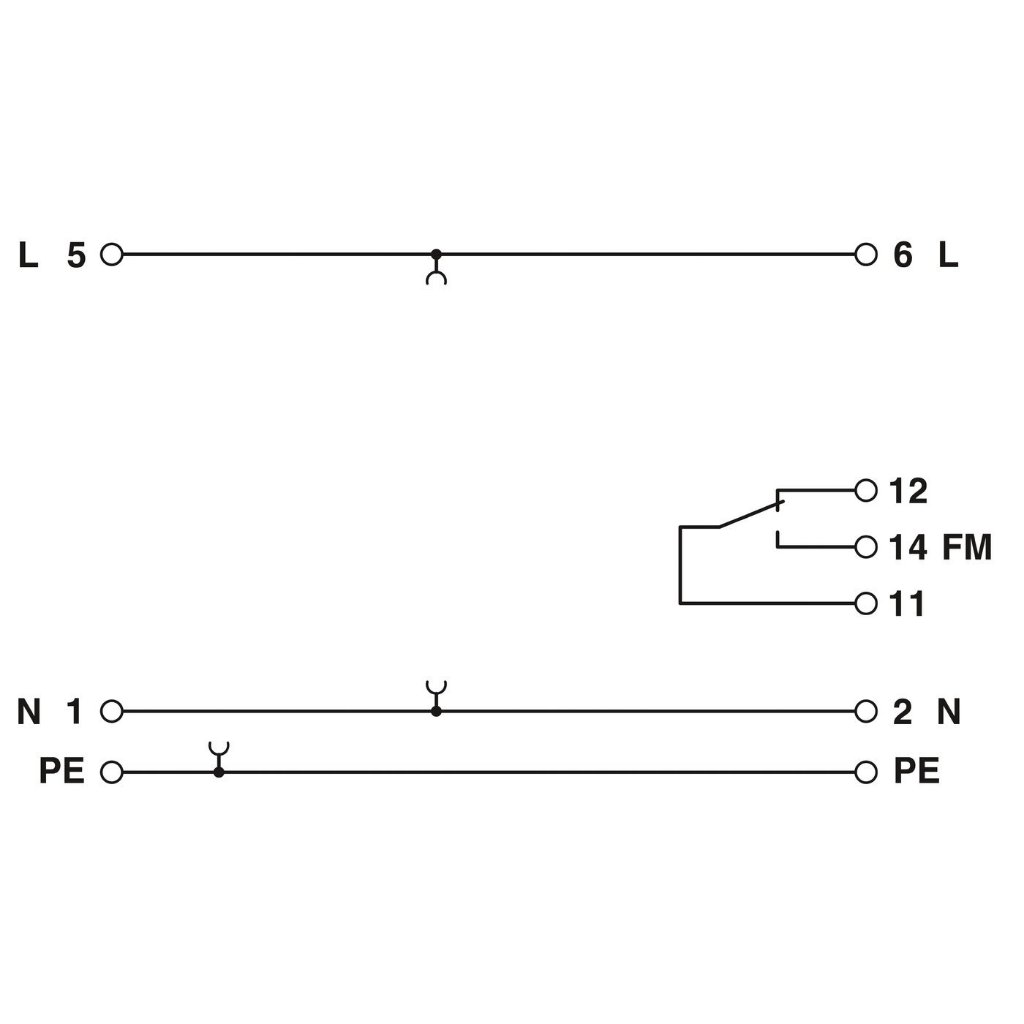

Type 3 surge protection base element - PLT-SEC-T3-BE-FM-UT (2907924) [เฉพาะbase ฐานรอง Surge ] Base element for protective plugs from the PLT-SEC-...-UT/PT product series with remote indication contact. IEC power supply systemz\z: TN-S / TT Type: DIN rail module, two-section, divisible Product type Base element Product family: SEC Family Number of positions: 2 Surge protection fault message: Remote indication contact Insulation characteristics Overvoltage category: III Pollution degree: 2 IEC test classification: II / III , T2 / T3 EN type: T2 / T3 Number of ports: One Indicator/remote signaling Connection name: Remote fault indicator contact Switching function: Changeover contact Operating voltage: 250 V AC\ , 125 V DC (200 mA DC) Operating current: 0.5 A AC , 0.5 A DC (75 V DC) Connection method: Screw connection Screw thread: M3 Tightening torque: 0.5 Nm Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section solid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 Protective circuit Direction of action: 1L-N & N-PE Nominal voltage UN: 240 V AC (TN-S) , 240 V AC (TT) Nominal frequency fN: 50 Hz (60 Hz) Maximum continuous voltage UC: 264 V AC Rated load current IL: 26 A (at 30 °C) Short-circuit current rating ISCCR: 10 kA AC Max. backup fuse with branch wiring: depends on the plug used Additional technical data Short-circuit current rating ISCCR: max. 5 kA DC (depends on the plug used) Maximum continuous voltage UC: 240 V DC UL specifications Nominal voltage: 240 V DC Rated load current IL: 20 A Power distribution system: Single phase / DC Nominal frequency: 50/60 Hz SPD Type: ACC UL indicator/remote signaling AC operating voltage: 250 V AC (0.5 A) DC operating voltage: 12 V DC (4 A) , 24 V DC (2 A) , 48 V DC (1 A) UL connection data Tightening torque: 4.4 lbf-in. Conductor cross section AWG: 16 ... 12 Download datasheet *สินค้ารับประกัน 1ปี *ออกใบกำกับภาษีได้ *เงื่อนไขเป็นไปตามที่บริษัทกำหนด LineOA: @bluestone.co.th
