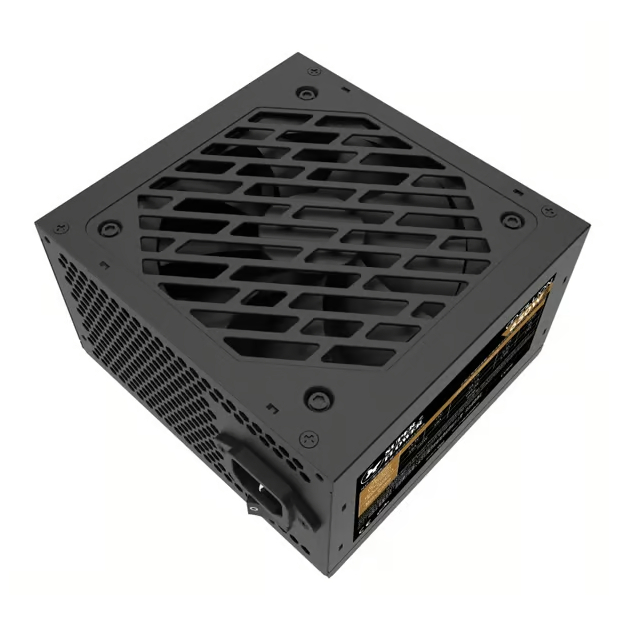

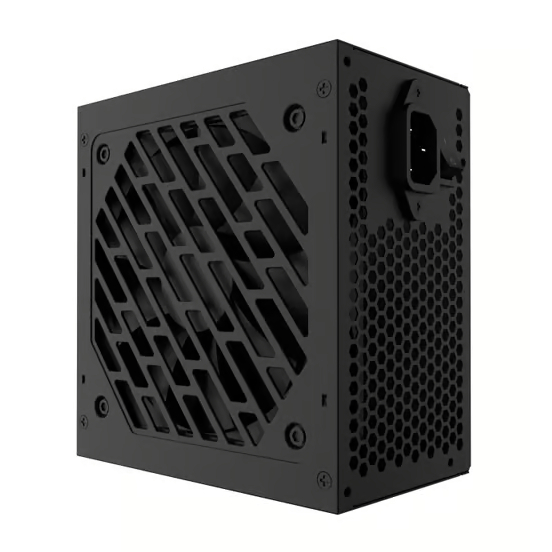

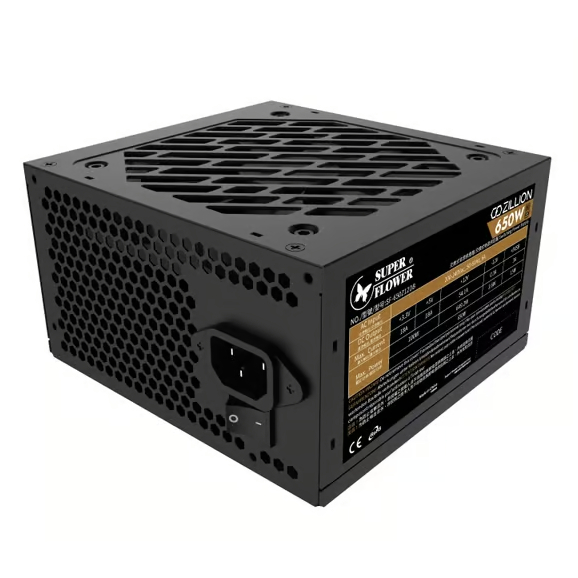

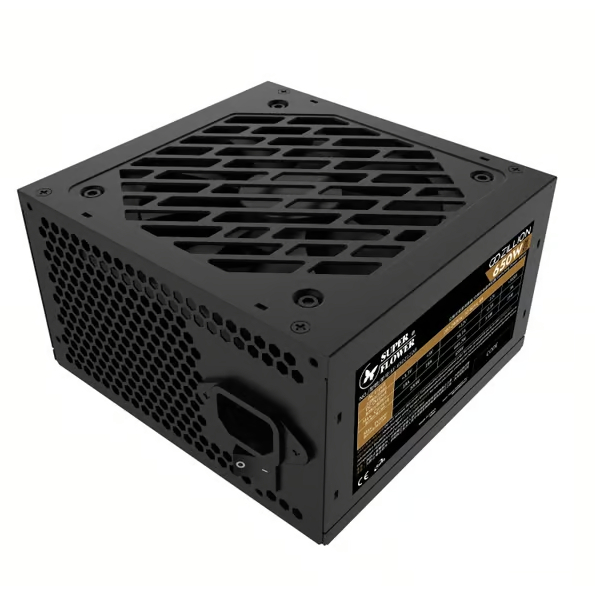

Super Flower Zillion DB Bronze 550W 650W 750W (80Plus Bronze) ประกัน 3 ปี

Description ★Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards. ★Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card. ★80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load. ★Comply With Energy Star Standard & EuP (Energy Using Products) Regulation ★Comply With ATX 12V v2.3, EPS 12V v2.92 Specification. ★PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement. ★OVP / OCP / OTP / SCP / OPP / NLP ★All Flat Cables. ★DC-DC Platform for higher stability. ★105°C Taiwanese Main Capacitor. Specification Model Zillion DB Bronze 650W Wattage 650W Efficiency 20%: 85% ; 50% : 88% ; 100% : 85% (230V EU Internal Bronze) Intel Power Design Guide ATX 12V v2.3, EPS 12V v2.92 Specification. AC Input / Frequency 200V~240V | 50-60Hz Fan Size 120mm Sleeve Fan Dimension 140mm(L) x 150mm(W) x 86mm(H) Protection OVP / OCP / OTP / SCP / OPP/ NLP Safety TÜV / CB / CE / RoHS Weight Around 1.5 KG Cable Spec 20+4Pin Fixed Cables 1 (500 mm) 8Pin & (4+4Pin) CPU 1 (600mm+150mm) PCI (PCI 6+2pin) 1 (500mm) SLI (2 x PCI 6+2pin) 1 (500mm+150mm) 3SATA + 1PATA 2 (450mm+150mm+150mm+150mm) model no.: SF-650Z12DB AC INPUT 200-240V~ 6A 50-60Hz DC OUTPUT +3.3V +5V +12V -12V 5VSB 650W Max Output Current 18A 18A 54.1A 0.3A 3A Max Combined Wattage 100W 649.2W 3.6W 15W 650W
