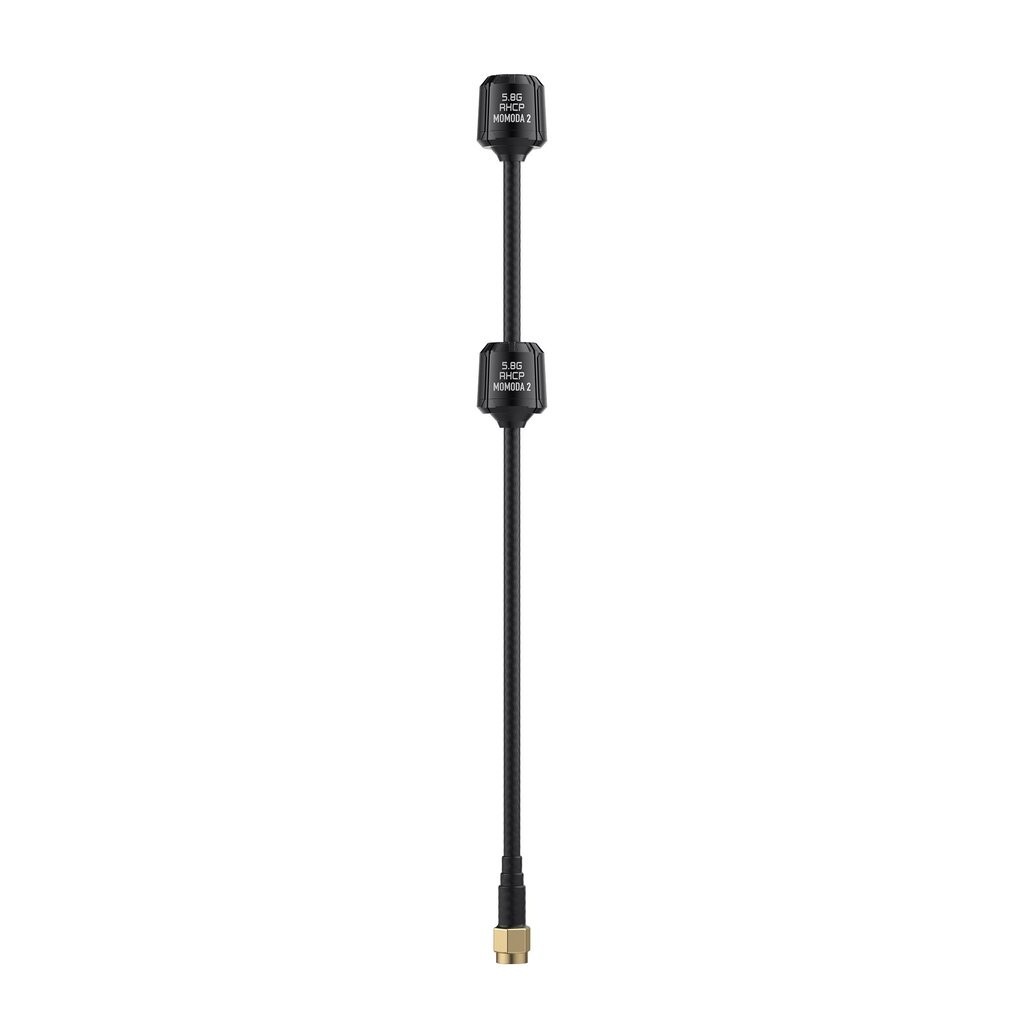

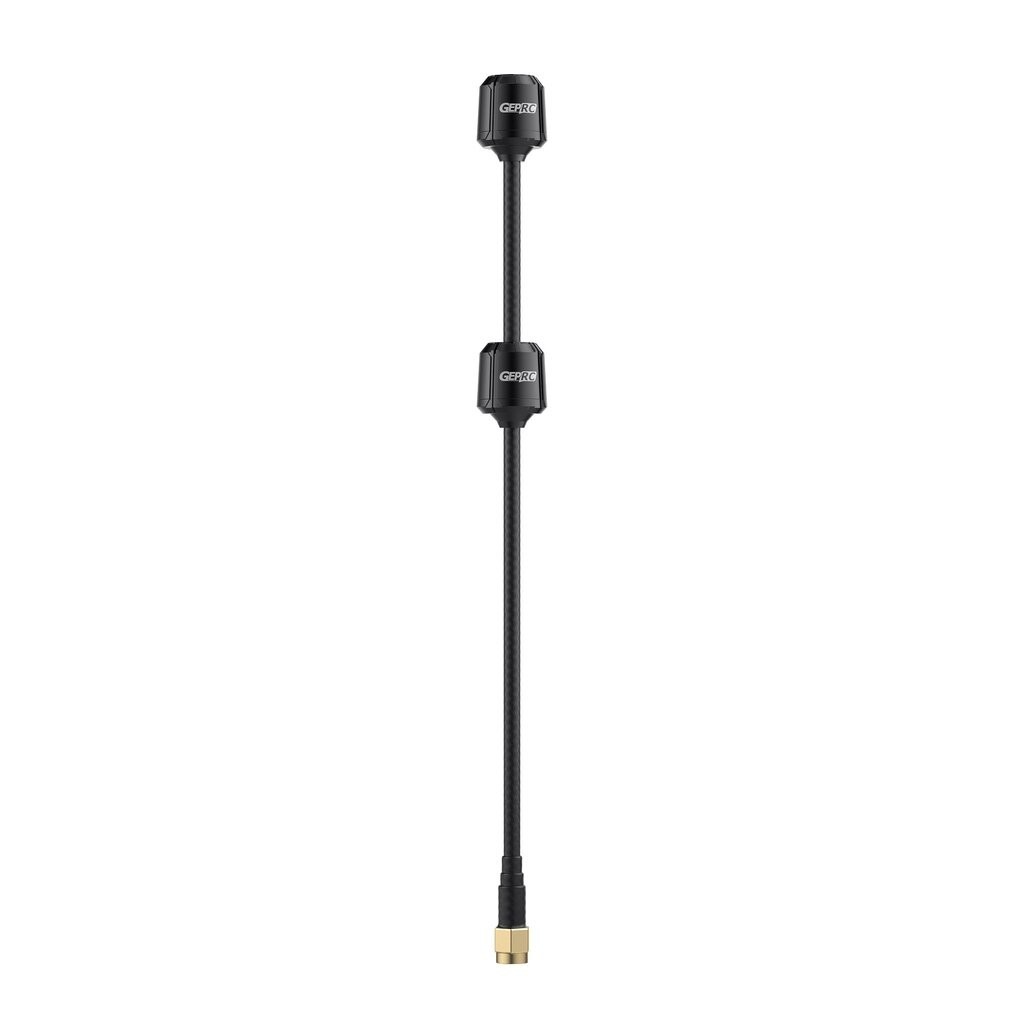

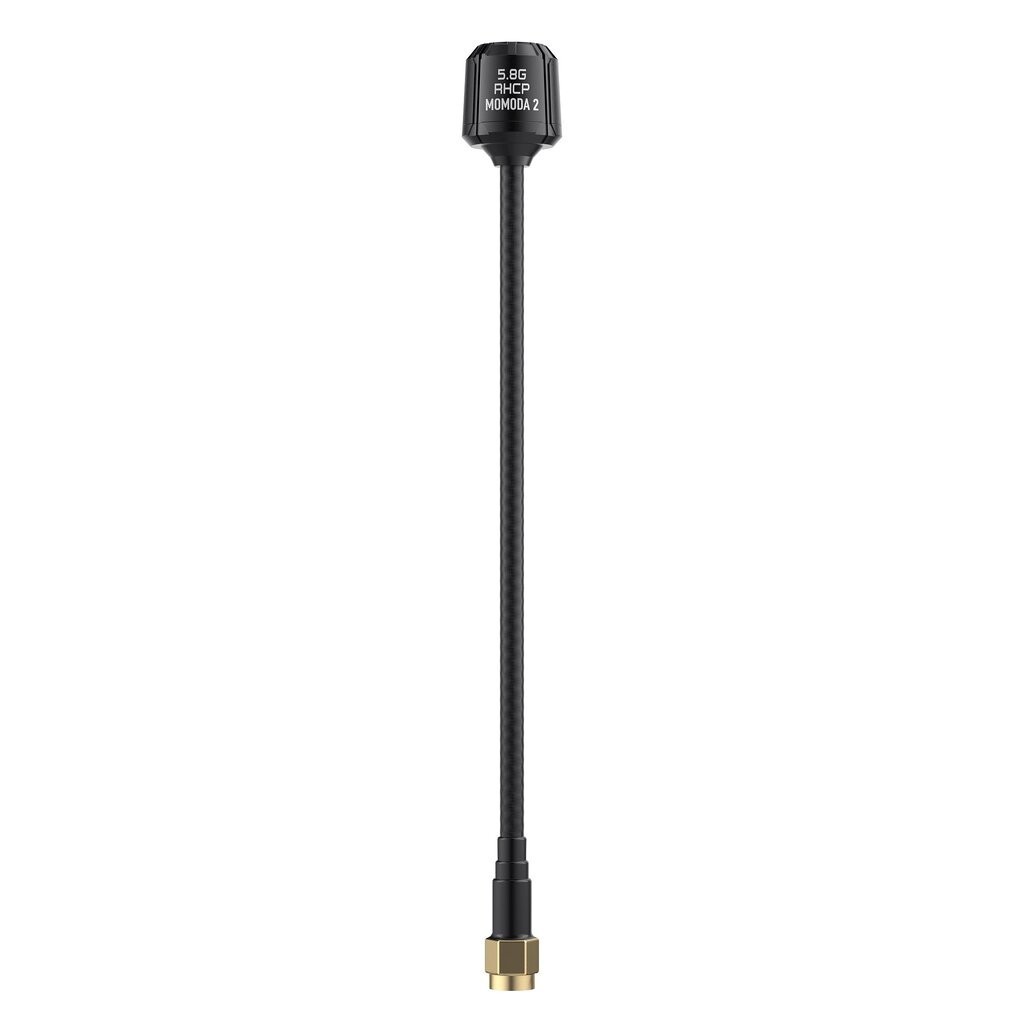

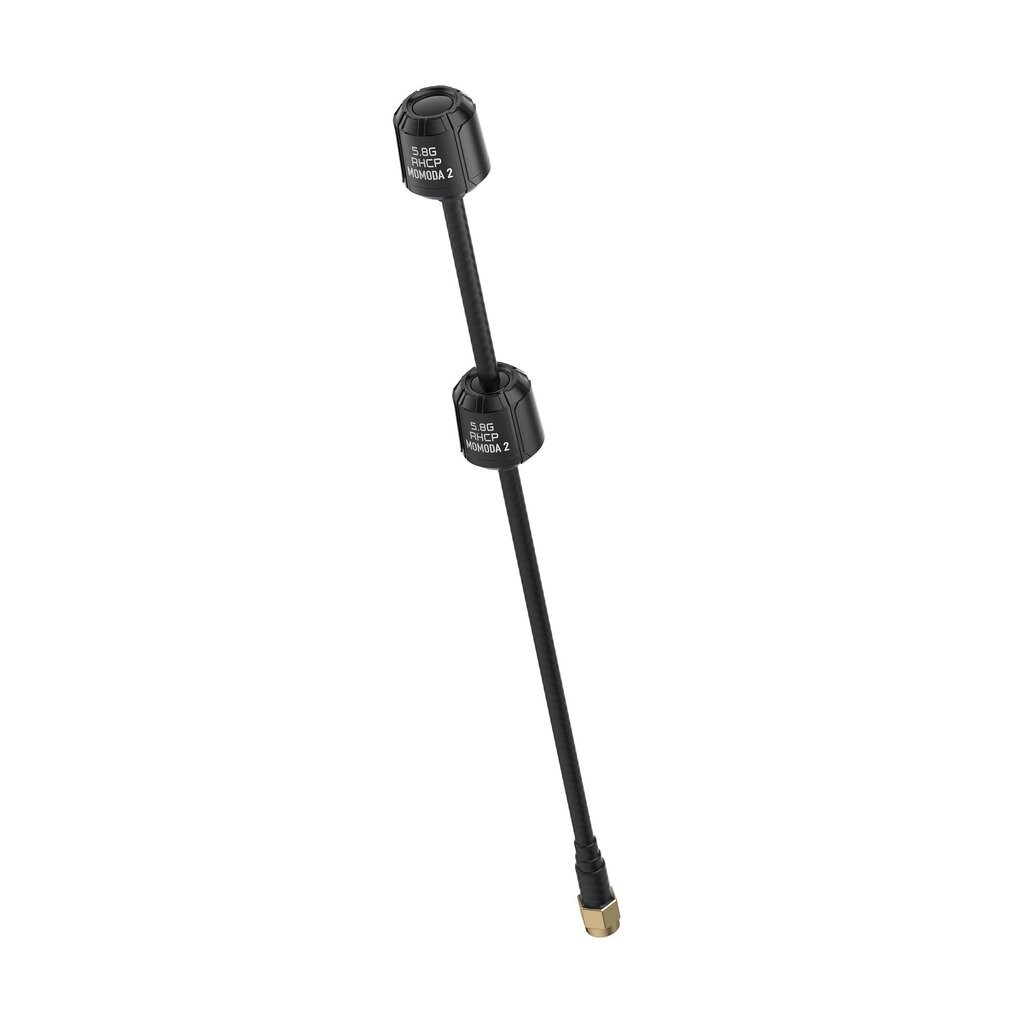

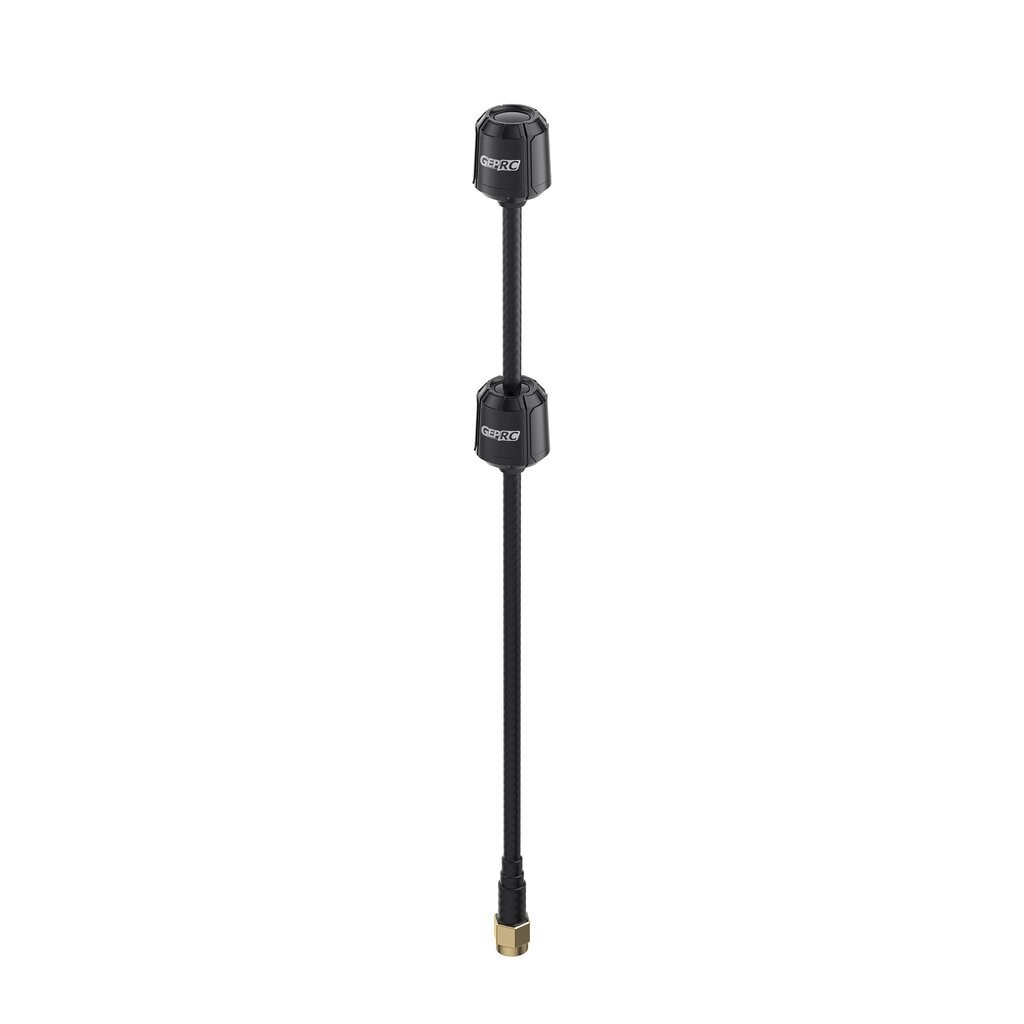

GEPRC Momoda2 Small 5.8G and DUAL Antenna ของเล่นบังคับวิทยุ LHCP RHCP

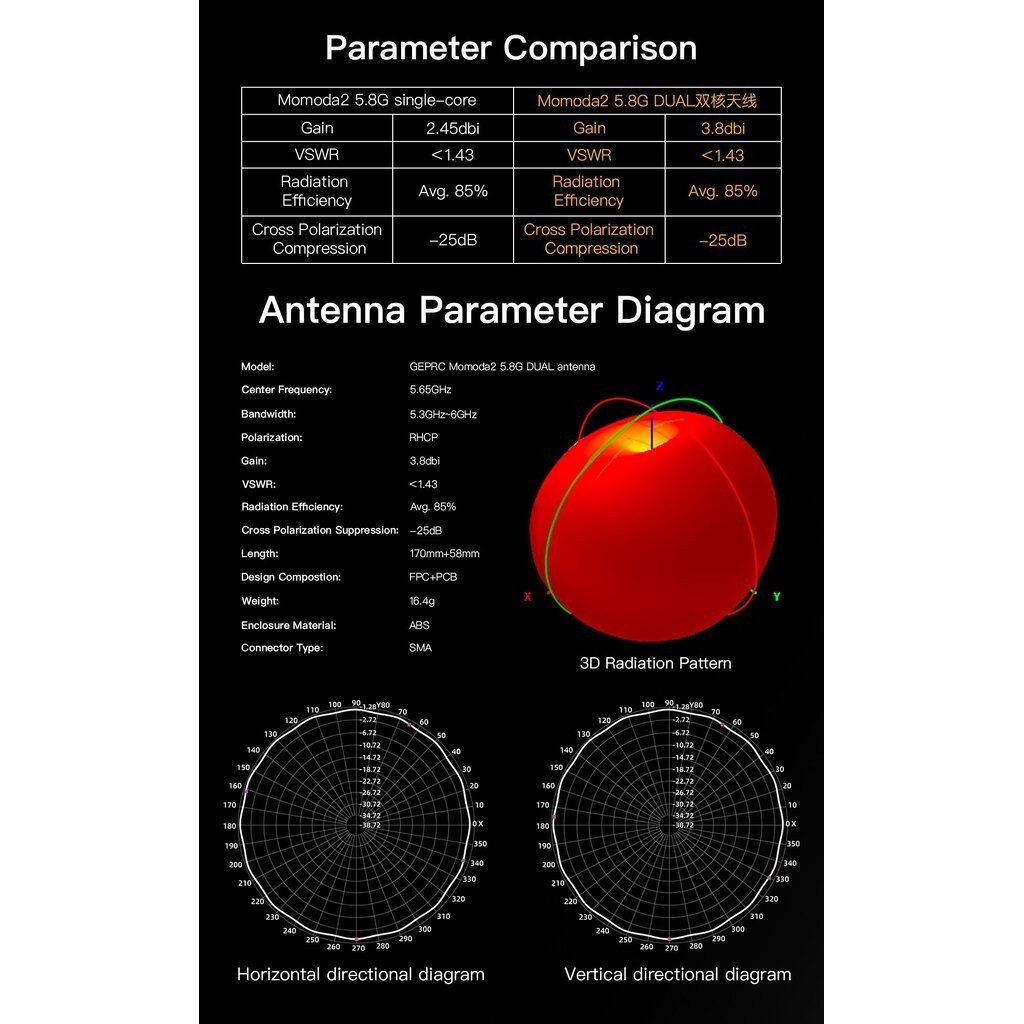

Summary The GEPRC Momoda2 5.8G DUAL antenna incorporates a dual-core RF solution to enhance gain and expand coverage. Practical testing has demonstrated significantly improved directional compatibility. The Momoda2 5.8G DUAL antenna guarantees stable and reliable image transmission during flight, with extended transmission distance. Features - Enhanced gain with dual-core RF technology. - Ultra-low VSWR for improved transmission efficiency - Adopts premium antenna interface - Ultrasonic welding for tight and secure assembly - Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards Specifications - Model: GEPRC Momoda2 5.8G DUAL antenna - Center Frequency: 5.65GHz - Bandwidth: 5.3GHz～6GHz - Polarization: RHCP - Gain: 3.8dbi - Axial Ratio: 3 - VSWR: 1.43 - Radiation Efficiency: 85% - Cross Polarization Suppression: -25dB - Length: 170mm+57mm - Design Compostion: FPC+PCB - Weight: 16.6g - Enclosure Material: ABS - Connector Type: SMA Includes 1*Momoda 5.8G DUAL antenna ---------------------------------- Summary The GEPRC Momoda2 5.8G antenna adopts the latest radio frequency solution in the FPV industry, pairing PCB with FPC structure to enhance signal frequency consistency while minimizing signal transmission power loss. It offers two polarization options, RHCP and LHCP, within the 5.8GHz frequency band. Features - The ingenious exterior design integrates a sleek metallic style, appealing to the eye. - The advanced radio frequency structure effectively minimizes transmission loss. - The connectors come in various lengths and styles to accommodate diverse application needs. - Every antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards. Specifications - Model： GEPRC Momoda2 5.8G antenna - Center Frequency： 5.65G - Bandwidth：5.3GHz～6GHz - Polarization: LHCP/RHCP - Gain: 2.45dbi - Axial Ratio：3 - SWR: 1.43 - Radiation Efficiency: 85% - Cross Polarization Suppression: -25dB - Length：120mm-170mm - Antenna Design: FPC+PCB - Antenna Weight: 3.8g-11.6g - Enclosure Material: ABS - Connector Types: SMA / RP-SMA / AngleMMCX / UFL Includes 1*Momoda 5.8G antenna
