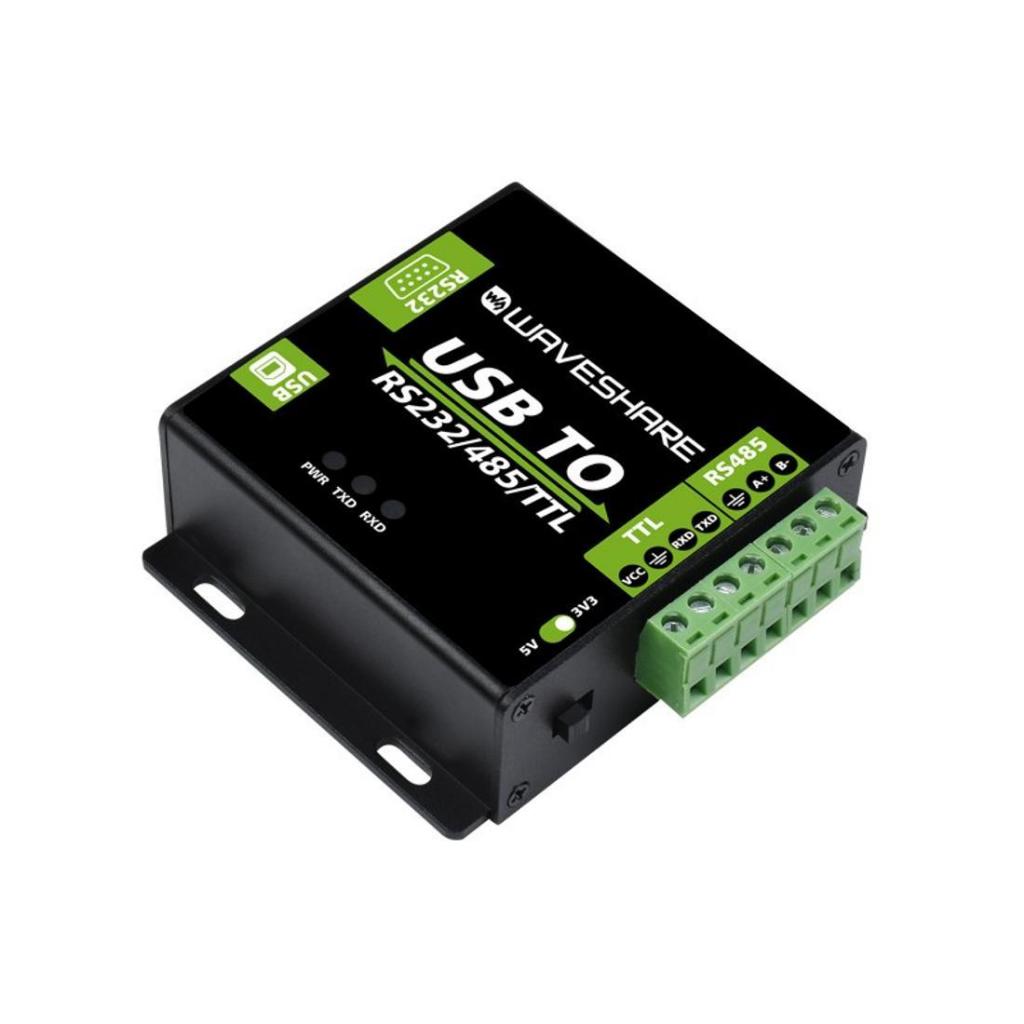

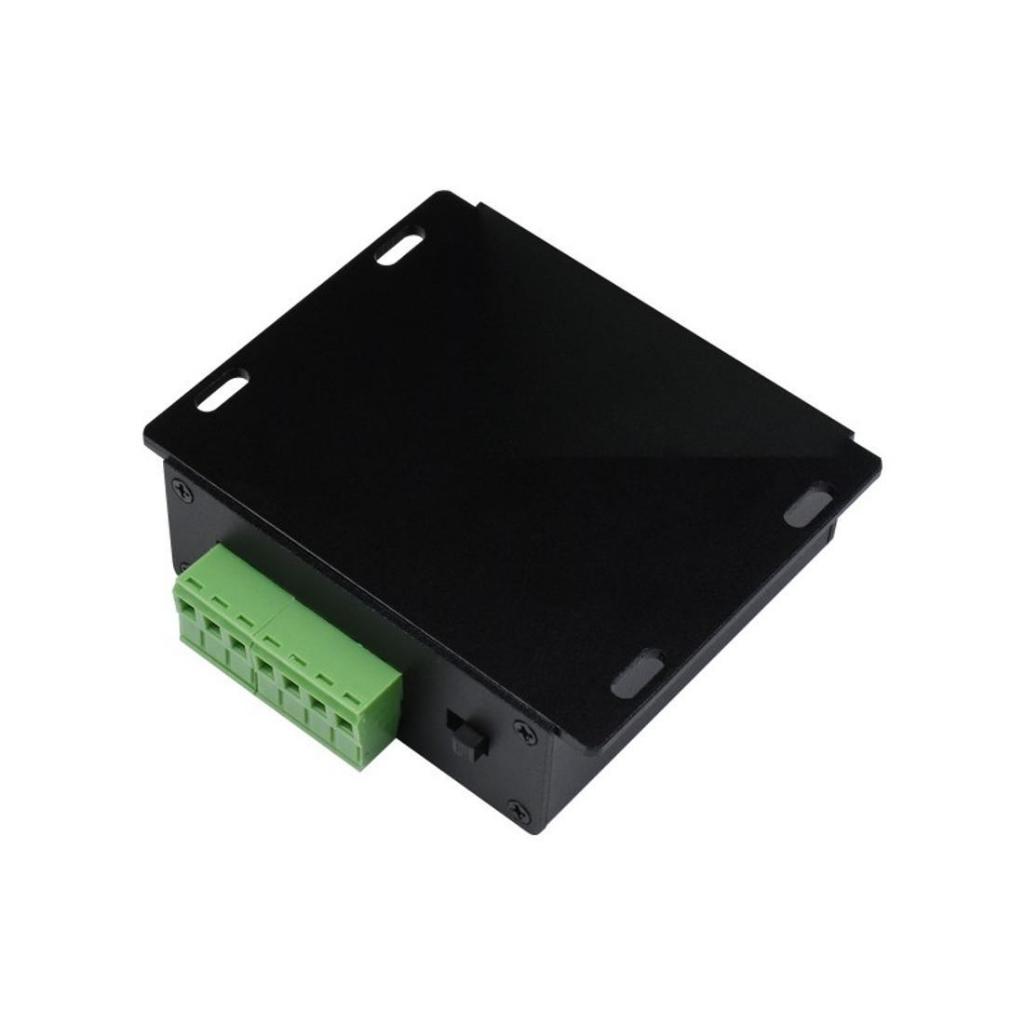

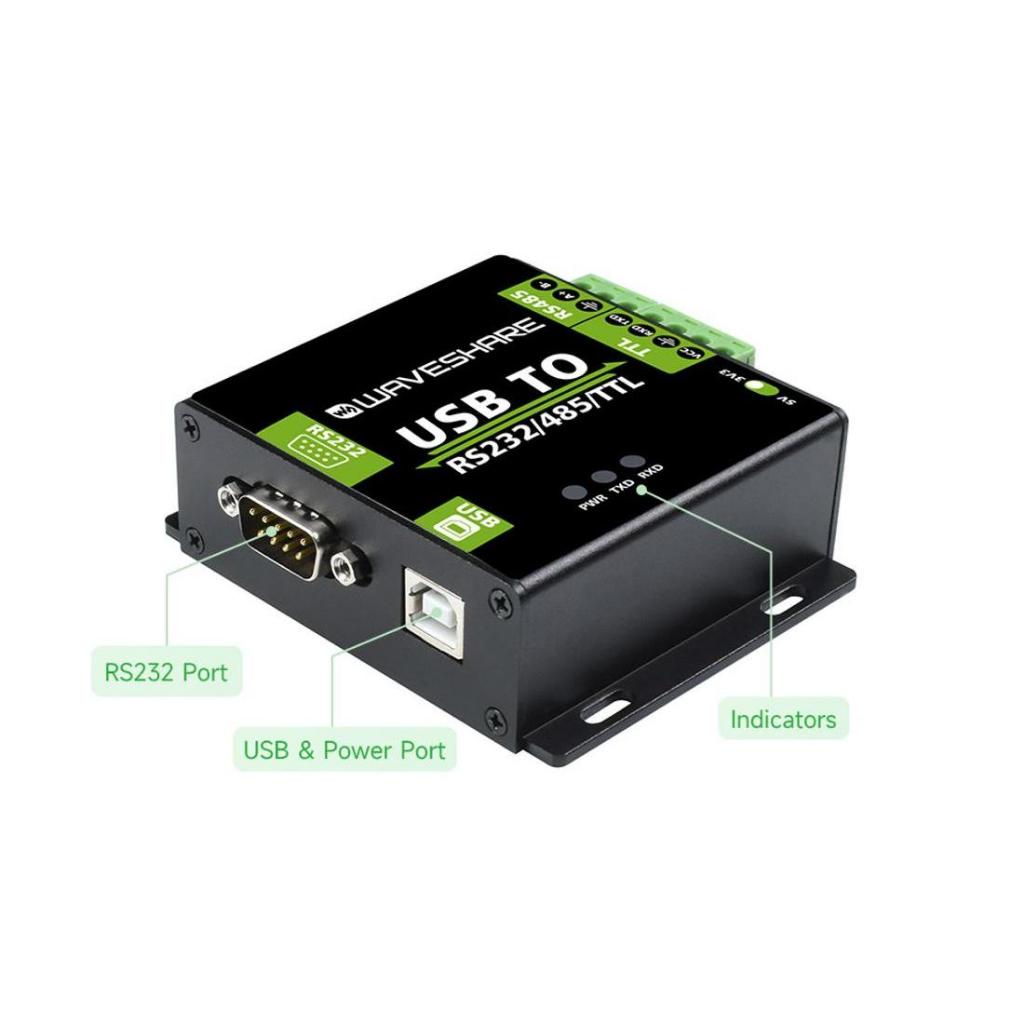

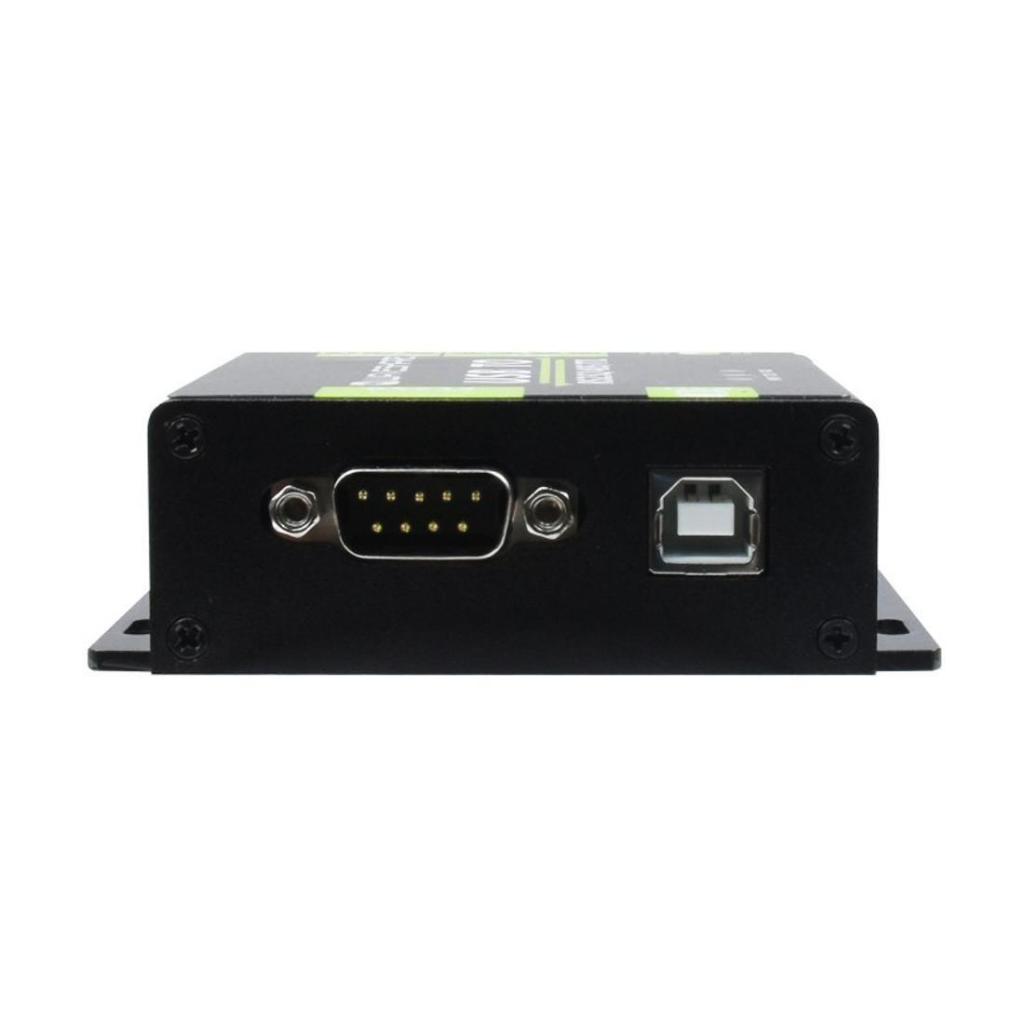

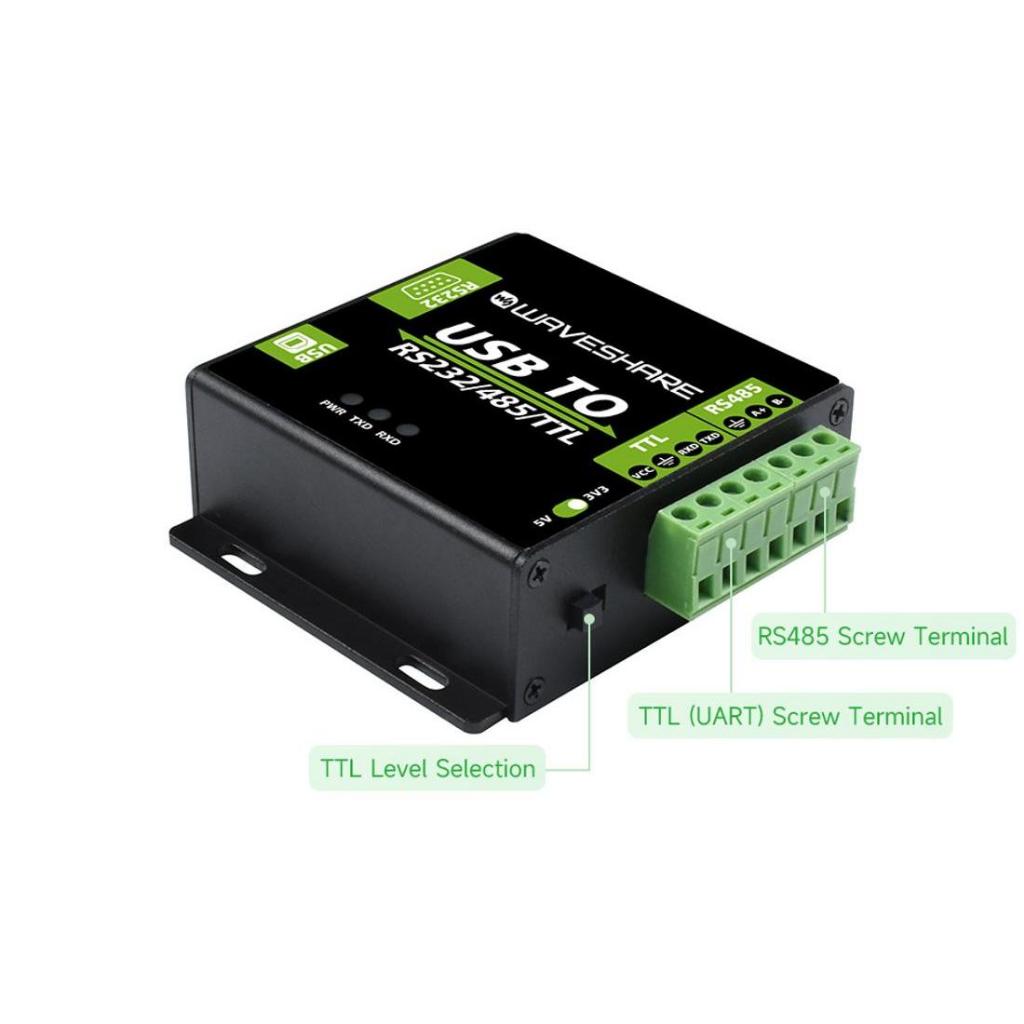

Waveshare FT232RL/CH343G USB to RS232/485/TTL Industrial Isolation ตัวแปลงสัญญาณ 15817 22547

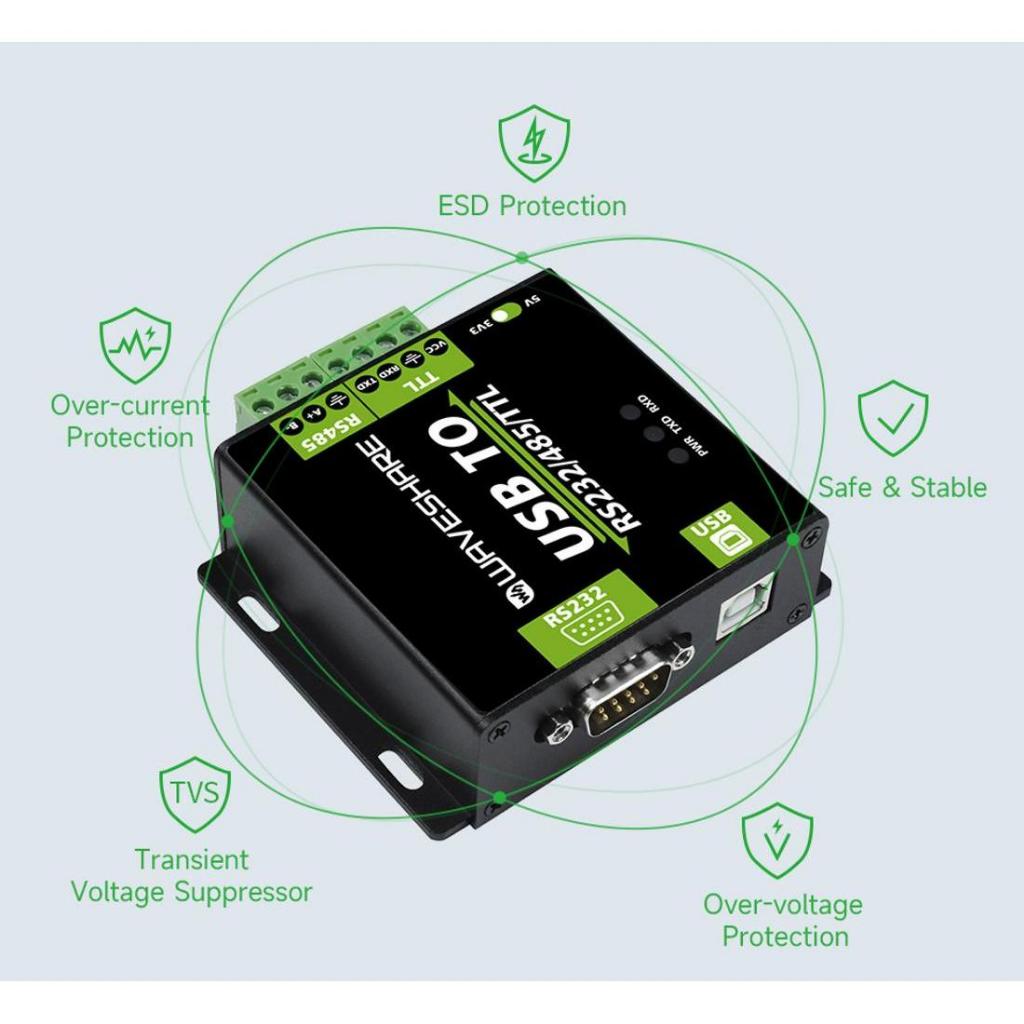

Waveshare FT232RL/CH343G USB to RS232/485/TTL Interface Converter Industrial Isolation ตัวแปลงสัญญาณ มีชิพให้เลือก 2 ชนิด - FT232RL (Waveshare SKU: 15817) Part No.:USB TO RS232/485/TTL - CH343G (Waveshare SKU: 22547) Part No.: USB TO RS232/485/TTL (B) Stable Transmission. Multple Devices Applicable, Multi-OS Compatible Supported OS: Mac, Linux, Android, Win 11/10/8.1/8/7 etc. Features: - Adopt original FT232RL or CH343G inside, fast communicating, stable and reliable, better compatibility - Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal - Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption - Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection - Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance - Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other - Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch - Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable - 3 LEDs for indicating the power and transceiver status - High quality USB-B and RS232 connectors, smoothly plug/pull Safer Isolated Design Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption Only one of the RS232, RS485, and TTL can be converted to USB at the same time; And RS232, RS485, and TTL cannot be converted between each other ท่านสามารถศึกษา Specification ได้จากเว็บไซต์ผู้ผลิด
