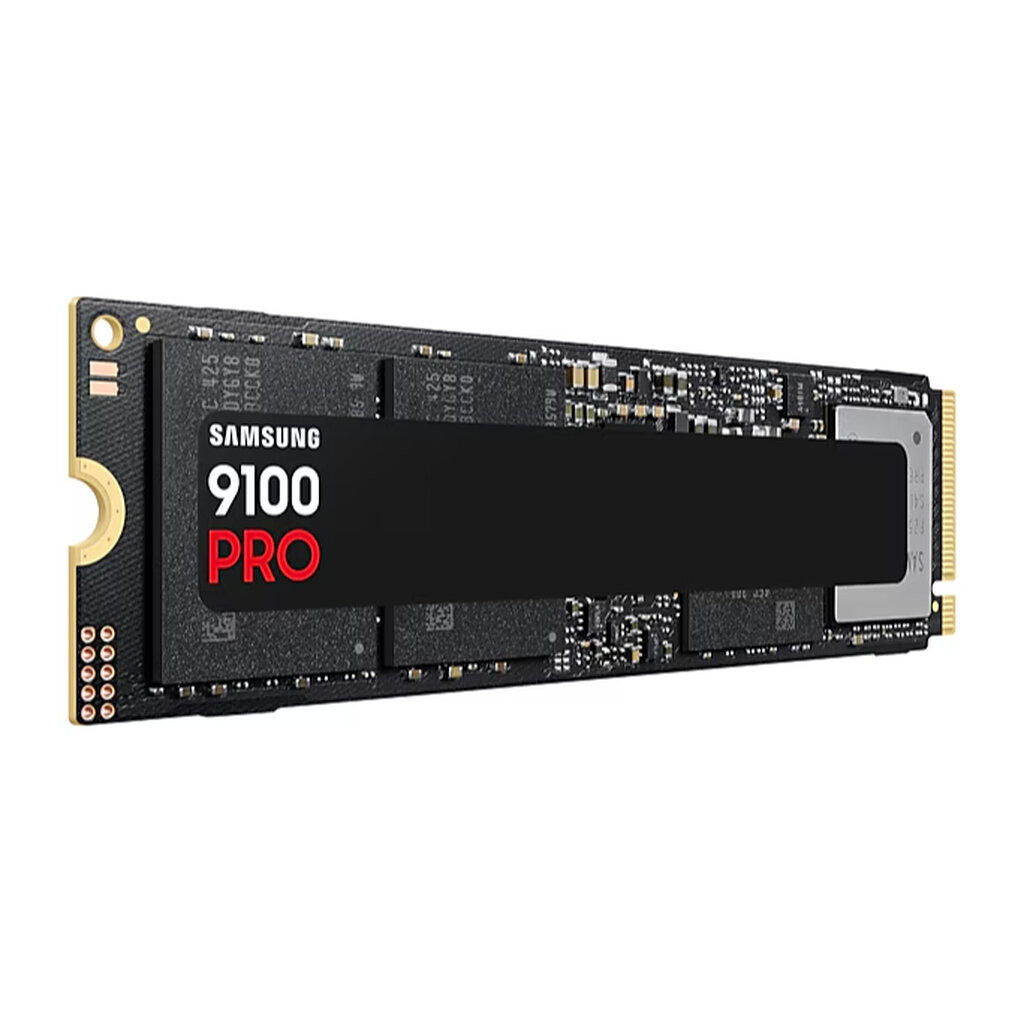

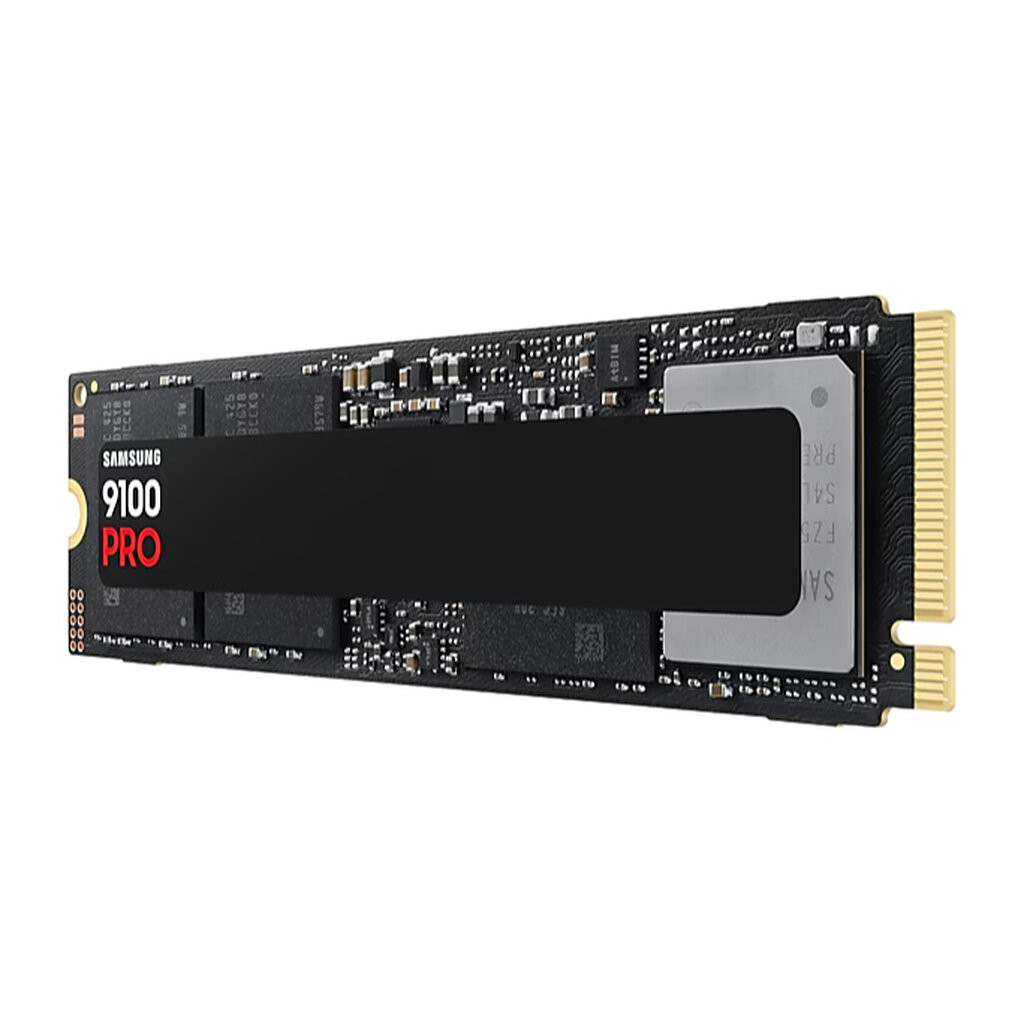

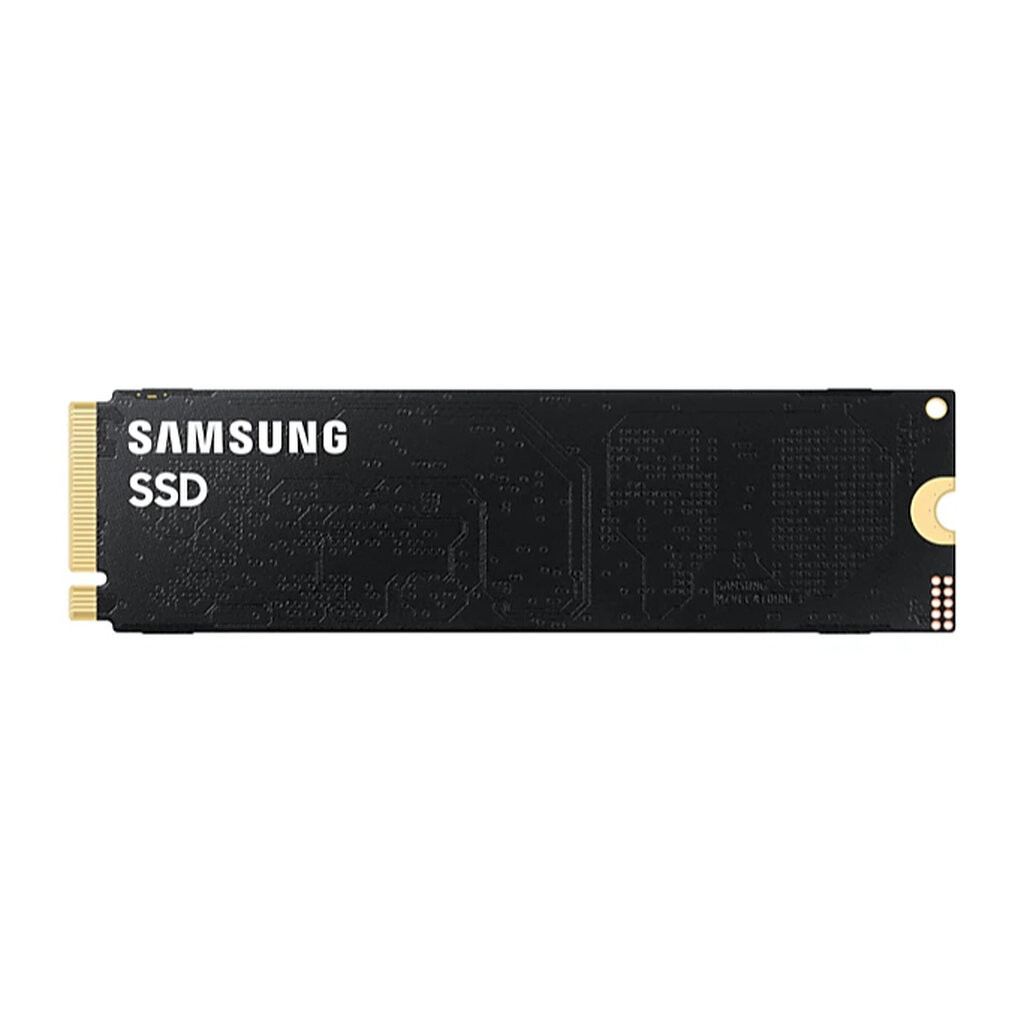

SAMSUNG 9100 PRO 1TB : MZ-VAP1T0BW PCIe 5.0 x4 NVMe M.2 2280 SSD

Specifications Download Interface PCIe® 5.0 x4, NVMe™ 2.0 Sequential Read Up to 14,700 MB/s * Performance may vary based on system hardware & configuration Sequential Write Up to 13,300 MB/s * Performance may vary based on system hardware & configuration Warranty 5-year Limited Warranty or 600TBW Limited Warranty Application Client PCs, Game Consoles Weight Max 9.0g Weight Specifications Detail General Feature Application Client PCs, Game Consoles Rated Capacity 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) Form Factor M.2 (2280) Interface PCIe® 5.0 x4, NVMe™ 2.0 Dimension (WxHxD) Max 80.15 x Max 22.15 x Max 2.38 mm Weight Max 9.0g Weight Storage Memory Samsung V-NAND TLC Controller Samsung in-house Controller Cache Memory Samsung 1GB Low Power DDR4X SDRAM Special Feature TRIM Support Supported S.M.A.R.T Support Supported GC (Garbage Collection) Auto Garbage Collection Algorithm Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) WWN Support Not supported Device Sleep Mode Support Yes Performance Sequential Read Up to 14,700 MB/s * Performance may vary based on system hardware & configuration Sequential Write Up to 13,300 MB/s * Performance may vary based on system hardware & configuration Random Read Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration Random Write Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration Environment Average Power Consumption (system level) Average: Read 7.6 W / Write 7.2 W* Actual power consumption may vary depending on system hardware & configuration Power consumption (Idle) Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration Power Consumption (Device Sleep) Typical 3.3 mW * Actual power consumption may vary depending on system hardware & configuration Allowable Voltage 3.3 V ± 5 % Allowable voltage Reliability (MTBF) 1.5 Million Hours Reliability (MTBF) Operating Temperature 0 - 70 ℃ Operating Temperature Shock 1,500 G & 0.5 ms (Half sine) Accessories Installation Kit Not Available Software Management SW Magician Software for SSD management Warranty 5-year Limited Warranty or 600TBW Limited Warranty
