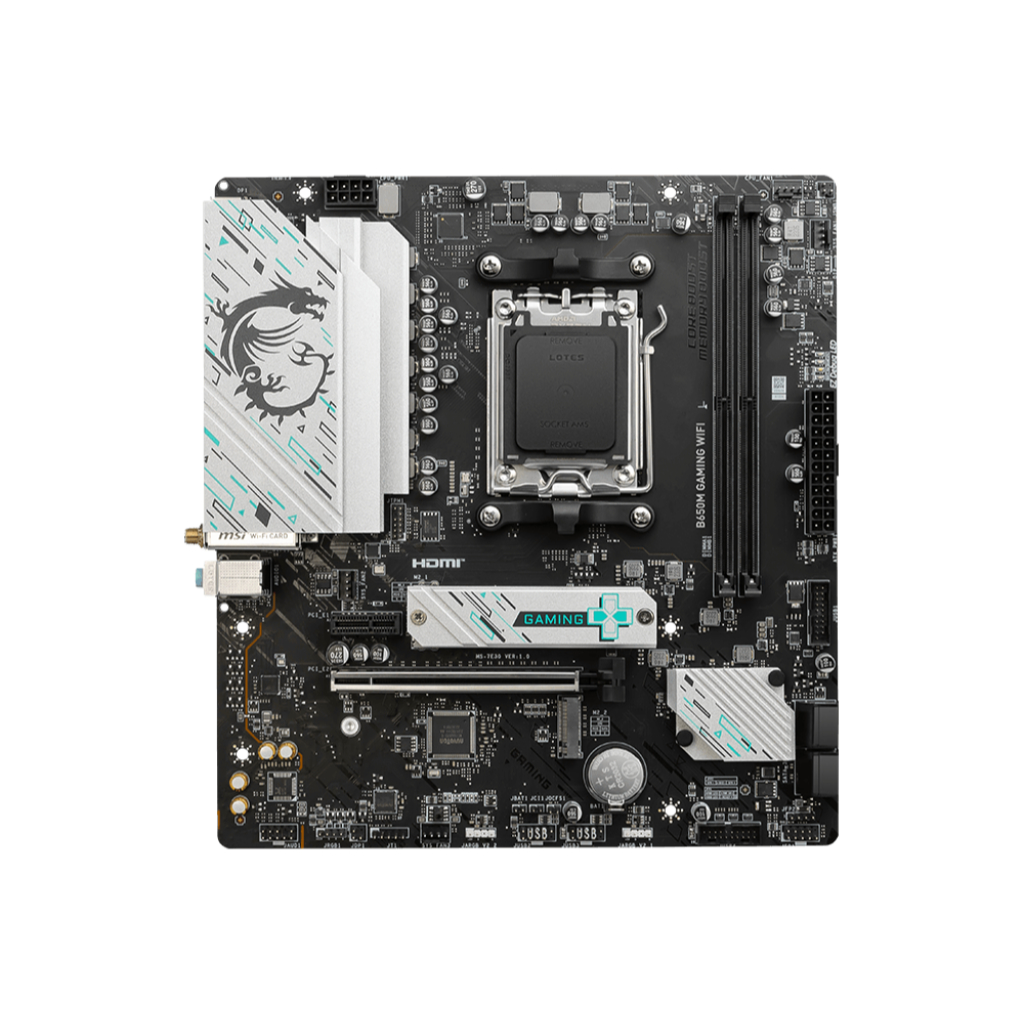

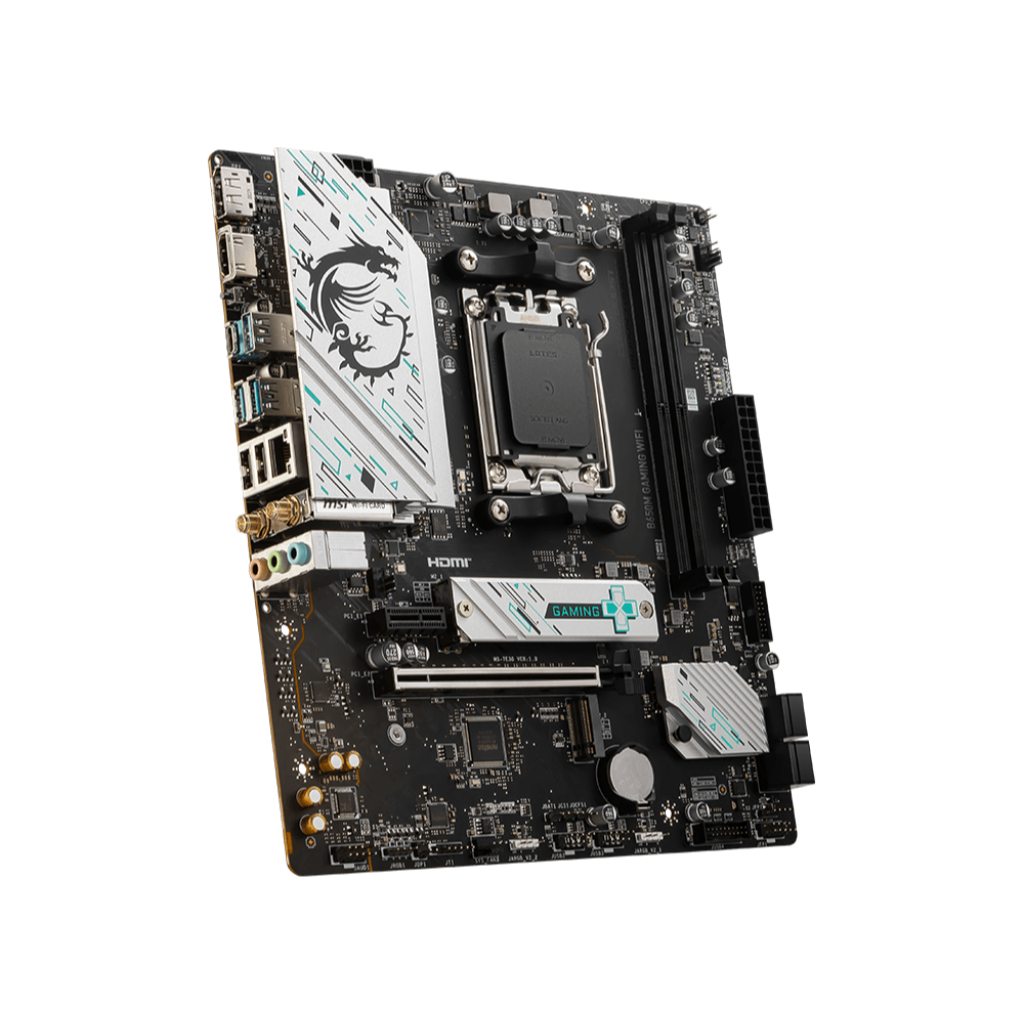

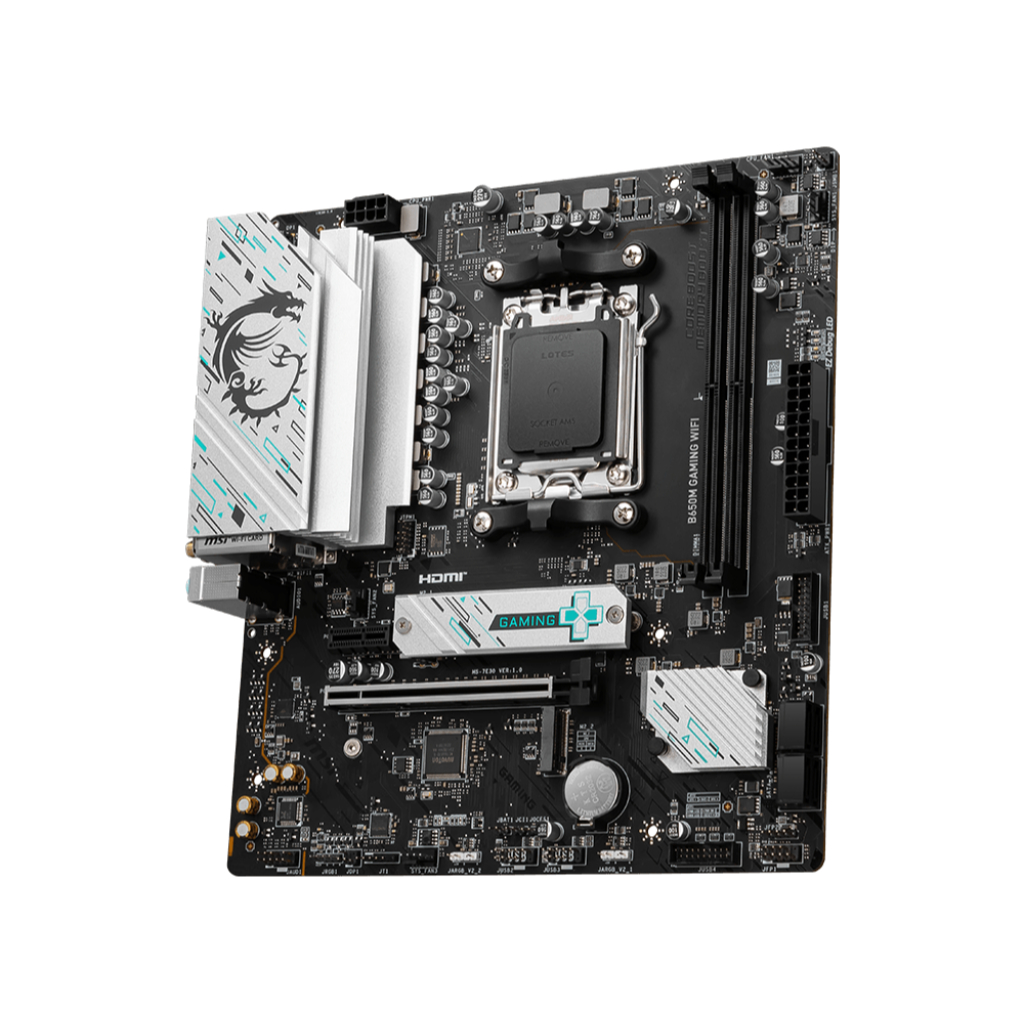

MAINBOARD MSI B650M GAMING WIFI (AM5) (รับประกัน3ปี)

Brand MSI Model B650M GAMING WIFI CPU Socket AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge) Wattage 170W Chipset AMD B650 Series Ryzen 5 , Ryzen 7 , Ryzen 9 memory Slot 2 Memory Type DDR5 Max. Capacity 128 GB Speed 4800 , 5000 (OC) , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) Graphic & Audio Graphic Requires a CPU with Integrated Graphics. — • 1 x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* • 1 x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* — *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Storage SATA 2 - Port SATA 3 4 Port RAID • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices M.2 2 x M.2 slots (Key M) — • M2_1 slot (From CPU) - Supports up to PCIe 4.0 x4 - Supports 2280 storage devices — • M2_2 slot (From CPU) - Supports up to PCIe 4. - Supports 2280 storage devices Port expansion slots Details • 1 x PCI-E x16 slot Supports x16/x1 - Supports x16 (For Ryzen 7000 Series processors) - Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) - Supports x4 (For Ryzen 5 8500G processor) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) — • 1 x PCI-E x1 slot - PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) Slot 1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot network LAN Realtek 8125BG 2.5Gbps LAN LAN Speed 100/1000/2500 Mbps Wireless • AMD Wi-Fi 6E - The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX - Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands - Supports 802.11 a/ b/ g/ n/ ac/ ax - Supports Bluetooth 5.3** — * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. Back Panel I/O Ports USB 2.0 2 Port USB 3.0 - Port USB 3.1 - Port Serial - Port USB 3.2 1 x USB 3.2 Gen 1 5Gbps Type-C 3 x USB 3.2 Gen 1 5Gbps Type-A Port D-Sub (VGA) - Port DVI - Port HDMI 1 Port DisplayPort 1 Port Audio 3 Port PS/2 No Additional 1 x Flash BIOS button 2 x Wi-Fi antenna connectors LAN 1 Port Form Factor Form Factor Micro-ATX Power Connector 24 + 8 Pin Dimension 24.3 x 22.6 cm การรับประกัน 3 Years
