NOYAFA NF-983(MOT-31) All-in-One OTDR Fiber Tester 1310/1550nm Dual Wavelength Network Cable Test

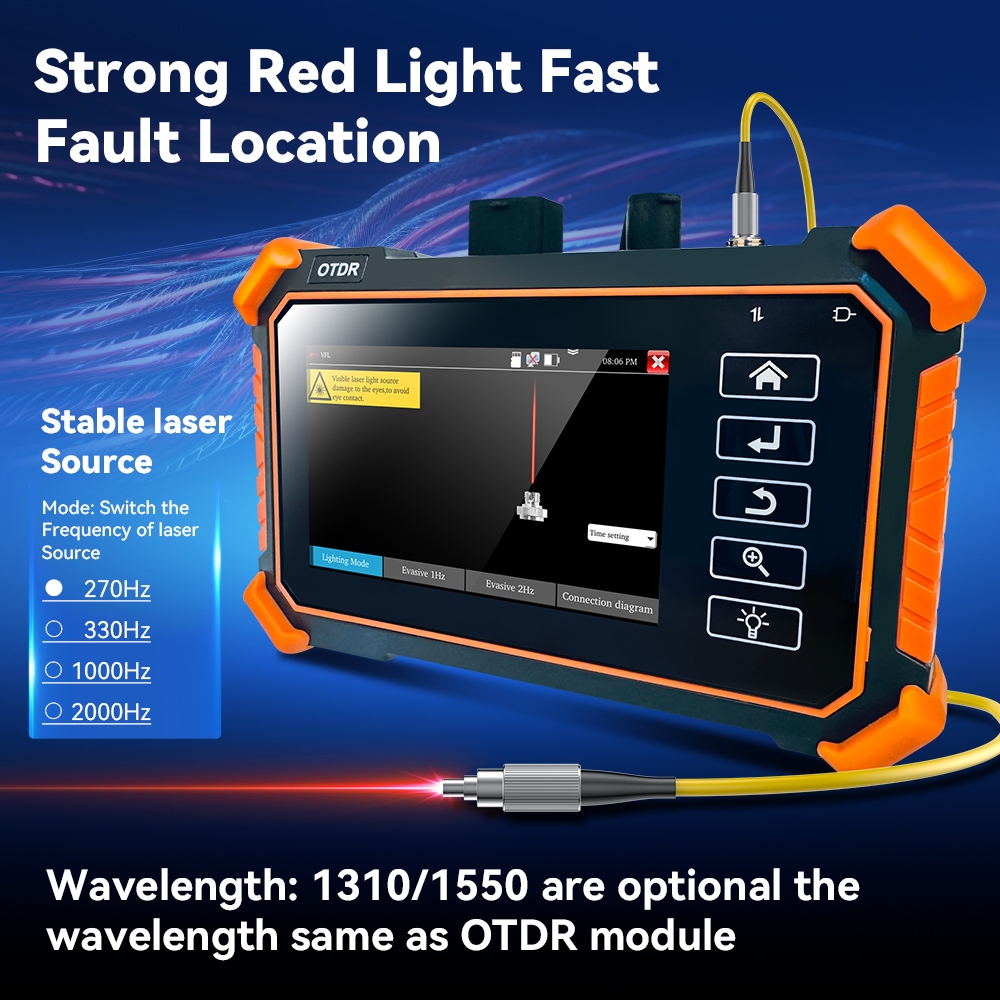

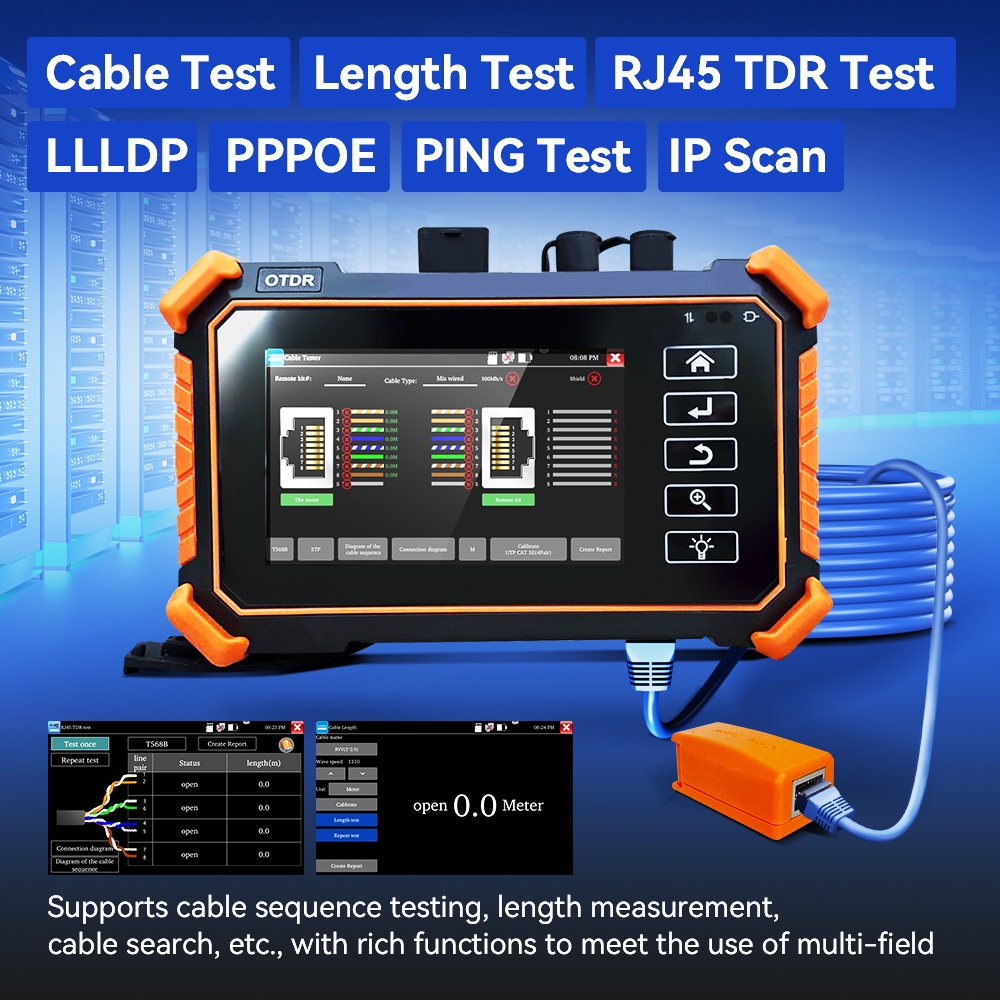

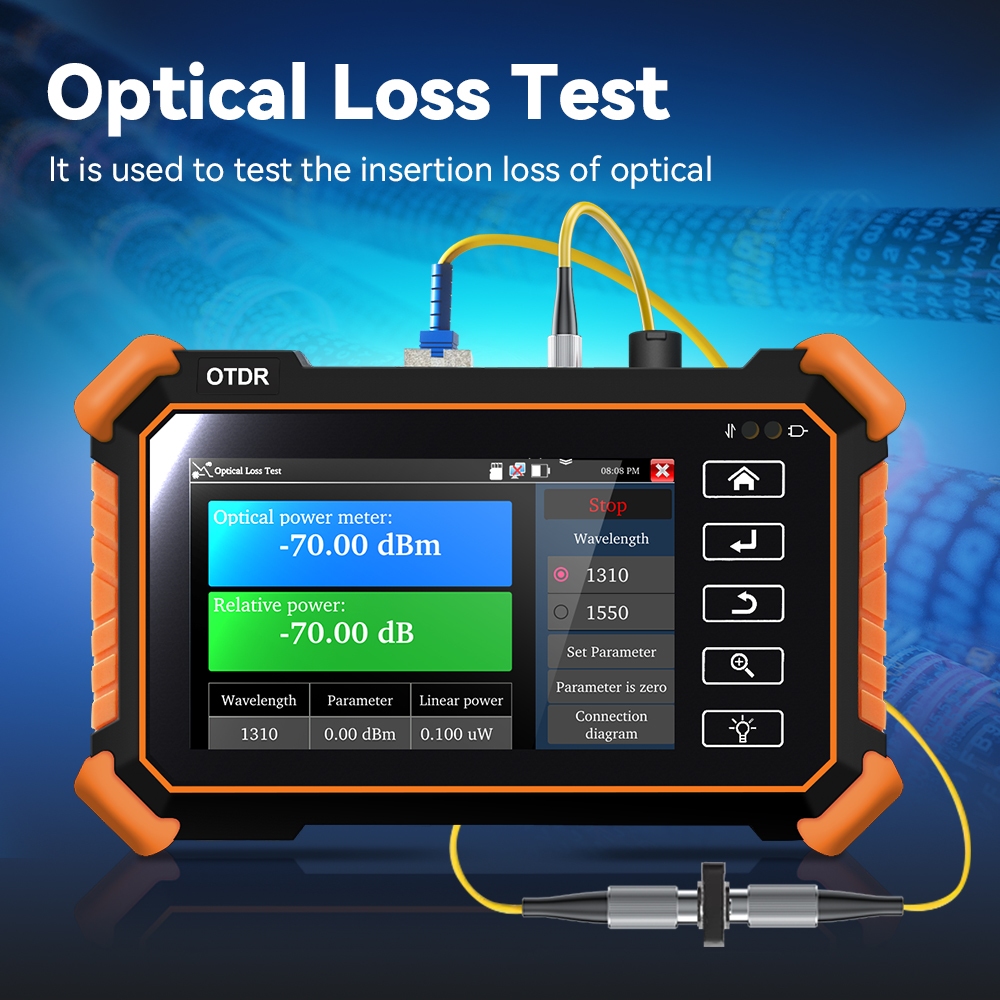

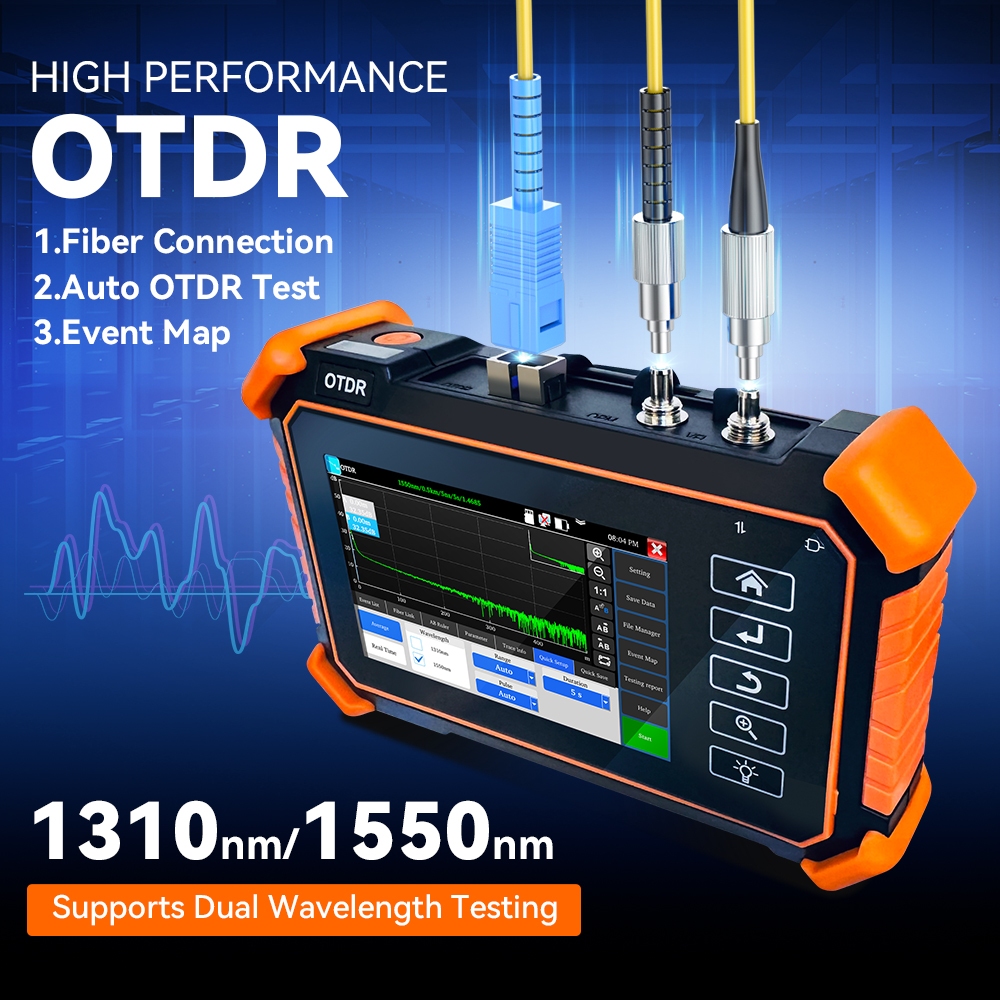

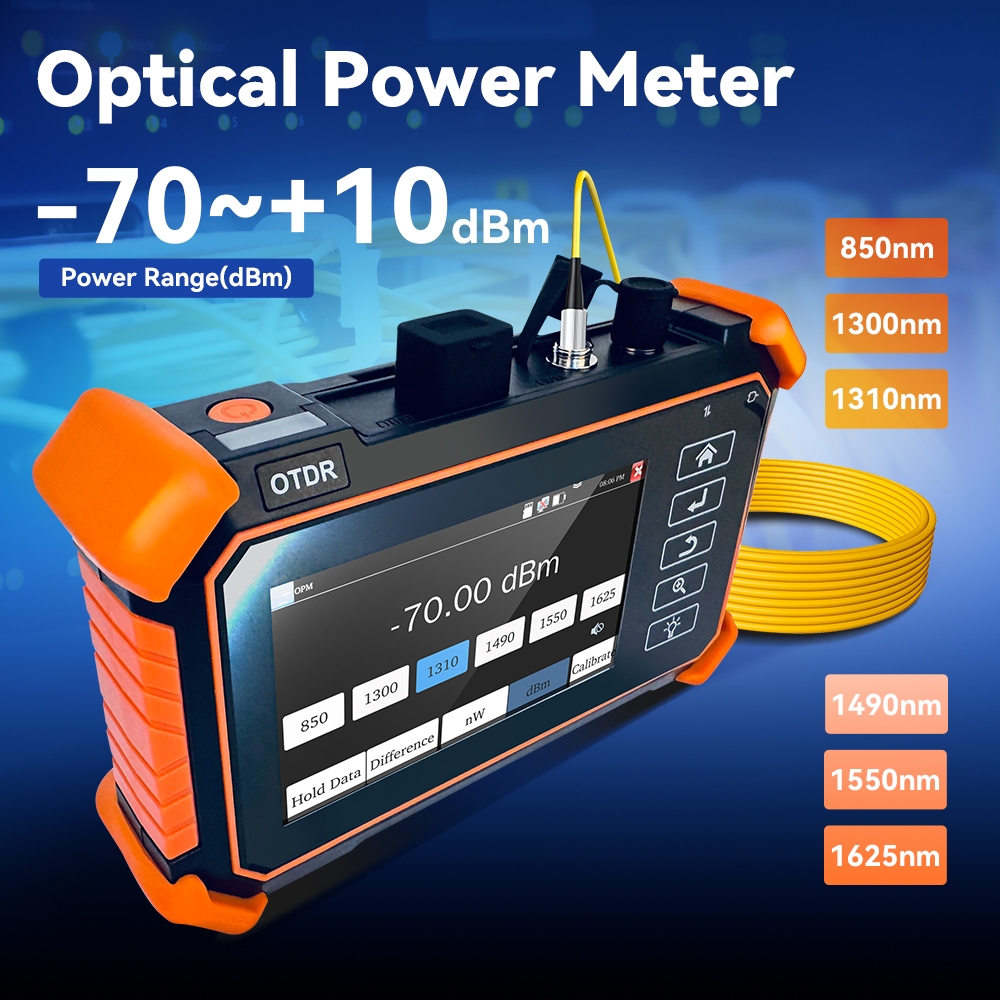

NOYAFA NF-983(MOT-31) Optical fiber fault detector Multi-function OTDR Optical Fiber Network Cable Testing for PING, PPPOE, IP Scan, Port Flashing etc Network Test * Multi-function OTDR+Optical Fiber + Network Cable Testing 1) 4 inch IPS touch screen, 800 x 480 resolution 2) OTDR Auto testing, event map, easy to use 3) Stable laser source, optical power meter and visual fault locator 4) Report saved as SOR, PDF format etc、 5) Network cable length measurement, up to 3km 6) UTP cable test, for network cable’s sequence and continuity 7) RJ45 TDR cable test* (only for NF-983) 8) PING, PPPOE, IP scan, port flashing etc network test * (only for NF-983) Application ● Multi-function NF-983 OTDR is an essential tool for fiber length, network and cable testing. OTDR displays the power of the returned signal related to distance. The information can be used to confirm the transmission quality of a fiber optic link. It is widely used in the maintenance, construction and monitoring of cable line. ● It can measure the optical fiber length, transmission attenuation of optical fiber, attenuation of splice, and failure location, etc. the Multi-function OTDR can make working conditions safer and increasing productivity. ● Fiber length testing and Event Map etc ● Network cabling project installation and maintenance Remarks: 1)The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure, without considering the uncertainty caused by optical fiber refractivity. 2)Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 200km/20000ns/3min. 3)Measuring conditions of blind zone: reflection event is within 5KM, reflection strength is 45dB. Measured by the minimum pulse width. 4）TF card not included.
