About this item
Seek for the perfect compatibility of Tribrid IEM :The development of Variations adopts our previous experience in the development of EST + BA hybrid and EST + DD hybrid earphones. With 3D printing, a precise physical filter structure and frequency divider circuit are manufactured to produce excellent amplitude-frequency response and phase-frequency response.
0.78mm universal detachable interface ,Standard PCC coaxial single crystal copper detachable earphone cable.
Low non-linear distortion, accurate and clean sound:With the reasonable unit configuration, the total harm onic distortion of the whole frequency is less than 1%,and the odd and even hormonics ore evenly distributed, and the overoll tone is harmonious and clean.
Bass driver: 10mm LCP liquid crystal diaphragm dynamic driver;Midrange driver: Softears D Mid B customized midrange balanced armature drivers.
MOONDROP HIFI In-Ear earphone with built-in 1DD, 2BA, and 2EST, and interchangeable cable.
Features
1. Electrostatic driver + Dynamic driver + Balanced armature hybrid drivers, with the excellent physical filter structuremanufactured by 3d printing and the frequency division circuit, shows a perfectharmonious timbre.
2. The overall skin-friendly frostedtexture design cavity is made of medical resin 3d printing, which not only hasexcellent texture, but also fits comfortably the ear canal.
3. Through the 3D printing of preciseacoustic channel, combined with damping materials, corporated with accurate crlow-pass filter circuit, high-pass filter circuit, and equalization circuit, itdelivers an ideal frequency response and phase index.
4. The frequency response is adjusted basedon VDSF Target to bring more real and accurate longitudinal soundstage andrestore timbre.
5. Comes with PCC coaxial single crystalcopper replaceable plug earphone cable.

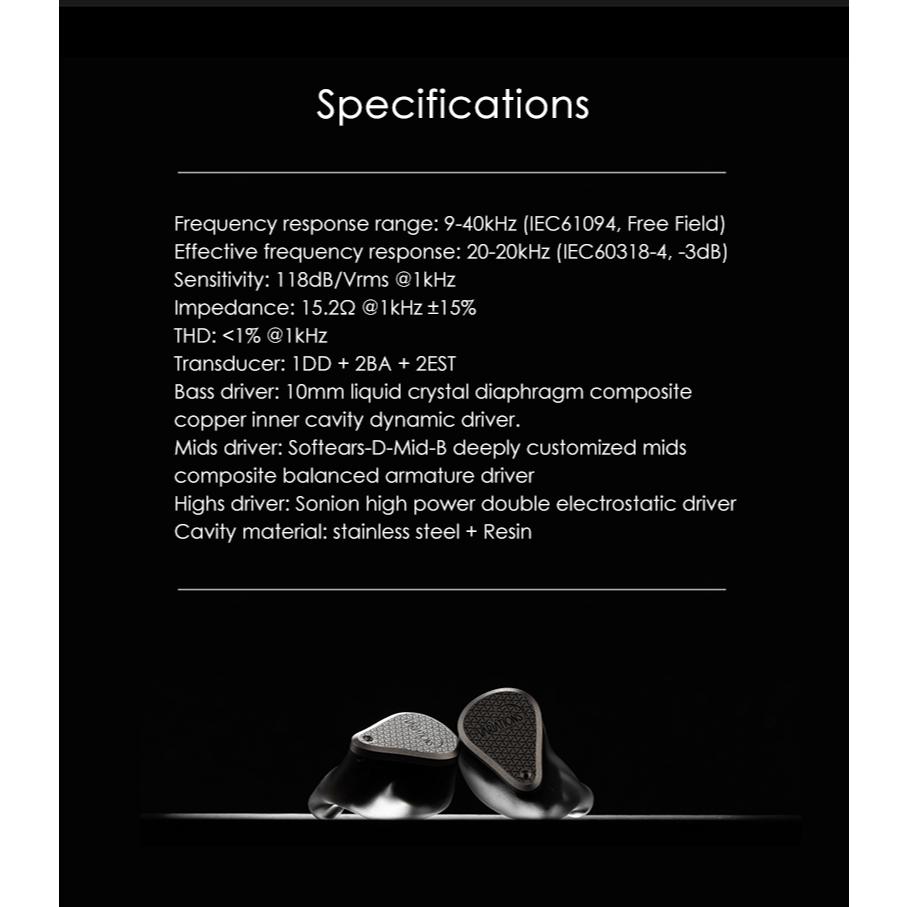

Specification
Frequency response range: 9-40kHz (IEC61094, Free Field)
Effective frequency response: 20-20kHz (IEC60318-4, -3dB)
Sensitivity: 118dB/Vrms @1kHz
Impedance: 15.2Ω @1kHz ±15%
THD: <1% @1kHz
Transducer: 1DD + 2BA + 2EST
Bass driver: 10mm liquid crystal diaphragm composite copper inner cavity dynamic driver.
Mids driver: Softears-D-Mid-B deeply customized mids composite balanced armature driver
Highs driver: Sonion high power double electrostatic driver
Cavity material: Stainless steel + Resin
Package
1. [VARIATIONS] earphone * 1
2. PCC cable * 1
3. Interchangeable 3.5mm plug * 1
4. Interchangeable 4.4mm plug * 1
5. Interchangeable 2.5mm plug * 1
6. Tweezers * 1
7. Filters * 10
8. Storage bag * 1
9. Silicon ear-tips * 3pairs (S, M, L)
10. T55 foam ear tips * 3pairs (S, M, L)
11. QC Certificated card * 1
12. Manual * 1
13. Anime post card * 1
14. After-service list * 2
