MAX31855 เซ็นเซอร์วัดอุณหภูมิ SPI ใช้คู่กับ Thermocouple Type K วัดสูงสุด 1350 °C

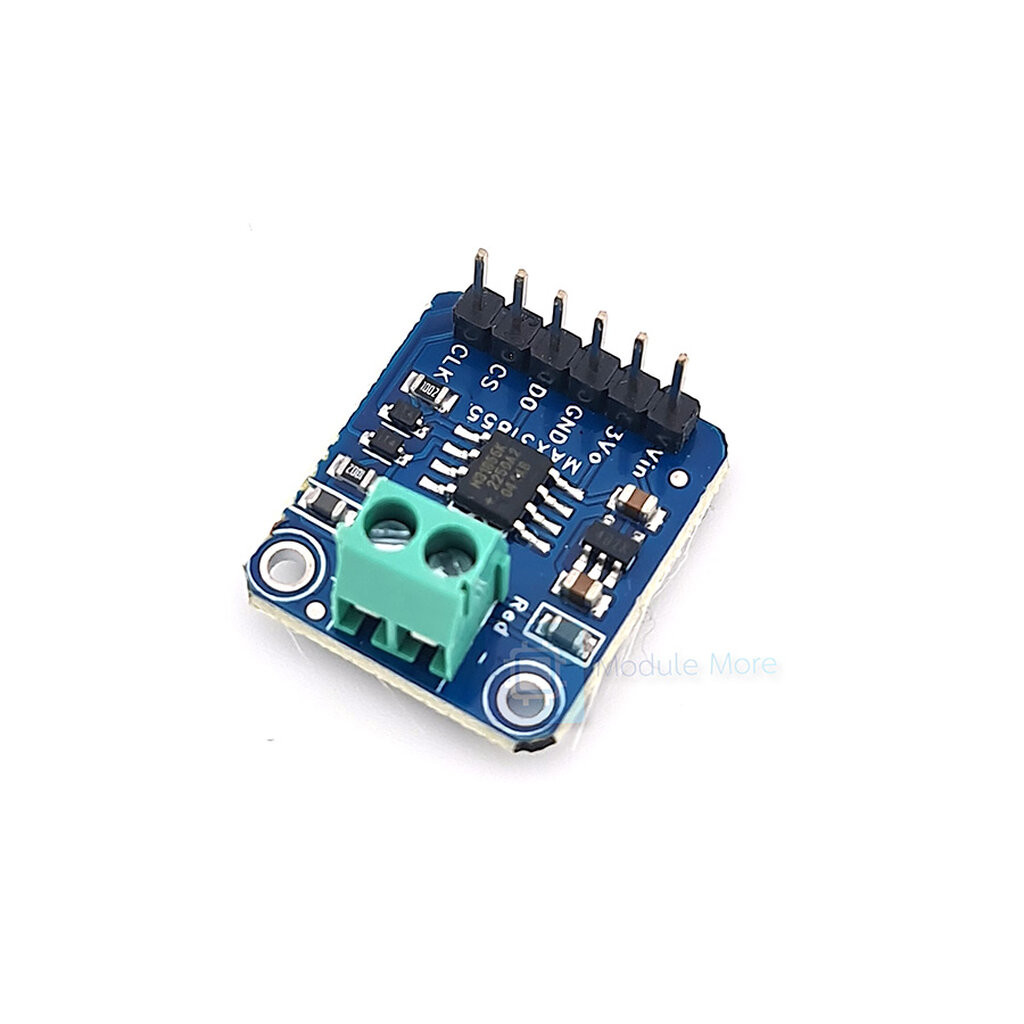

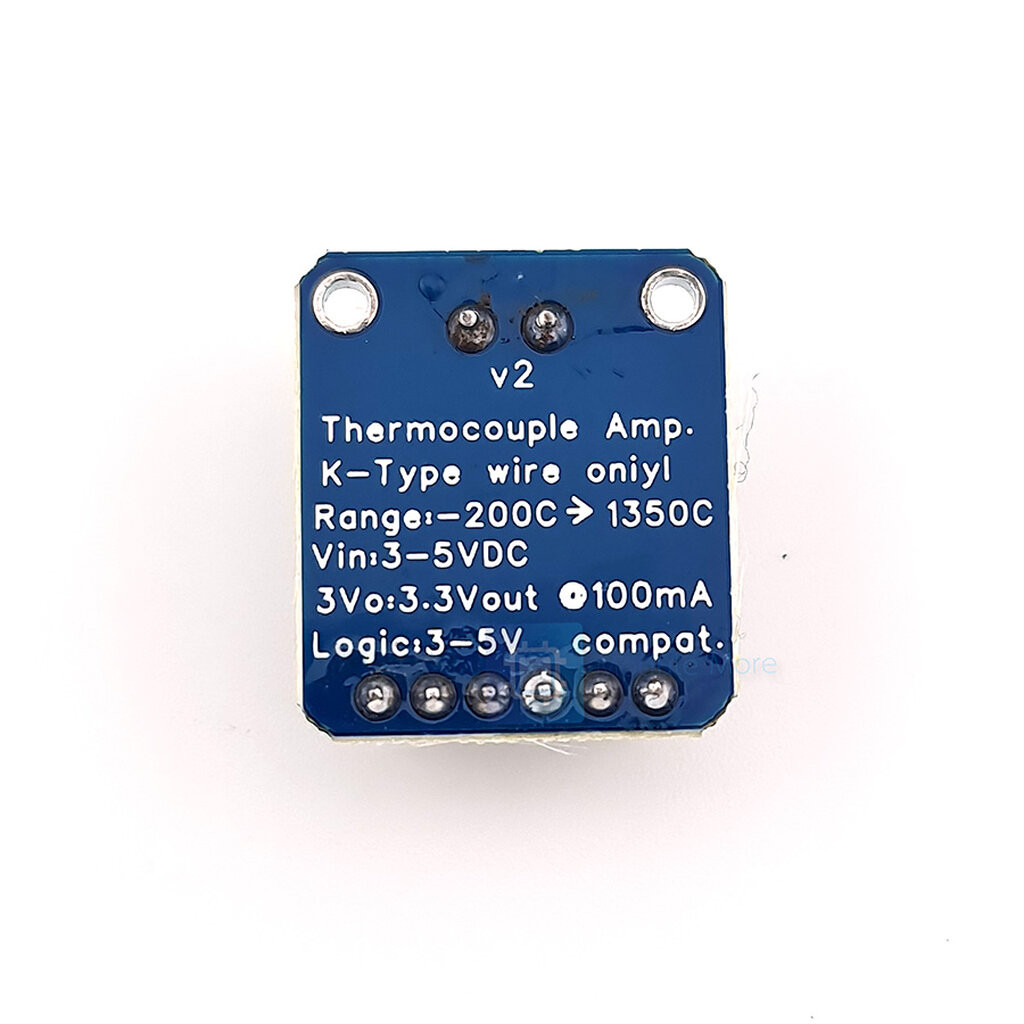

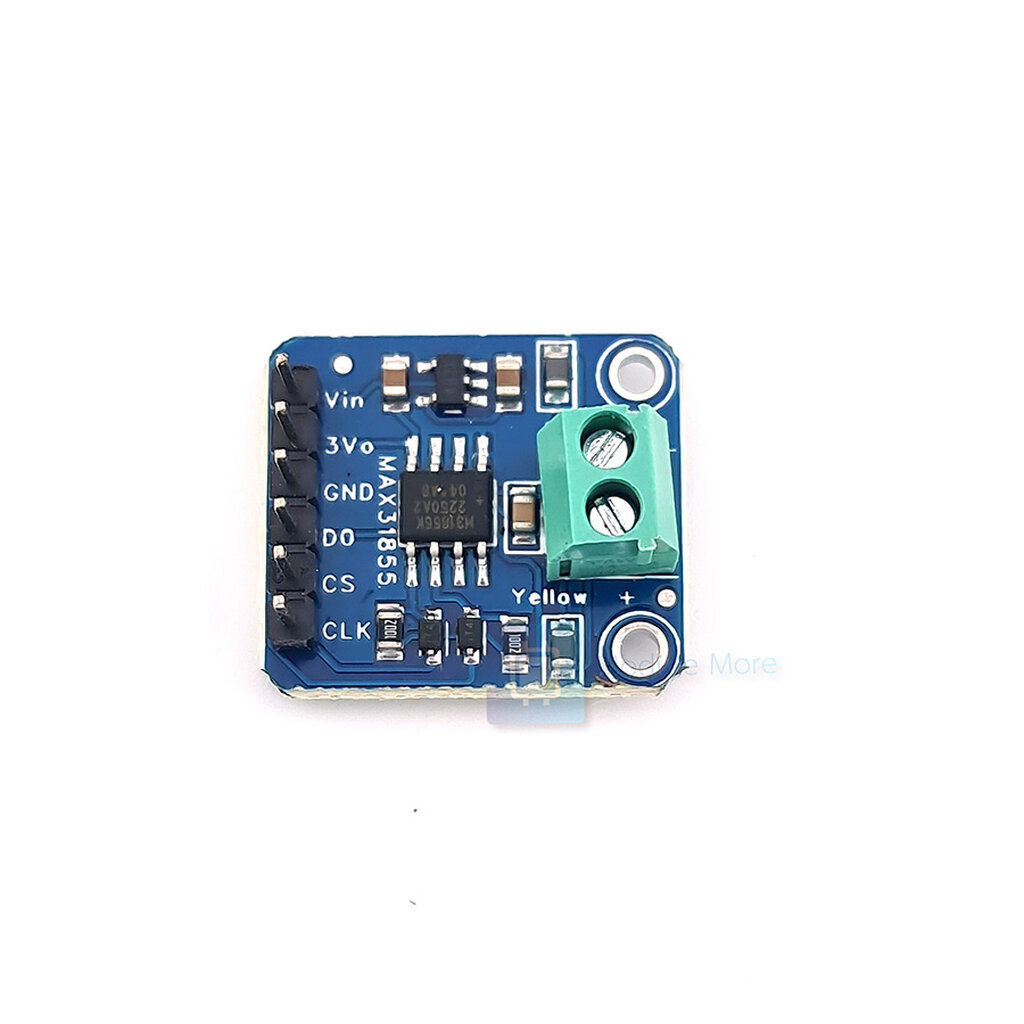

MAX31855 เซ็นเซอร์วัดอุณหภูมิ SPI ใช้คู่กับ Thermocouple Type K วัดสูงสุด 1350 C Description Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The MAX31855K does everything for you, and can be easily interfaced with any microcontroller, even one without an analog input. This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors and level shifting circuitry, all assembled and tested. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard). New! Now uses the MAX31855K instead of the MAX6675, so it can measure a wider temperature measurement range. Please note! the MAX31855 is not pin compatible or drop-in code compatible with the MAX6675. We do have an Arduino library for both chips but you'll need to adjust any existing MAX6675 designs for the mew MAX31855. The MAX6675 has been discontinued by Maxim. Version 2.0 now includes ferrite beads and filter capacitor onboard for better stability - Works with any K type thermocouple - Will not work with any other kind of thermocouple other than K type - -200C to +1350C output in 0.25 degree increments - note that K thermocouples have about 2C to 6C accuracy - Internal temperature reading - 3.3 to 5v power supply and logic level compliant! - SPI data output requires any 3 digital I/O pin Special Notes: 1. Completely consistent with the official version. 2. Due to the low output and low welding difficulty, manual welding is adopted. Delivery list: control board module * 1 piece illustrate: 1. Only applicable to MKS SBASE, do not bid for other 2560 series motherboards. Measuring temperature range: -200 degrees Celsius to 1350 degrees Celsius 2. Applicable probe, K-type thermocouple, the module is not matched and needs to be purchased separately 3. SPI interface, high-speed transmission 4. Input voltage 3-5v DC 5. Direct digital output of temperature value, no amplifier or ADC required 6. 14-bit resolution, 0.25 degree temperature accuracy 7. Size 20mm X 23mm Positioning hole spacing 15mm Diameter 3mm 8. Weight: 20g
