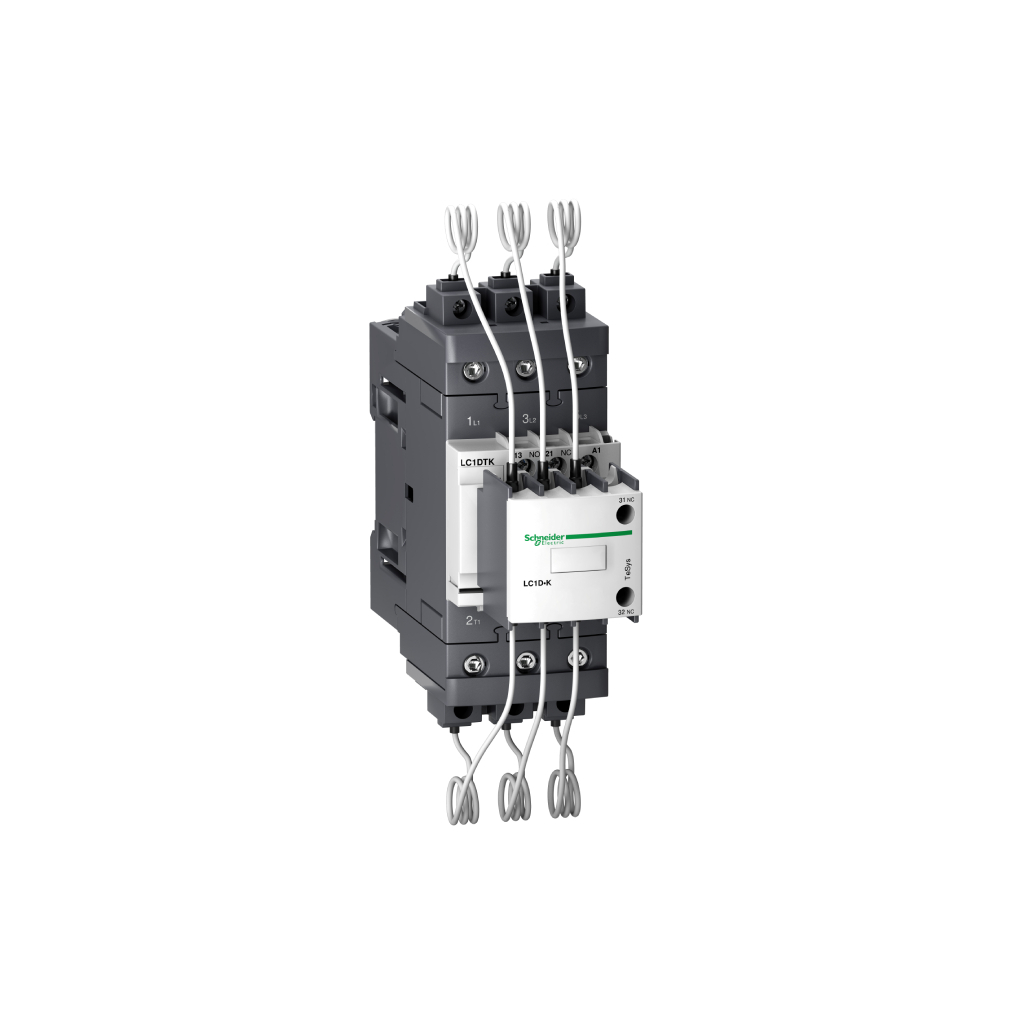

Schneider Electric Capacitor contactor, รุ่น Tesys Deca, 40kVAR at 400/415V 50Hz, 220V AC 50/60Hz coil (LC1DTKM7)

Main Range •TeSys •TeSys Deca Product name •TeSys LC1D.K •TeSys Deca Product or component type : Capacitor duty contactor Device short name : LC1DTK Device application : Control Contactor application : Power factor correction Utilisation category : AC-6b Poles description : 3P Power pole contact composition : 3 NO Device location in system •Line interruption •Inside delta interruption [Ue] rated operational voltage : Power circuit: 690 V AC 50/60 Hz Reactive power rating •22 Kvar at 230 V AC 50 Hz 60 °C •40 Kvar at 400 V AC 50 Hz 60 °C •43 Kvar at 440 V AC 50 Hz 60 °C •67 Kvar at 690 V AC 50 Hz 60 °C •20 Kvar at 230 V AC 60 Hz 60 °C •40 Kvar at 460 V AC 60 Hz 60 °C •50 kvar at 575 V AC 60 Hz 60 °C Control circuit type : AC at 50/60 Hz [Uc] control circuit voltage : 220 V AC 50/60 Hz Auxiliary contact composition : 1 NO + 2 NC instantaneous Electrical durability •300000 Cycles at Ue 400 V •200000 cycles at Ue 690 V Mounting support •DIN rail •Plate Standards •EN/IEC 60947-1 •EN/IEC 60947-4-1 •UL 60947-4-1 •CSA C22.2 No 60947-4-1 •IEC 60335-1 Product certifications •IECEE CB •Scheme[RETURN]UL[RETURN]CSA[RETURN]UKCA Connections - terminals •Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid •Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid •Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end •Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end •Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end •Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end •Power circuit: EverLink BTR screw connectors 1 1… 35 mm² - cable stiffness: solid •Power circuit: EverLink BTR screw connectors 2 1… 25 mm² - cable stiffness: solid •Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible with or without cable end •Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible with or without cable end Tightening torque •Control circuit: 1.7 N.m - on screw clamp terminals •Power circuit: 5 N.m - on EverLink BTR screw •connectors - cable 1…25 mm² •Power circuit: 8 N.m - on EverLink BTR screw •connectors - cable 35 mm² Maximum operating rate : 240 cyc/h
