Air-Operated Double Diaphragm Pump 1" Inlet Outlet Petroleum Fluids 35GPM

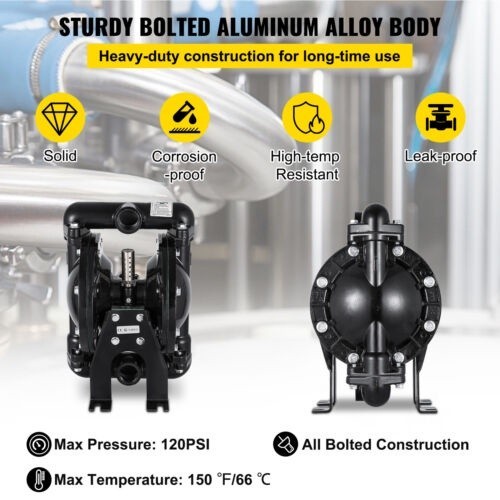

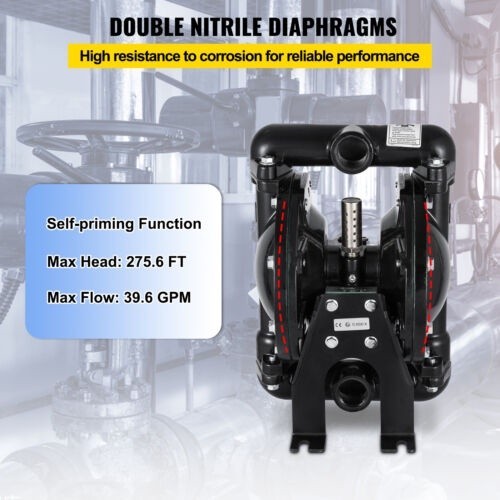

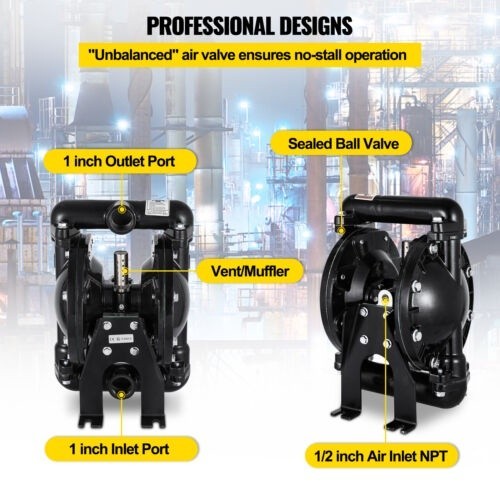

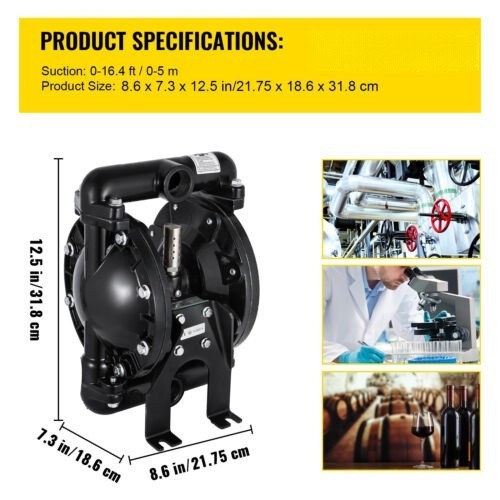

Air-Operated Double Diaphragm Pump Aluminum Alloy Construction & Nitrile Diaphragm & 39.6 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted aluminum alloy body and double nitrile diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly. Specification Model: QBY4-25L Type: Air-operated Double diaphragm Diaphragm Material: Nitrile Body Material: Aluminum Alloy Inlet/Outlet Port: 1 inch (25 mm) Air Inlet Size: NPT 1/2 inch (12.7 mm) Max Flow Rate: 39.6 GPM Max Head: 84 m (275.59 ft) Valve Type: Ball Suction: 0-5 m (0-16.4 ft) Max Suspended Solids: 3 mm (1/8 inch) Average Air Consumption: 38 CFM Self-Priming Dry: 3 m (10 ft) Self-Priming Wet: 4.6 m (15 ft) Features & Details Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate: 39.6 GPM; Max Head Lift：275.6 ft/84 m. Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use. Excellent Air-operated Performance: Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance. Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime. Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
