Brand : QNAP
Model : TS-133
CPU Model : ARM 4-core Cortex-A55 1.8GHz processor
Operating System : QTS 5.0.0
System Memory : 2 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
Drive Interface : 3.5-inch SATA 6Gb/s, 3Gb/s
Number of Drives : 1
Display Panel : N/A
LED Indicators : System Status, LAN, HDD
Interface : N/A
USB Interface : USB 2.0 port x 1
USB 3.2 Gen 1 port x 1
LAN Interface : Gigabit Ethernet Port (RJ45)
Video : N/A
Audio : N/A
Memory Slot : N/A
Buttons :
Power, Reset
Remote Control : N/A
Networking : N/A
RAID : 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
Standard Compliance : N/A
Security : N/A
OS Support : N/A
Management : N/A
File system : Internal drive
EXT4
External drive
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
File Sharing : N/A
Time Synchronization : N/A
Special Features : N/A
Cooling Fans : 1 x 50mm, 12VDC
Power Supply :
36W Adapter, 100-240V
Power Consumption :
7.32 W
Tested with drives fully populated.
Environment : N/A
Certification : N/A

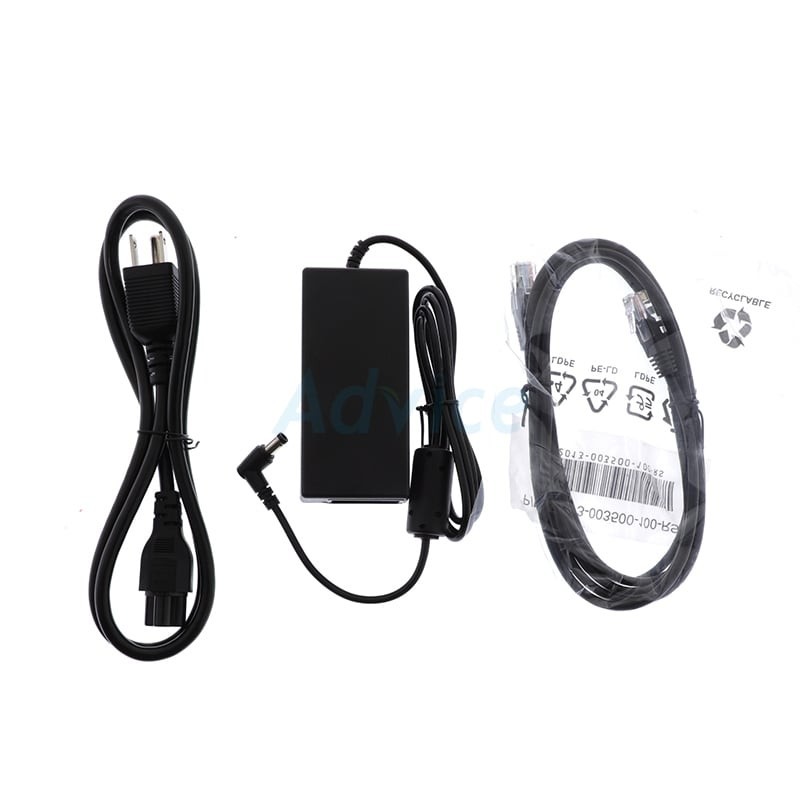

Packaging Content : TS-133
Ethernet Cable x 1
AC Adapter
Power Cord
Flat head screw (for 3.5" HDD) x6
Flat head screw (for 2.5" HDD) x2
Quick Installation Guide (QIG)
Package Dimension (W x D x H) : 27.50 x 22.00 x 7.50 cm
Gross Weight : 1.30
Volume : 4,537.50
ประกัน : 2 ปี
