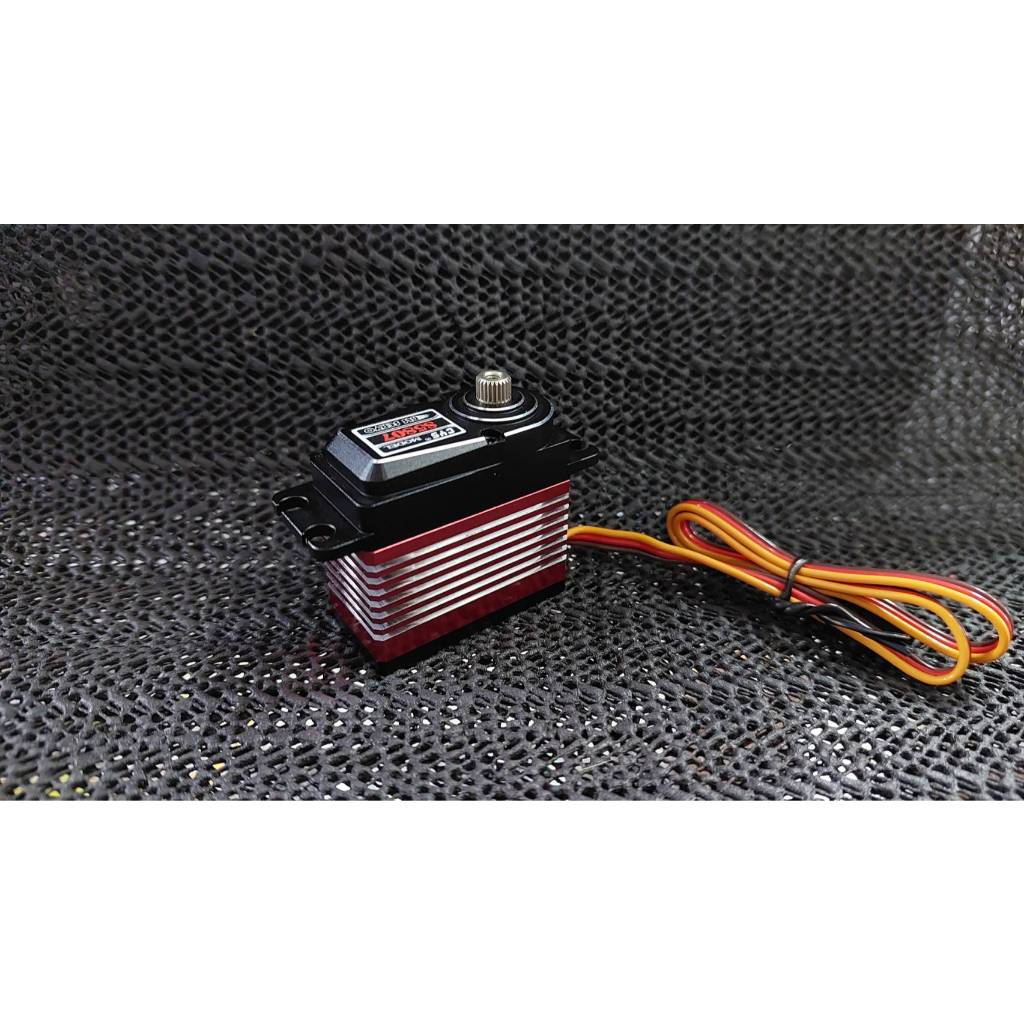

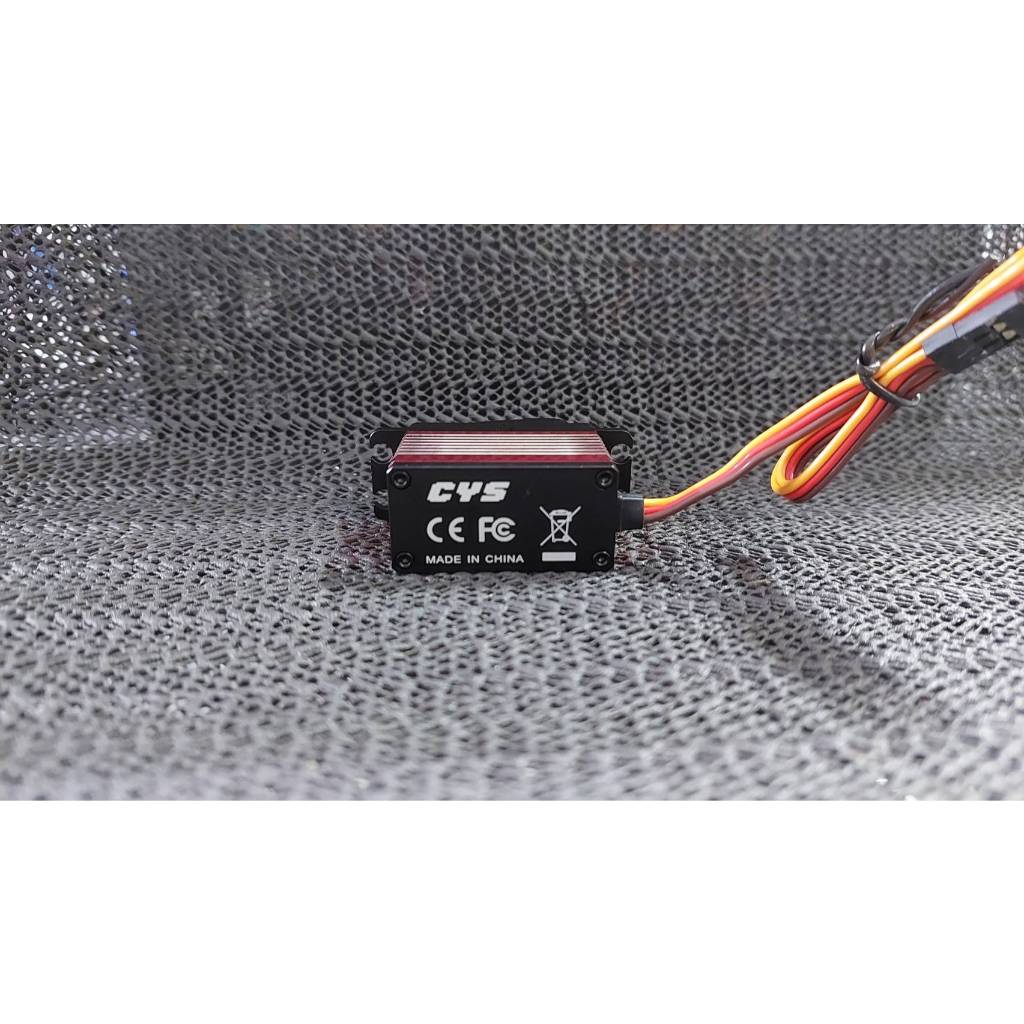

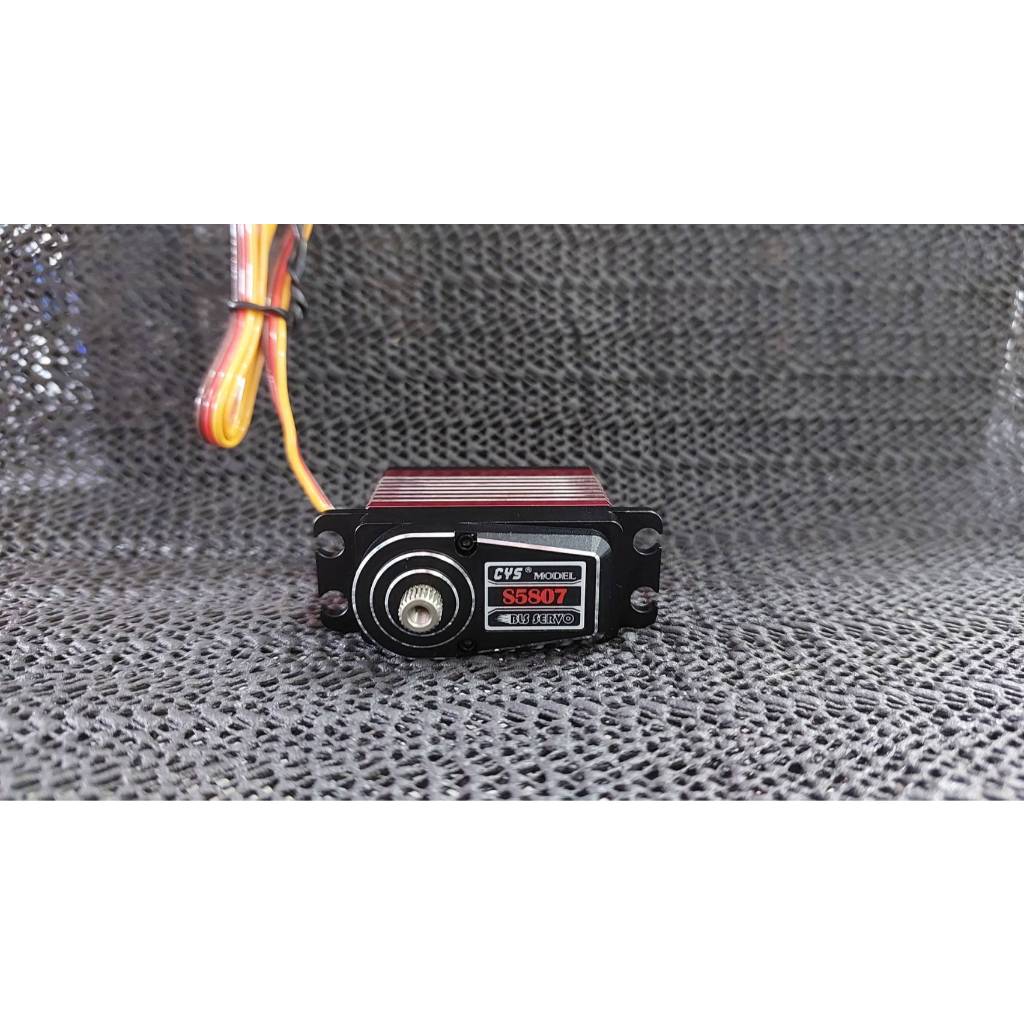

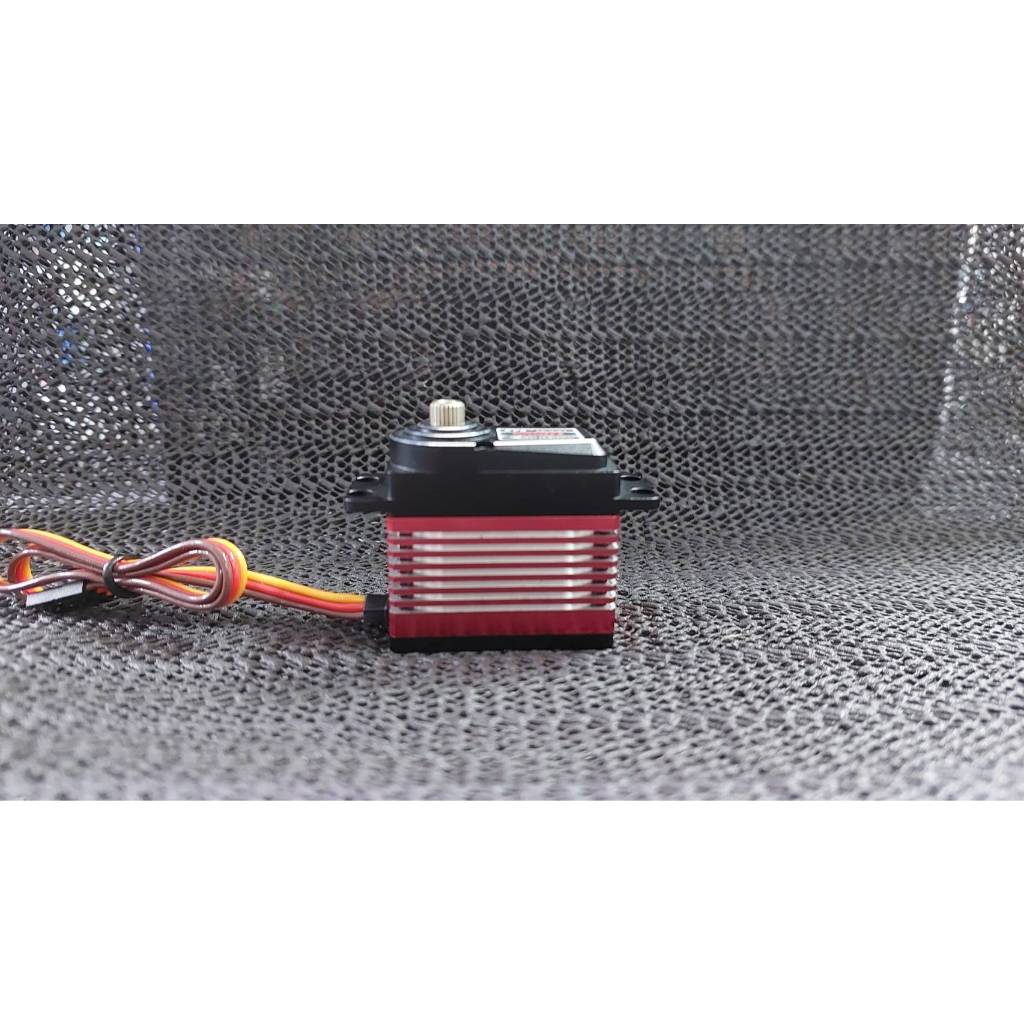

เซอร์โว CYS-BLS5807 High speed tail servo 600-700 helicopter

Item NO.: CYS-BLS5807 Description : Tail servo with high speed for 600-700 classes helicopter Size : 40*20*39MM Torque : 6.0Kg.cm ~ 7.00Kg.cm Speed : 0.06sec ~ 0.05sec/60 degree Voltage : 6.0Volts ~7.4Volts Weight :77± 1 g Application&Features Type Digital Weight 72g±1g Size 40*20*39.35mm Control System (+)Pulse Width Control 1500usec Neutral Operating Voltage 6.0~7.4Volts Operating Temperature Range (-)10 to +50 degree C Operating Speed (6.0V) 0.06sec/60° at no load Operating Speed (7.4V) 0.05sec/60° at no load Stall Torque (6.0V) 5.5kg.cm Stall Torque (7.4V) 7kg.cm Operating Angle 45deg.one side pulse traveling 500 usec Direction Anticlockwise/Pulse Traveling 1000~2000usec Current Drain (6.0V) 20mA/idle and 80mA no load operating Current Drain (7.4V) 20mA/idle and 100mA no load operating Stall Current 2.7A/3.2A Dead Band Width 2usec Motor Type Brushless motor Bearing Type Double ball bearing Horn gear spline 25T Gear Type Titanize Connector Wire Length 300mm±5mm Wire info Brown/Black = Negative Red = Positive Orange/White = Signal
