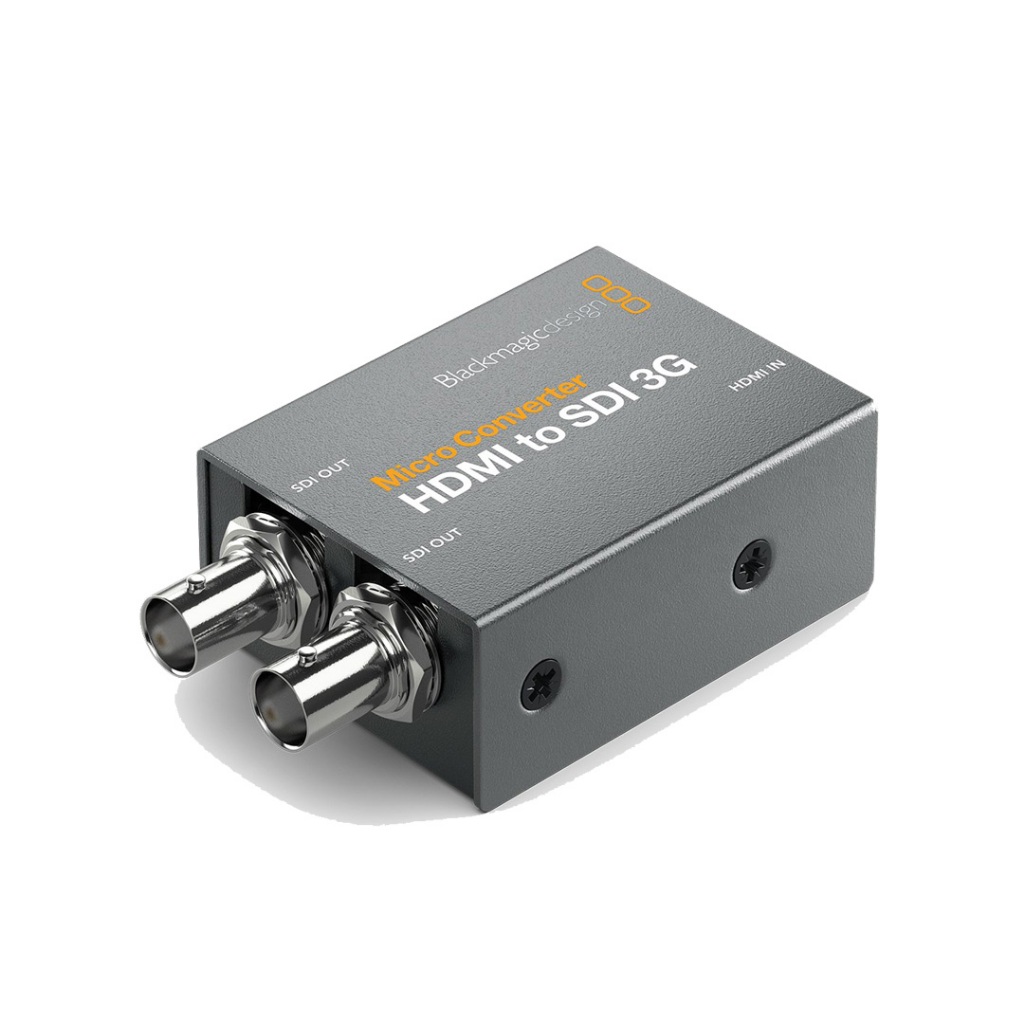

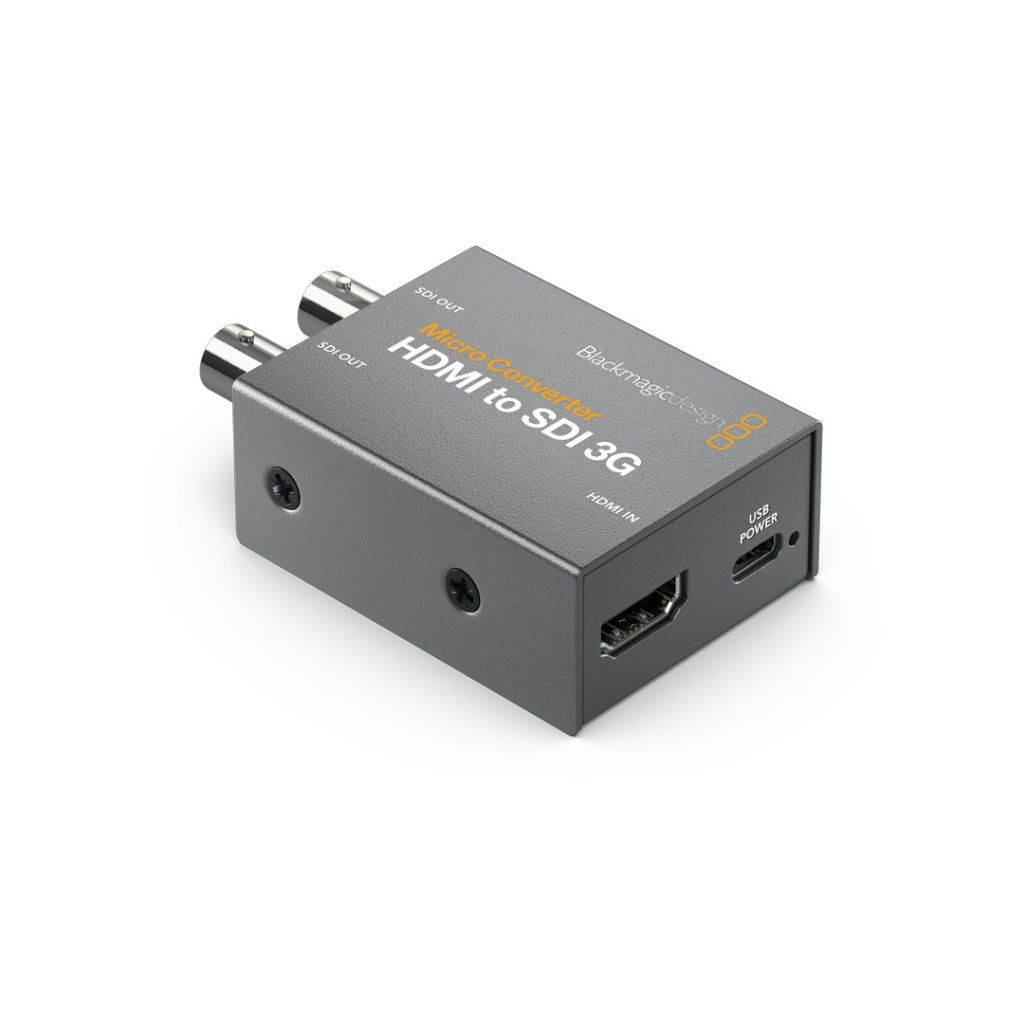

Micro Converter HDMI to SDI 3G

SDI Video Outputs 2 x SD, HD or 3G‑SDI. Automatically matches the HDMI input. HDMI Video Inputs HDMI Type A in. Multi Rate Support Auto detection of SD or HD. Updates, Configurations and Power USB Type‑C. Reclocking Yes Standards SDI Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M SDI Video Rates SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility. SDI Color Precision 4:2:2 SDI Color Space YUV SDI Auto Switching Automatically detects SD, HD and 3G-SDI HDMI Video Standards 525i29.97 NTSC, 625i25 PAL 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HDMI Color Precision 4:2:2 HDMI Color Space YUV Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. Settings Control Via MacOS™ and Windows™ software utility connected by USB. Software Internal software upgrade via USB. Power Requirements Power Consumption 2 W Operational Voltage Range 4.4 to 5.25V DC Operating Temperature 0° to 40° C (32° to 104° F) Storage Temperature -20° to 60° C (-4° to 140° F) Relative Humidity 0% to 90% non-condensing
