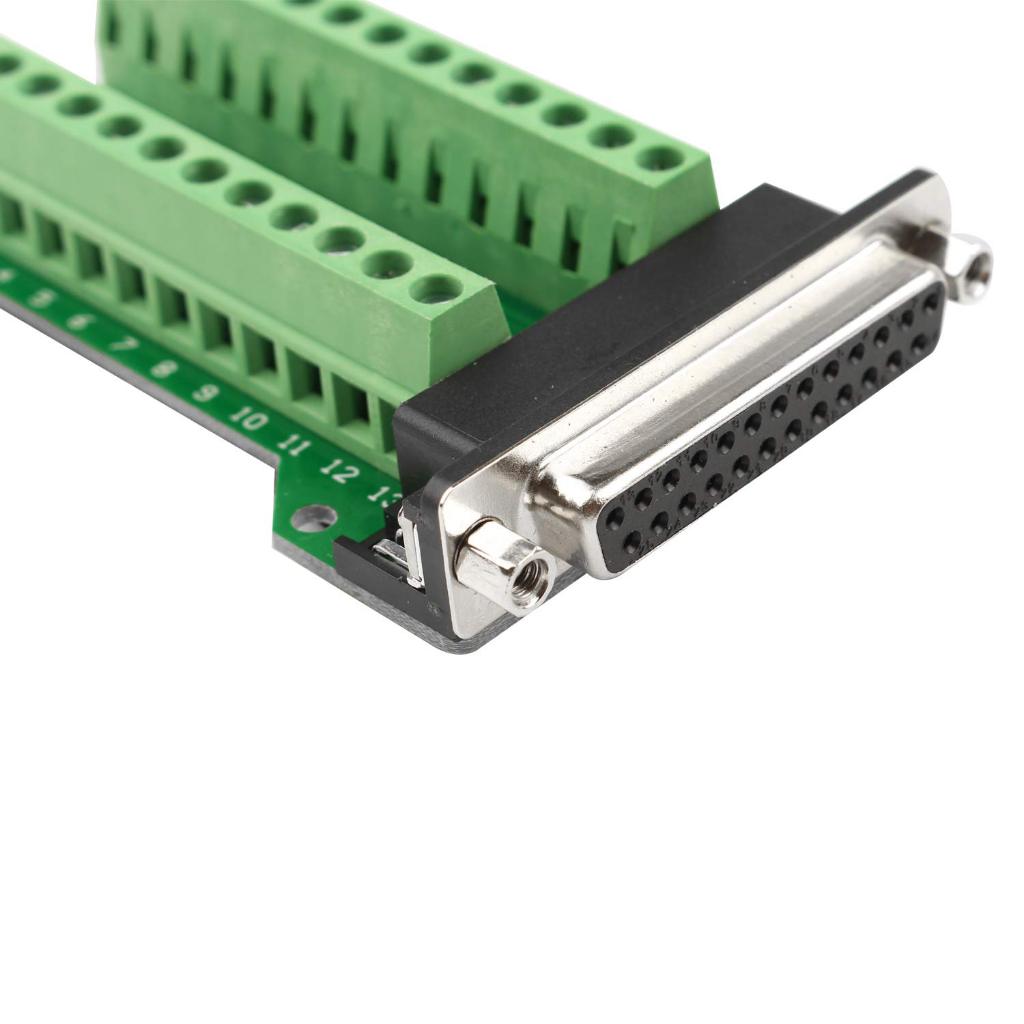

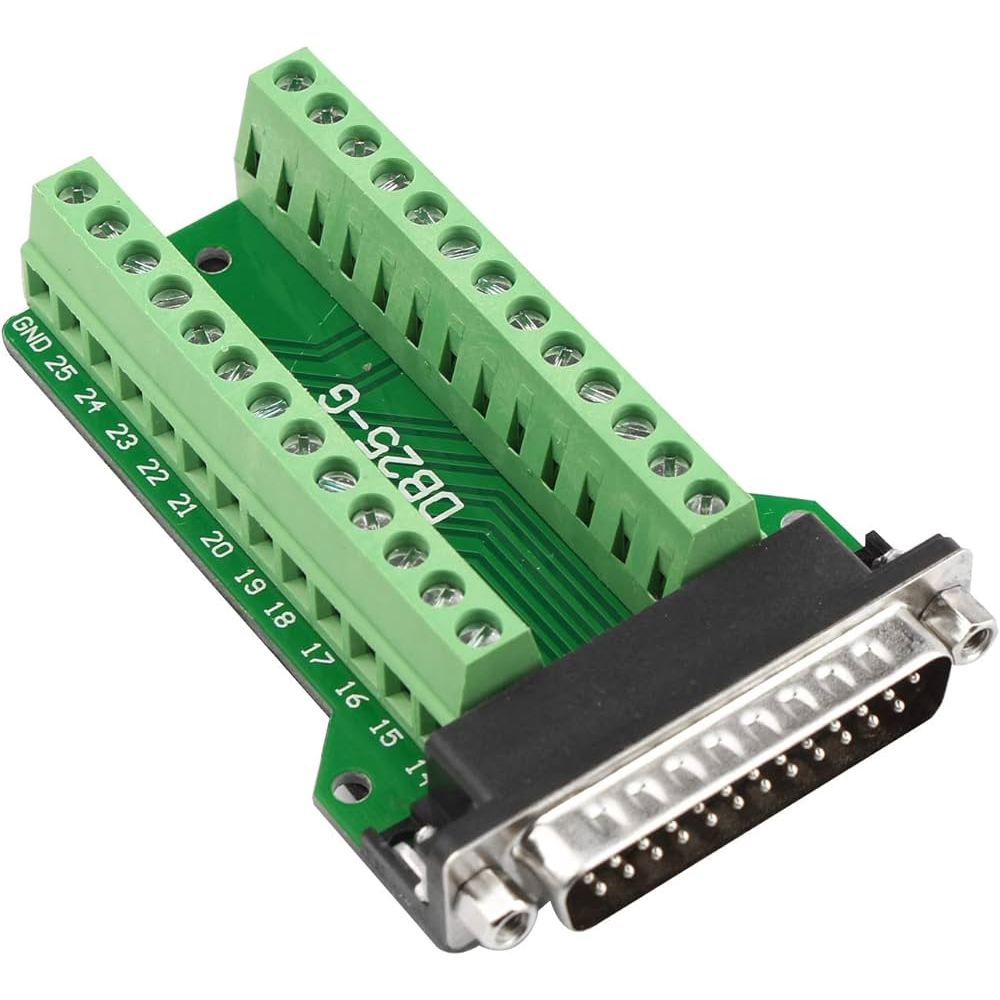

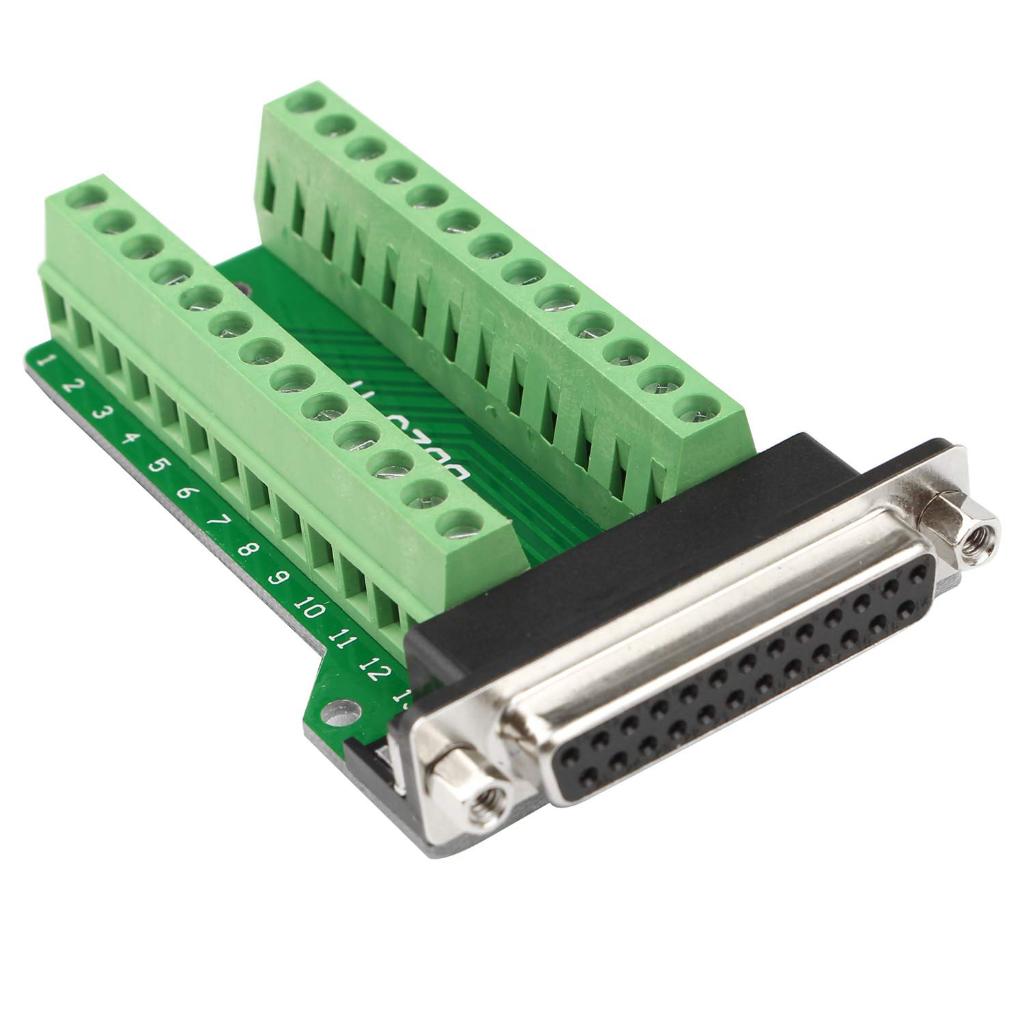

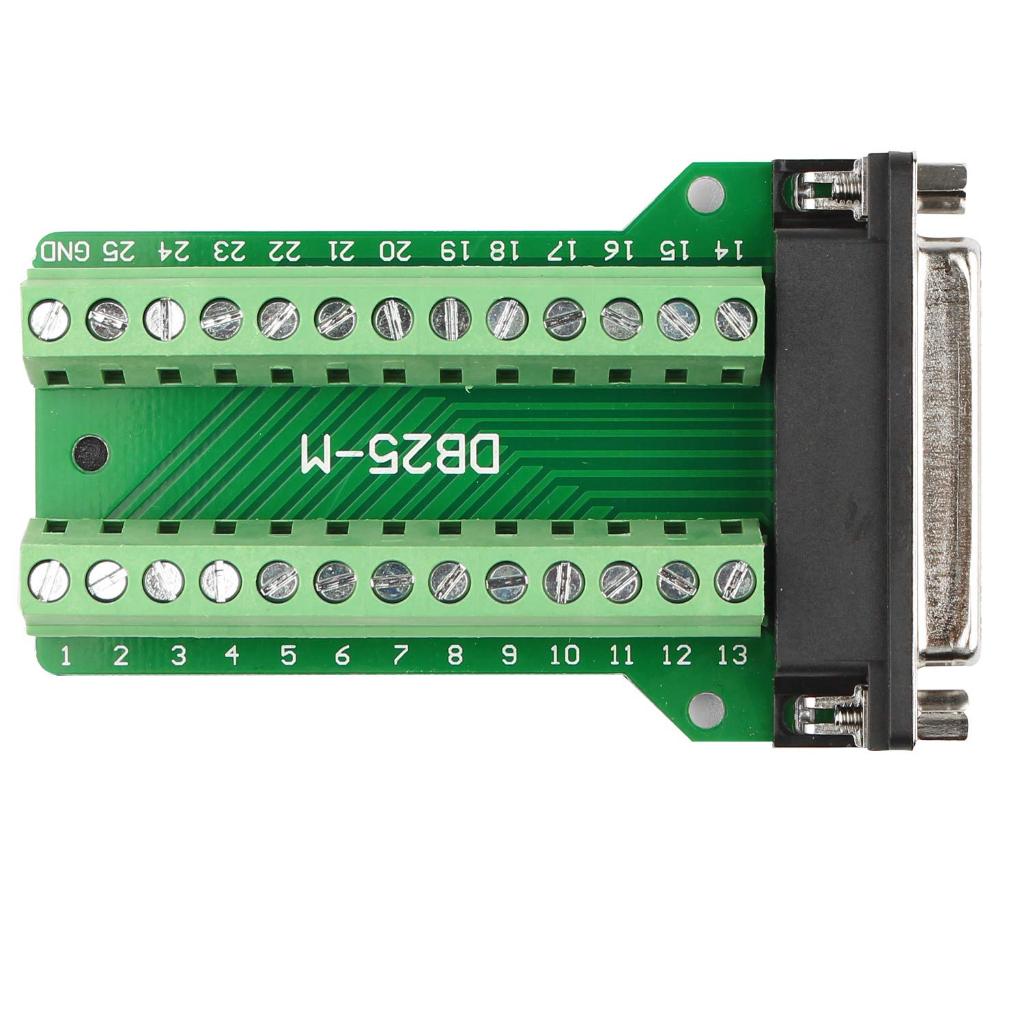

D-sub DB25-M2 ตัวผู้ / ตัวเมีย Port Breakout Board Connector 25 Pin Terminal Block Adapter

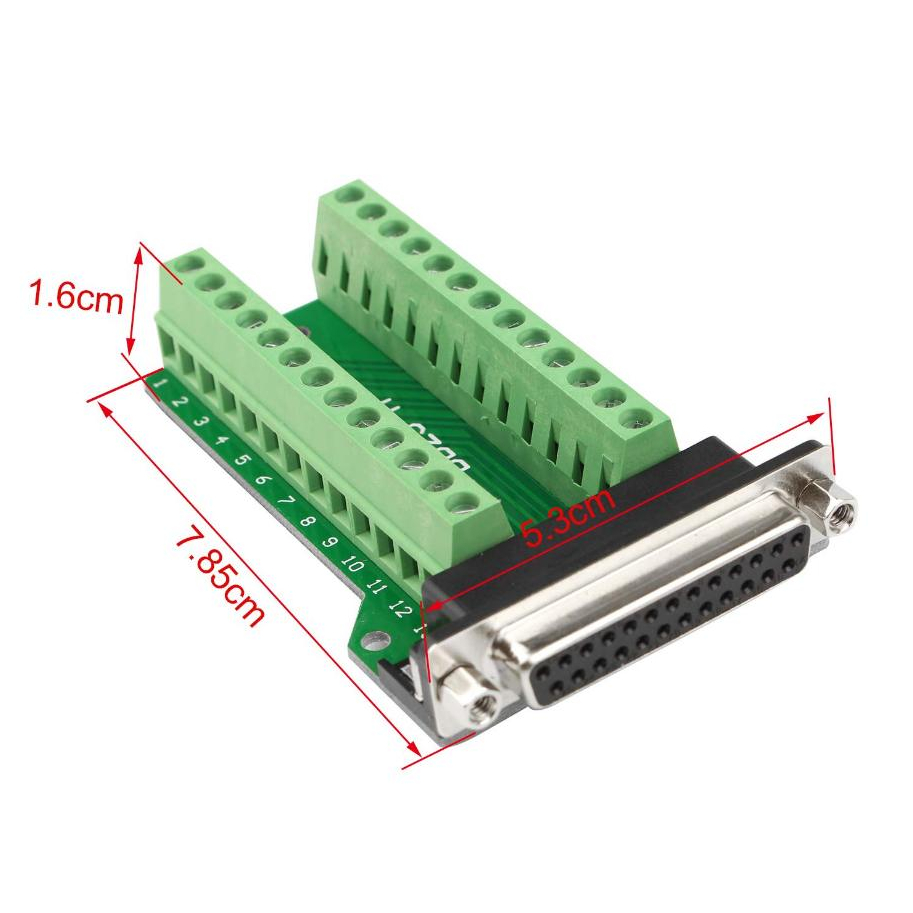

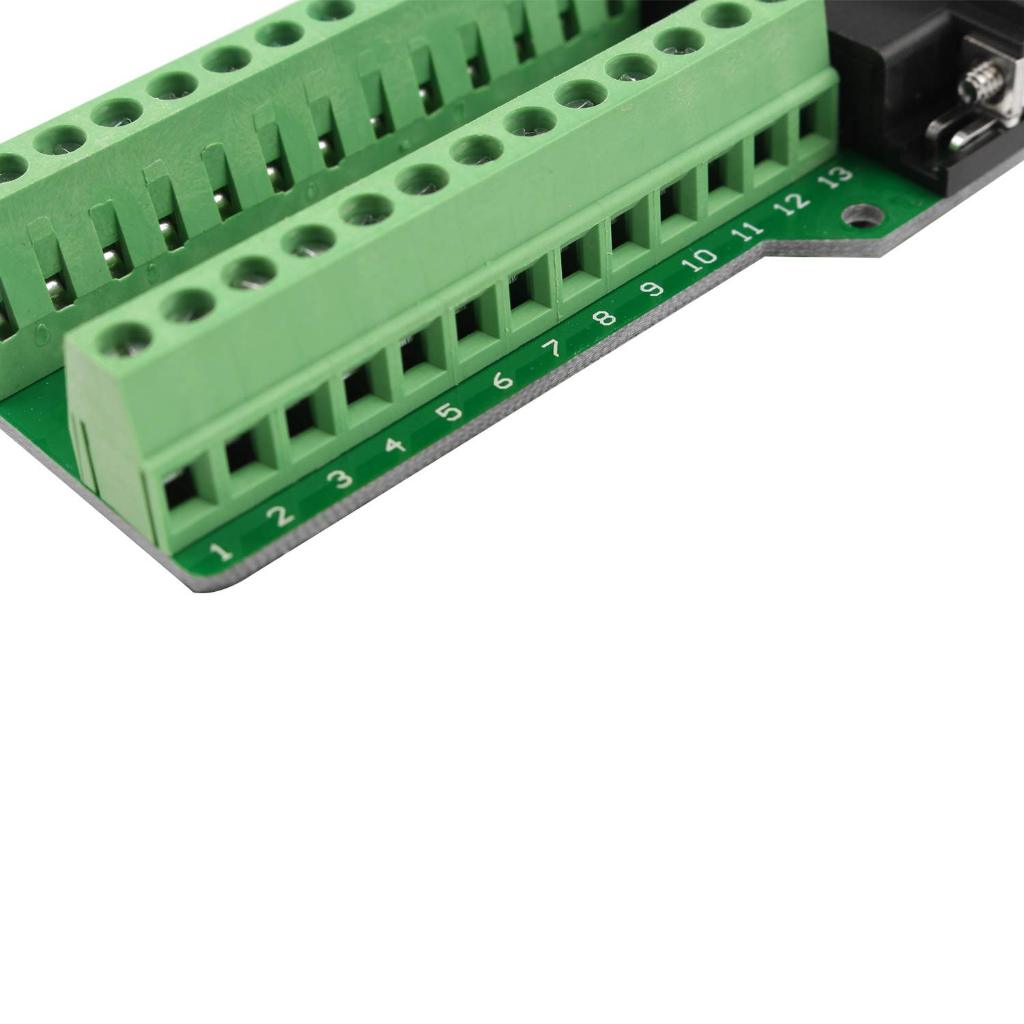

Connector type: D-sub DB25-M2 Number of contacts: 25 Brand: Futheda Number of poles: 25 Item dimensions L x W x H: 8.5 x 5.4 x 1.9 centimetres About this item 25 Pcs signal line lead out with the name and number clearly labeled. Accept 24-12AWG Wire and max 10A current Used for communication debug. Connection distance 5 mm screw hole diameter 2.5 mm, install insulated underlay with 3 mm thickness at the bottom. This breakout adapter is solderless. No soldering or crimping required. The breakout board can be used for automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc.
