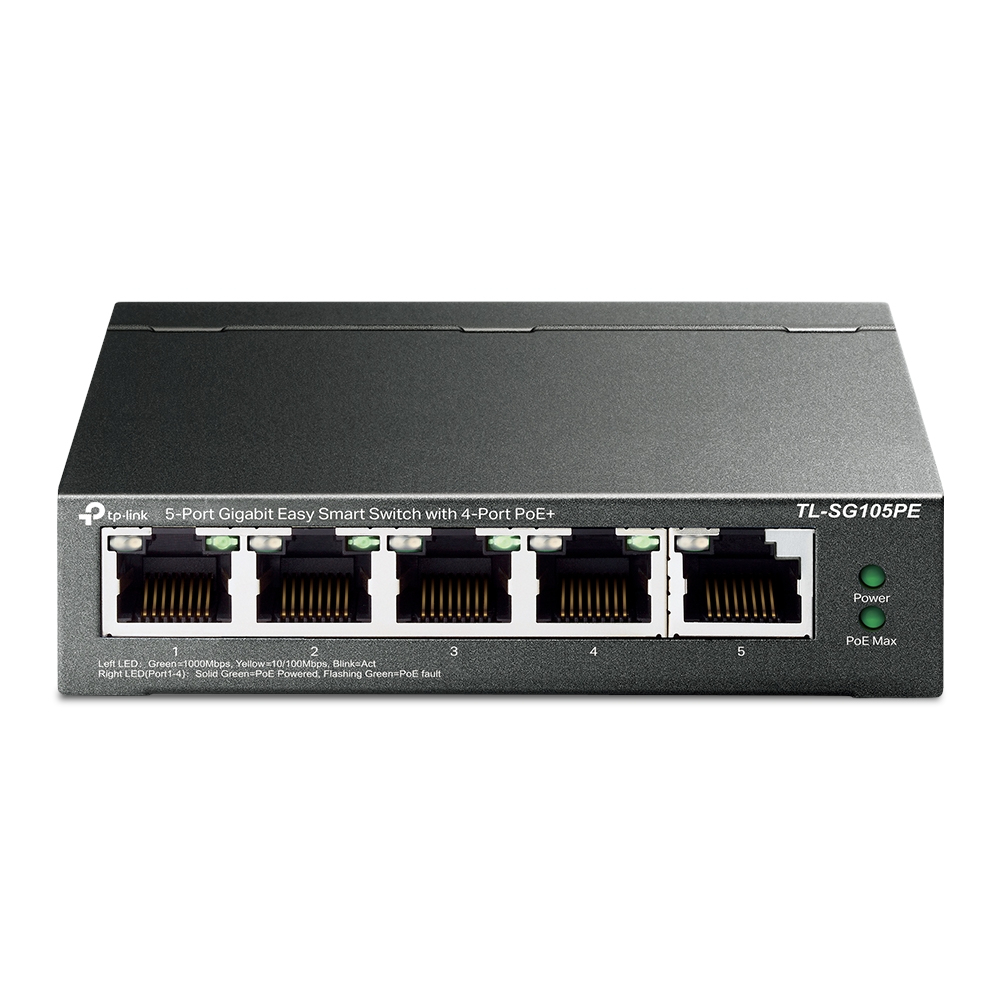

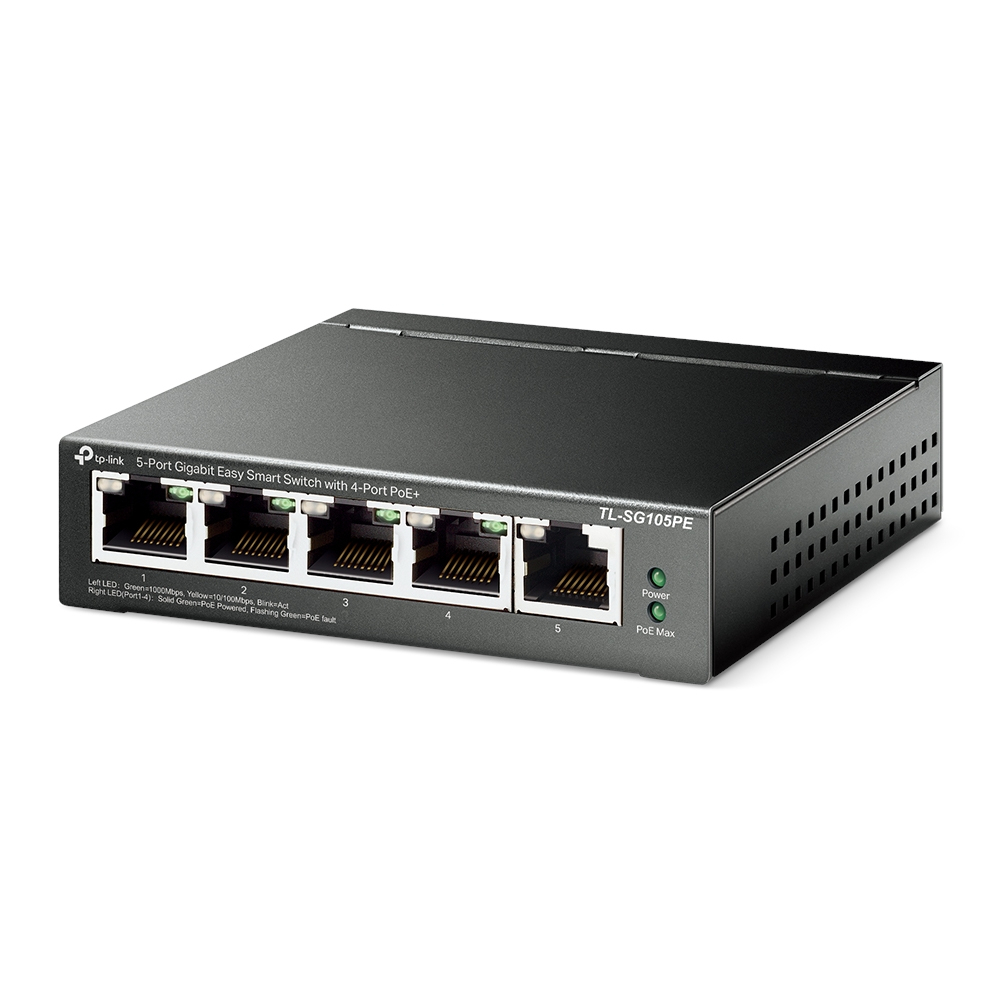

TP-Link TL-SG105PE (TL-SG105PE) 5G with 4G PoE+ 65W Easy Smart Switch

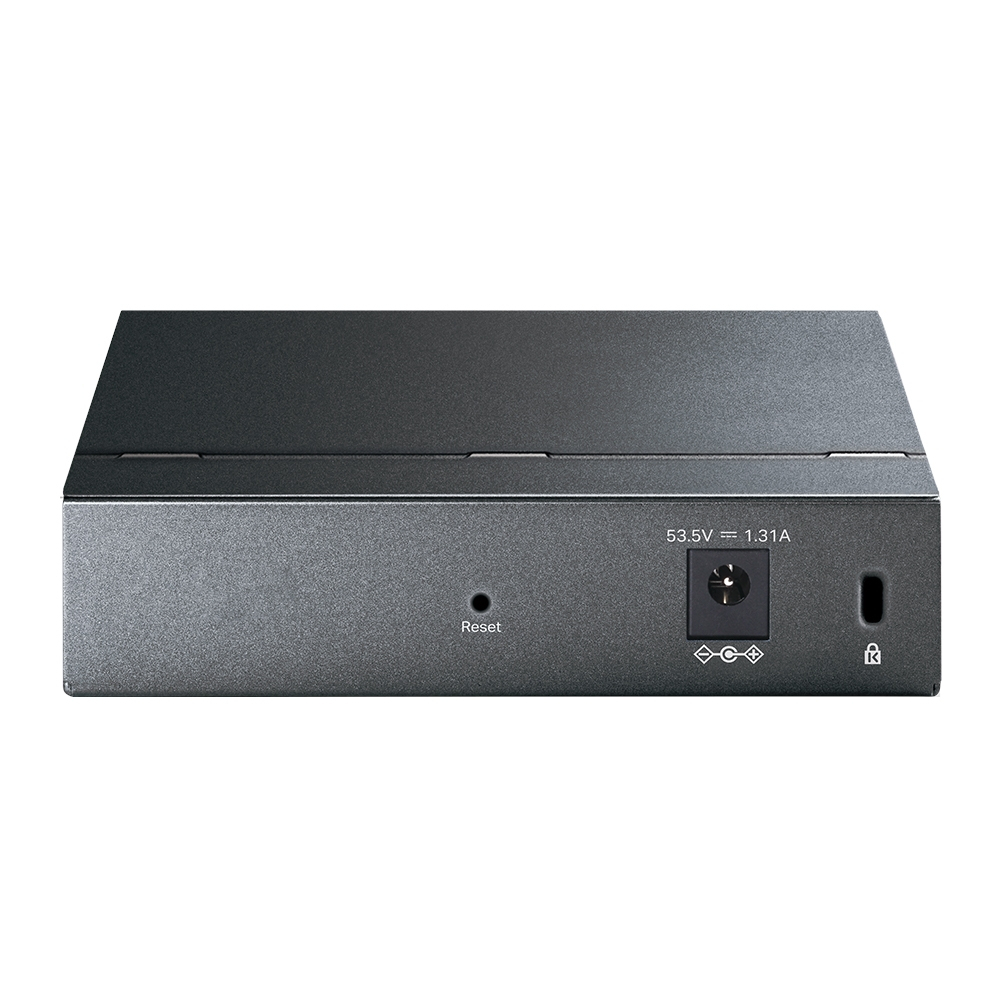

HARDWARE FEATURES Standards and Protocols • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, • IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at Interface • Five 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity • Fanless Power Supply • External Power Adapter (Output: 53.5 VDC/1.31 A) PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Port 1- Port 4 • PoE Power Budget: 65 W Dimensions ( W x D x H ) • 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) Max Power Consumption • 4.52 W (220V/50Hz with no PD connected) • 75.16 W (220V/50Hz with 65 W PD connected) Max Heat Dissipation • 15.41 BTU/h (with no PD connected) • 256.30 BTU/h (with 65 W PD connected) PERFORMANCE Switching Capacity • 10 Gbps Packet Forwarding Rate • 7.44 Mpps MAC Address Table • 2 K Packet Buffer Memory • 1 Mb Jumbo Frame • 16 KB SOFTWARE FEATURES Quality of Service • Support Port-Based/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control L2 Features • IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • PoE Auto Recovery • Extend Mode VLAN • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Management • Web-based GUI • Easy Smart Configuration Utility Transmission Method • Store-And-Forward OTHERS Certification • FCC, CE, RoHS Package Contents • TL-SG105PE • Power Adapter • Installation Guide • Rubber Feet System Requirements • Microsoft® Windows® for running Utility Environment • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90%RH non-condensing • Storage Humidity: 5%~95%RH non-condensing
