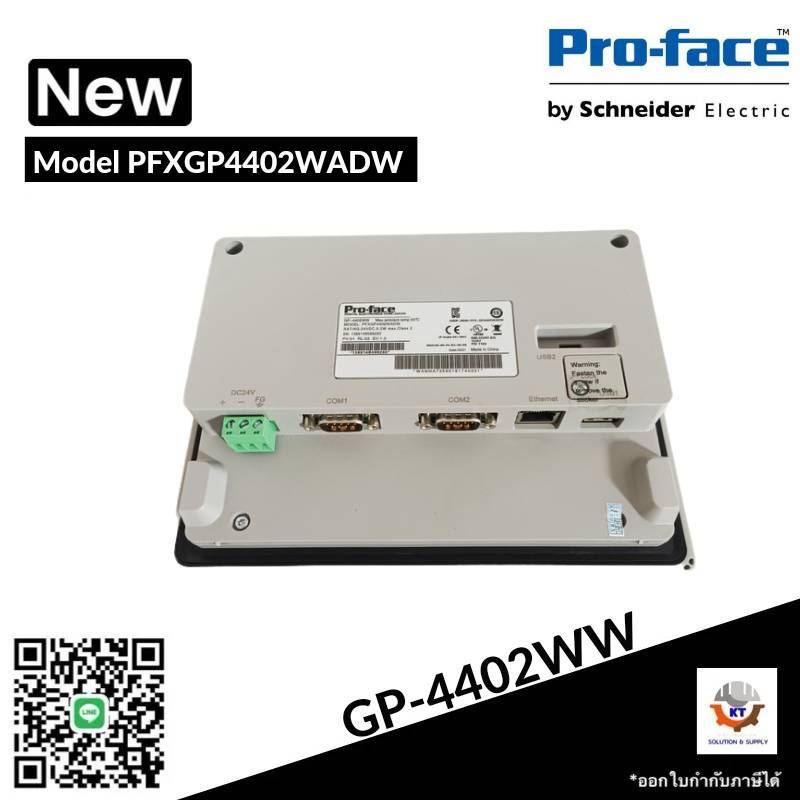

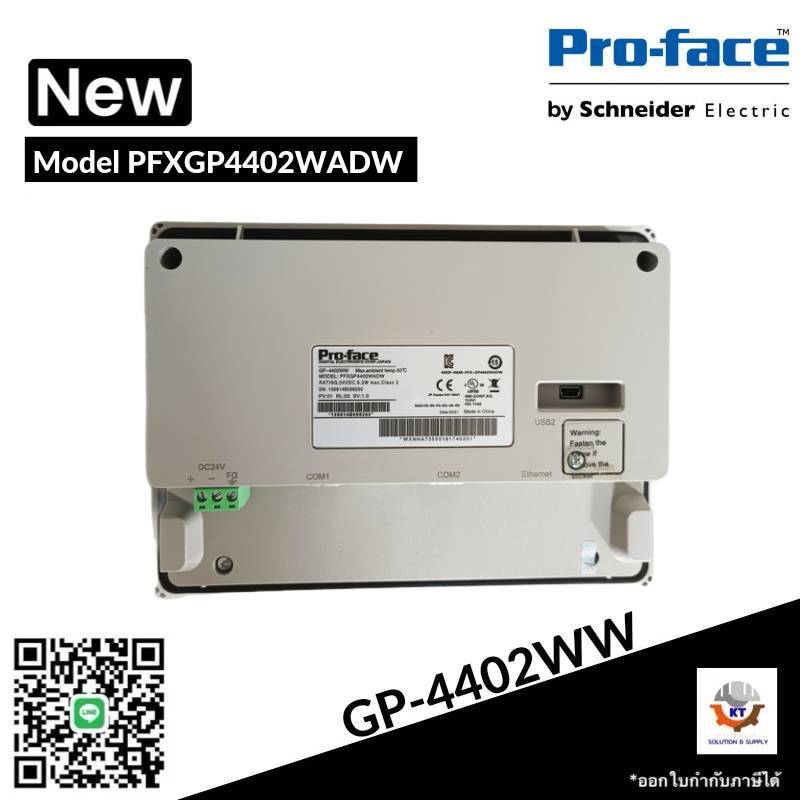

Touch Screen Pro-face PFXGP4402WADW HMI GP4402WW,7.0"Color,24VDC จอทัชสกรีน Ethernet,RS-232C,RS-422 / 485

Touch Screen Pro-face PFXGP4402WADW HMI GP4402WW,7.0"Color,24VDC จอทัชสกรีน Display typy : TFT Color LCD / Resistive Film (analog) Display size 7" Wide Resolution 800 x 480 pixels (WVGA) Effective display area W154.08 x H85.92 mm [W6.066 x H3.382 in.] Display colors 65,536 colors Backlight LED Backlight service life 20,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)*1 Brightness control 8 Levels (Adjusted with touch panel) Touch panel type Resistive Film (analog) Touch panel lifetime 1,000,000 times or more, Sweeping 100,000 times or more Language fonts ASCII: (code page 850) alphanumeric (including European characters) Chinese (simplified): GB2312-80 codes Japanese: ANK 158, Kanji: 6,962 (JIS standards 1 & 2) (including 607 nonkanji characters) Korean: (KSC5601 - 1992 codes) Hangul fonts Chinese (traditional): BIG 5 codes*2 Interface specifications Serial (COM1) Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug) Serial (COM2) Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 187,500 bps, Connector: D-Sub 9 pin (plug) USB (Type A) Conforms to USB 2.0 (Type A) x 1 Communication distance: 3 m [9.84 ft.] or less USB (mini-B) Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 3 m [9.84 ft] or less Ethernet IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
