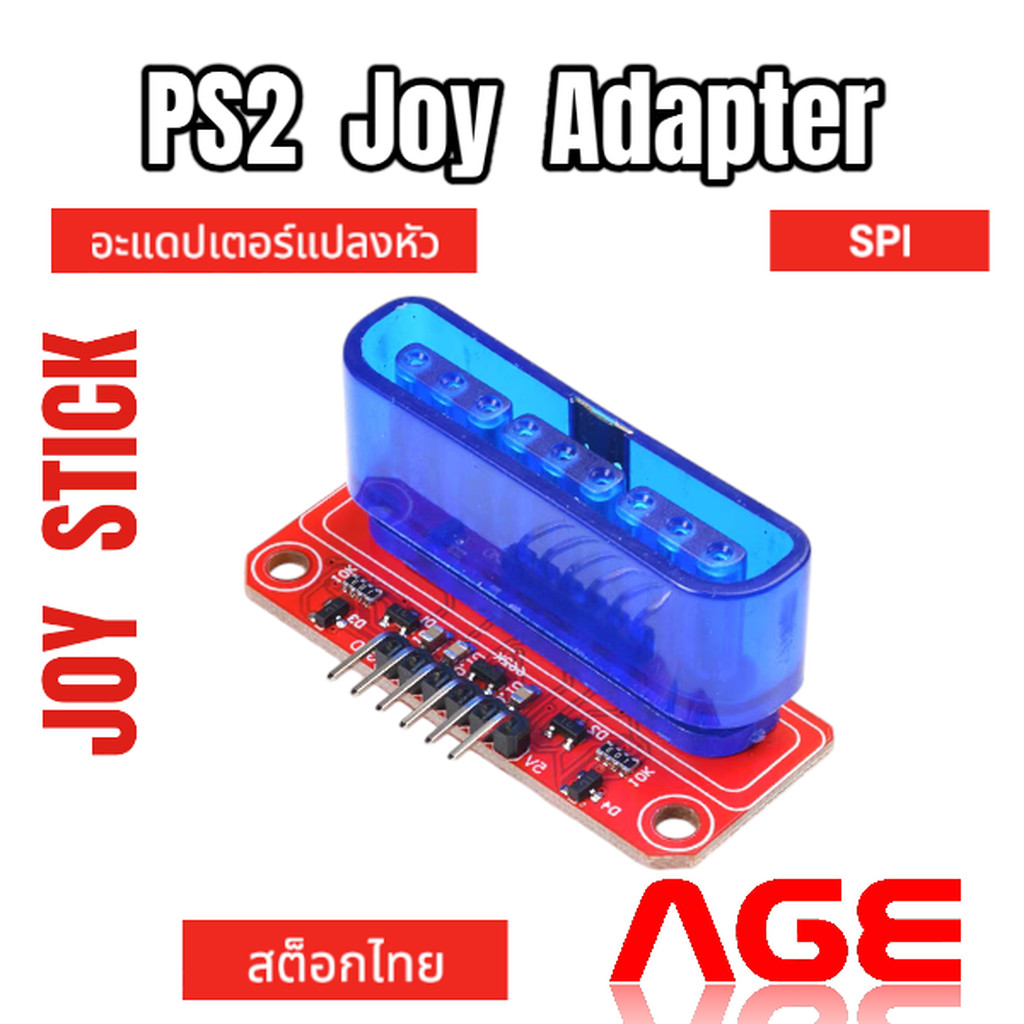

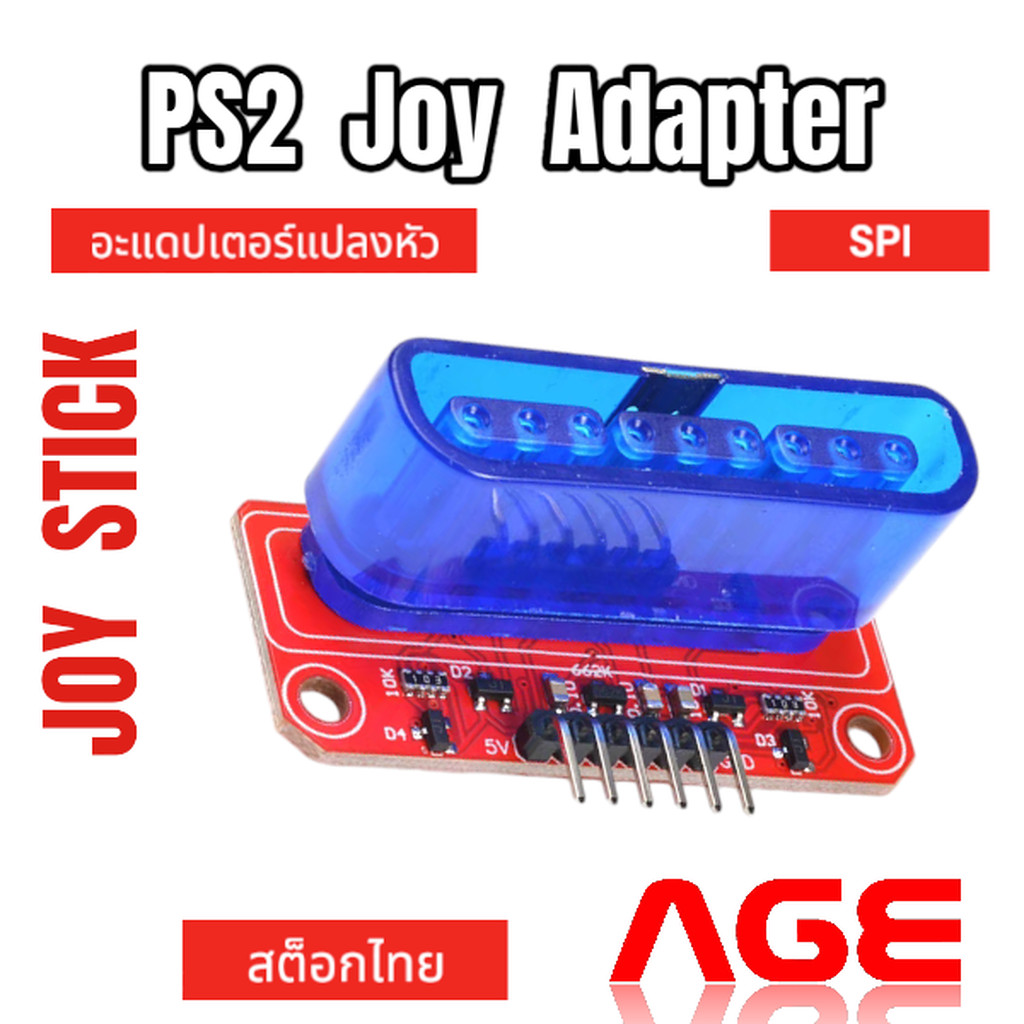

PS2 Joy Adapter for Arduino อะแดปเตอร์แปลงหัว PS2 เป็นขาต่อแบบ SPI สำหรับ Arduino

PS2 Joy Adapter for Arduino อะแดปเตอร์แปลงหัว PS2 เป็นขาต่อแบบ SPI สำหรับ Arduino - แปลงหัว JoyStick playstation PS2 สีดำ และ JoyStick playstation PS2 สีขาว ให้เป็นขาต่อสำหรับ Arduino Arduino UNO R3 ต่อกับ อะแดปเตอร์แปลง PS2 เป็นขาต่อแบบ SPI 3.3V ต่อกับ 5V GND ต่อกับ GND 10 ต่อกับ ATT 11 ต่อกับ CMD 12 ต่อกับ DATA 13 ต่อกับ CLK Code ตัวอย่าง 1 #include PS2X_lib.h 3 PS2X ps2x; 5 int error = 0; 6 byte type = 0; 7 byte vibrate = 0; 9 void setup() { 10 Serial.begin(57600); 11 12 13 error = ps2x.config_gamepad(13, 11, 10, 12, true, true); 14 15 if (error == 0) { 16 Serial.println("Found Controller, configured successful"); 17 Serial.println("Try out all the buttons, X will vibrate the controller, faster as you press harder;"); 18 Serial.println("holding L1 or R1 will print out the analog stick values."); 19 Serial.println("Go to www.billporter.info for updates and to report bugs."); 20 } 22 else if (error == 1) 23 Serial.println("No controller found, check wiring, see readme.txt to enable debug. visit www.billporter.info for troubleshooting tips"); 25 else if (error == 2) 26 Serial.println("Controller found but not accepting commands. see readme.txt to enable debug. Visit www.billporter.info for troubleshooting tips"); 27 28 else if (error == 3) 29 Serial.println("Controller refusing to enter Pressures mode, may not support it. "); 30 31 //Serial.print(ps2x.Analog(1), HEX); 32 33 type = ps2x.readType(); 34 switch (type) { 35 case 0: 36 Serial.println("Unknown Controller type"); 37 break; 38 case 1: 39 Serial.println("DualShock Controller Found"); 40 break; 41 case 2: 42 Serial.println("GuitarHero Controller Found"); 43 break; 44 } 45 46 } 47 48 void loop() { 49 50 if (error == 1) 51 return; 52 53 if (type == 2) { 54 55 ps2x.read_gamepad(); 56 57 if (ps2x.ButtonPressed(GREEN_FRET)) 58 Serial.println("Green Fret Pressed"); 59 if (ps2x.ButtonPressed(RED_FRET)) 60 Serial.println("Red Fret Pressed"); 61 if (ps2x.ButtonPressed(YELLOW_FRET)) 62 Serial.println("Yellow Fret Pressed"); 63 if (ps2x.ButtonPressed(BLUE_FRET)) 64 Serial.println("Blue Fret Pressed"); 65 if (ps2x.ButtonPressed(ORANGE_FRET)) 66 Serial.println("Orange Fret Pressed"); 67 68 69 if (ps2x.ButtonPressed(STAR_POWER)) 70 Serial.println("Star Power Command"); 71 72 if (ps2x.Button(UP_STRUM)) 73 Serial.println("Up Strum"); 74 if (ps2x.Button(DOWN_STRUM)) 75 Serial.println("DOWN Strum"); 76 77 78 if (ps2x.Button(PSB_START)) 79 Serial.println("Start is being held"); 80 if (ps2x.Button(PSB_SELECT)) 81 Serial.println("Select is being held"); 82 83 84 if (ps2x.Button(ORANGE_FRET)) // print stick value IF TRUE 85 { 86 Serial.print("Wammy Bar Position:"); 87 Serial.println(ps2x.Analog(WHAMMY_BAR), DEC); 88 } 89 } 90 91 else { 92 ps2x.read_gamepad(false, vibrate); 93 if (ps2x.Button(PSB_START)) 94 Serial.println("Start is being held"); 95 if (ps2x.Button(PSB_SELECT)) 96 Serial.println("Select is being held"); 97 if (ps2x.Button(PSB_PAD_UP)) { 98 Serial.print("Up held this hard: "); 99 Serial.println(ps2x.Analog(PSAB_PAD_UP), DEC); 100 } 101 if (ps2x.Button(PSB_PAD_RIGHT)) { 102 Serial.print("Right held this hard: "); 103 Serial.println(ps2x.Analog(PSAB_PAD_RIGHT), DEC); 104 } 105 if (ps2x.Button(PSB_PAD_LEFT)) { 106 Serial.print("LEFT held this hard: "); 107 Serial.println(ps2x.Analog(PSAB_PAD_LEFT), DEC); 108 } 109 if (ps2x.Button(PSB_PAD_DOWN)) { 110 Serial.print("DOWN held this hard: "); 111 Serial.println(ps2x.Analog(PSAB_PAD_DOWN), DEC); 112 } 113 vibrate = ps2x.Analog(PSAB_BLUE); 114 115 if (ps2x.NewButtonState()) 116 { 117 if (ps2x.Button(PSB_L3)) 118 Serial.println("L3 pressed"); 119 if (ps2x.Button(PSB_R3)) 120 Serial.println("R3 pressed"); 121 if (ps2x.Button(PSB_L2)) 122 Serial.println("L2 pressed"); 123 if (ps2x.Button(PSB_R2)) 124 Serial.println("R2 pressed"); 125 if (ps2x.Button(PSB_GREEN)) 126 Serial.println("Triangle pressed"); 127 } 128 129 if (ps2x.ButtonPressed(PSB_RED)) 130 Serial.println("Circle just pressed"); 131 if (ps2x.ButtonReleased(PSB_PINK)) 132 Serial.println("Square just released"); 133 if (ps2x.NewButtonState(PSB_BLUE)) 134 Serial.println("X just changed"); 135 if (ps2x.Button(PSB_L1) || ps2x.Button(PSB_R1)) 136 { 137 Serial.print("Stick Values:"); 138 Serial.print(ps2x.Analog(PSS_LY), DEC); 139 Serial.print(","); 140 Serial.print(ps2x.Analog(PSS_LX), DEC); 141 Serial.print(","); 142 Serial.print(ps2x.Analog(PSS_RY), DEC); 143 Serial.print(","); 144 Serial.println(ps2x.Analog(PSS_RX), DEC); 145 } 146 } 147 delay(50); 148 }
