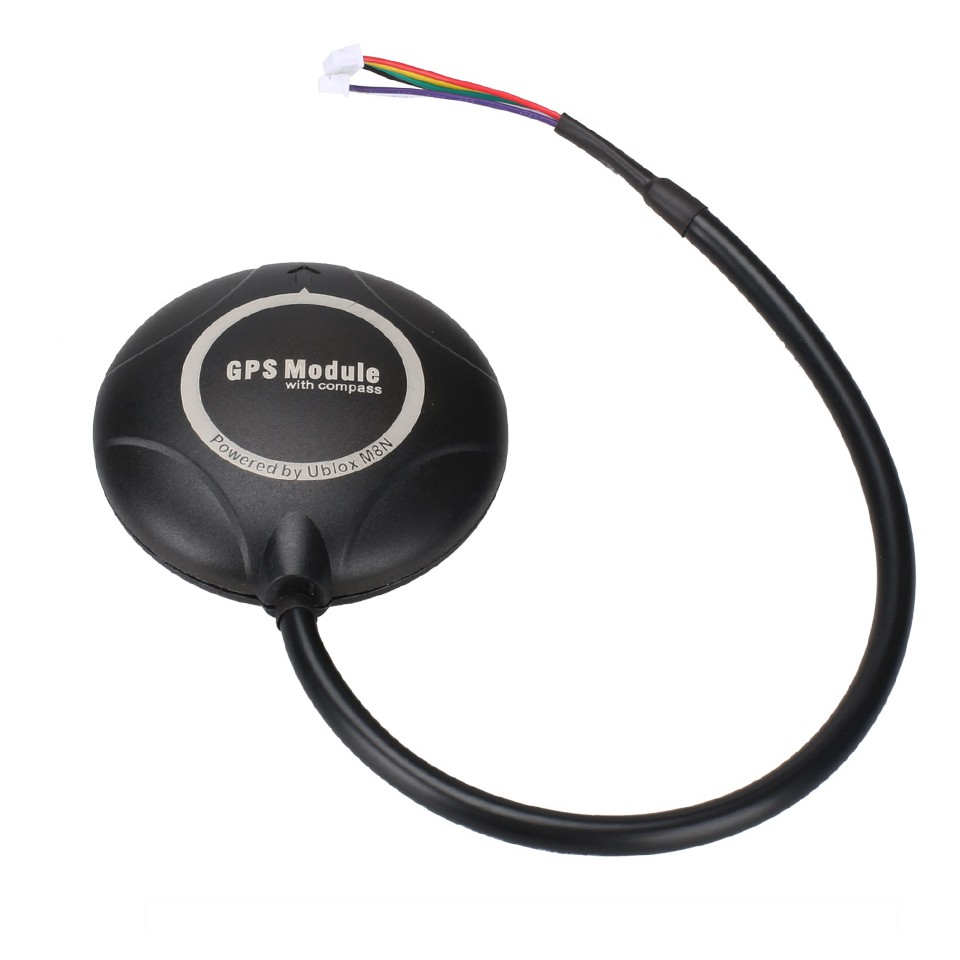

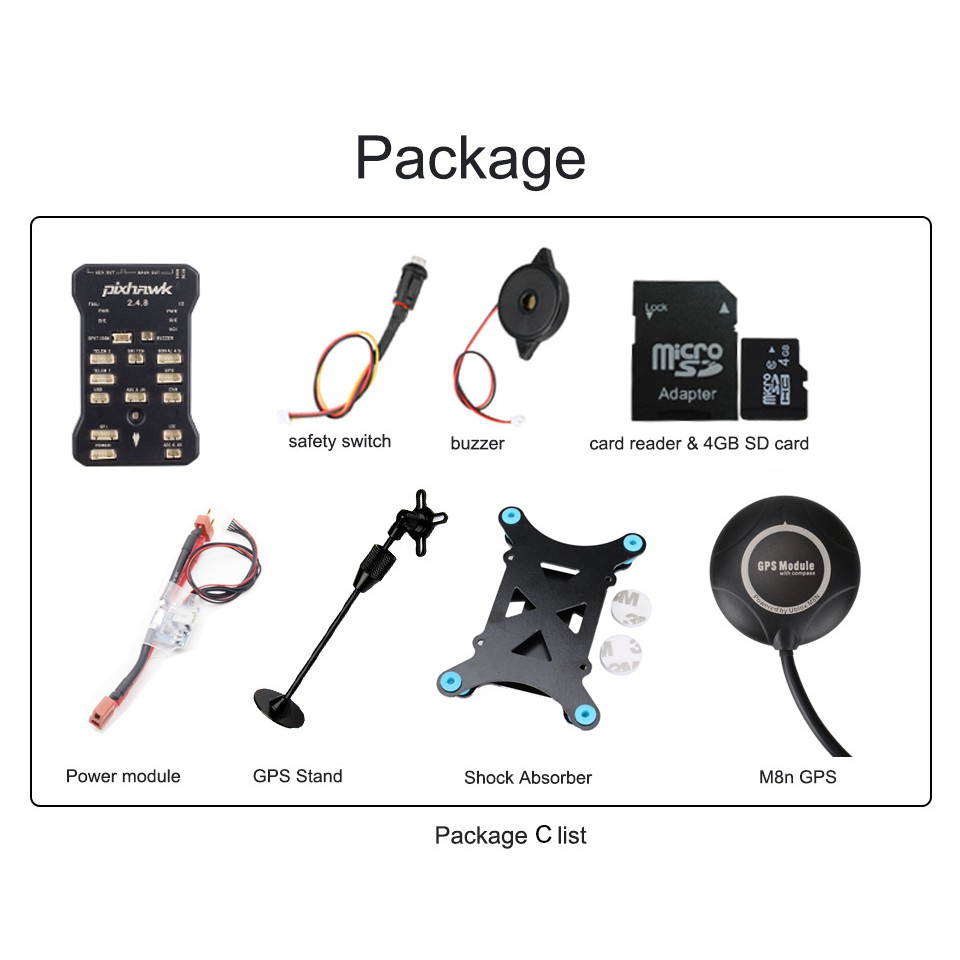

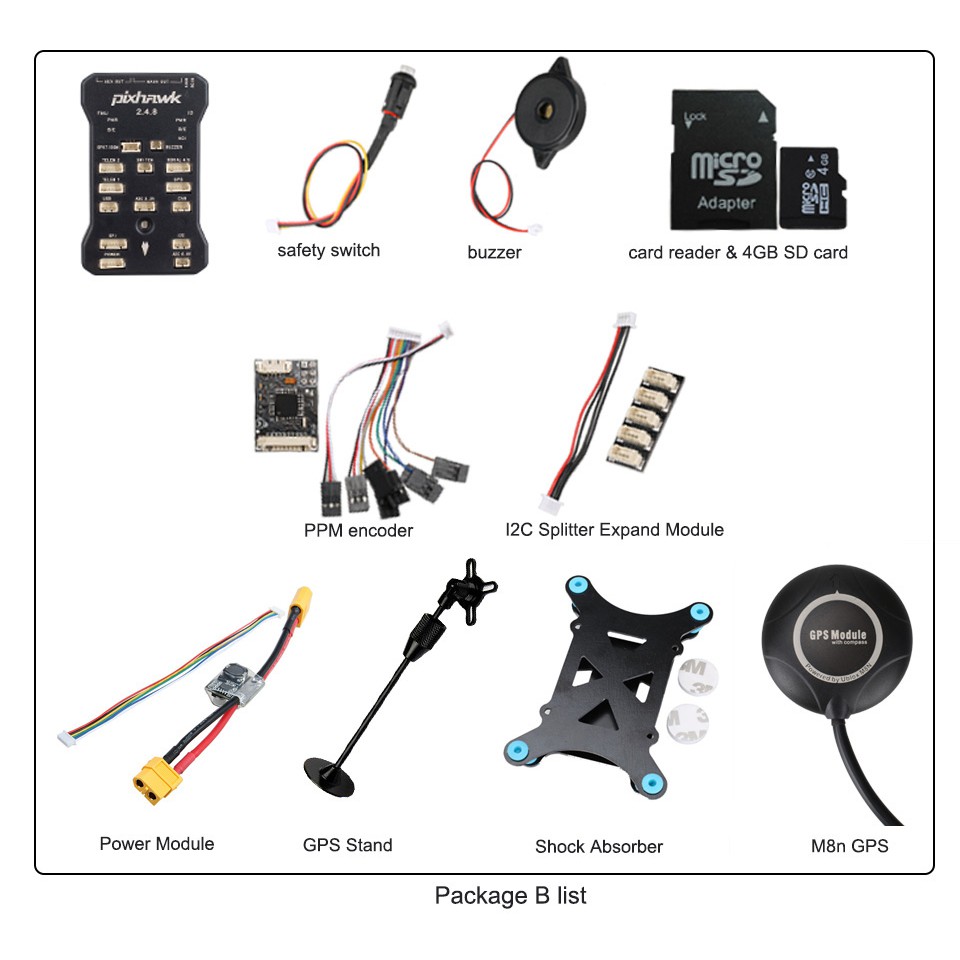

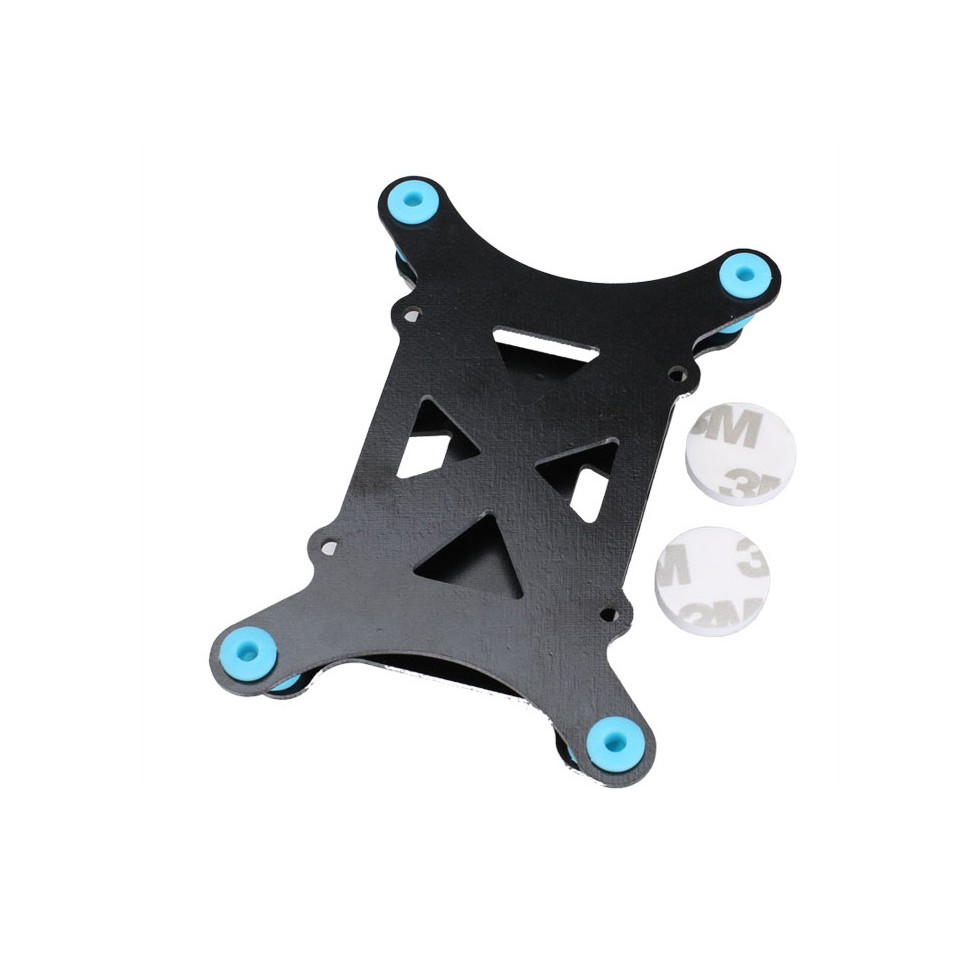

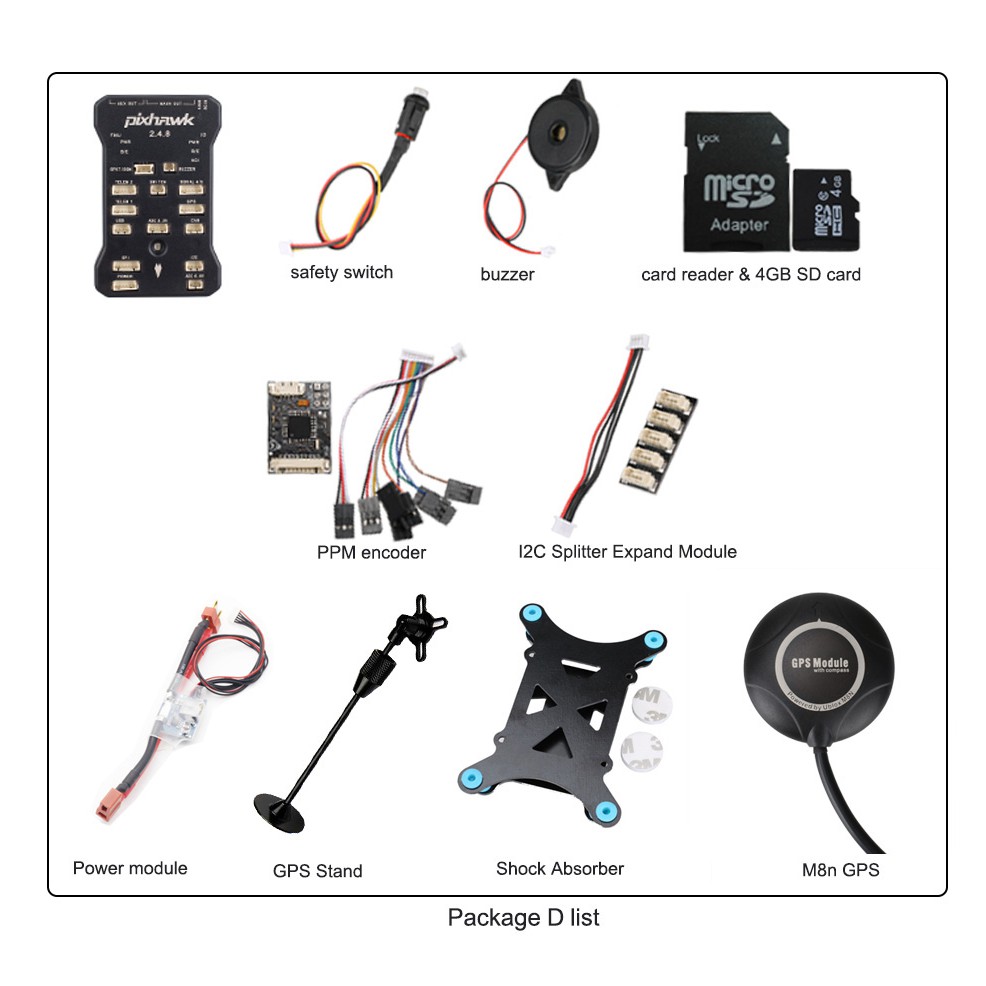

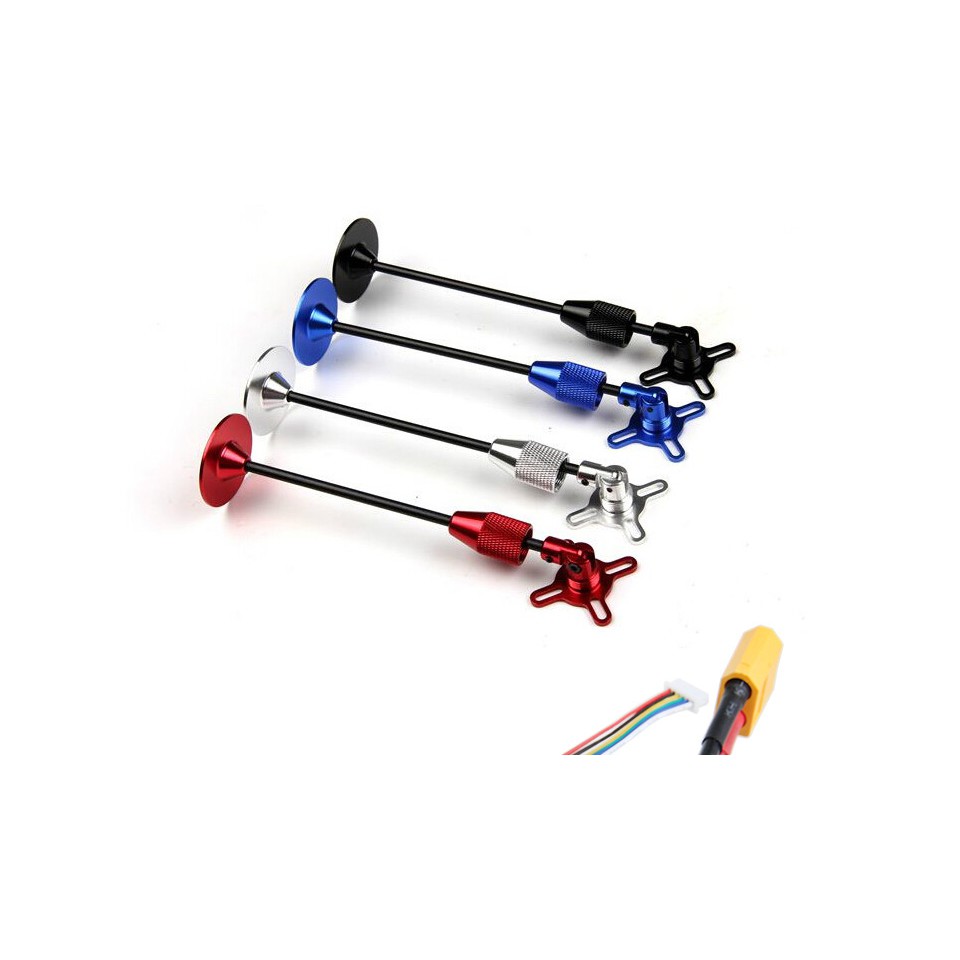

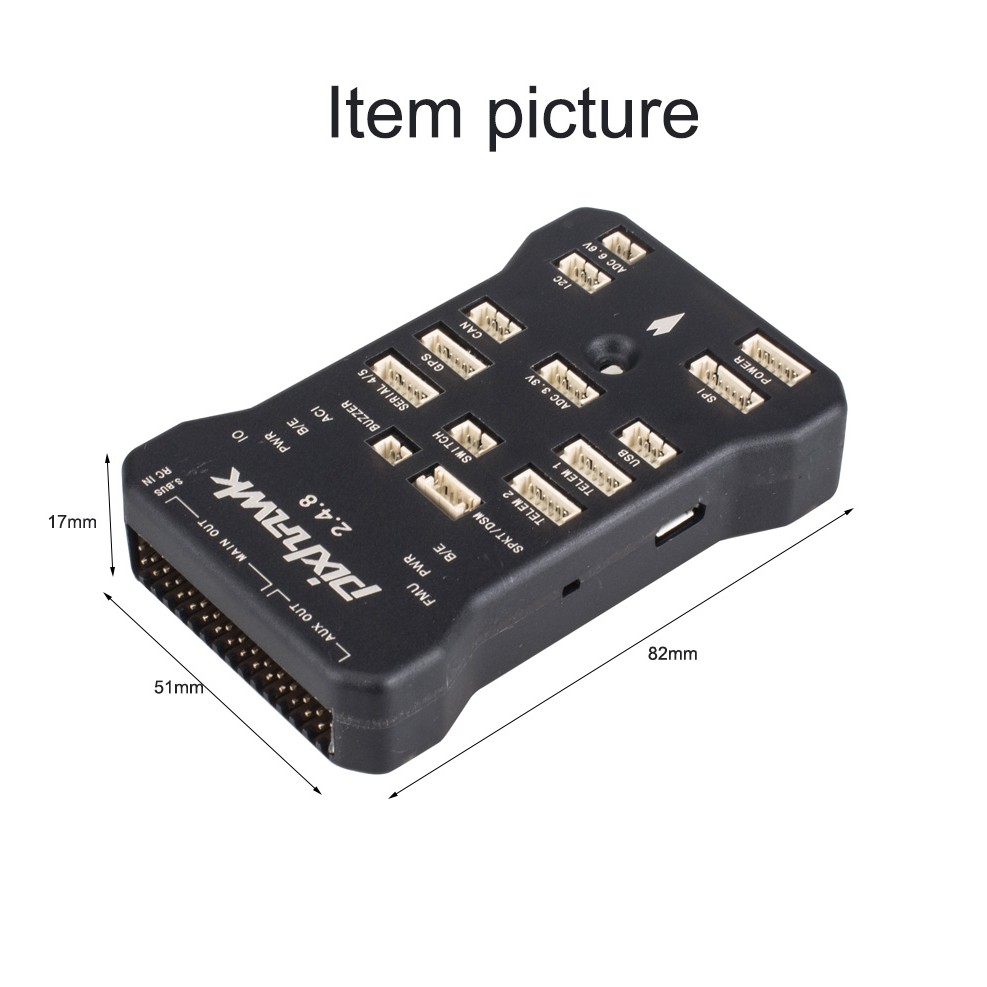

Pixhawk PX4 PIX 2.4.8 32-bit Flight Controller พร้อม SD Safety Switch, Buzzer, M8N GPS, PPM, I2C, Shock Absorber, XT60 Power Module

Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller w/ 4G SD Safety Switch Buzzer M8N GPS+PPM+I2C+shock Absorber+xt60 power module - Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system; - Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control; - Provide redundant power input and fault transfer function; - 14* PWM/ actuator output; - Bus interface (UART, I2C, SPI, CAN); - Provide automatic and manual mode; - Color LED lamp; - Multi tone buzzer interface; - Micro SD to record flight data; Specification: The board integrates with PX4FMU+PX4IO Pixhawk is with new 32 bit chip and sensor technology Processor: 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit Main frequency: 256K, 168MHZ RAM 32 bit STM32F103 backup co processor Sensor: L3GD20 3 axis digital 16 bit gyroscope LSM303D 3 axis 14 bit accelerometer /magnetometer MPU6000 6 axis accelerometer / magnetometer MS5611 high precision barometer Interface: 5* UART, 1*compatible high voltage, 2*hardware flow control 2*CAN Spektrum DSM/DSM2/DSM-X satellite receiver compatible input Futaba SBUS compatible input and output PPM signal input RSSI (PWM or voltage) input I2C SPI 3.3 and 6.6VADC input External USB MICRO interface Package A included: 1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell 1 x Safety switch 1 x Buzzer 1 x card reader 1x Shock absorber 1x M8N gps module with shell 1x GPS stand ​1x xt60 power module Package B included: 1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell 1 x Safety switch 1 x Buzzer 1 x card reader 1x PPM encoder 1x I2C splitter expand module 1x Shock absorber 1x M8N gps module with shell 1x GPS stand 1x xt60 power module Package C included: 1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell 1 x Safety switch 1 x Buzzer 1 x card reader 1x Shock absorber 1x M8N gps module with shell 1x GPS stand ​1x T plug power module Package D included: 1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell 1 x Safety switch 1 x Buzzer 1 x card reader 1x PPM encoder 1x I2C splitter expand module 1x Shock absorber 1x M8N gps module with shell 1x GPS stand 1x T plug power module
