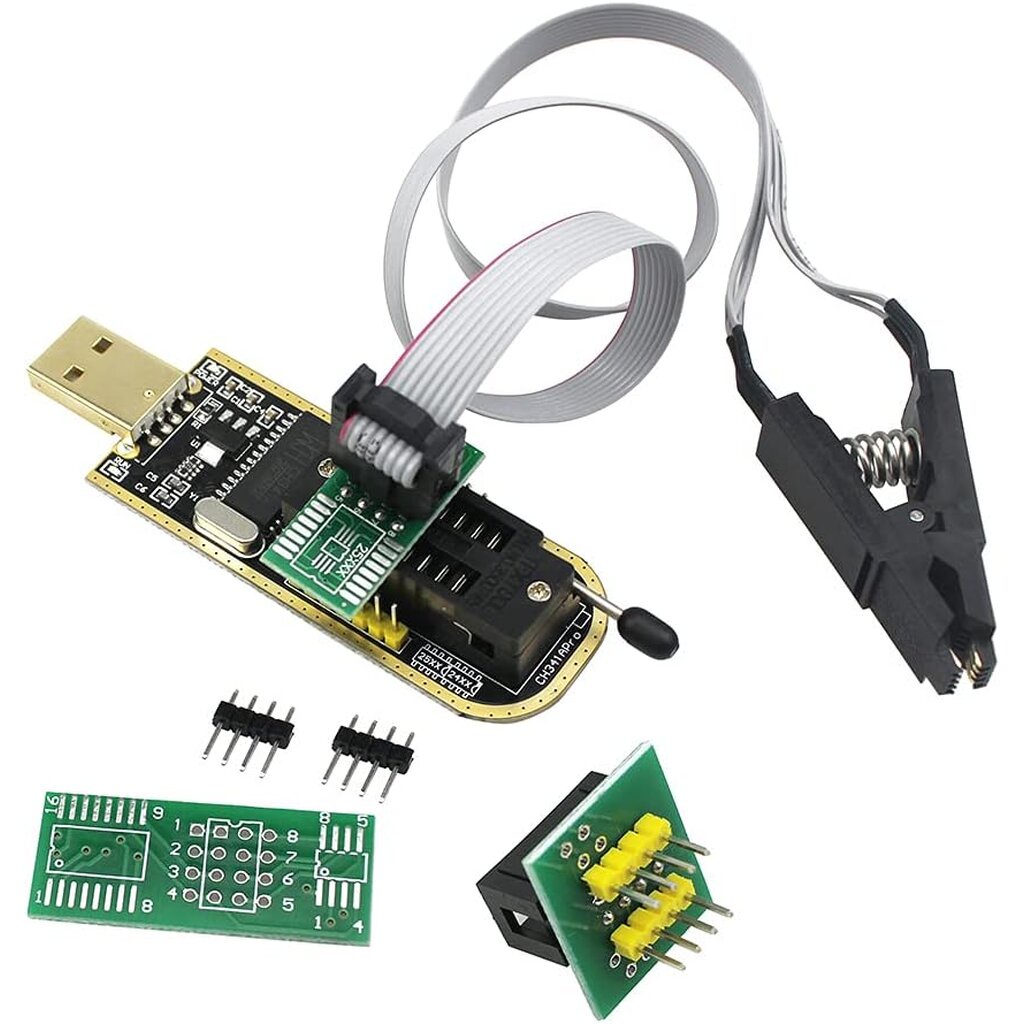

SOP8 SOIC8 Test Clip and CH341A USB Programmer Flash

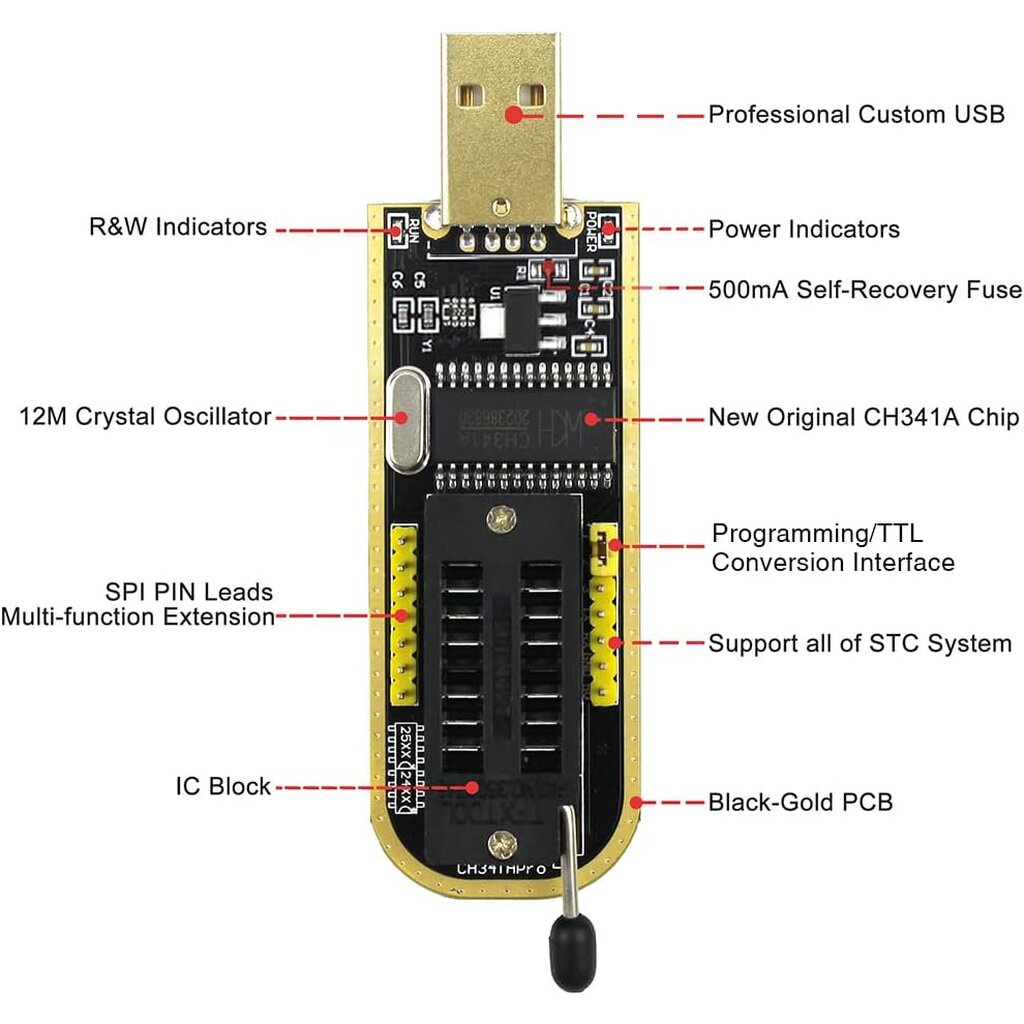

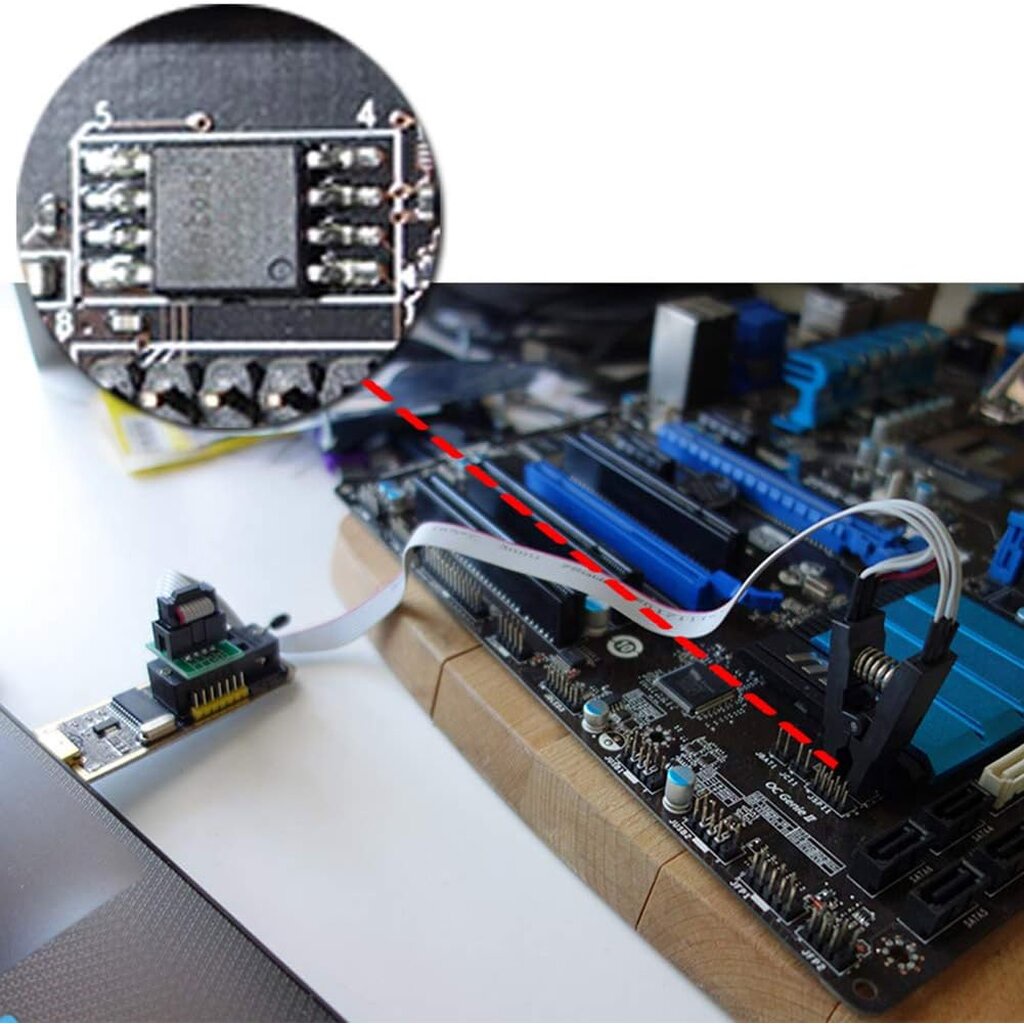

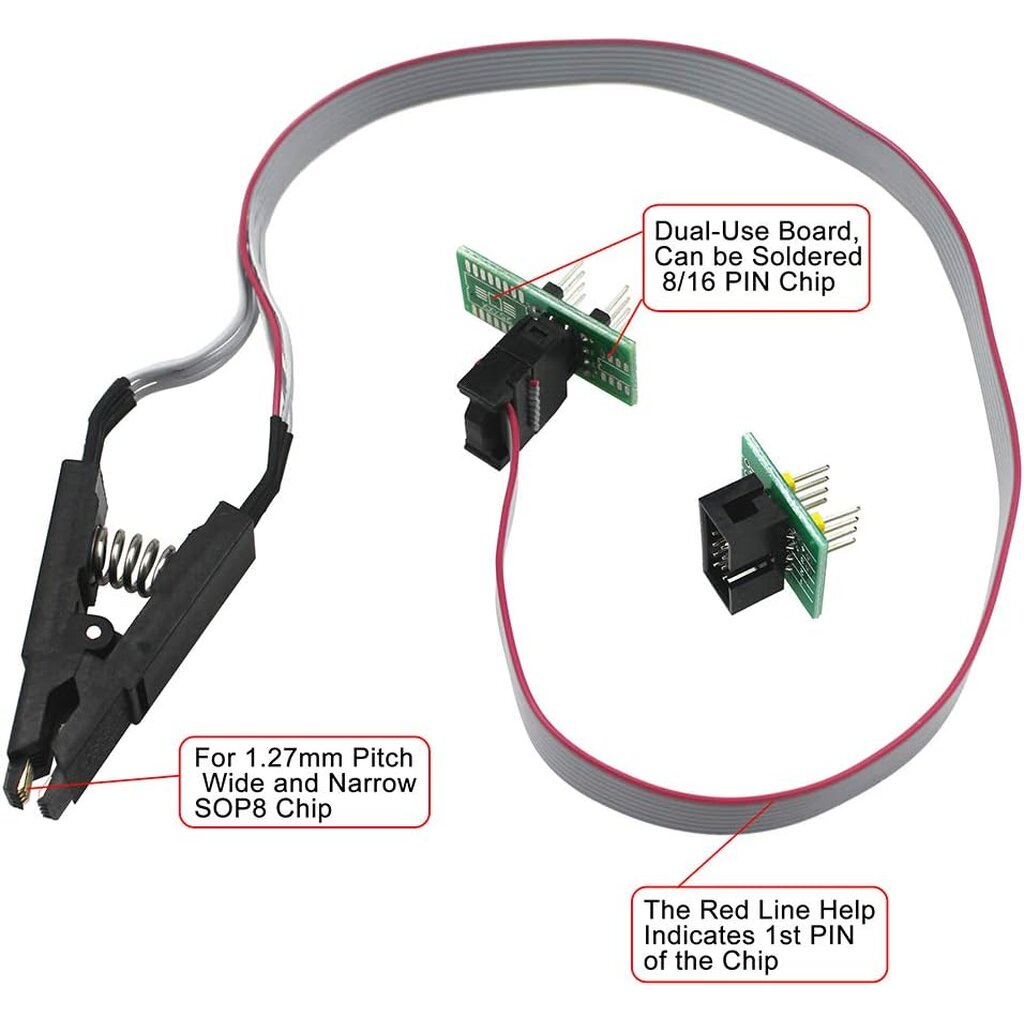

SOP8 SOIC8 Test Clip and CH341A USB Programmer Flash CH341A สามารถ ทำงาน 2 อย่าง โดยเลือกจากจัมเปอร์ ที่อยู่บนบอร์ด 1.เป็นเครื่องโปรแกรม SPI FLASH memory 25 และ EEPROM I2C 24xxx 2. USB to RS232 (TTL) serial port ใช้การโปรแกรม หรือ upload ข้อมูล Set top BOX (STB) เครื่องรับสัญญาณดาวเทียม [GUIDE] Flash BIOS with CH341A programmer https://winraid.level1techs.com/t/guide-flash-bios-with-ch341a-programmer/32948 CH341A Software and Tools https://drive.google.com/drive/folders/17xf3EKIPe2Nhx2obE235PBRnkSKaU4uv - The SOP8 clip enables in-circuit programming of without disassembling the chip, making flashing the BIOS simpler and more efficient. - The main purpose of the CH341A Programmer is to back up, erase, program, calibrate and other actions on various software. - The CH341A programmer supports most of the 24/25 series SOP8 chips on the market, but not all of them. Please be sure to check whether your chip model is within the compatible range in the product description before purchasing. - The SOP8 clip support both wide body and narrow body SOP8 chip with 1.27MM Pitch. - We provide detailed PDF tutorials, CH341A software, and drivers, which will be sent to you by email after the order. If you do not receive it, please send us a message.
