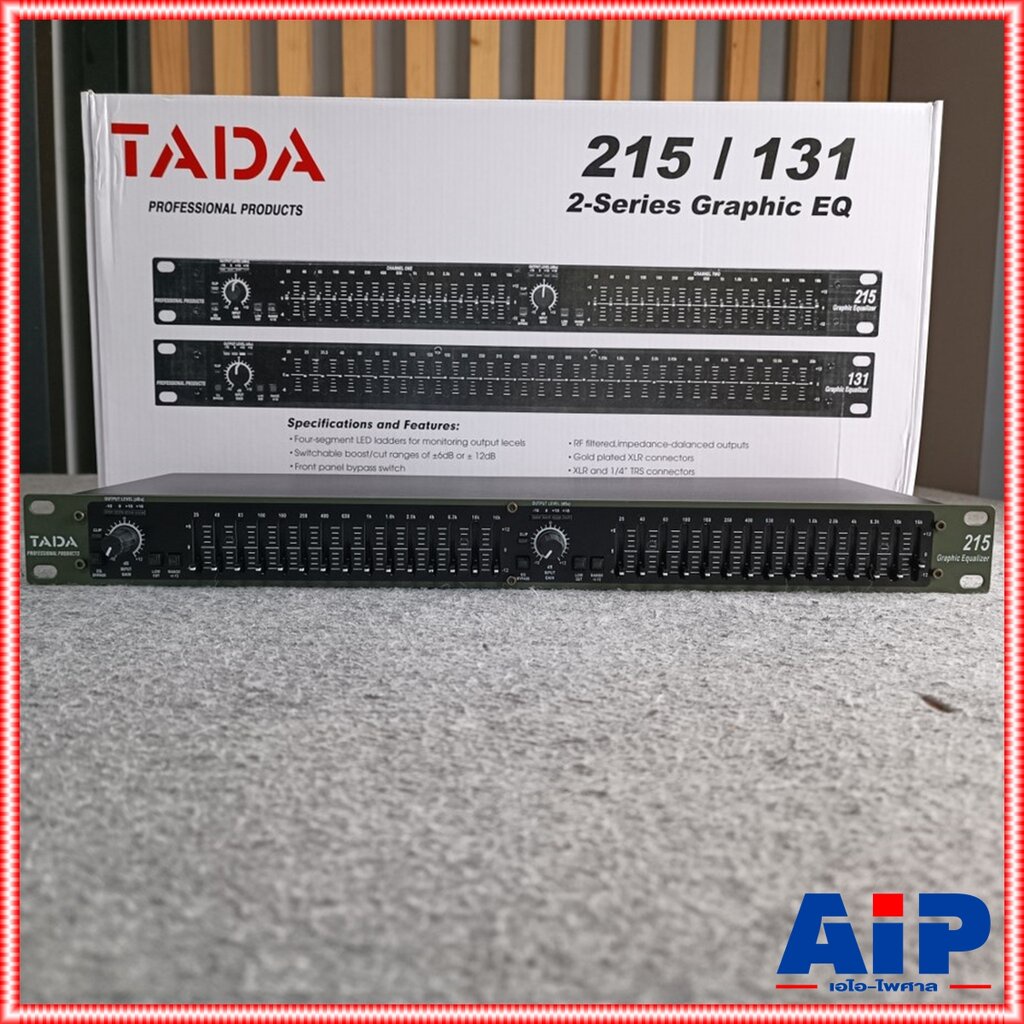

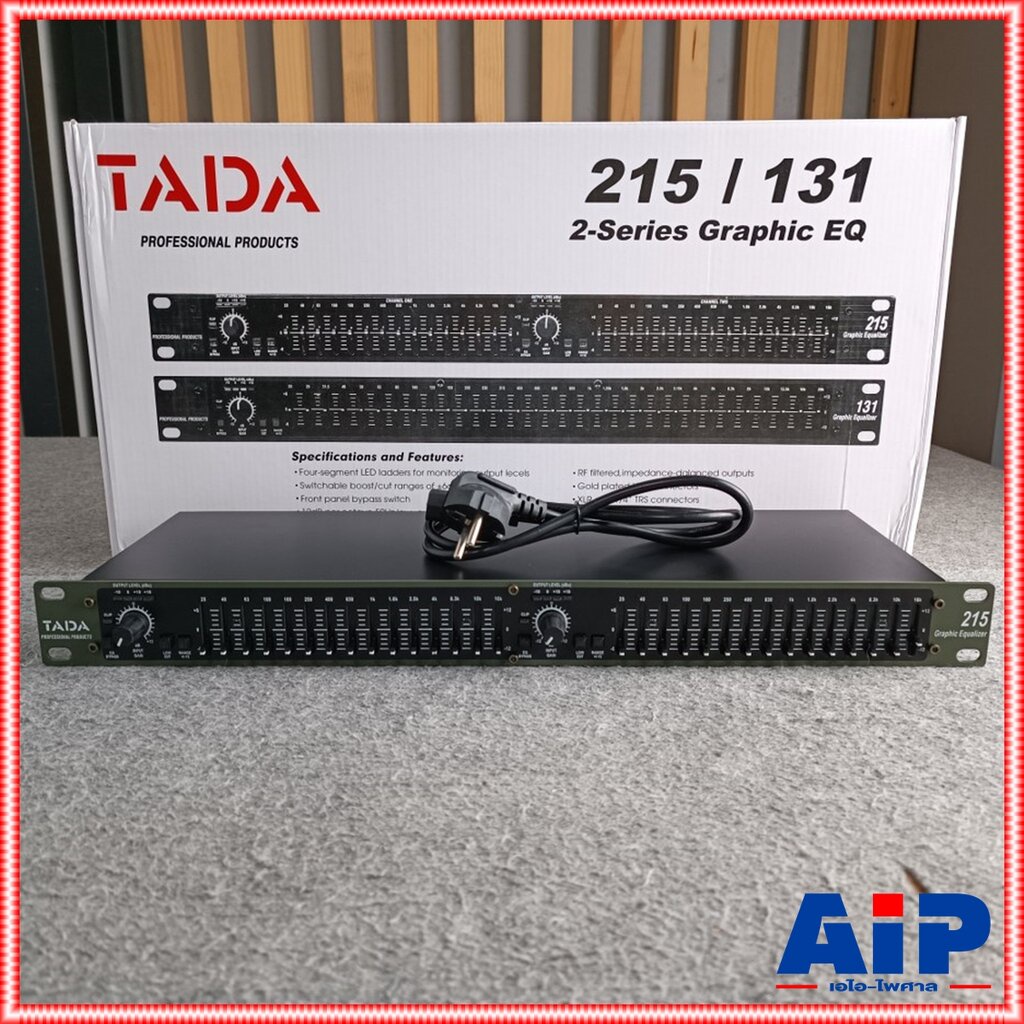

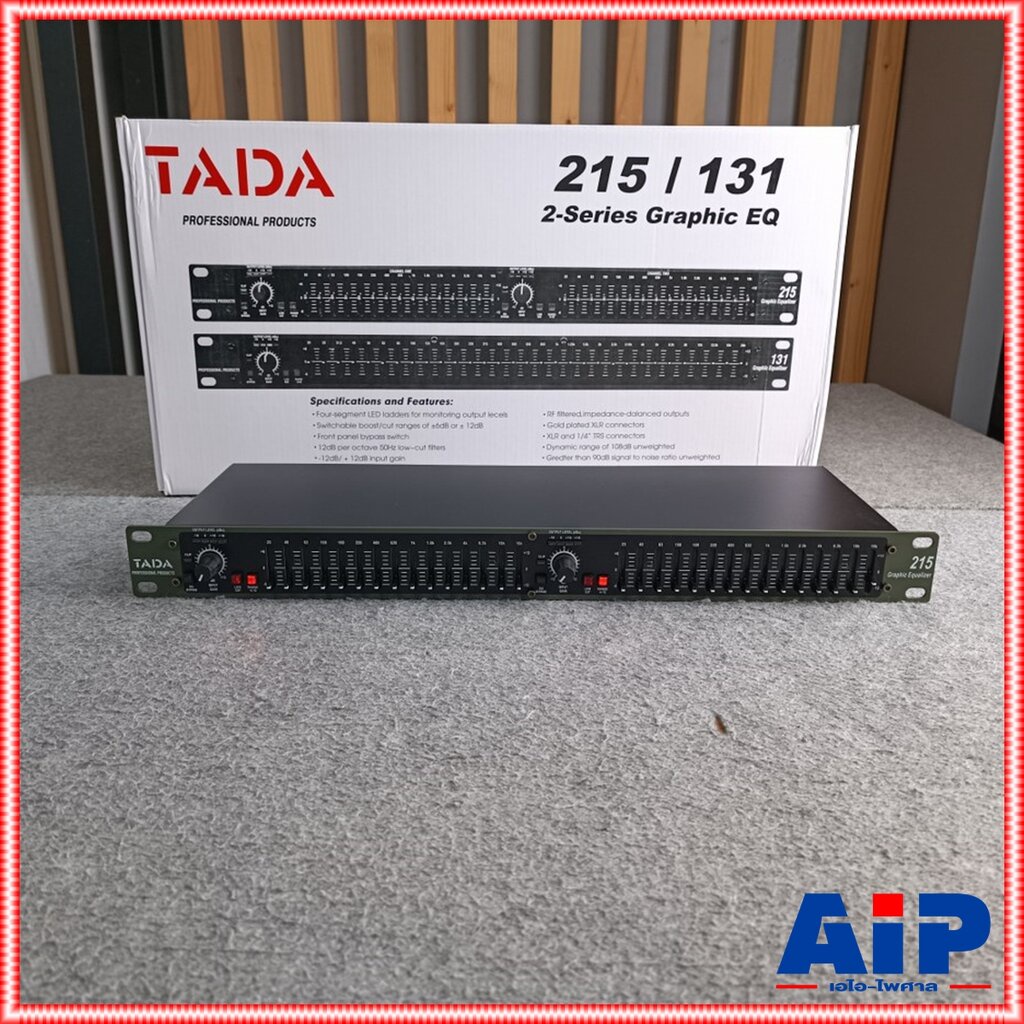

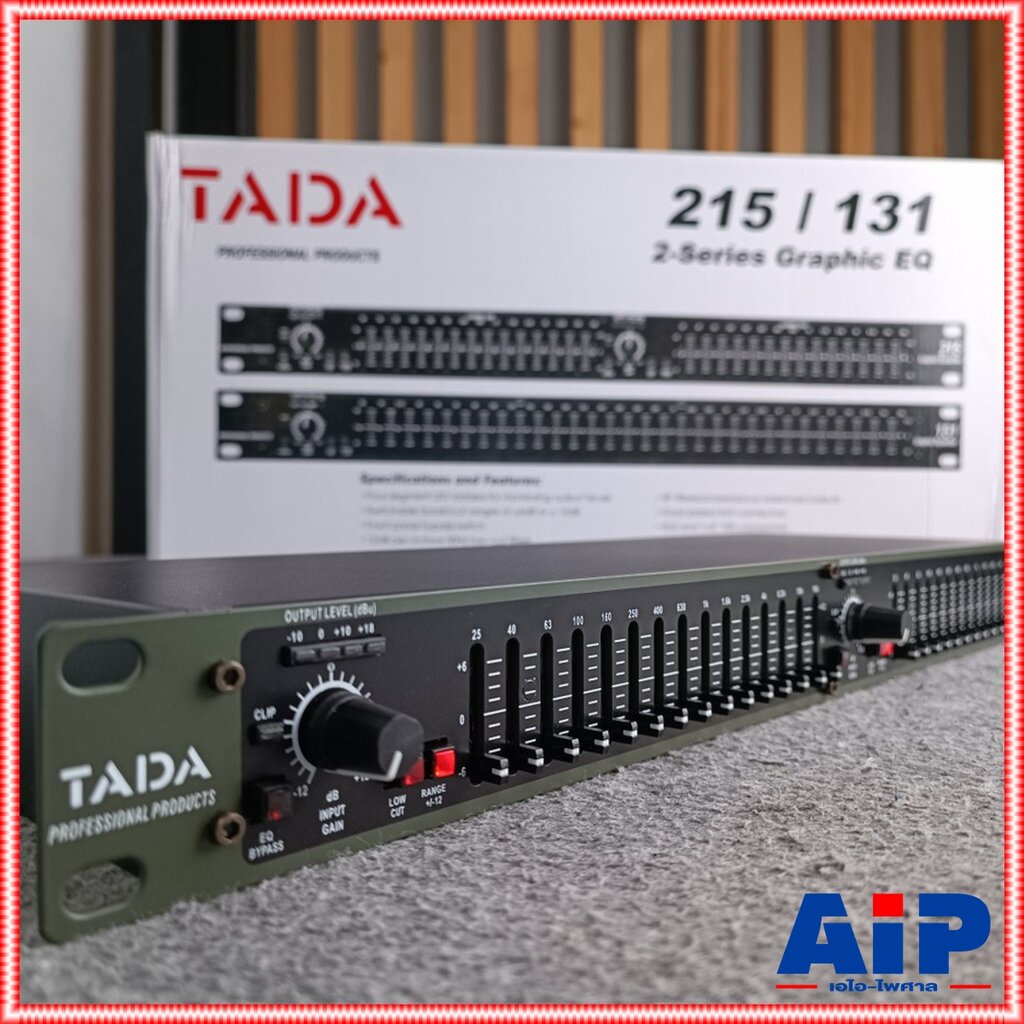

TADA 215XL EQ TADA EQ215 EQ-215 อีคิว อีควาไรเซอร์ อุปกรณ์ ปรับแต่งเสีียง ทาดา เครื่องปรับแต่งสัญญาณเสียง Stereo Grap...

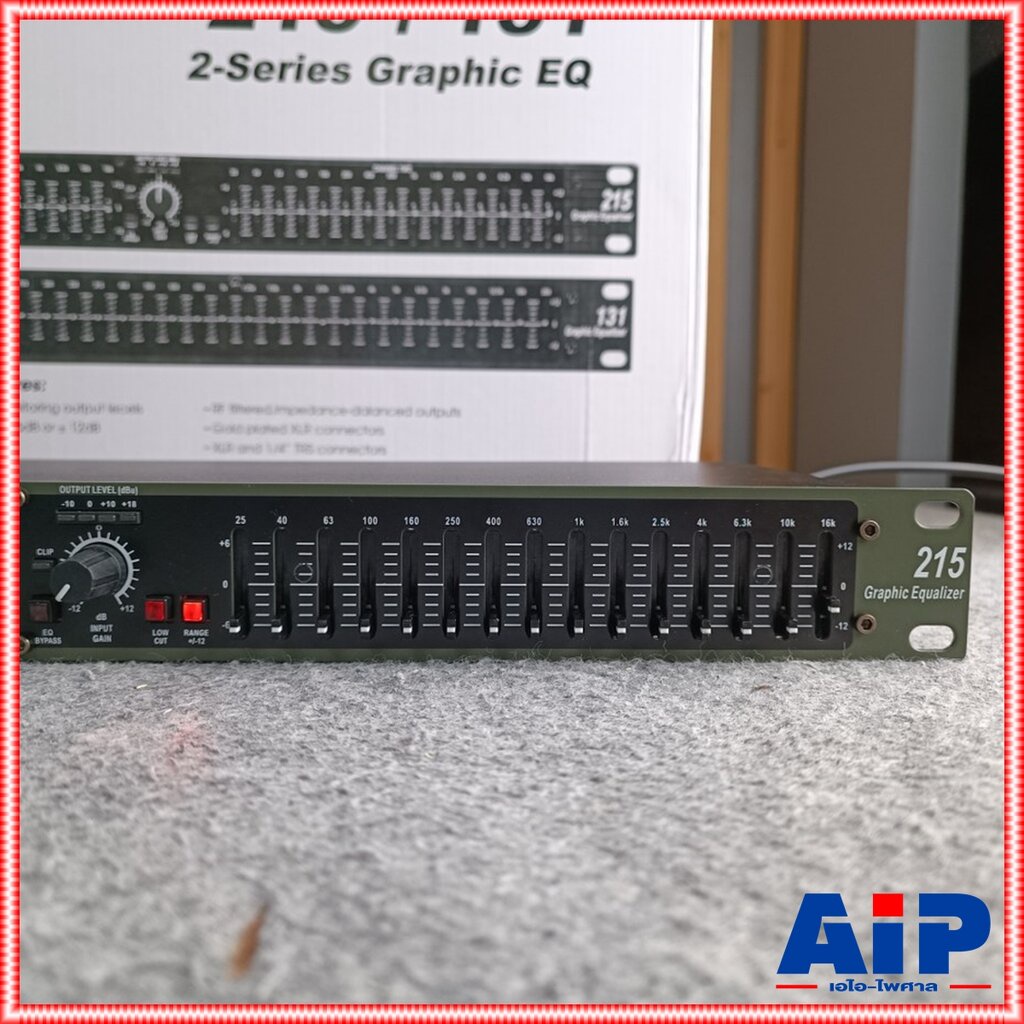

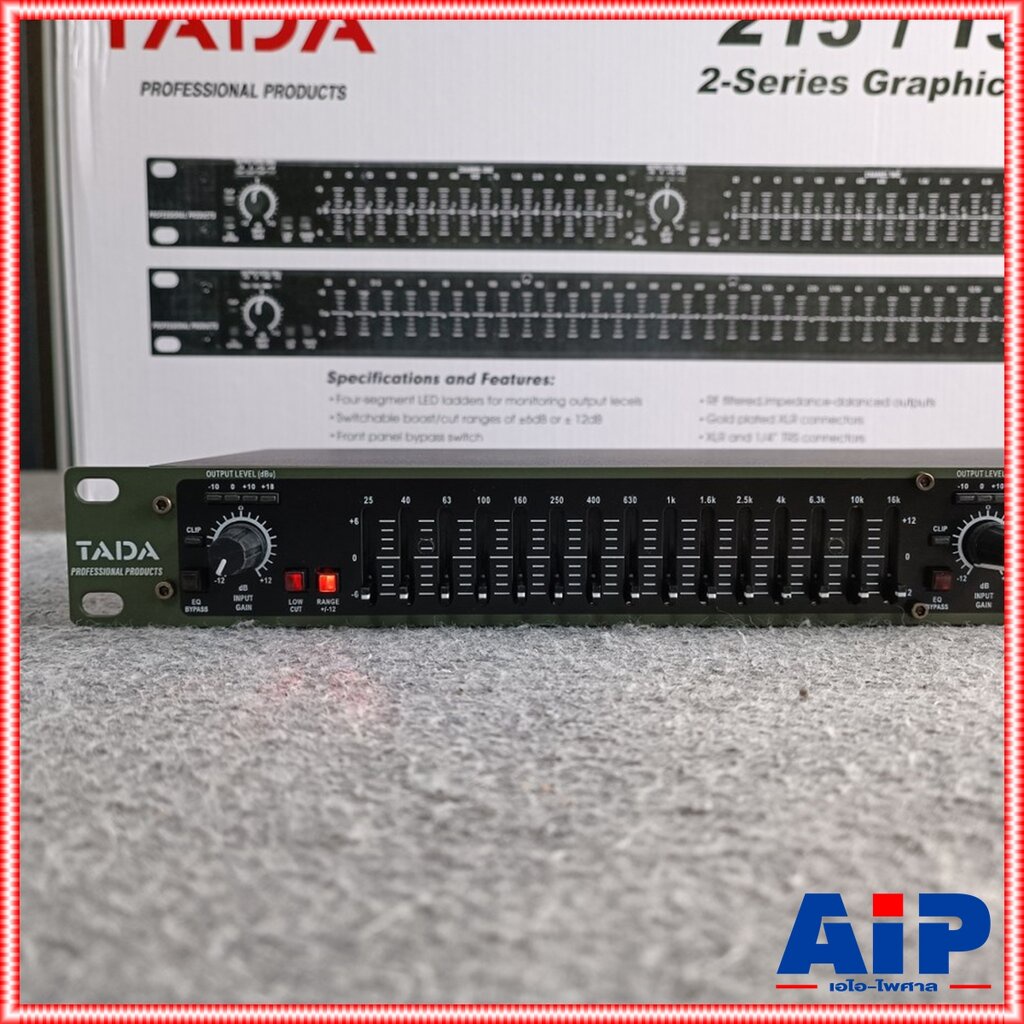

TADA 215XL EQ Main Feature - Switchable range between +/-6dB and +/-12dB - Balanced input and output - XLR and 1/4" TRS connector - Input gain range -12dB/+12dB - 12dB/octave 50Hz low cut filter - Front panel bypass switch Input Connector 1/4" TRS, female XLR (pin 2 hot) Type Electronically balanced/unbalanced, RF filtered Impedance Balanced 40KΩ, unbalanced 20KΩ Max Input Level > +21dBu balanced or unbalanced CMRR > 40dB, typically > 55dB at 1KHz Output Connector 1/4" TRS, male XLR (pin 2 hot) Type Impedance balanced/unbalanced, RF filtered Impedance Balanced 100Ω, unbalanced 50Ω Max Output Level > +21dBu balanced/unbalanced into 2KΩ or greater > +18dBm balanced/unbalanced (into 600Ω) System Performance Bandwidth 20Hz to 20KHz, +0.5/-1dB Frequency Response < 10Hz to > 50KHz, +0.5/-3dB Dynamic Range 108dB Signal to Noise 90dB THD+Noise < 0.004% Interchannel Crosstalk < -80dB, 20Hz to 20KHz Function Switch EQ Bypass Bypass the graphic equalizer section in the signal path Low Cut (recessed) Activate the 50Hz 12dB/octave high pass filter Range (recessed) Select either +/-6dB or +/-12dB slider boost/cut range Power Supply Operating Voltage 230VAC 50/60Hz Power Consumption 12 Watts Main Connection IEC receptacle
