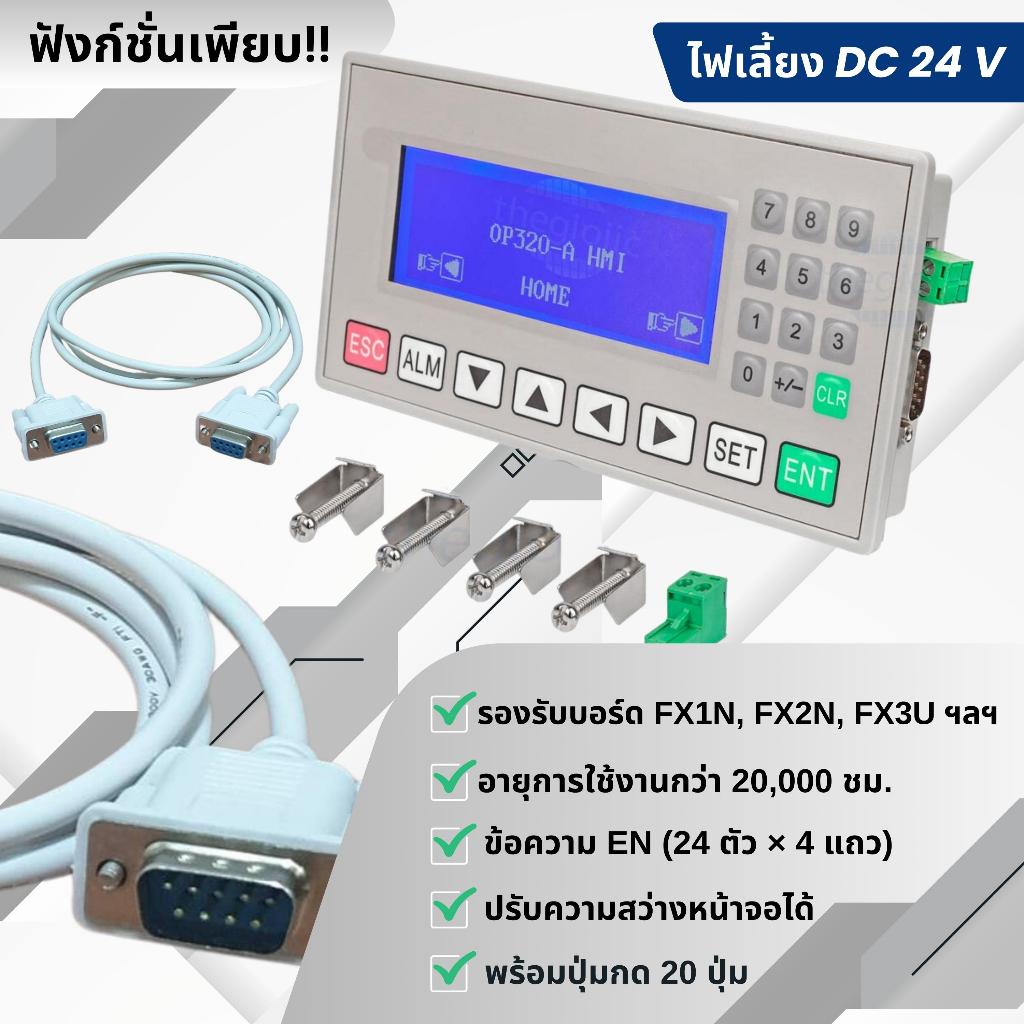

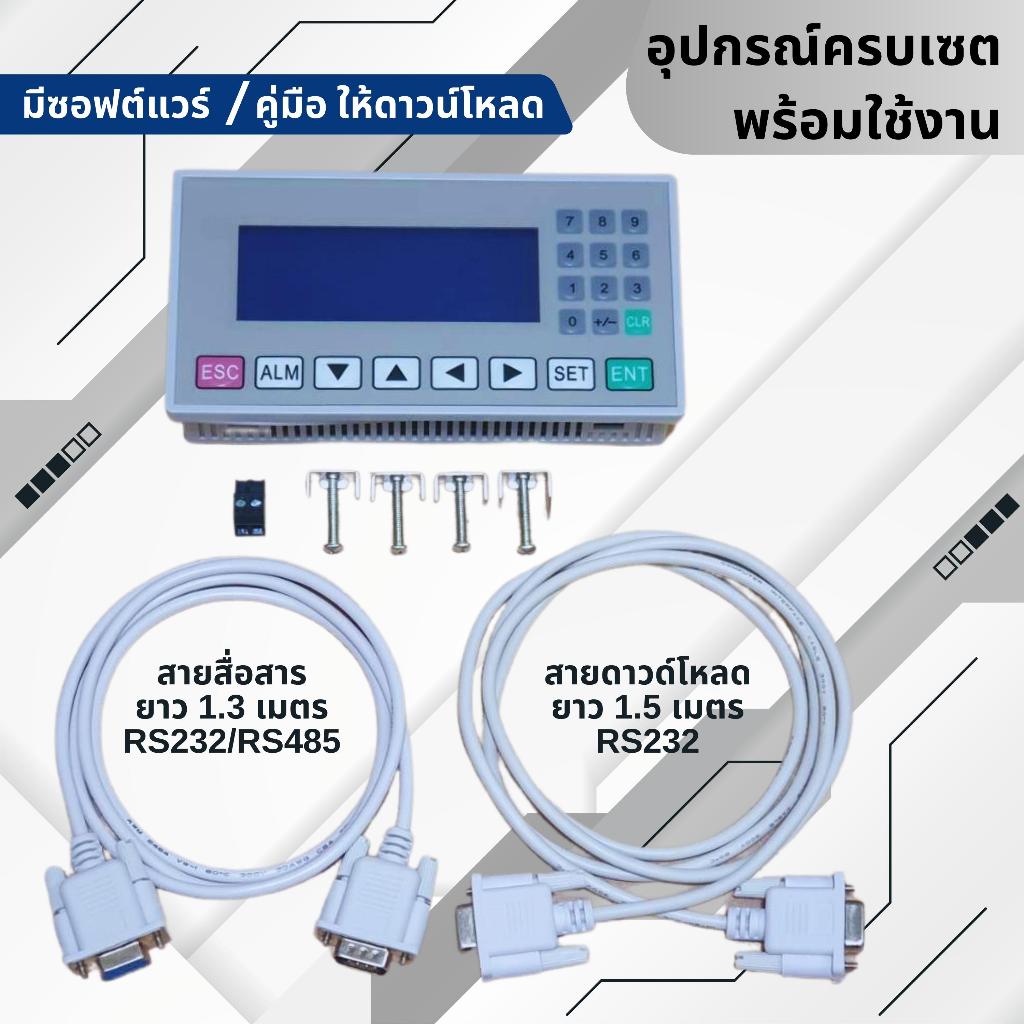

จอ HMI รุ่น OP320-A-S Blue LCD 3.7", 192x64, RS232/RS485 พร้อมสายสื่อสารและสายดาวน์โหลด

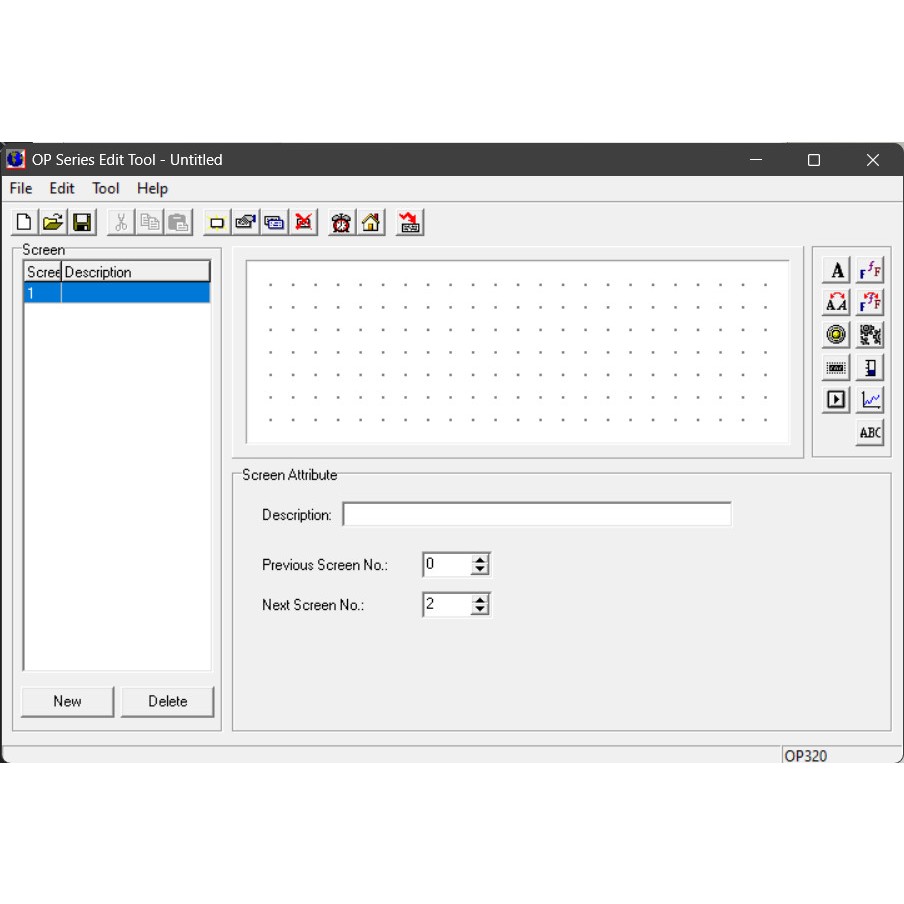

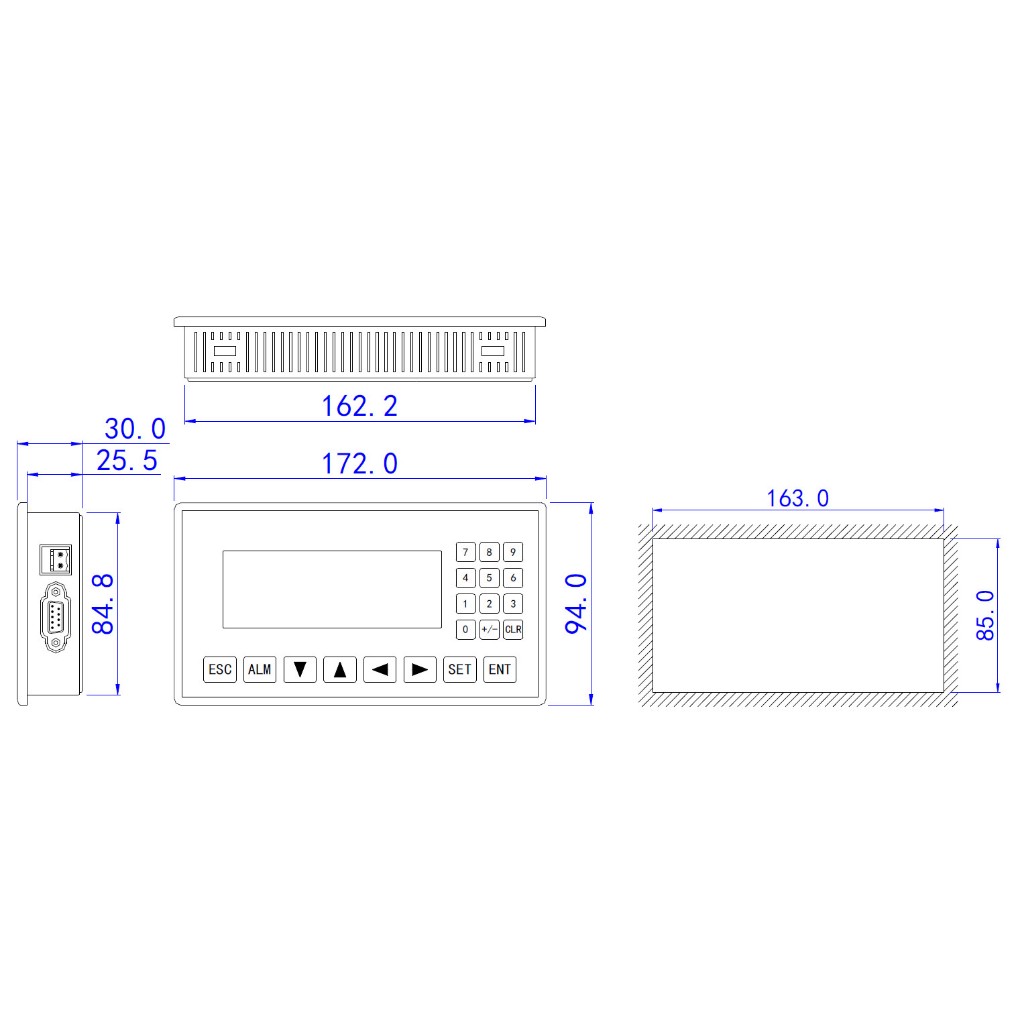

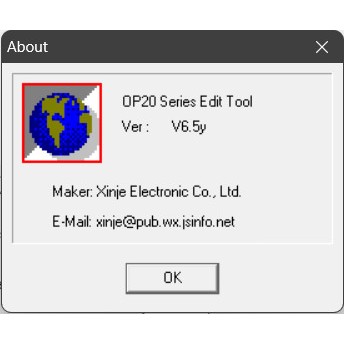

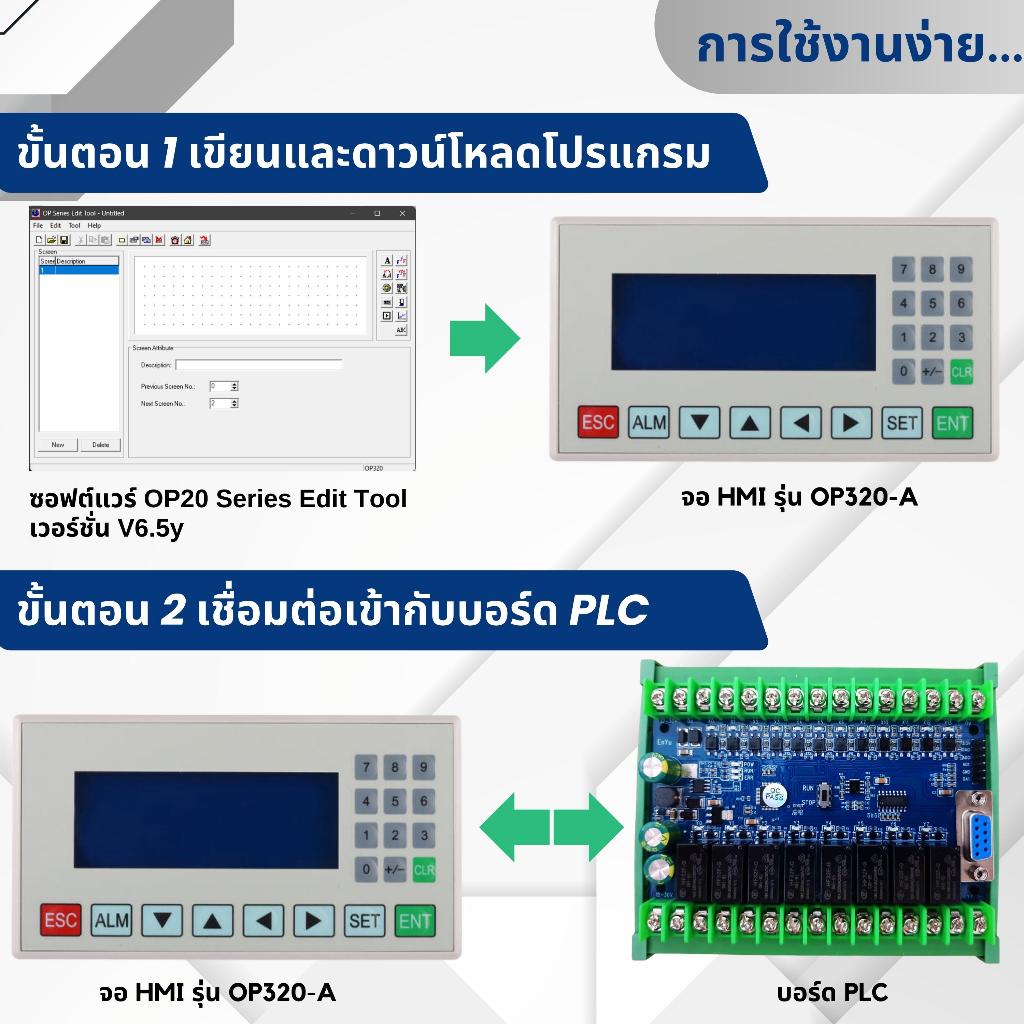

OP series operate panel can control the PLC through buttons, texts, lamps. Characteristics: -Edit the program in OP20 software, download program via PC serial port -Can communicate with various PLCs. Such as Mitsubishi FX series, Omron C series, Siemens S7 series, Koyo SG series and so on -Password function -Built-in RTC -OP can display dynamic text -Alarm function -All the buttons can be defined as multi-function -STN LCD with backlight -Protection level is up to IP65 -Support bmp picture displaying -Electrical spec Input voltage DC24V Input voltage range DC20V-DC28V Power < 4W(TYPE2.0W) Power-off permission < 20ms Voltage endurance AC1000V-10MA 1minute (signal and ground) Insulated resistance DC500V- about 10MΩ (signal and ground) -Environment Operate temperature 0~50℃, no condensation Storage temperature –20~60℃ Humidity 20~85% (no condensation) Vibration endurance 10~25Hz(X, Y, Z direction 30 minutes 2G) Noise immunity Voltage noise: 1000Vp-p, pulse width is 1 Air No corrosive gas Protection IP65 for front cover Cooling method Natural cooling -Function specifications OP series: Type OP320-A-S Button 20 LCD 3.7” Backlight STN/LCD Port RS232/RS485 Dimension (mm) 172.0×94.0×30.0 Mounting dimension (mm) 163.0×85.0 Display: Type Blue LCD Use life Above 20000 hours, temperature 25℃, 24-hour running Display area 192*64 Brightness Adjust by potentiometer Text English (24 words×4 rows) Font Lattice, vector Button 20 Memory: Program 64KB Flash ROM Data 1KB SRAM Port: Download RS232 communication OP320-A-S: RS232/RS485
