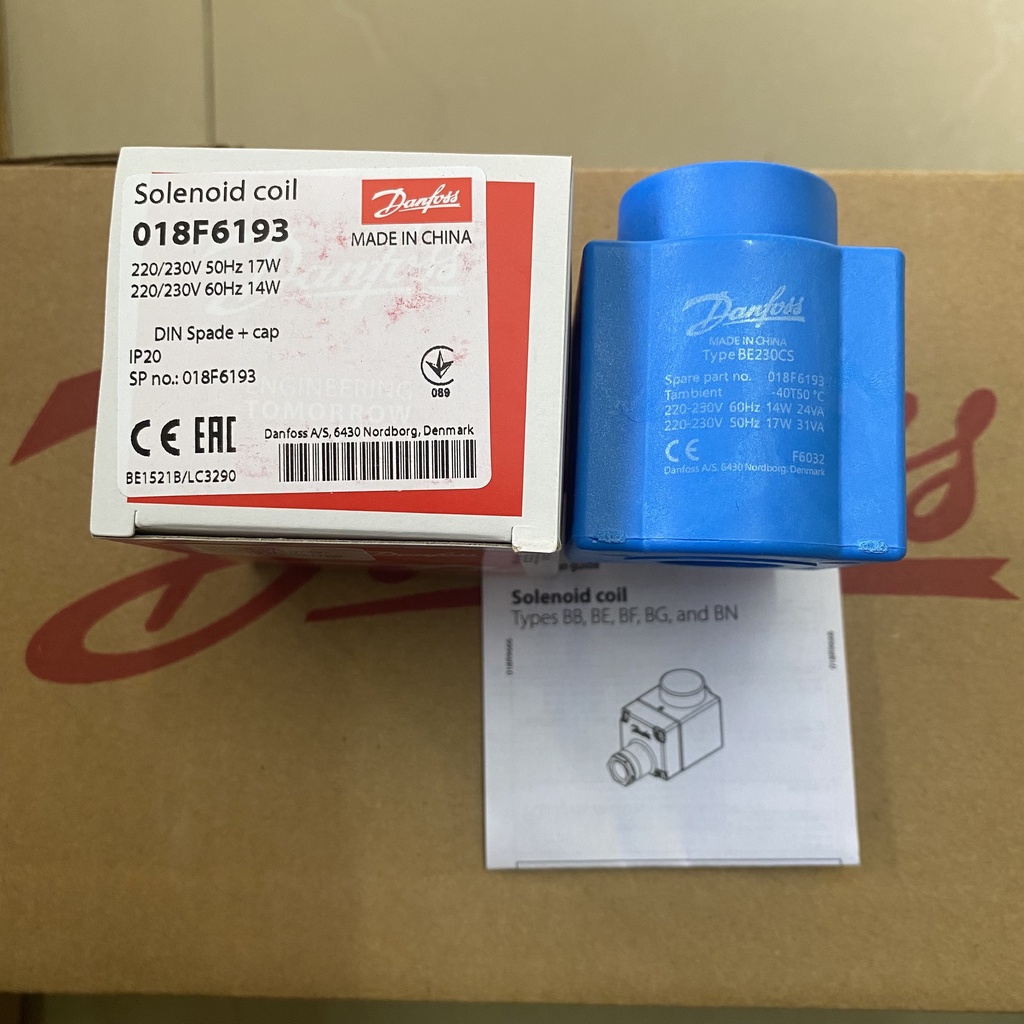

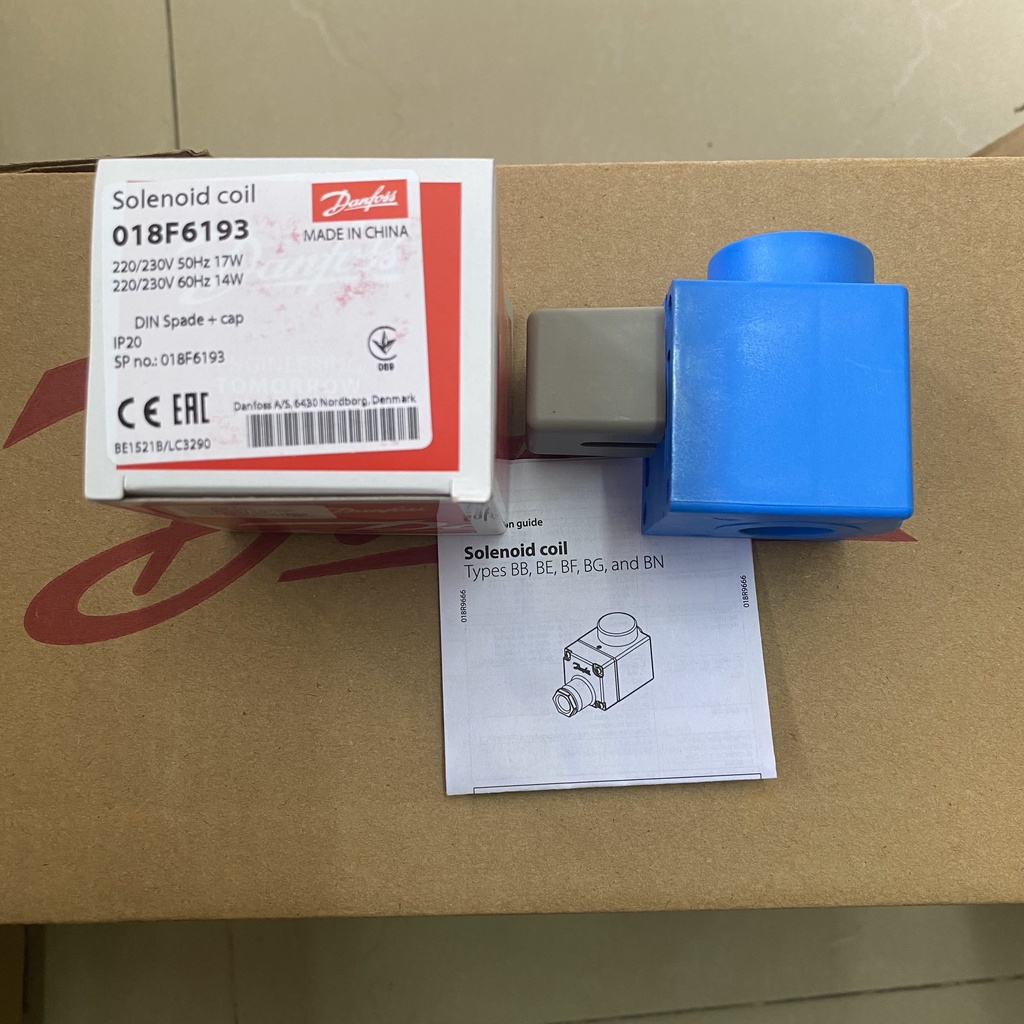

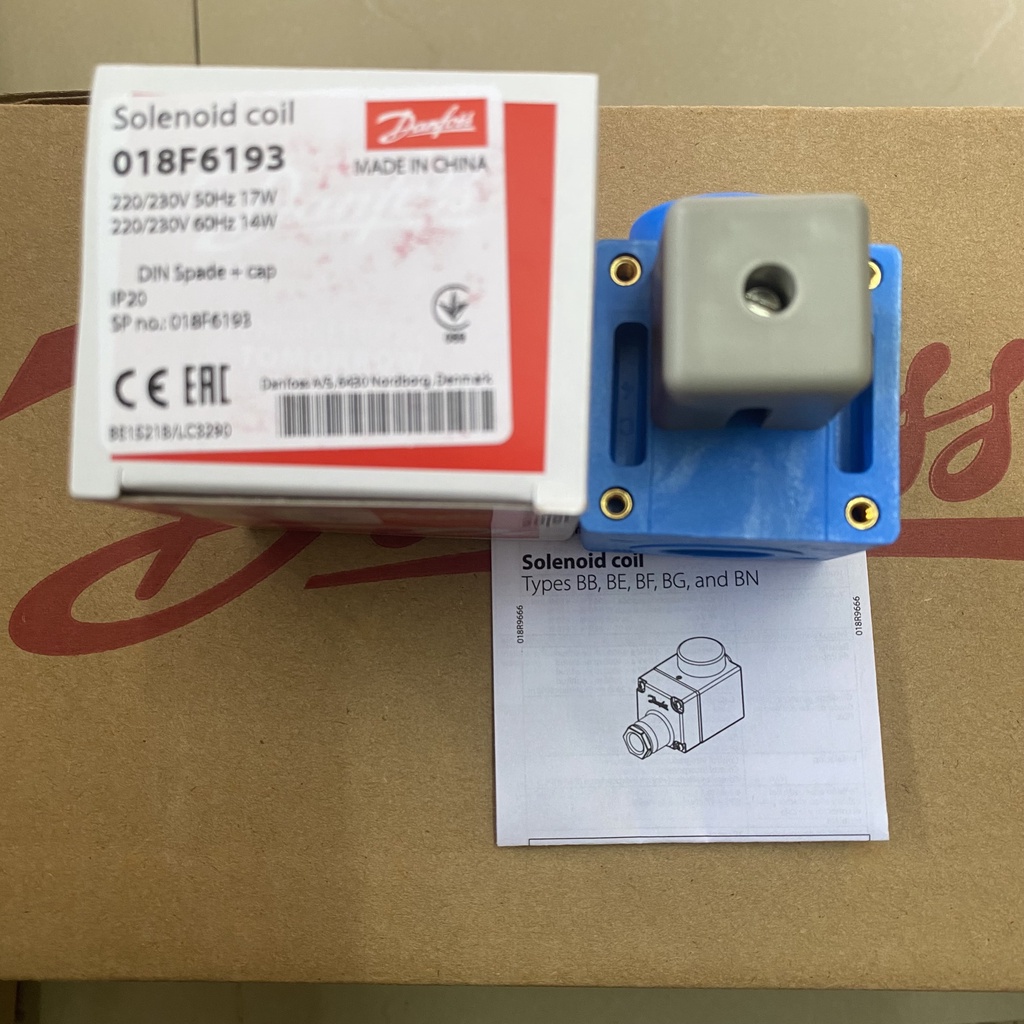

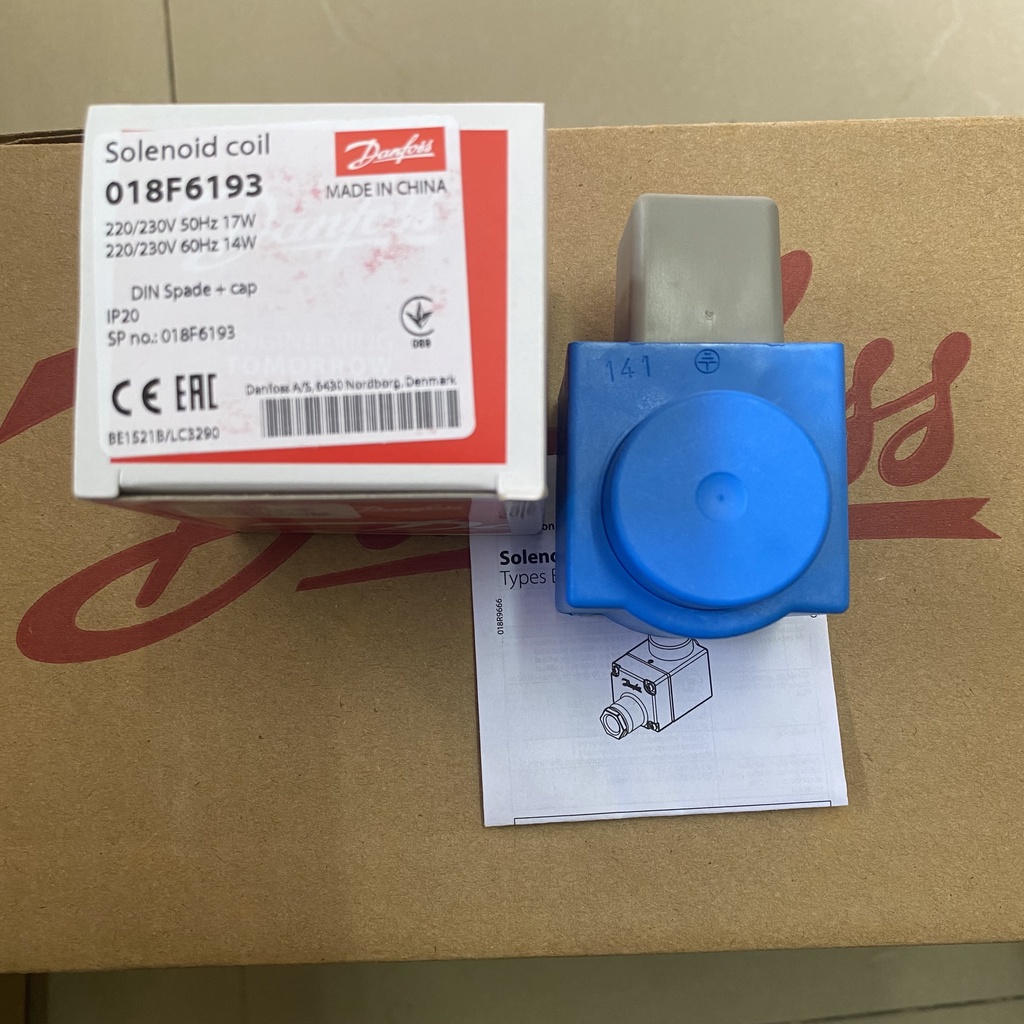

Danfoss 018F6193 Solenoid coil, BE230CS

Product details Gross weight 0.3 kg Net weight 0.28 kg EAN 5702428024570 Actuator size 13.5 mm Ambient temperature range [°C] [Max] 50 °C Ambient temperature range [°C] [Min] -40 °C Ambient temperature range [°F] [Max] 120 °F Ambient temperature range [°F] [Min] -40 °F Approval LLC CDC TYSK CE EAC UKCA Coil connection DIN Spade + Cap Coil design standard VDE 0580 Coil fastening Clip-on Coil winding insulation class Class H to IEC 85 Colour Blue Compliance EN 60730-1 Duty rating Continuous Electrical connection DIN Spade Electrical connection size 6.3 mm x 0.8 mm Electrical connection standard EN175301-803 Electrical connector 3 x spades Enclosure rating IP IP20 Frequency [Hz] 50/60 Hz Packing format Multi pack Parts included Cap Parts Program name EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B Power consumption 50Hz [VA] 31 VA Power consumption 60Hz [VA] 24 VA Power consumption [W] 50Hz 17 W Power consumption [W] 60Hz 14 W Product accessories Solenoid coil accessories Product group Solenoid valves Product name Solenoid coil Quantity per packing format 50 pc REACH Candidate List substances >0.1% Lead (CAS no. 7439-92-1) Rel. Humidity [% RH] [Max] 97 % Rel. Humidity [% RH] [Min] 0 % Rel. Humidity conditions Non-condensation Serviceable No Spare part number 018F6193 Supply voltage 50Hz Max [V] 230 V Supply voltage 50Hz Min [V] 220 V Supply voltage 60Hz Max [V] 230 V Supply voltage 60Hz Min [V] 220 V Supply voltage [V] AC [Max] 230 V Supply voltage [V] AC [Min] 220 V Type BE230CS Type designation BE230CS
