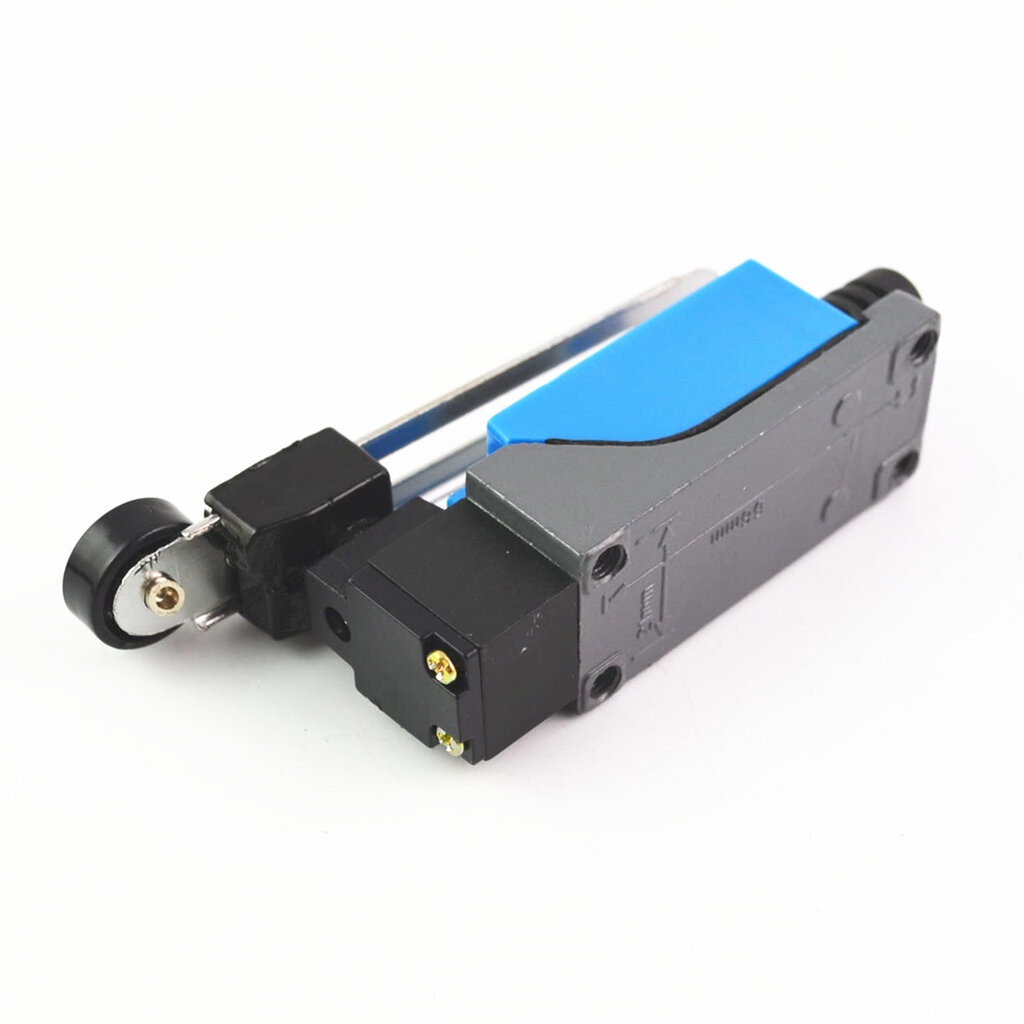

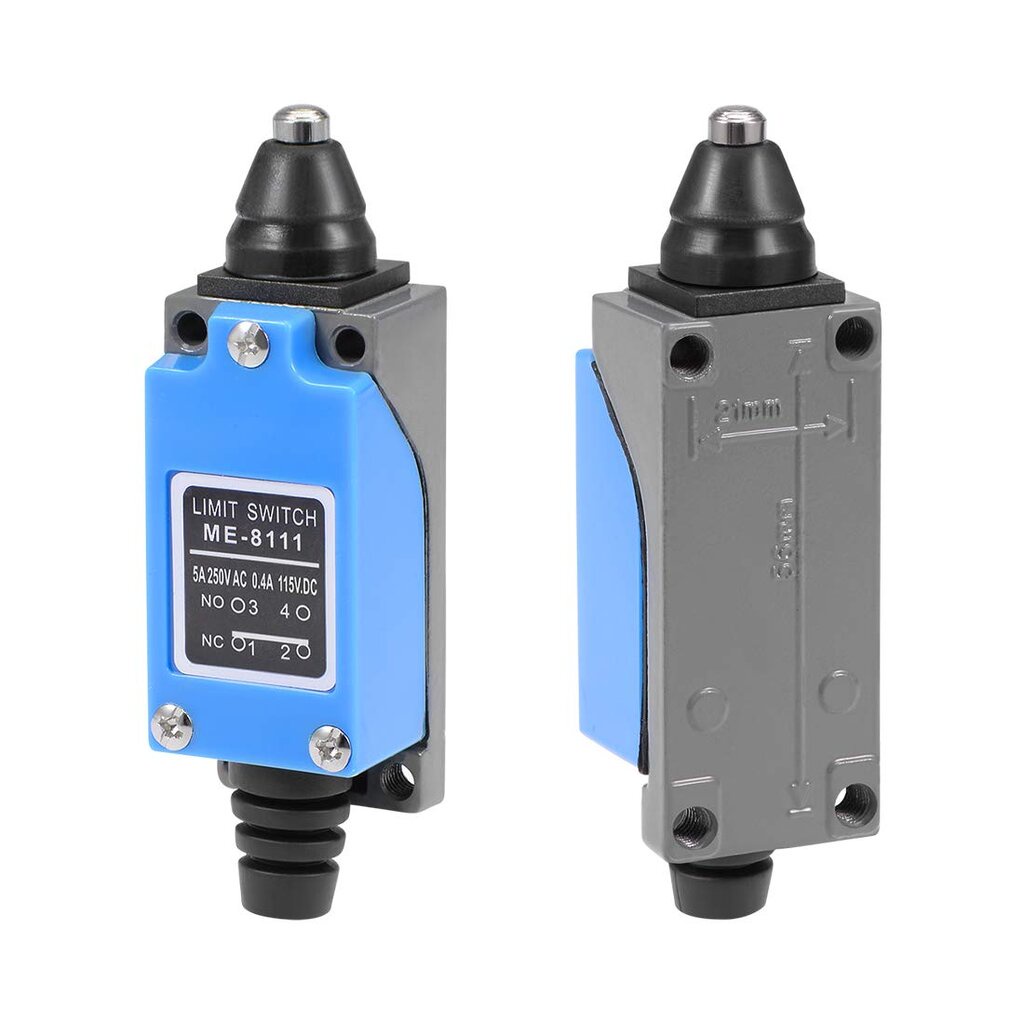

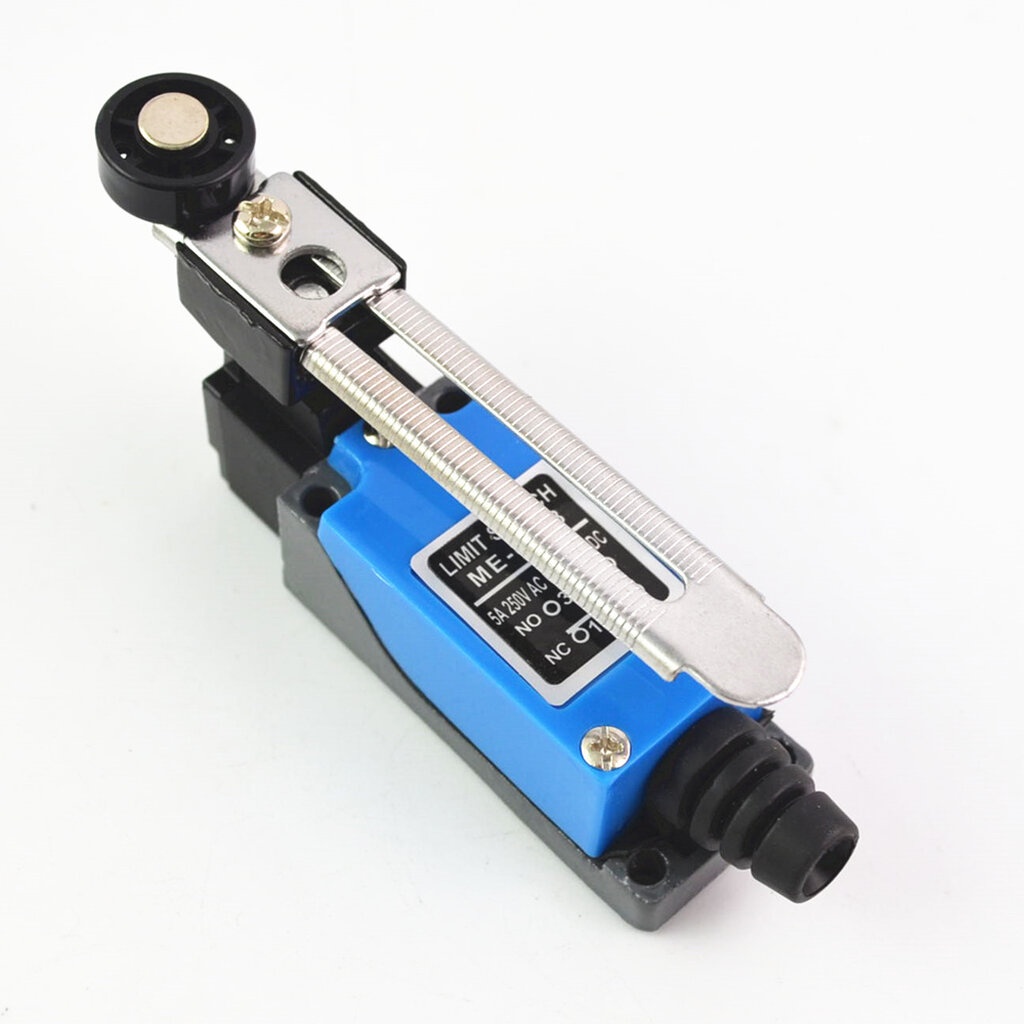

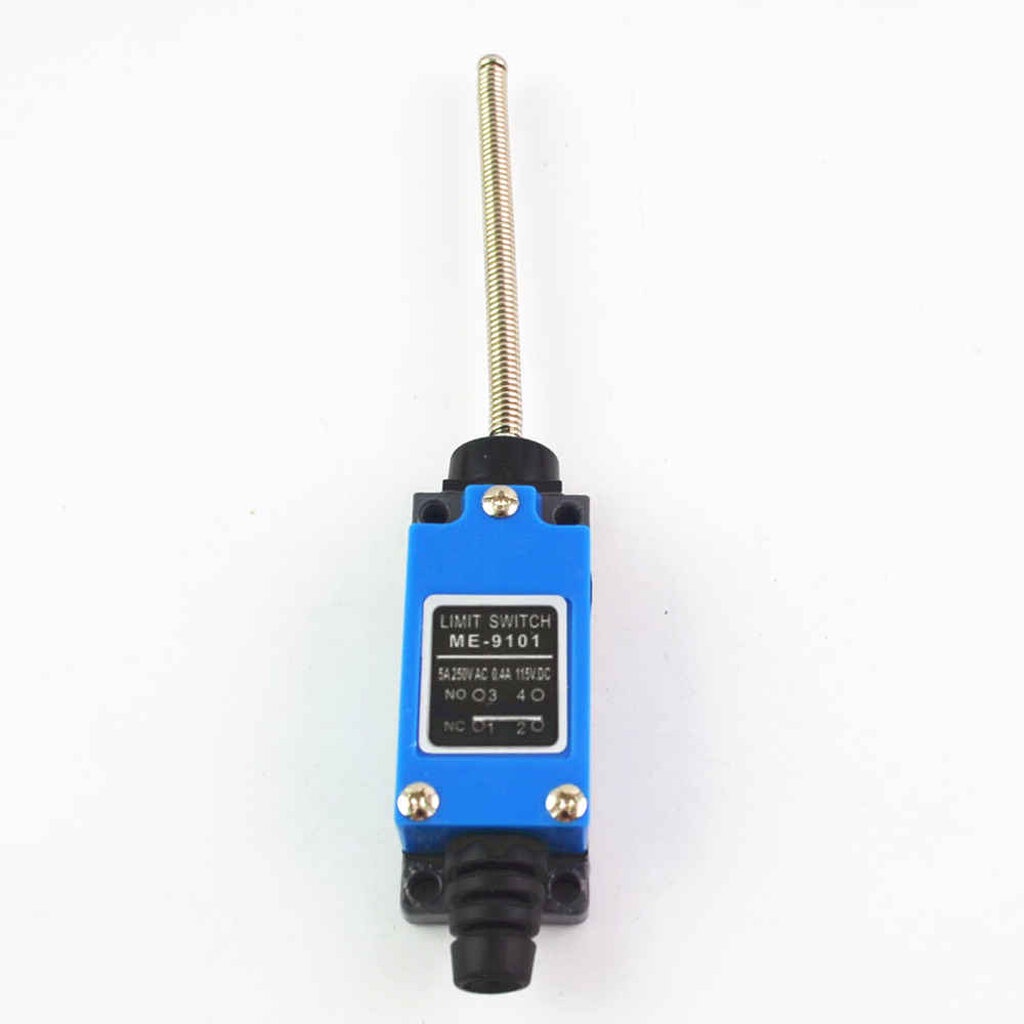

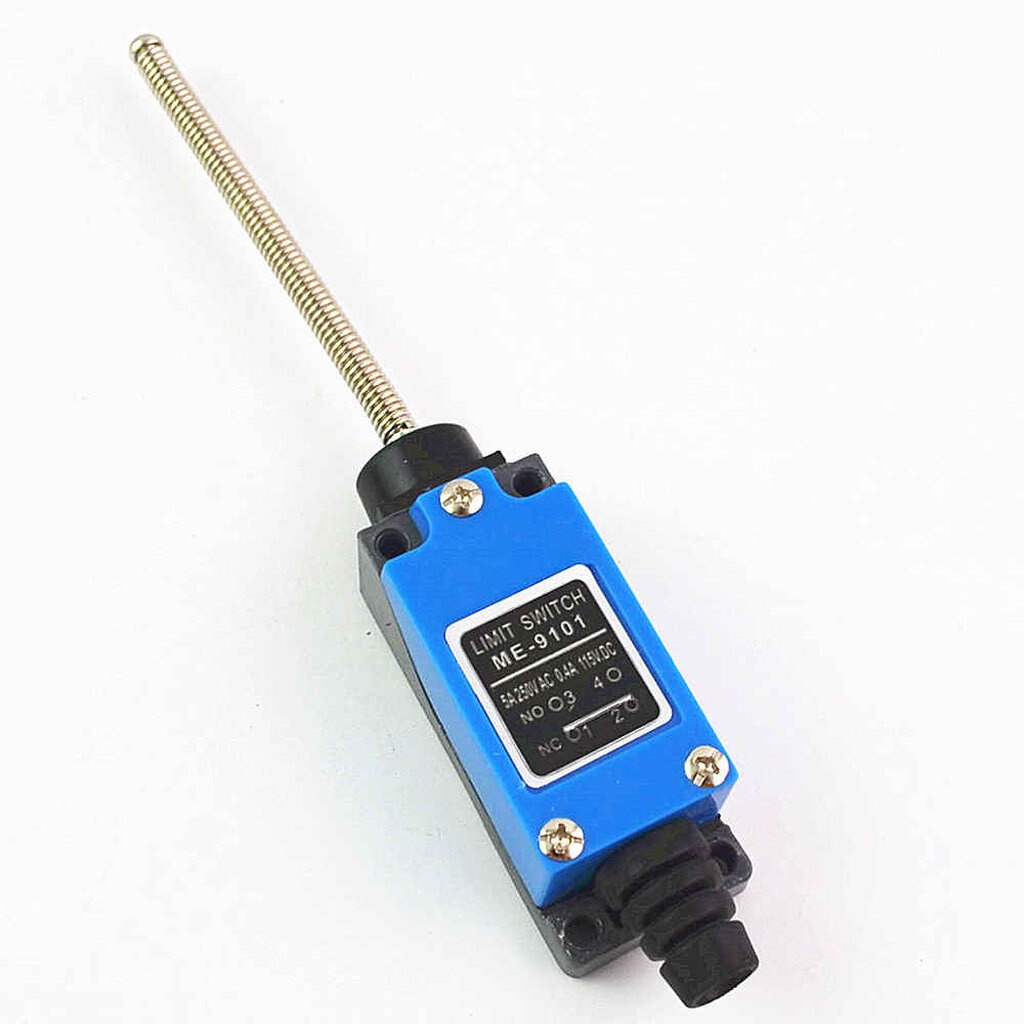

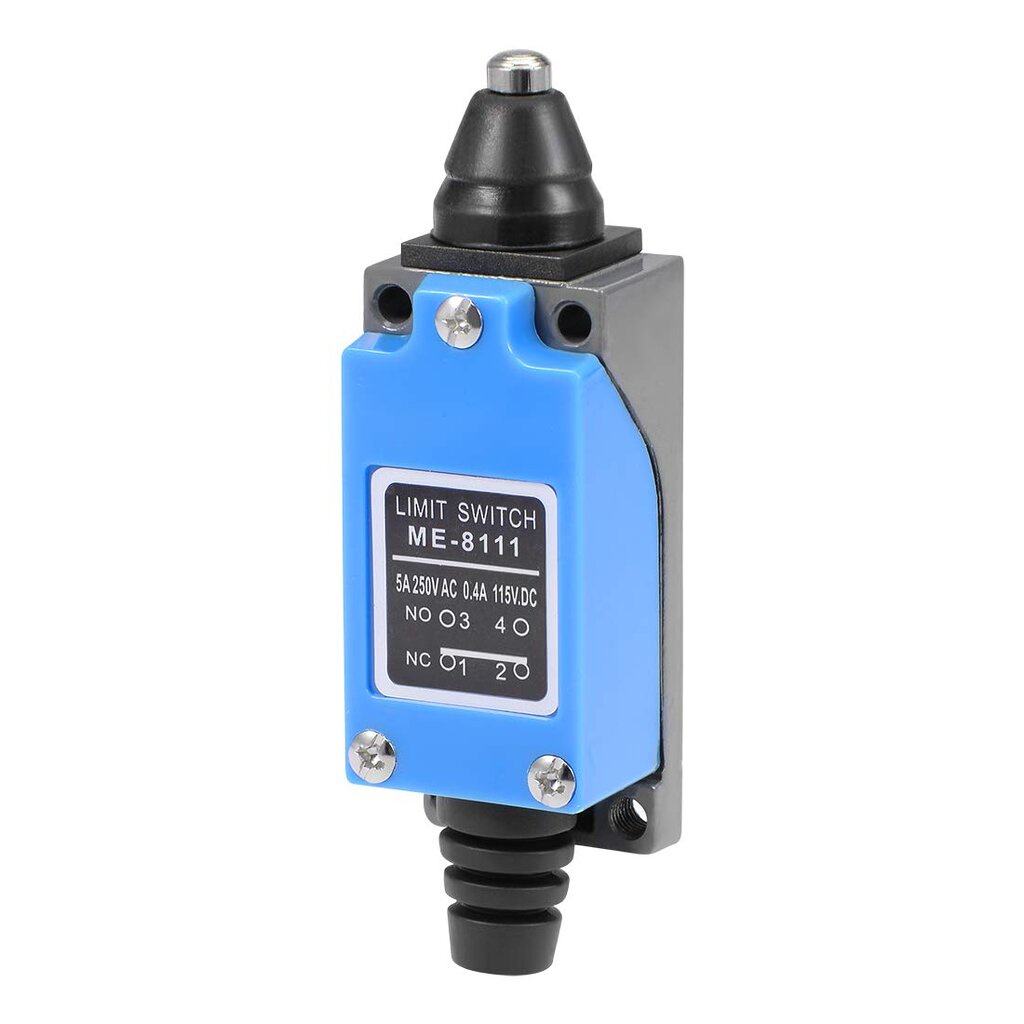

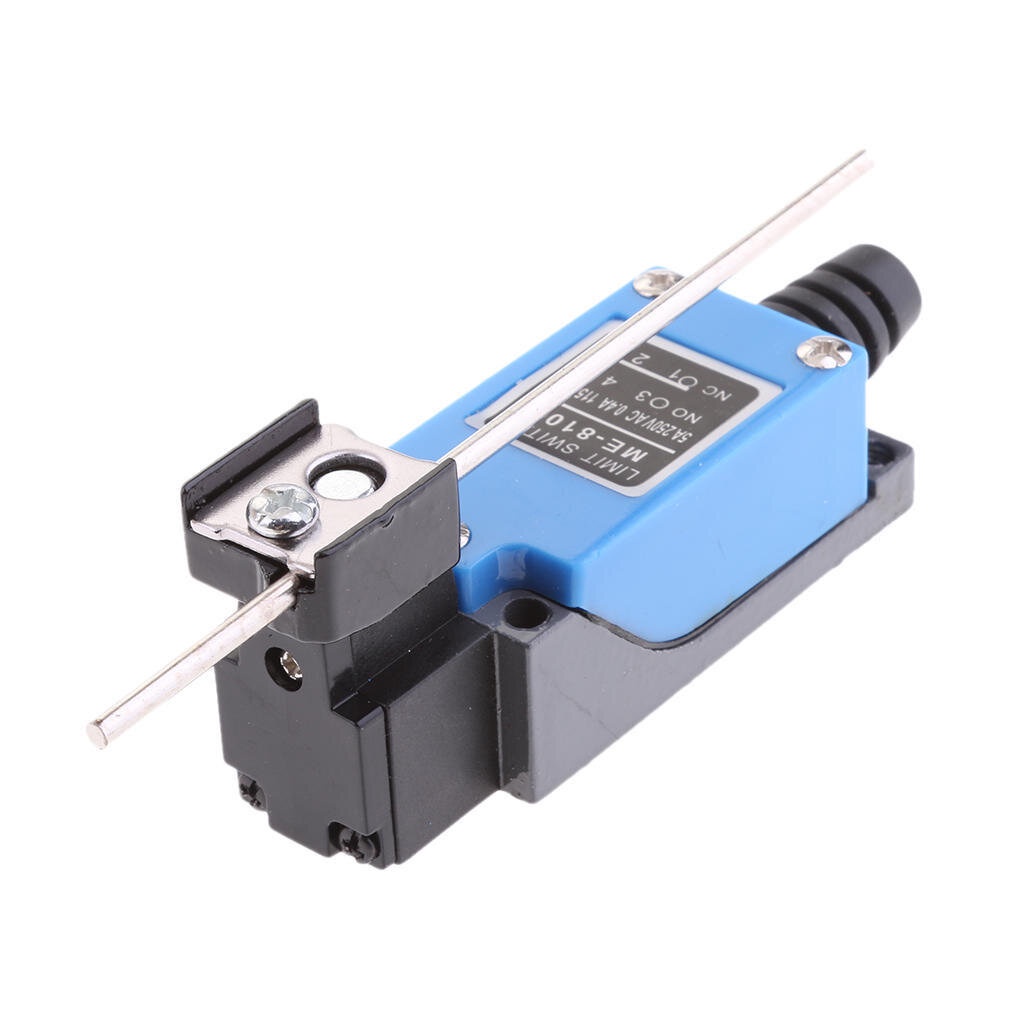

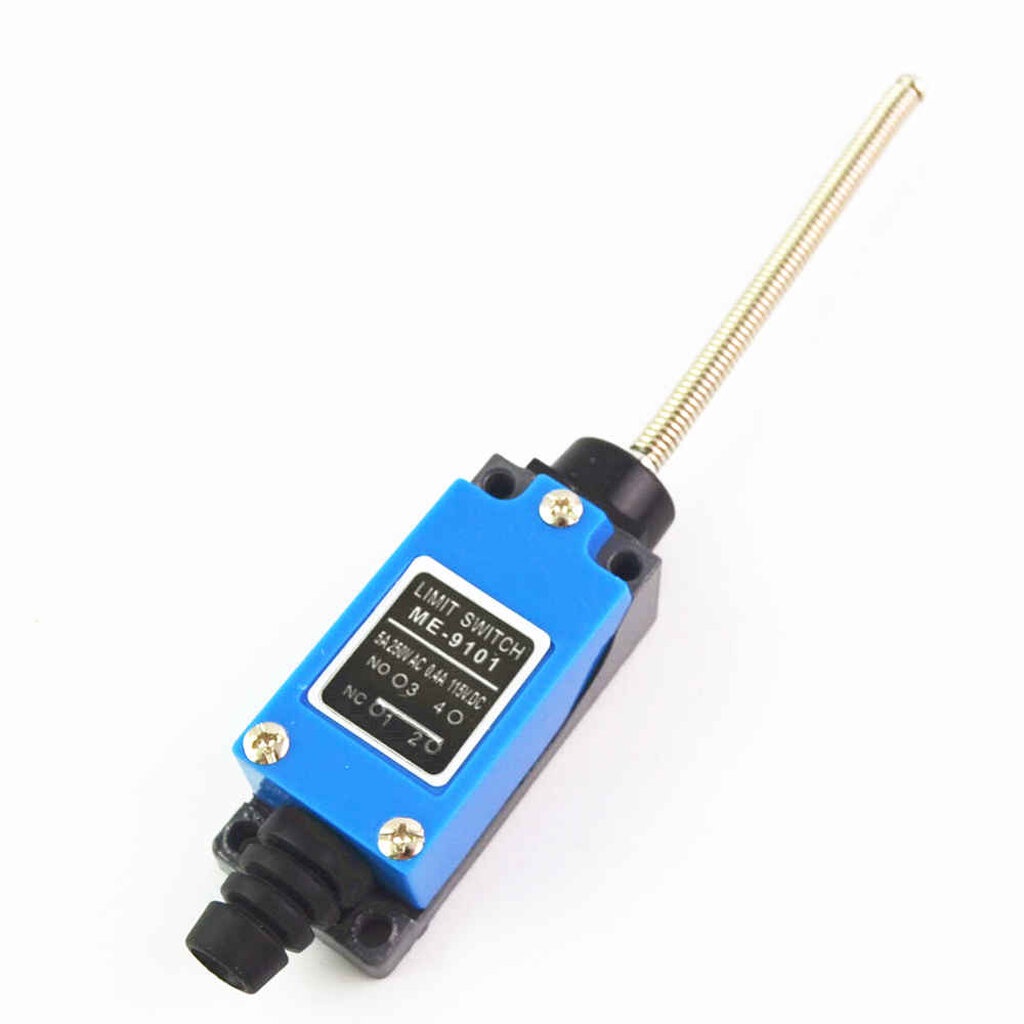

Limit Switch ลิมิตสวิทช์ ME-8108 / ME-8104 / ME-8107 / ME-9101 / ME-8111 / ME-8112 / ME-8122 / ME-8169 / ME-8166

Limit Switch ลิมิตสวิทช์ ME-8108 / ME-8104 / ME-8107 / ME-9101 / ME-8111 / ME-8112 / ME-8122 / ME-8169 / ME-8166 คอนแทค 5A 250VAC Contact: 1NO + 1NC Characteristics: Operation speed 0.5mm-50cm/sec Operating frequency Mechanical: 120 operations/minute, Electrical: 30 operations/minute Contact resistance 25m max. (initial value) Insulation resistance 100m min. (at 500VDC) Dielectric strength 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity 1500VAC, 50/60 HZ for 1 minute between current carrying and non-current-carrying metal parts 1500VAC, 50/60 HZ for 1 minute between each terminal and ground Vibration 10-55HZ,1.5mm double amplitude Shock Mechanical durable: 1,000m/Sec2 (about 100GS) Malfunction: 300m/Sec2 (about 30GS) Ambient temperature -5C to +65C Humidity 95% RH Life Mechanical: 10,000,000 operations above Electrical: 500,000 operations above Weight About 130 to 190g Degree of protection IP45 Operating characteristics: Models 8104 8108 8107 8111 8112/8122 8166/8167/8168/8169 OF Max. 750g 750g 750g 900g 900g 150g RF Min. 100g 100g 100g 150g 150g - PT Max. 20 20 20 1.5mm 1.5mm 30mm OT Min. 50 50 50 4mm 4mm - MD Max. 12 12 12 1mm 1mm - OP - - - 26 0.8mm 37 0.8mm -
