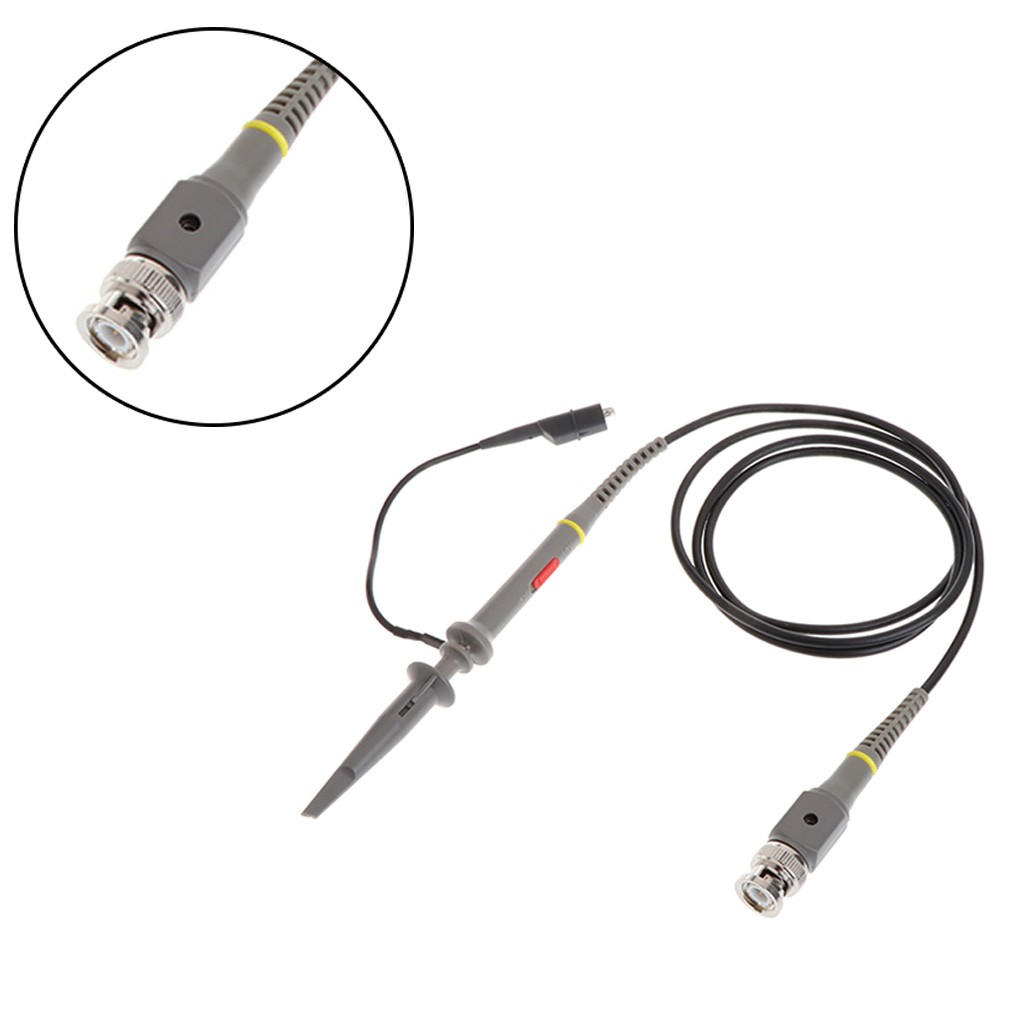

ออสซิลโลสโคป ให้ความแม่นยำสูง 1X 10X P6100 100MHz

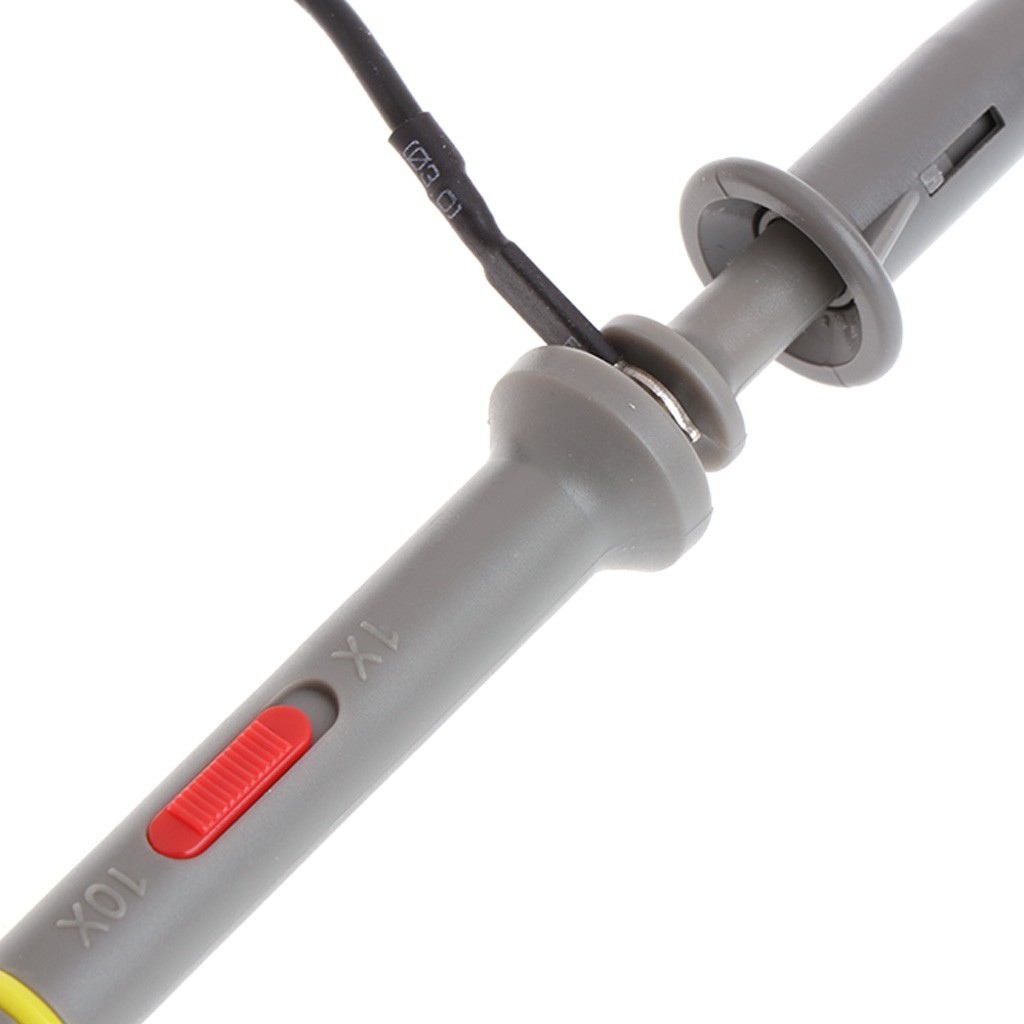

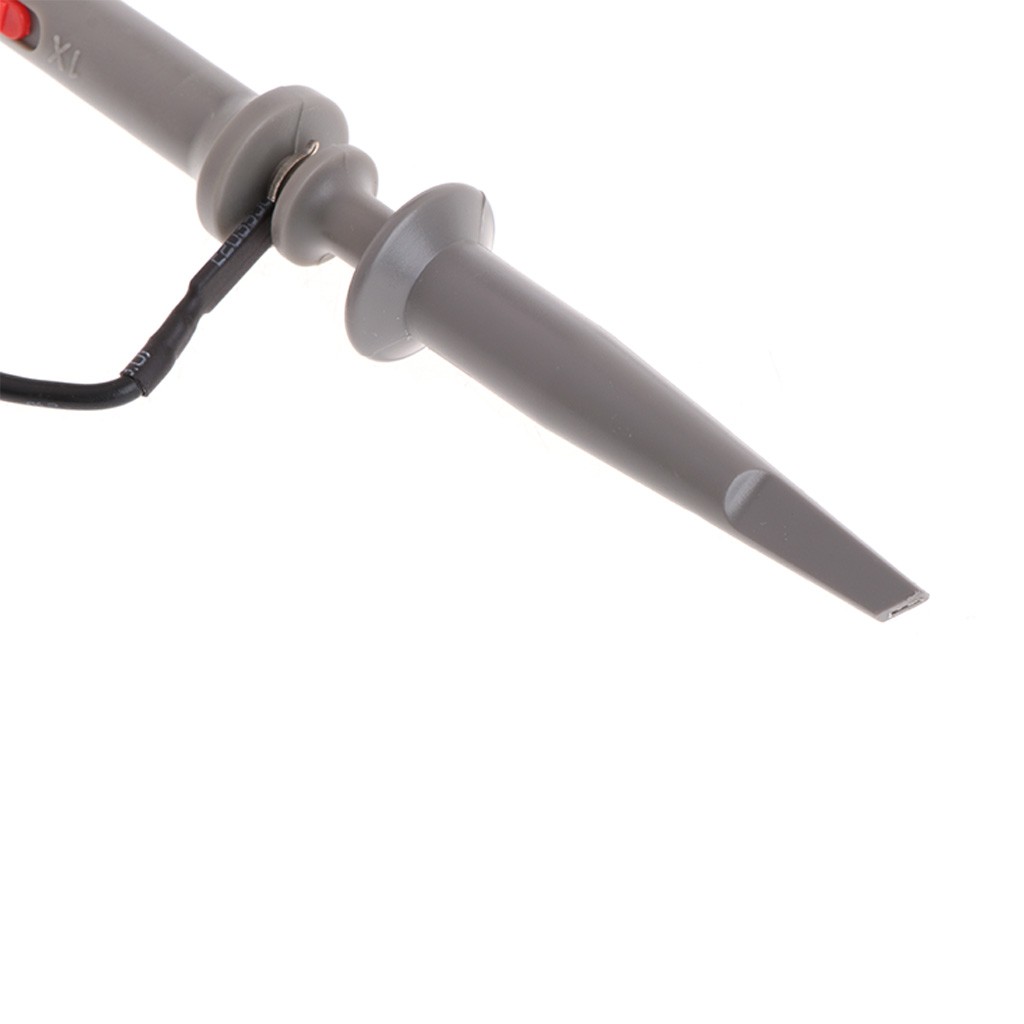

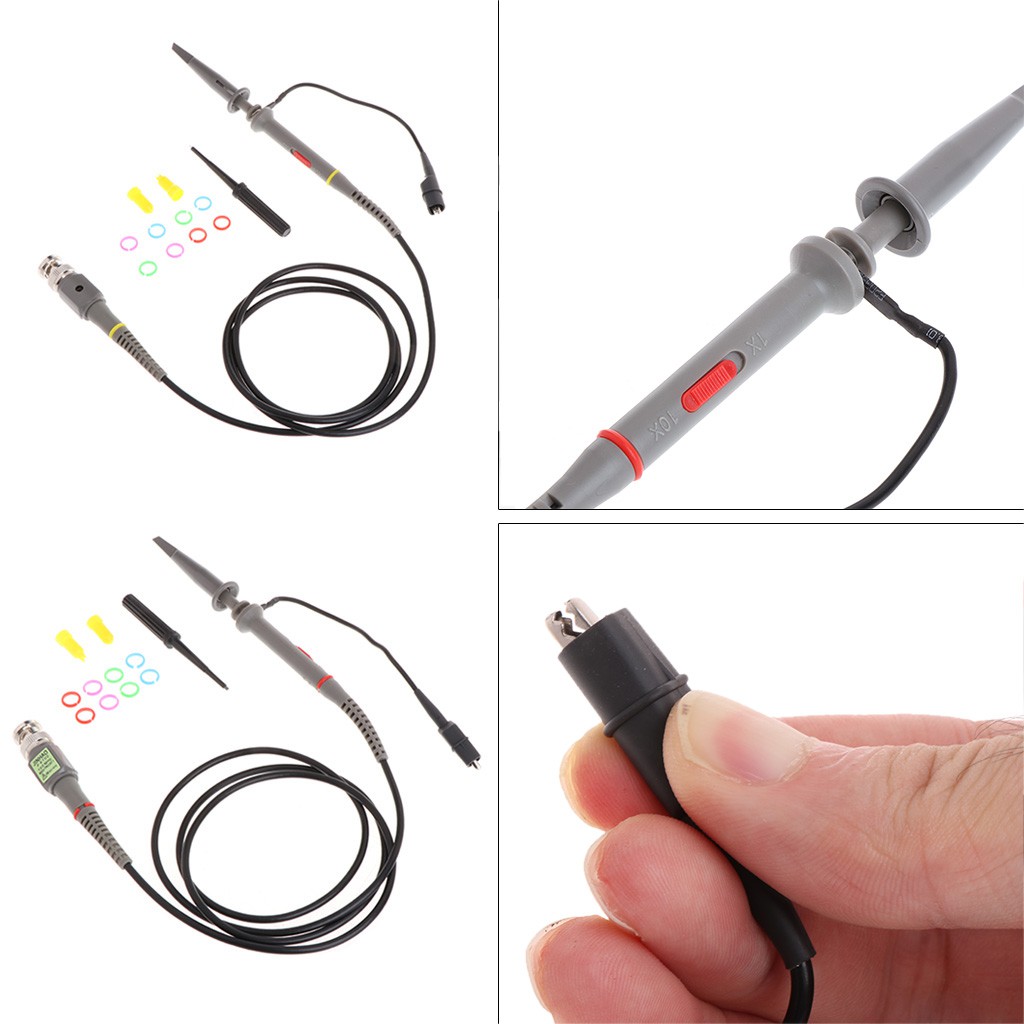

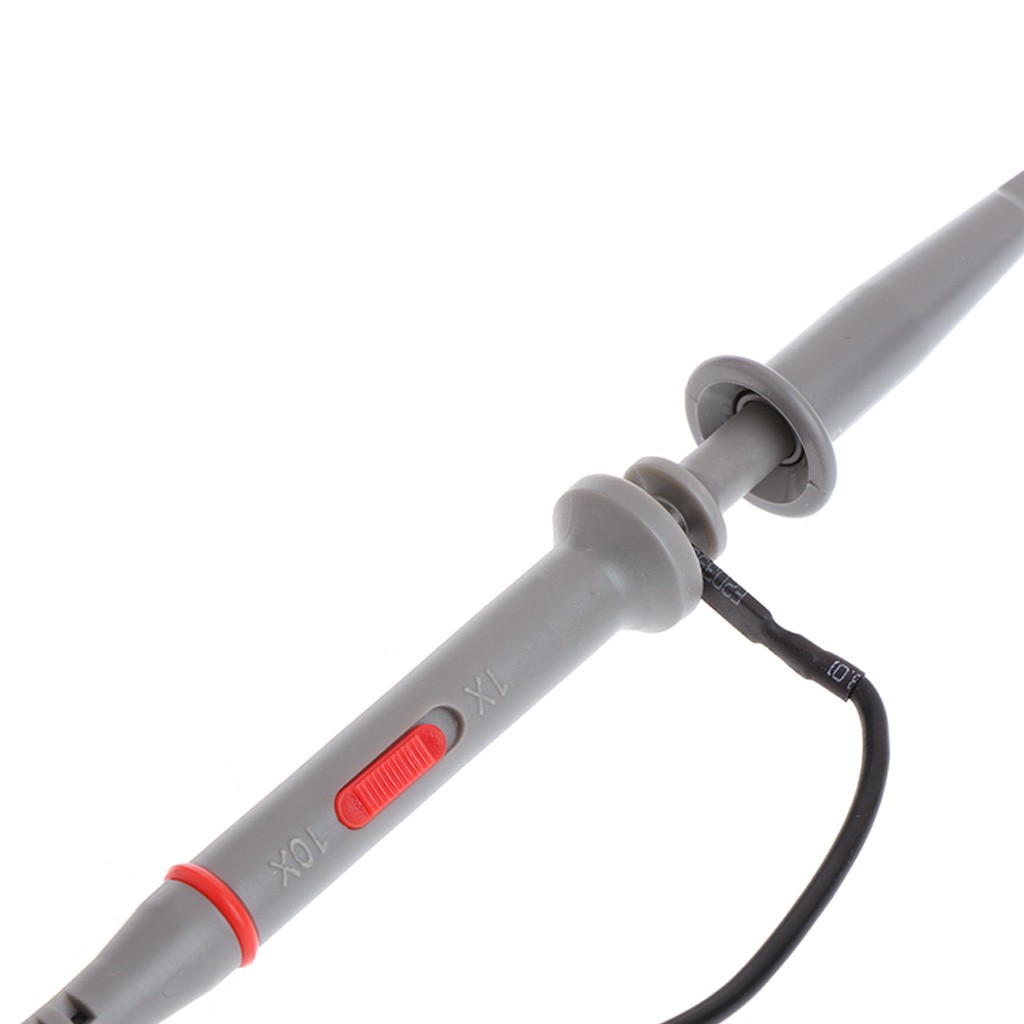

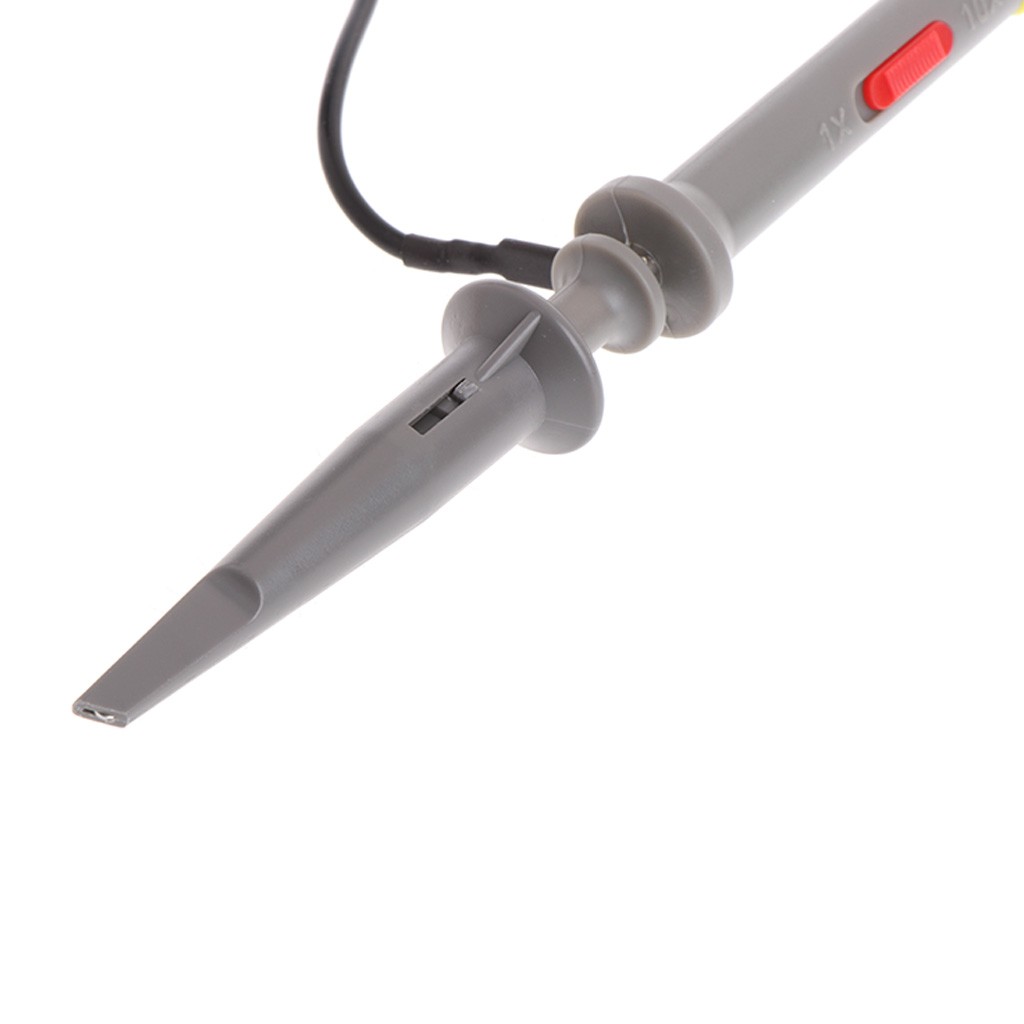

Features: Compact size, several functions combined in one, this probe is convenient to use. Adjustable probe attenuation, you can choose 1X or 10X by sliding the switch. Use the adjustment tool for probe compensation adjustment. Detachable hook tip, the hook is well protected by the plastic case. Locating sleeves ensure the stability and reliability of the tip exposed to the test point. Marker rings in different colors help to identify different channels. Great choice for oscilloscope probe. Specifications: Model: P6100 Rise Time: 3.5ns Band Width: 100MHz Color: Black+Gray Attenuation Ratio: 1x/10x Input Resistance: (1MΩ/10MΩ)±2% Range: 20pF-40pF Input Capacity: x1: 85pF-120pF x10: 18.5pF-22.5pF Compensation Band System: x1: DC-4MHz x10: DC-60MHz Input Voltage: x1: <200 V DC + AC Peak x10: <600 V DC+AC Peak operating temperature: -10-+50°C Operating Humidity: 0-80%RH Cable Length: 120cm/47.24" Quantity: 1 Set Note: Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package Contents: 1 x Oscilloscope Probe 1 x Accessory Kit 1 x User Manual
