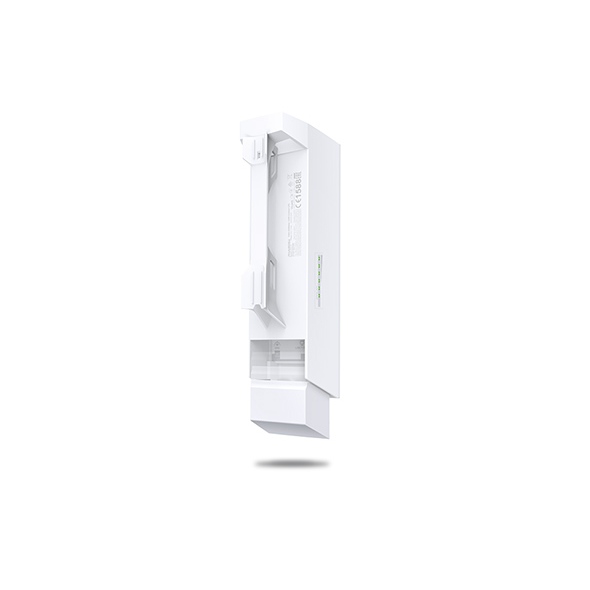

TP-LINK CPE510 5GHz 300Mbps 13dBi Outdoor CPE

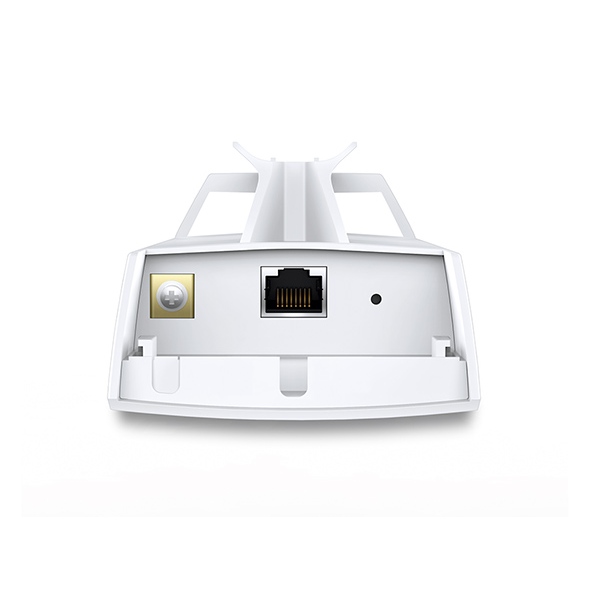

ARDWARE FEATURES Processor : Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc Memory : 64MB DDR2 RAM, 8MB Flash Interface : - 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) - 1 Grounding Terminal - 1 Reset Button Power Supply : - Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) - Voltage range : 16-27VDC Power Consumption : 10.5 Watts Max Dimensions ( W x D x H ) : 224 x 79 x 60 mm Antenna Type : - Built-in 13dBi 2x2 Dual-polarized Directional Antenna - Beam Width: 45° (H-Plane) / 30° (E-Plane) Protection : - 15KV ESD Protection - 6KV Lightning Protection Enclosure : - Outdoor ASA stabilized plastic material - IPX5 waterproof Certification WIRELESS FEATURES Wireless Standards : IEEE 802.11a/n (with Pharos MAXtream disabled) Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds : - Up to 300Mbps (40MHz,Dynamic) - Up to 144.4Mbps (20MHz,Dynamic) - Up to 72.2Mbps (10MHz,Dynamic) - Up to 36.1Mbps (5MHz,Dynamic) Frequency : - 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Transmission Power : - 23dBm/200mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFTWARE FEATURES Wireless Configurations : - Pharos MAXtream TDMA Technology - 802.11a/n Modes - Selectable Channel Width: 5/10/20/40MHz - Automatic Channel Selection - Transmission Power Control - Dynamic Frequency Selection (DFS) - WDS Enable/Disable - Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption - SSID Broadcast Enable/Disable - Multi-SSID with VLAN Tagging (AP mode only) - Distance/ACK Timeout Setting - Wireless MAC Address Filter - Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management : - Discovery and Remote Management via Pharos Control application - HTTP/HTTPS Web-based management - System Log - SNMP Agent(v2c) - Ping Watch Dog - Dynamic DDNS - SSH Server System Tools : - Wireless Signal Quality Indicators: - Signal Strength/Noise/Transmit CCQ/CPU/Memory - Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP - Spectrum Analyzer - Speed Test - Ping - Traceroute System-level Optimizations : - Optimized IGMP Snooping/Proxy for multicast applications - Hardware watch dog POE ADAPTER FEATURES Dimensions(W x D x H) 110*57*33.5mm Interfaces : - 1 AC Jack with Earth Ground - 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data) - 1 10/100/1000Mbps Shielded Ethernet Port (Data) Button : Remote Reset Button Power Status LEDs : - 0~0.8A: Green - 0.8A~1.0A: Red Input : 100-240VAC, 50/60Hz Input Voltage : 100VA~240VAC @ 50Hz~60Hz Input Current : 0.8A Max @ 100VAC Output : - 24VDC, 1.0A Max - +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Output Voltage : 24VDC(+4,5pins; -7,8pins) Efficiency : >80% Certifications : CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
