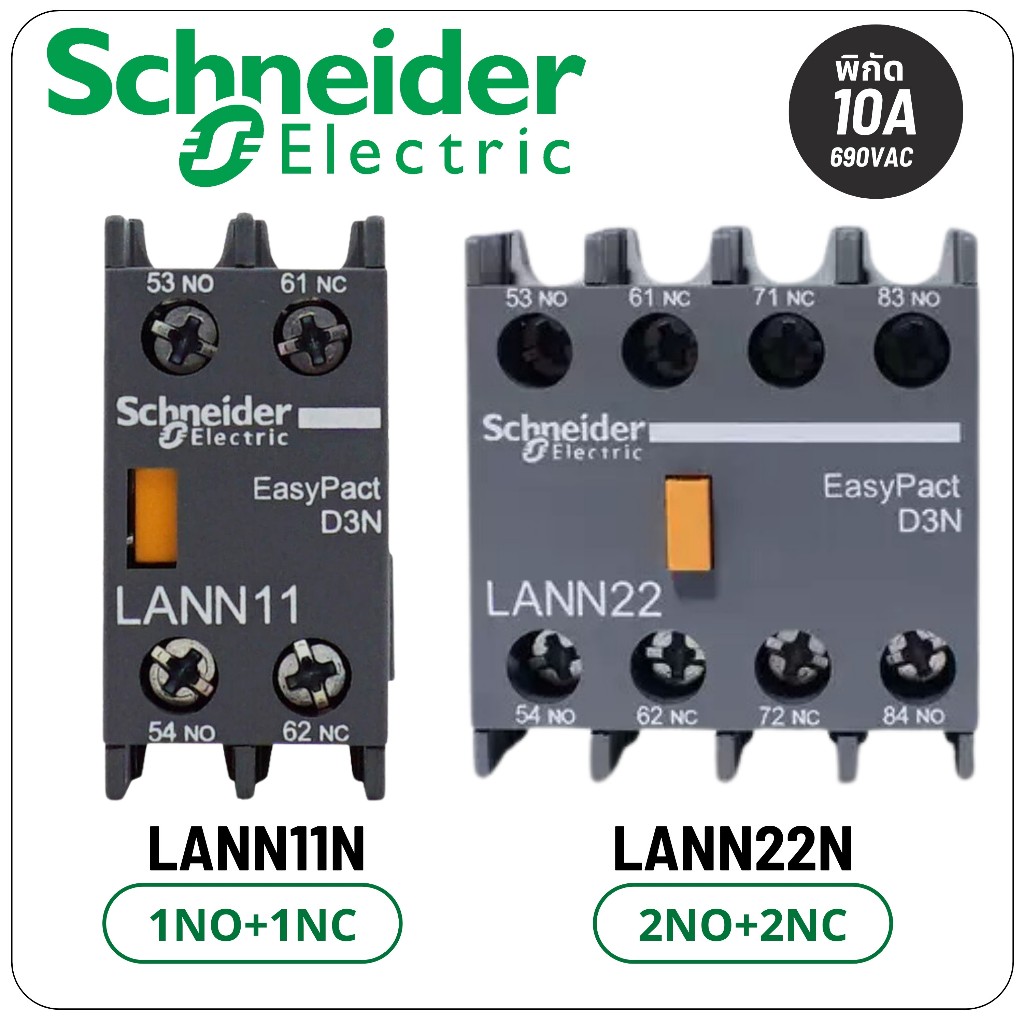

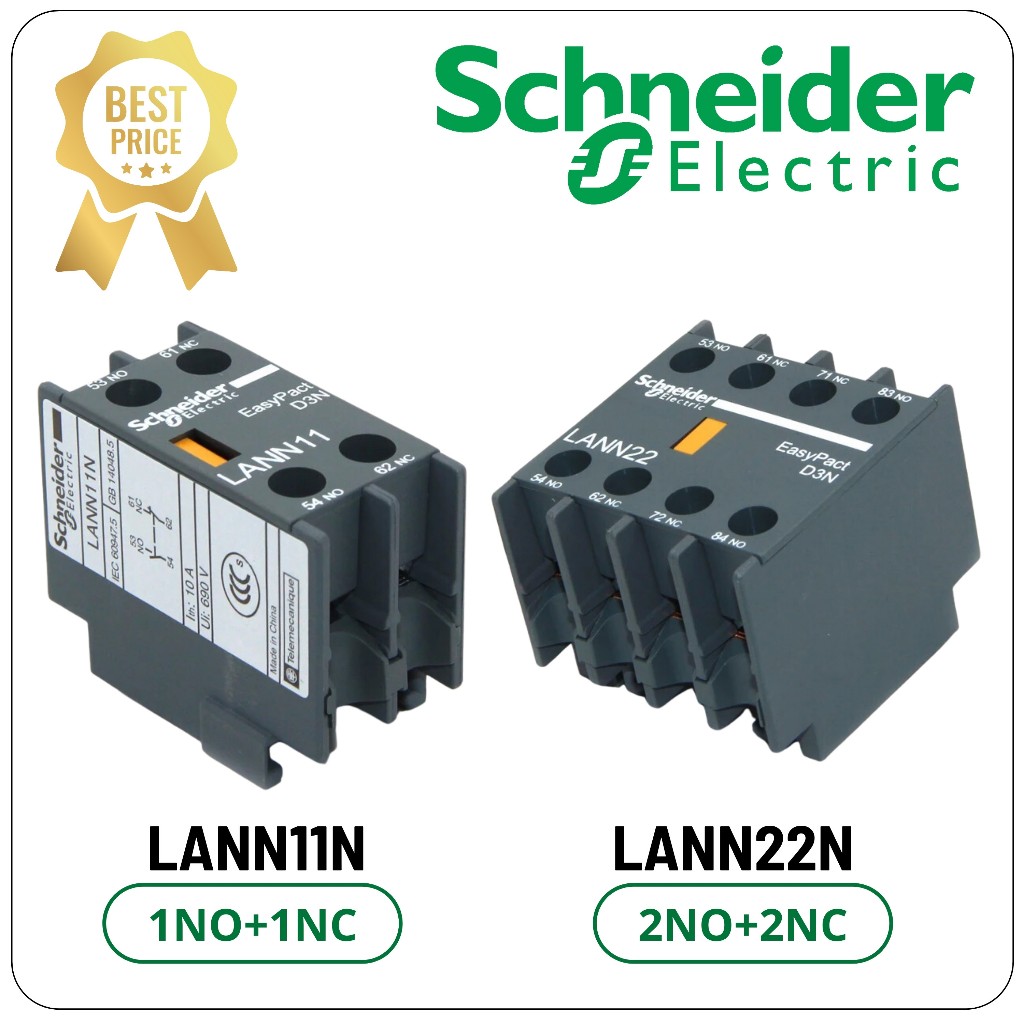

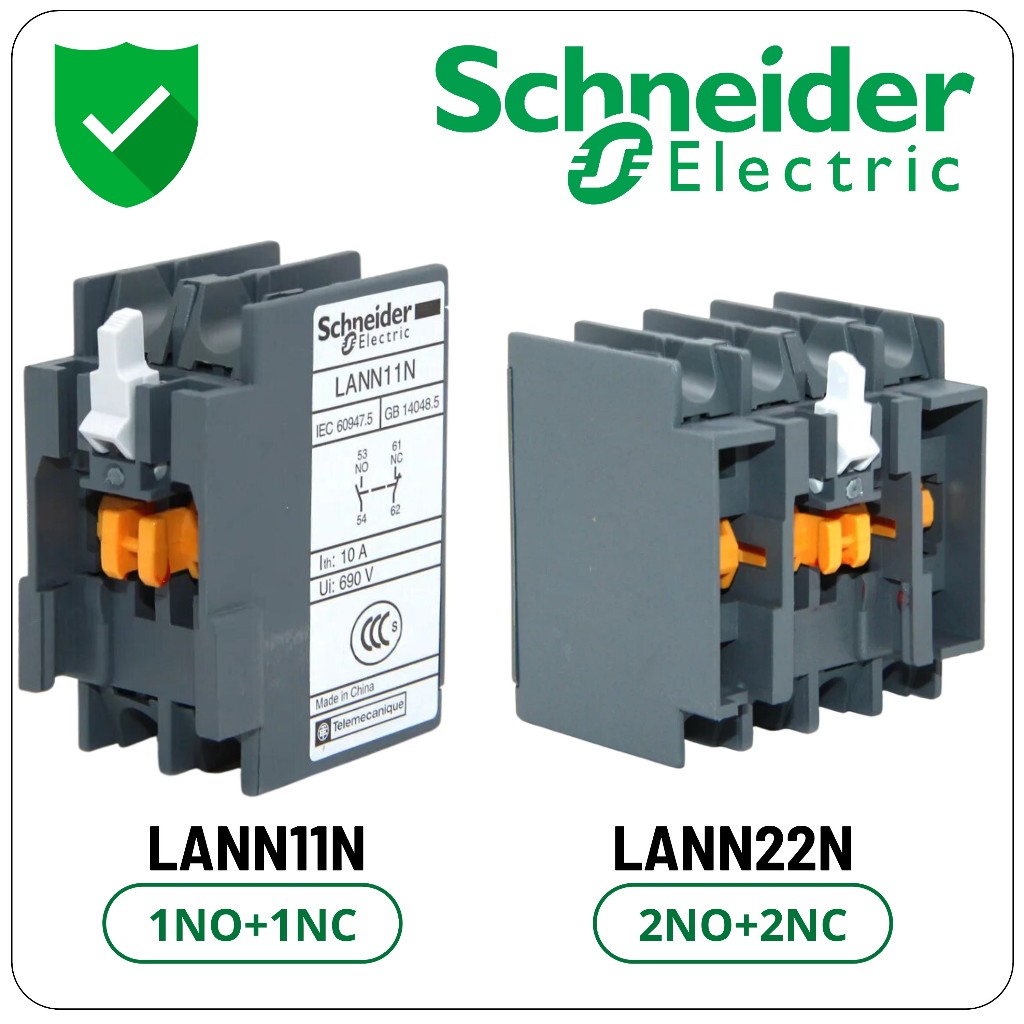

LANN11N 1NO+1NC LANN22N 2NO+2NC คอนแทคเสริมสำหรับคอนแทคเตอร์EasyPact TVS LC1E

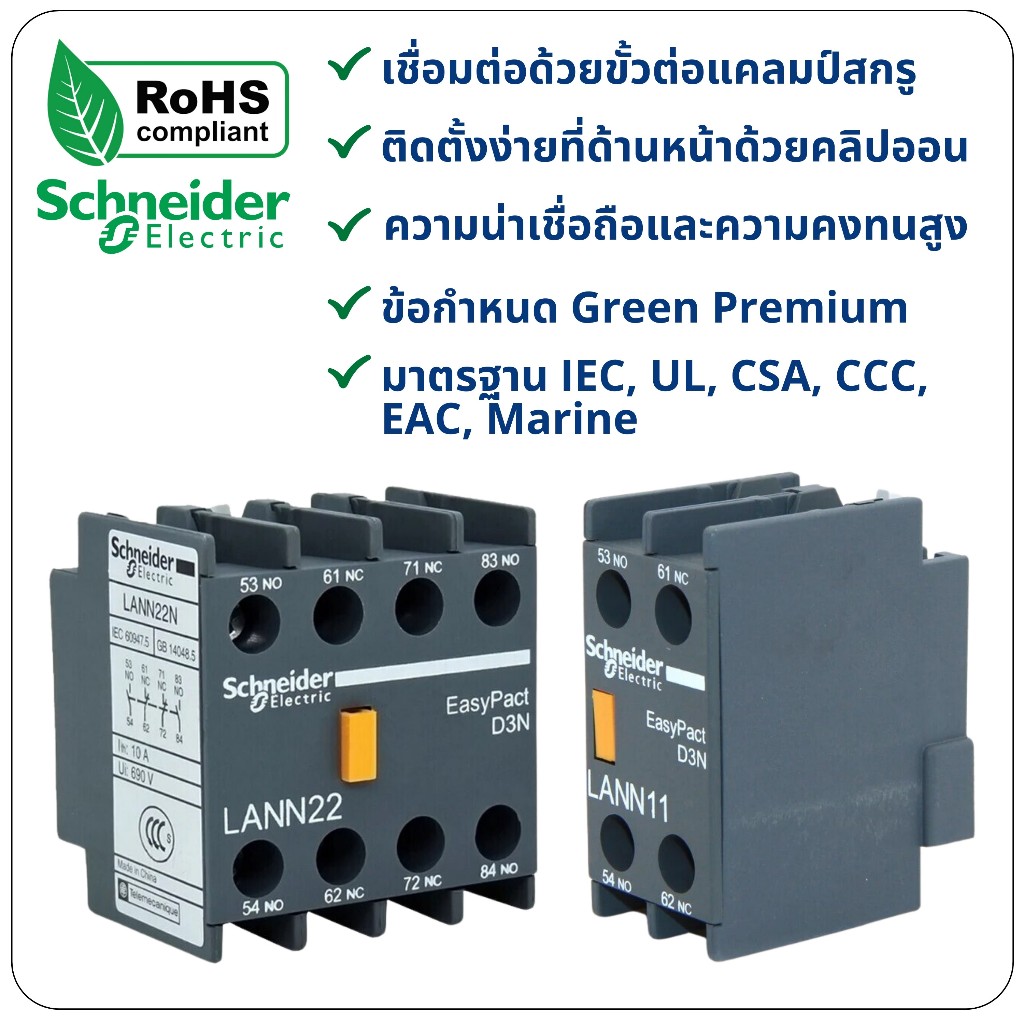

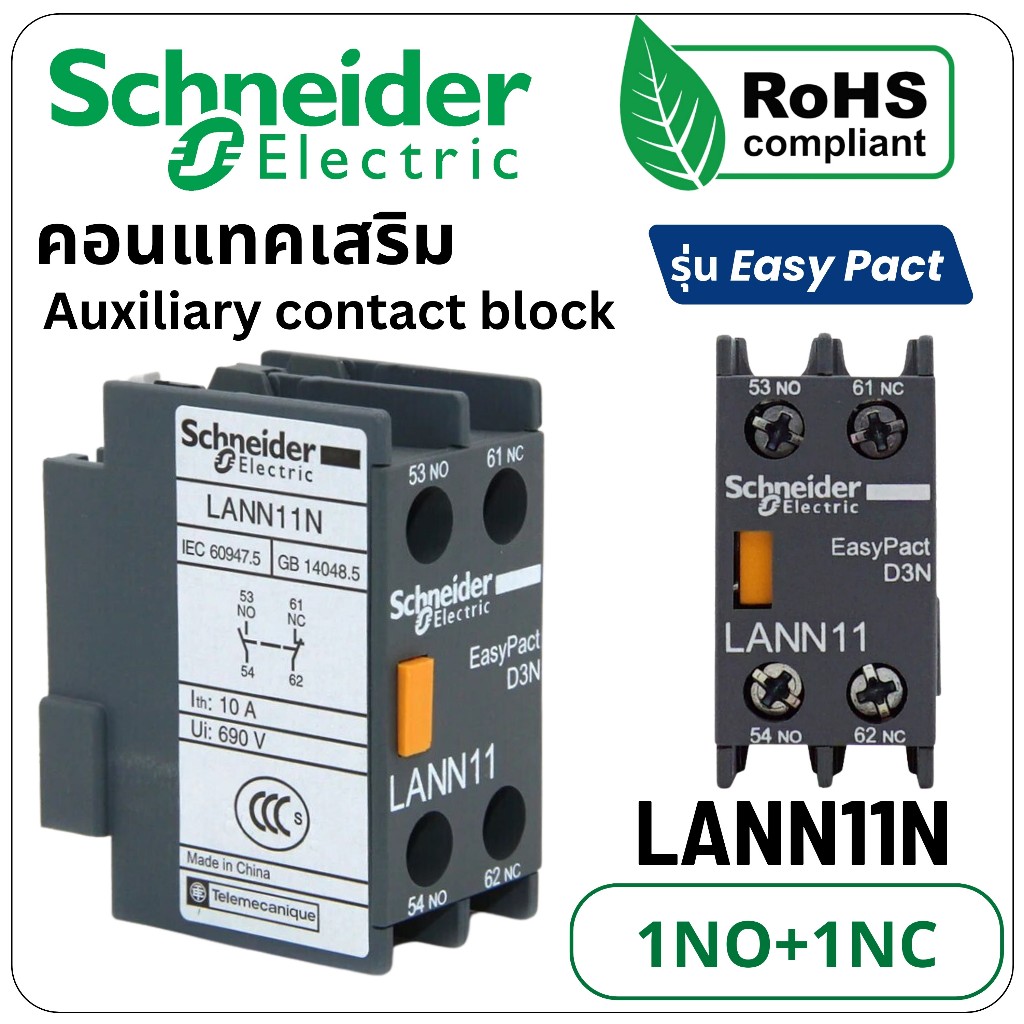

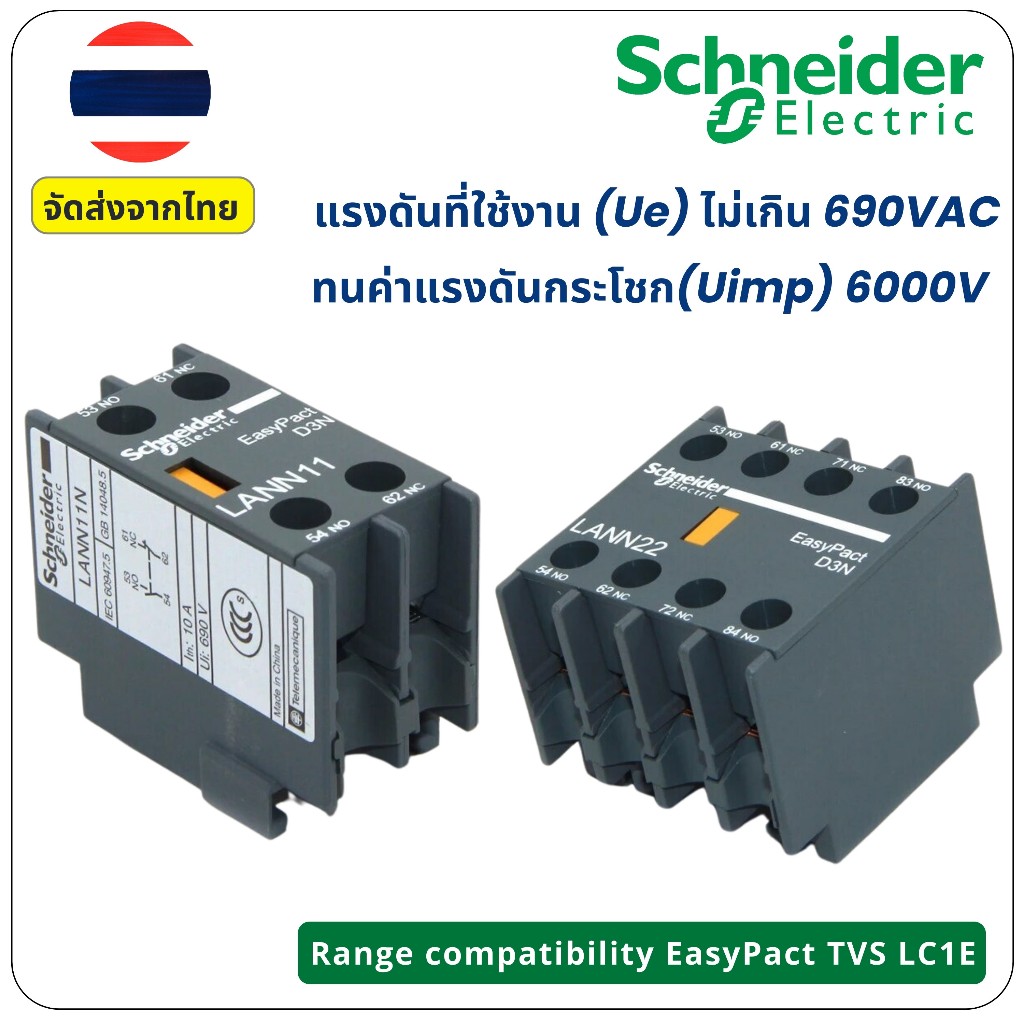

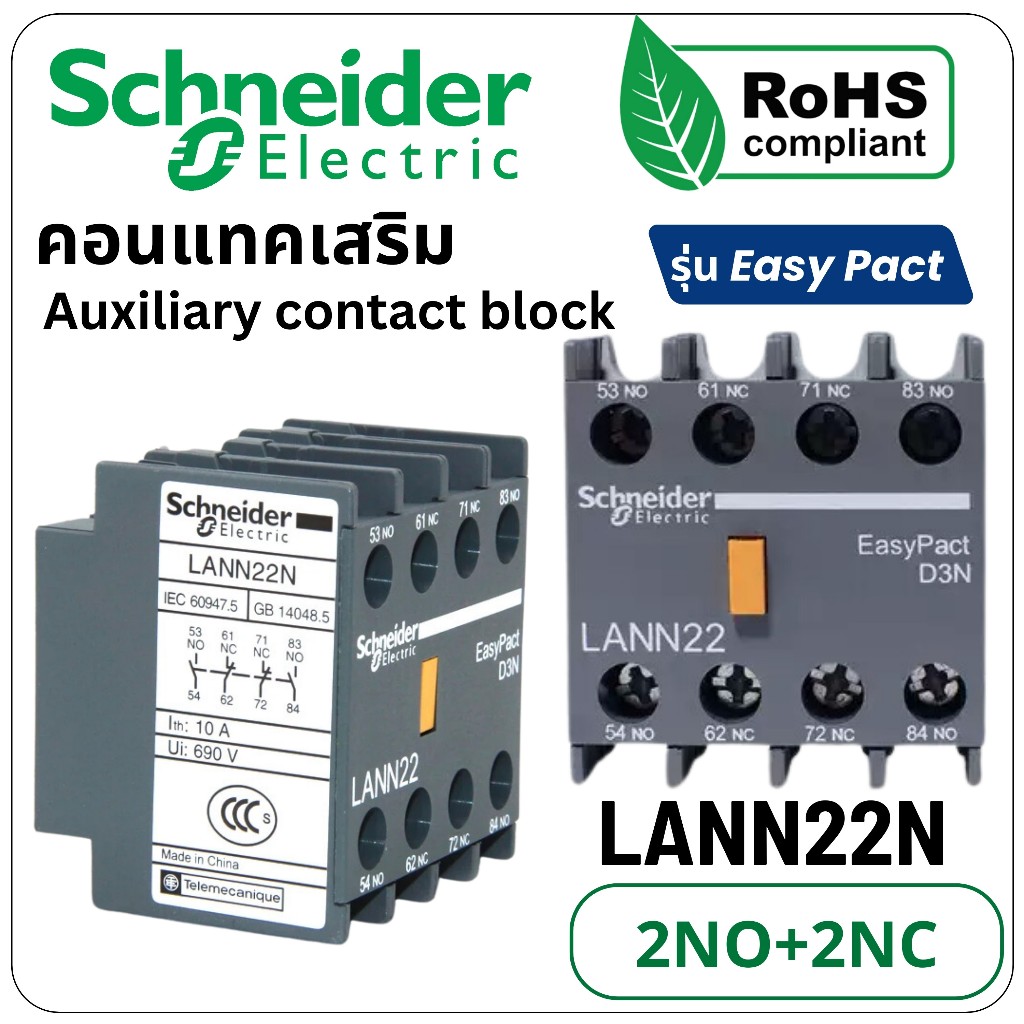

🔧คอนแทคเสริมสำหรับคอนแทคเตอร์รุ่น EasyPact TVS LC1E, Schneider 🔧ติดตั้งด้านหน้าของคอนแทคเตอร์ รุ่น Easy Pact TVS 🆕Auxiliary contact block, EasyPact TVS, 1NO+1NC Schneider LANN11N 🆕Auxiliary contact block, EasyPact TVS, 2NO+2NC Schneider LANN22N 📣รายละเอียด Add-on auxiliary contact block for EasyPact TVS LC1E contactors. It provides 1NO+1NC instantaneous contacts rated up to 10A 690V AC, connected by screw clamps terminals. It can be used in safety applications thanks to its NC certified mirror contacts. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). 👉ข้อมูลจำเพาะ👈 ✅Main: Range EasyPact ✅Device short name: [LANN11N]*, [LANN22N]** ✅Product or component type: Auxiliary contact block ✅Device application: Signalling ✅Colour: Grey (RAL 7011) ✅Range compatibility EasyPact (EasyPact TVS) LC1E ✅Mounting location Front ✅Auxiliary contacts operation Instantaneous ✅Pole contact composition [1NO + 1NC]*, [2NO + 2NC]** ✅[Ui] rated insulation voltage 690 V - for control circuit conforming to IEC 60947-5-1 ✅[Ue] rated operational voltage <= 690 V ✅[Ith] conventional free air ✅thermal current8 A (at 60 °C) ✅Irms rated making capacity 140 A AC conforming to IEC 60947-5-1 ✅[Icw] rated short-time withstand current, 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms ✅Protection type GG fuse 10 A ✅Mechanical durability 10 Mcycles ✅Minimum switching current 5 mA ✅Minimum switching voltage 17 V ✅Non-overlap time: 1.5 ms on energisation no overlap between NC and NO contact 1.5 ms on de-energisation no overlap between NC and NO contact ✅Insulation resistance > 10 MOhm ✅Connections - terminals Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end ✅Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end ✅Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end ✅Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid orflexible without cable end ✅ Net weight 0.035 kg ---------------------------------------------- 💯สินค้าจัดส่งจากไทย 💯มีสินค้าพร้อมจัดส่ง 💯จัดส่งไว ทุกวัน ❓สนใจสินค้าอื่นๆ สามารถสอบถามได้เลยนะครับ
