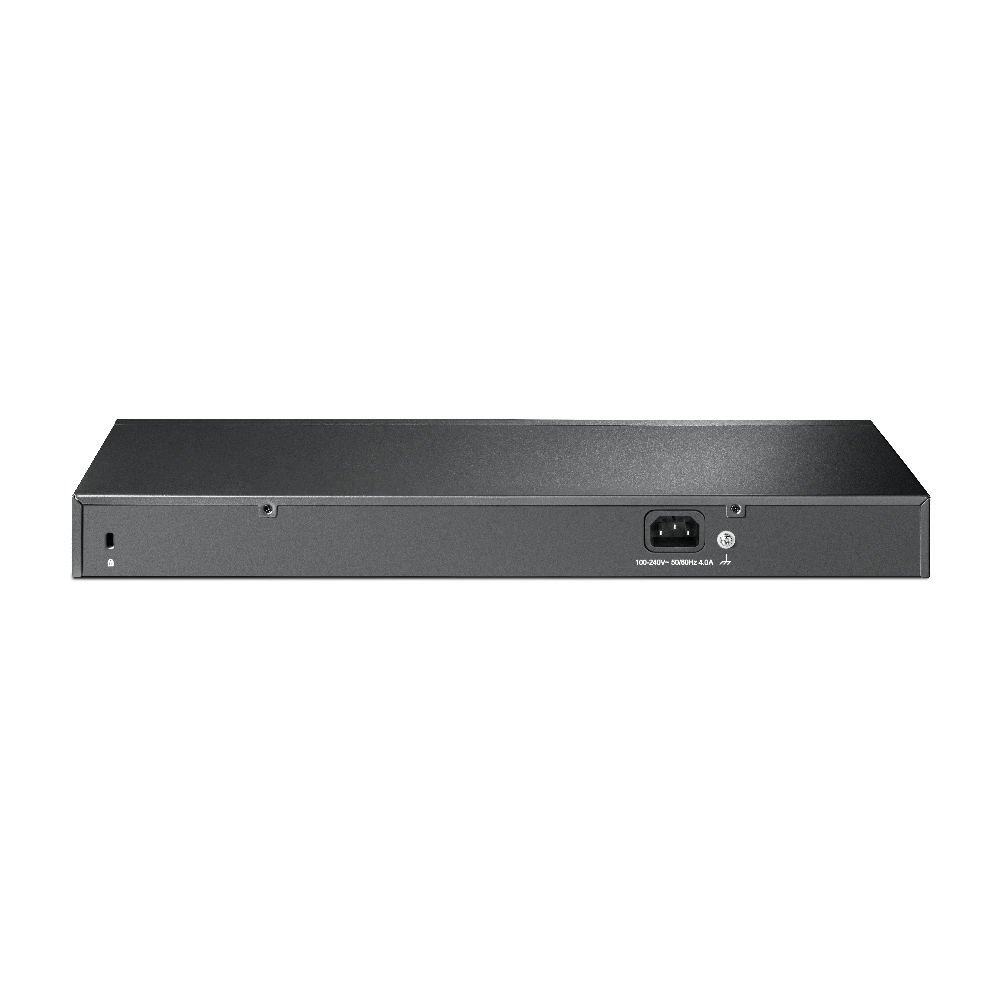

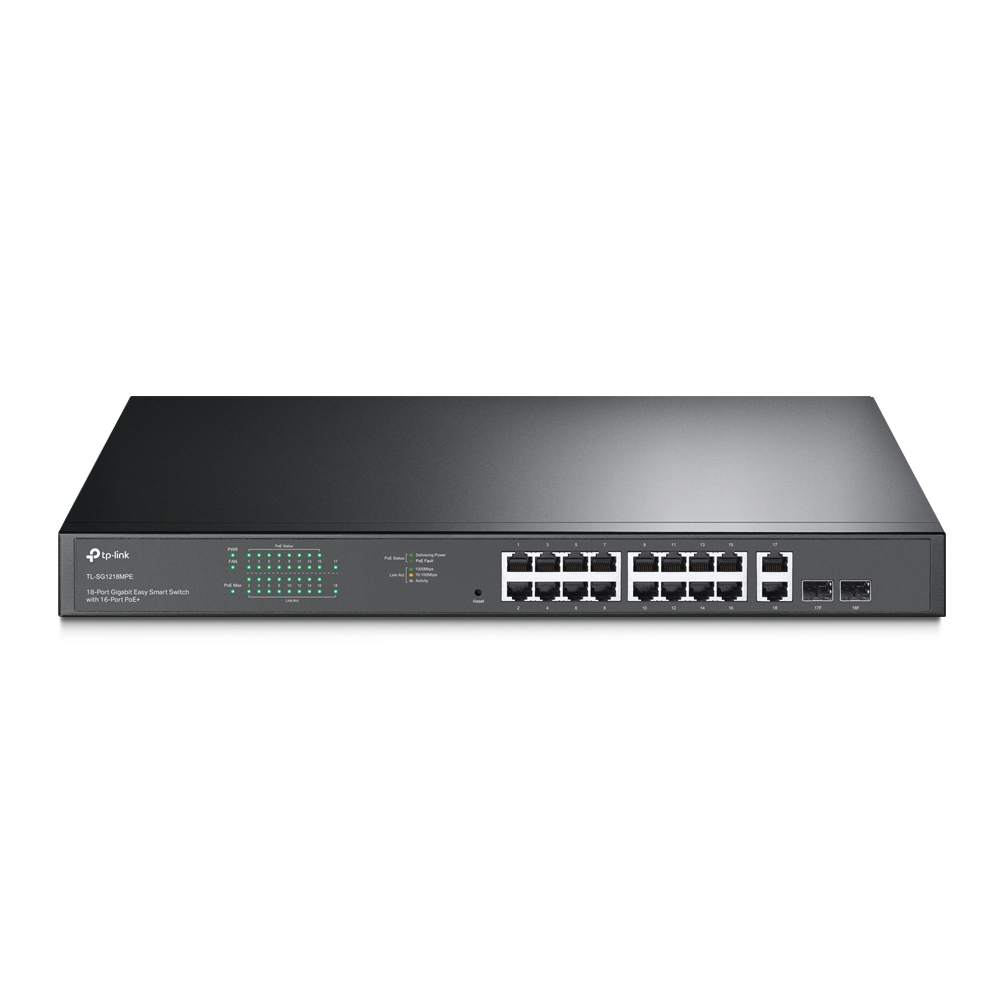

TP-Link TL-SG1218MP (TL-SG1218MP) 18G Rackmount with 16G PoE+ 250W Switch

HARDWARE FEATURES Standards and Protocols • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p Interface • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Combo Gigabit SFP Ports Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF Fan Quantity • 2 Fans Physical Security Lock • Yes Power Supply • 100–240V AC, 50/60 Hz PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant • PoE+ Ports: Ports 1–16 • Power Supply: 250 W Dimensions ( W x D x H ) • 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) Mounting • Rack Mountable Max Power Consumption • 21.4 W (220/50Hz. no PD connected) • 296.3 W (220/50Hz. with 250 W PD connected) Max Heat Dissipation • 72.97 BTU/h (no PD connected) • 1010.38 BTU/h (with 250 W PD connected) PERFORMANCE Switching Capacity • 36 Gbps Packet Forwarding Rate • 26.78 Mbps MAC Address Table • 8K Packet Buffer Memory • 4.1 Mbit Jumbo Frame • 10 KB SOFTWARE FEATURES Quality of Service • Support Port-based 802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control L2 Features • IGMP Snooping V1/V2/V3 • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention • PoE Auto Recovery Transmission Method Store-And-Forward OTHERS Certification • CE, FCC, RoHS Package Contents • TL-SG1218MPE • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet Environment • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
