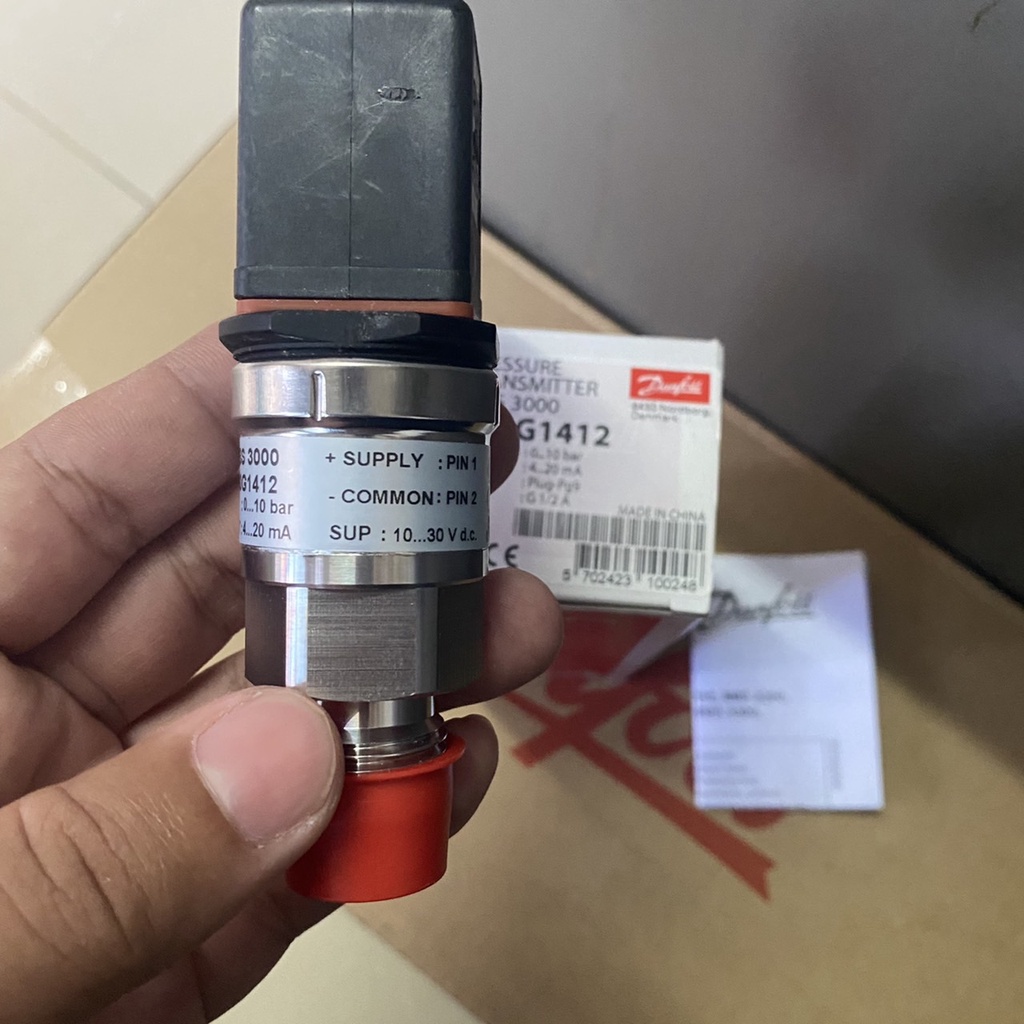

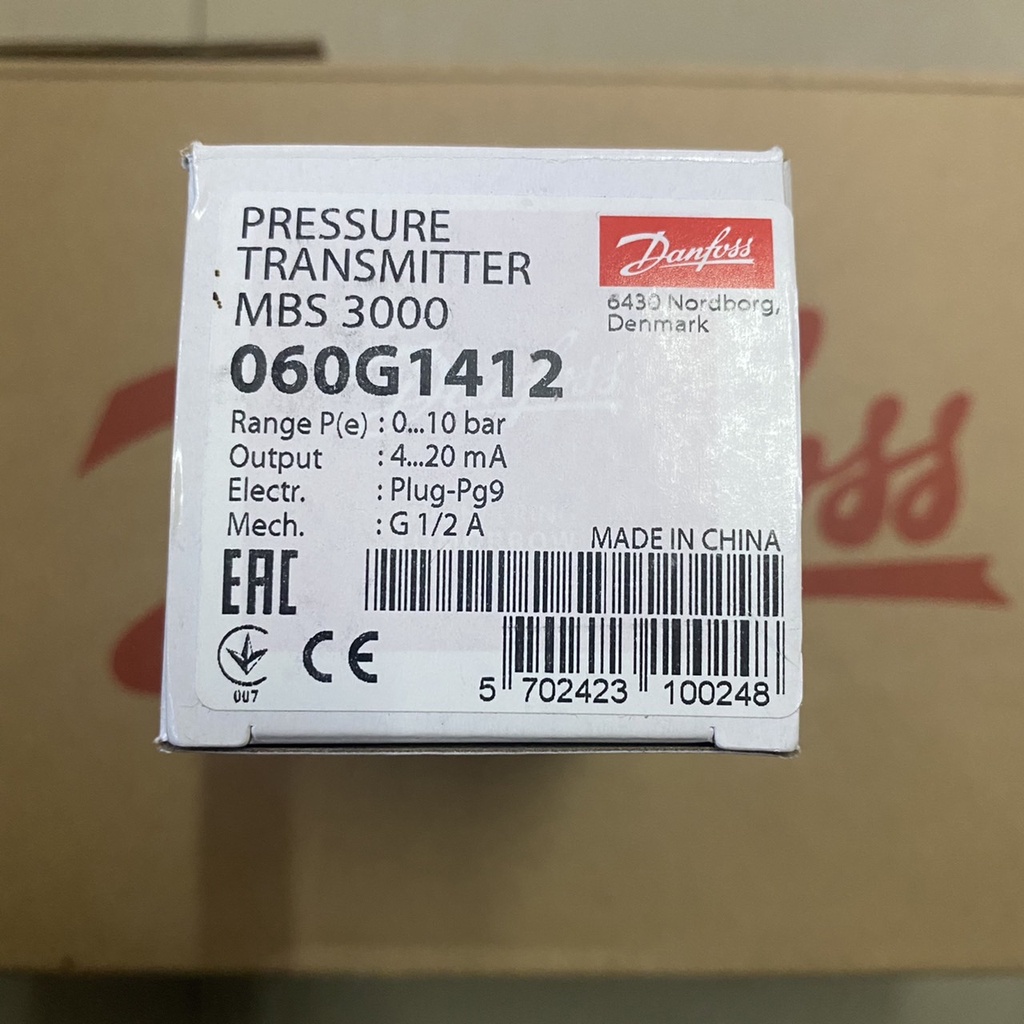

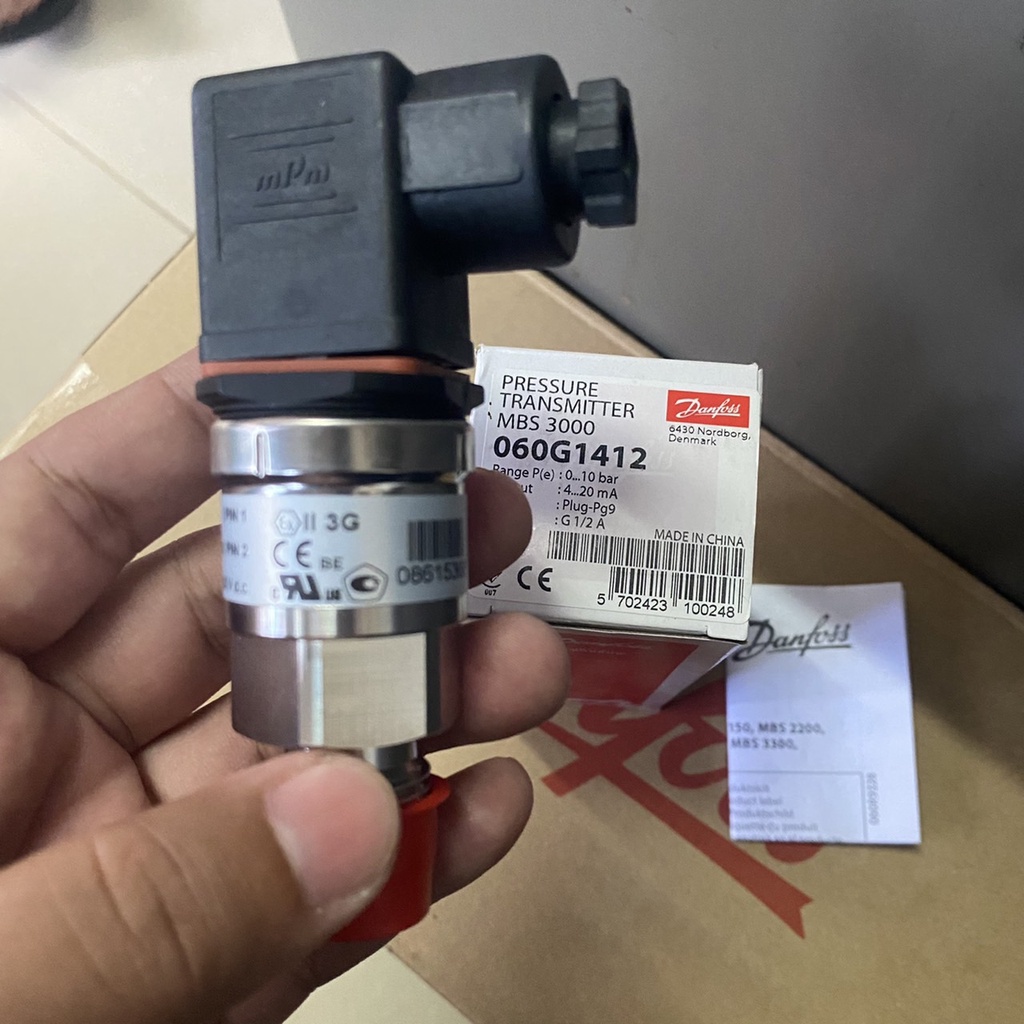

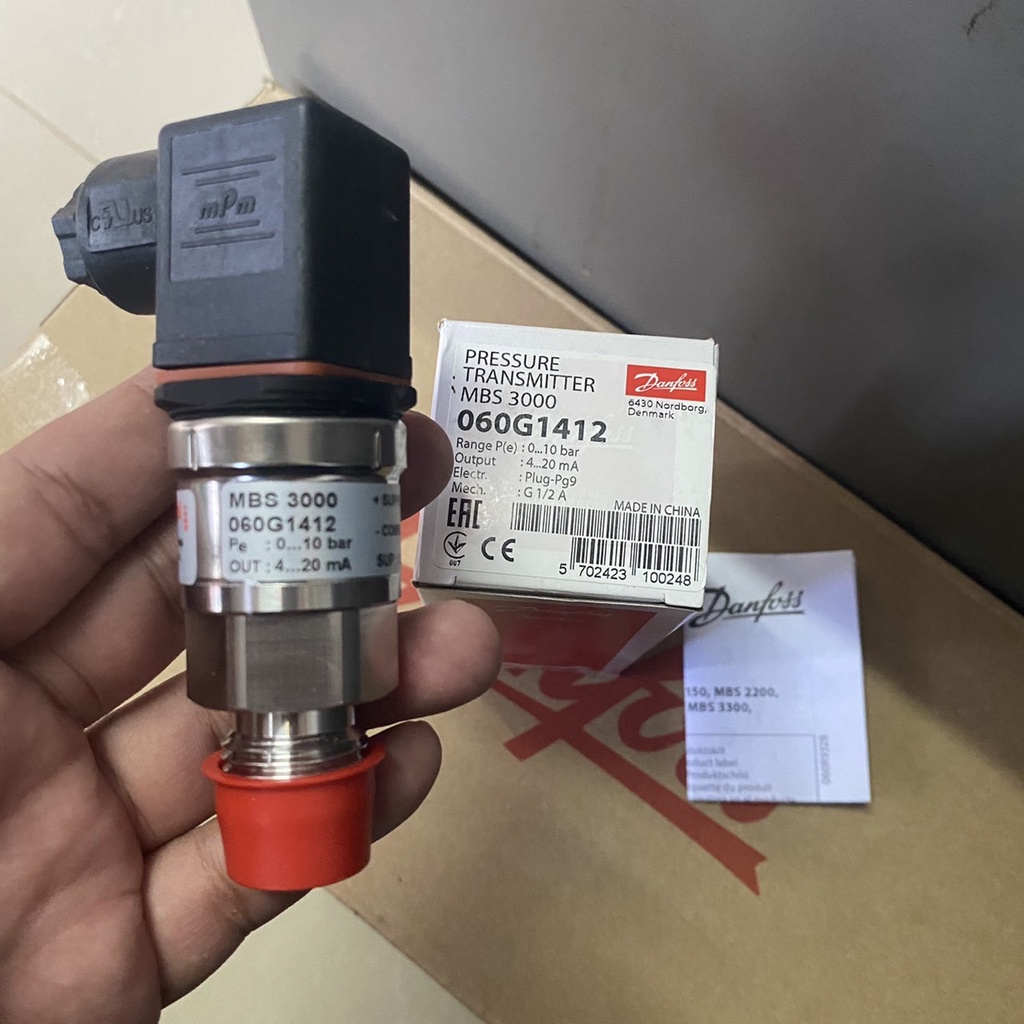

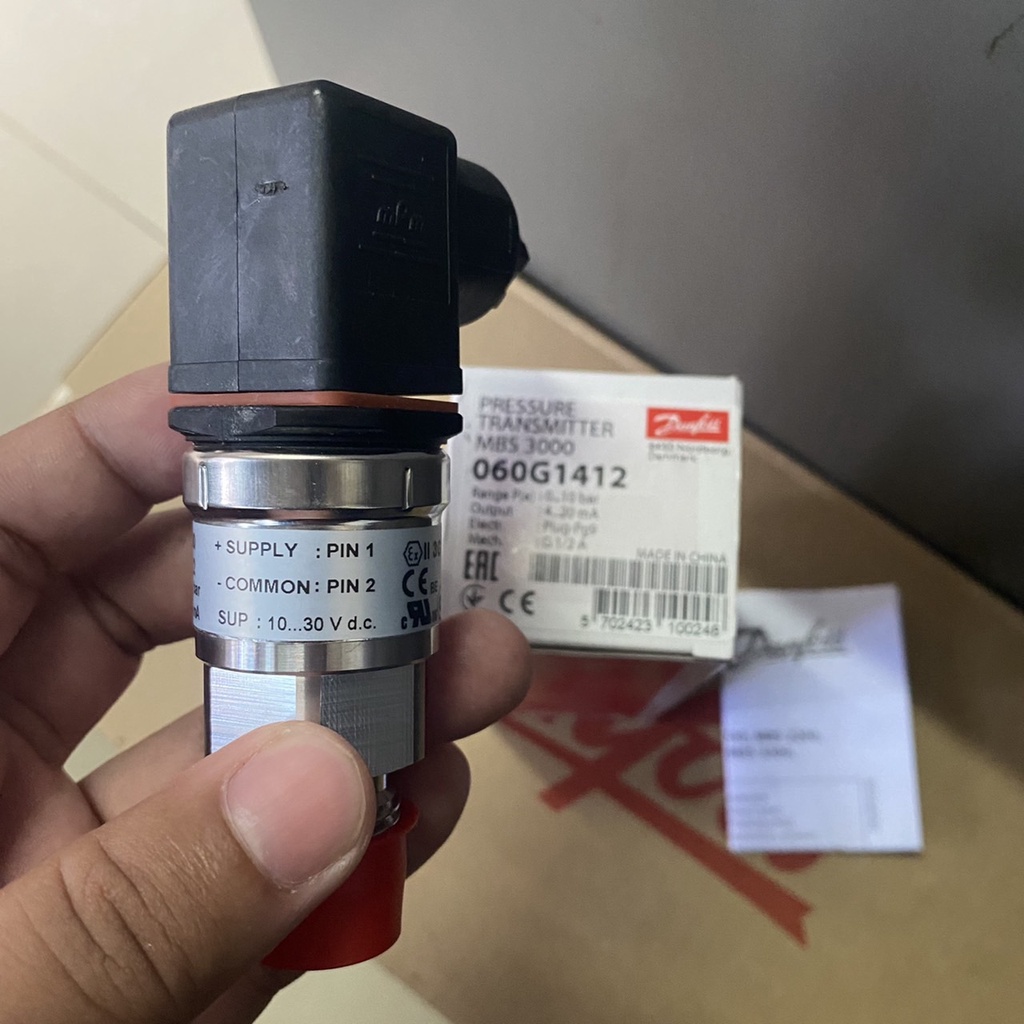

Danfoss 060G1412 Sensor MBS 3000-2011-A1AB08-0

Product details Gross weight 0.22 kg Net weight 0.18 kg EAN 5702423100248 + supply Pin 1 - common Pin 2 Accuracy, max. [±FS%] 1 % Accuracy, typical [±FS%] 0.5 % Adj. zero point and span No Ambient temperature range [°C] [Max] 85 °C Ambient temperature range [°C] [Min] -40 °C Ambient temperature range [°F] [Max] 185 °F Ambient temperature range [°F] [Min] -40 °F Approval ATEX Approval comments ATEX Ex nA IIA T3 Gc Compensated temp. range [°C] [Max] 80 °C Compensated temp. range [°C] [Min] 0 °C Compensated temp. range [°F] [Max] 176 °F Compensated temp. range [°F] [Min] 32 °F Electrical conn. Male/Female Male and Female Electrical connection DIN-plug Electrical connection size Pg 9 Electrical connection standard EN 175301-803-A Enclosure rating IP IP65 Flush diaphragm No High Clipping Level 22.4 Identical product 060G4161 International Article Number 5702423100248 Intrinsically safe No Low Clipping Level 3.6 Medium temperature range [°C] [Max] 85 °C Medium temperature range [°C] [Min] -40 °C Medium temperature range [°F] [Max] 185 °F Medium temperature range [°F] [Min] -40 °F Non-linearity BFSL [±FS%] 0.5 % Output signal Current Output signal [mA] [Max] 20 mA Output signal [mA] [Min] 4 mA Overload pressure max. [bar] 60 bar Overload pressure max. [psi] 870 psi Packing format Multi pack Pressure connection HEX [mm] 27 mm Pressure connection size 1/2 Pressure connection standard EN 837 Pressure connection type G Pressure Male/Female Male Pressure range [bar] [Max] 10 bar Pressure range [bar] [Min] 0 bar Pressure range [psi] [Max] 145.04 psi Pressure range [psi] [Min] 0 psi Pressure reference Sealed gauge Product group Sensors Product name Pressure transmitter Pulse-snubber No Quantity per packing format 14 pc Response time max. [ms] 4 ms Specification key MBS 3000-2031-A1AB08-0 Supply voltage [V] DC [Max] 32 V Supply voltage [V] DC [Min] 9 V Type MBS 3000
