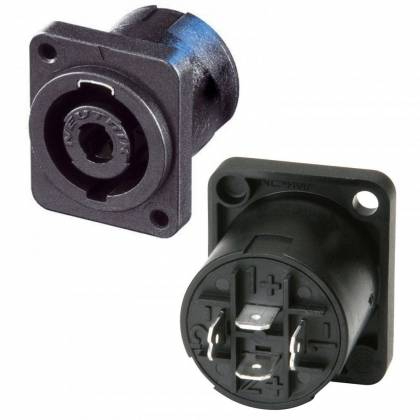

Neutrik NL 4 MPXX ปลั้กติดแท่นลำโพง 4ไส้ นิวทริคแท้

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate. Patent protected, reliable, cost effective, and extremely durable, Neutrik's Speakon® series of professional speaker and amplifier connectors offers the "quick lock" locking system and recently redesigned inserts for the cable ends. Features: Current rating 30 A rms Glass reinforced materials make it extremely robust and dependable Precise keyway for secure mating Accurate twist lock latching system Metal insert in locking area Airtight design - optimized for speaker applications Branded with unique hologram - guarantees genuine and authentic Neutrik product Technical Information: Title: NL4MP Connection Type: speakON Gender: male Contact resistance: = 3 mO (after lifetime) Dielectric strength: 4 kVdc (peak) Insulation resistance: > 1 GO (after dampheat) Rated current per contact: 30 A rms continuous Rated current per contact: 40 A audiosignal, duty cycle 50 % Rated voltage: 250 V ac Attention: speakON is NOT to be used as an AC mains or power supply connector! Lifetime: > 5000 mating cycles Locking device: Quick Lock Chassis shape: D Layout: standard hole position, thru holes Contact plating: 4 µm Ag Contacts: Bronze (CuSn6) Shell: Polyamide (PA 6 30 % GR) black Flammability: UL 94 HB Solderability: Complies with IEC 68-2-20 Temperature range: -30 °C to +80 °C The speakON receptacles are robust, versatile and easy to terminate.
