แจ็คสเปคคอนติดแท่น NEUTRIK แท้ กลม NL 4MPR ของแท้ ราคาถูก ส่งไว ใบกำกับภาษีทักเเชทได้เลยค่ะ แจ็คปลั๊ก Hippo Audio

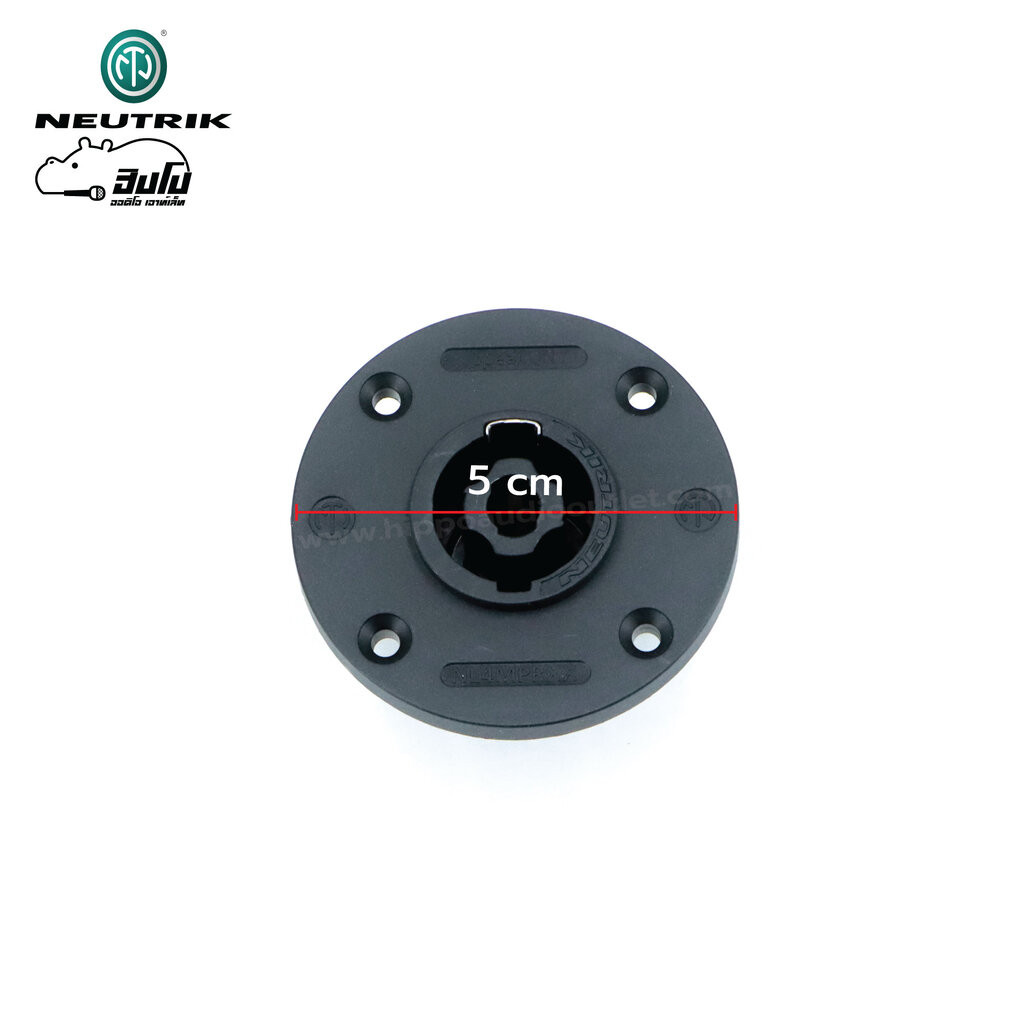

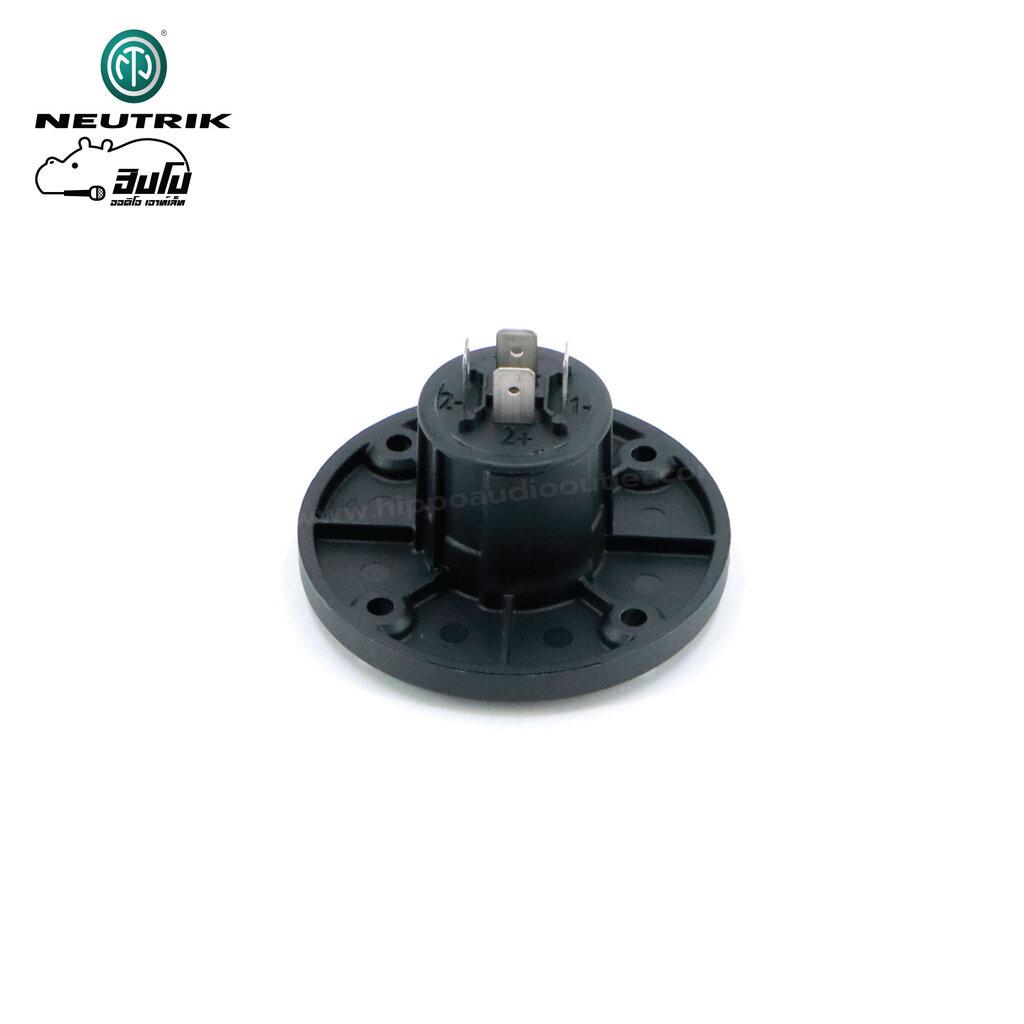

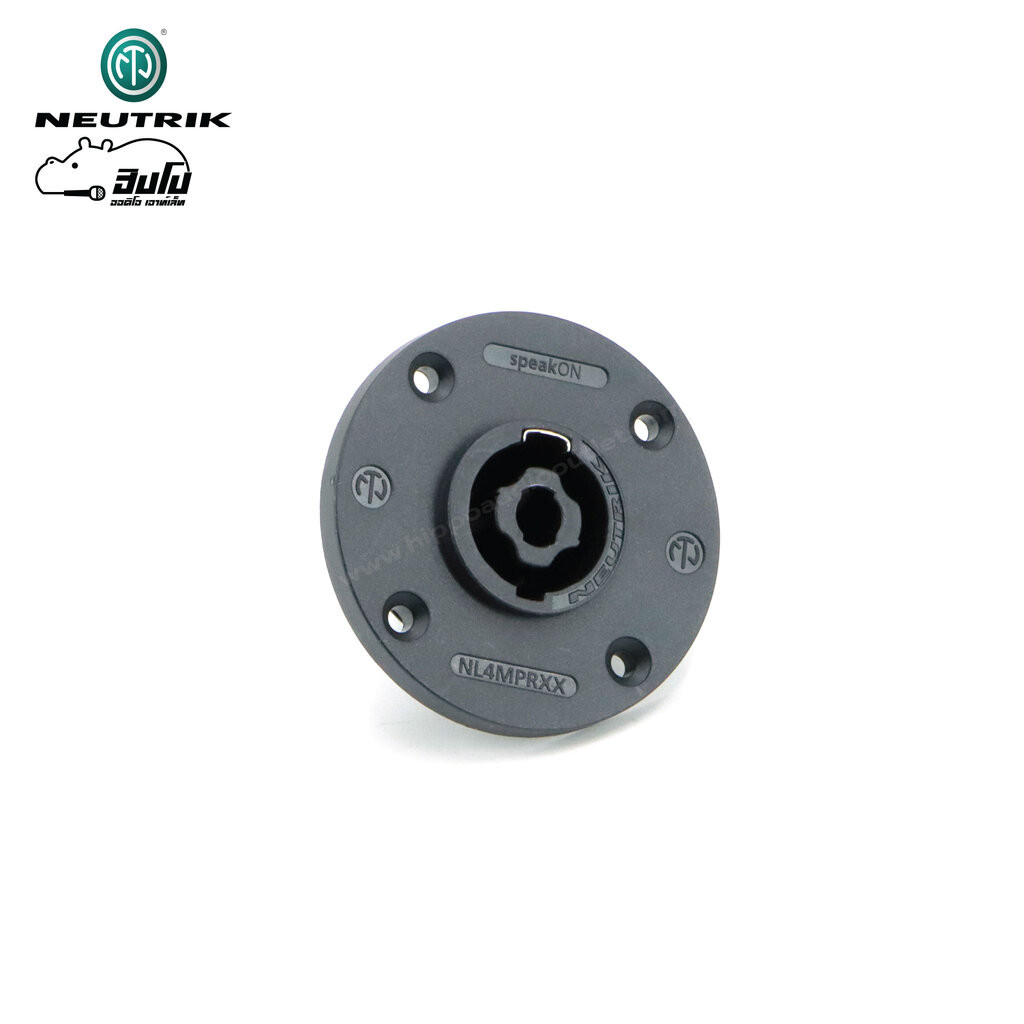

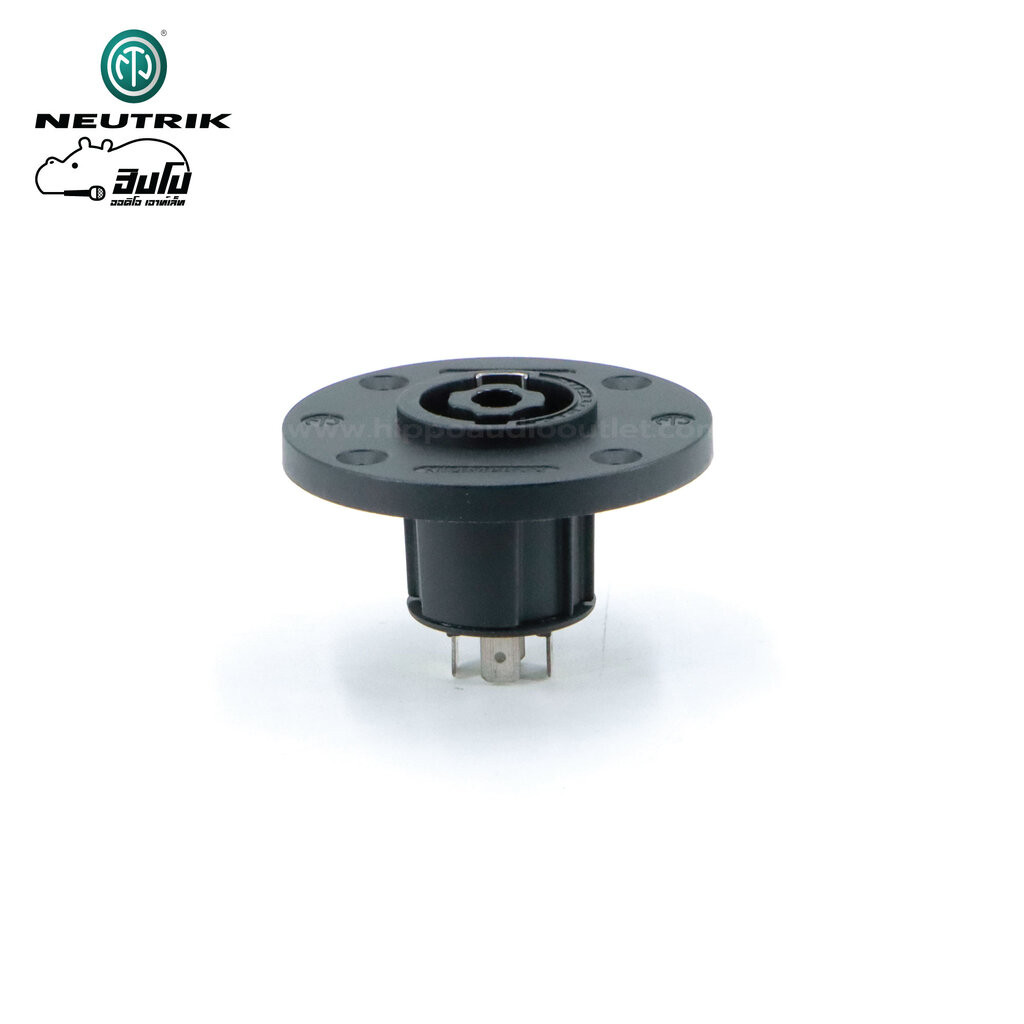

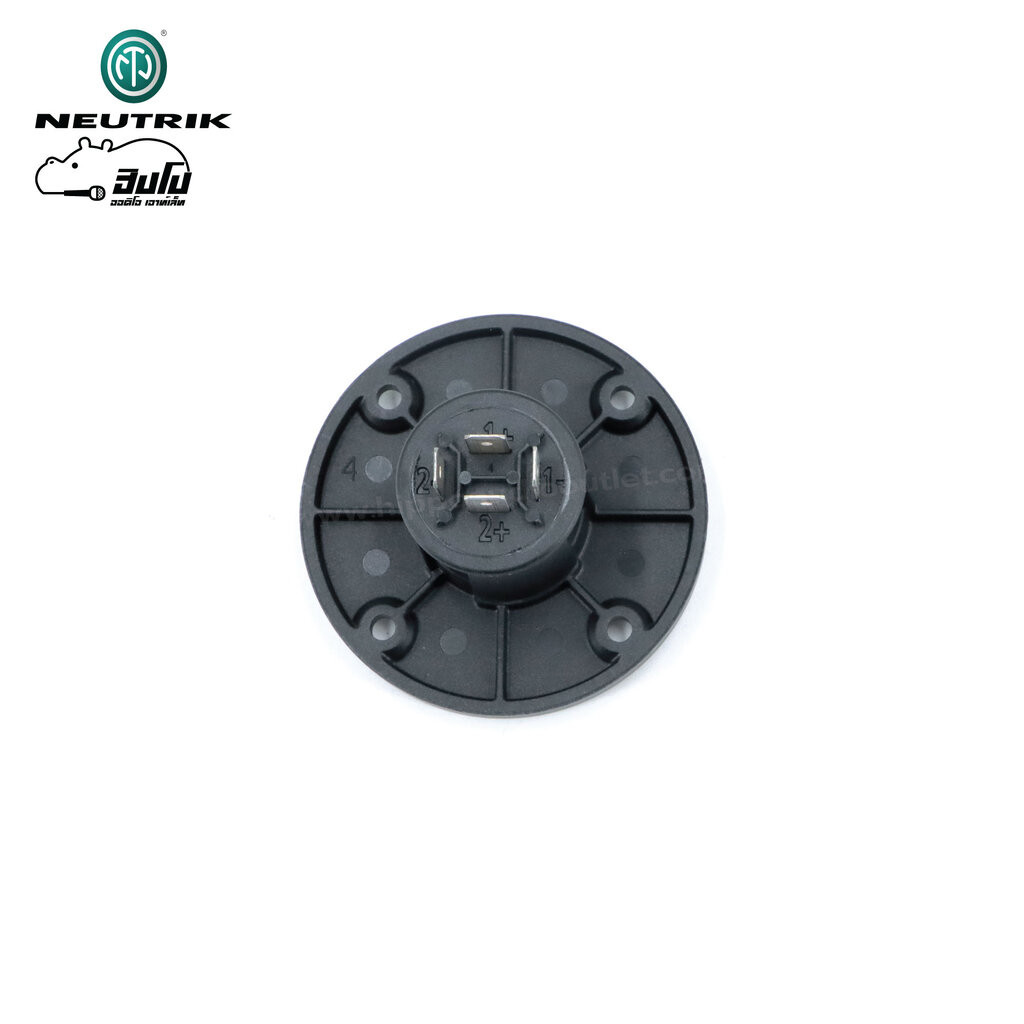

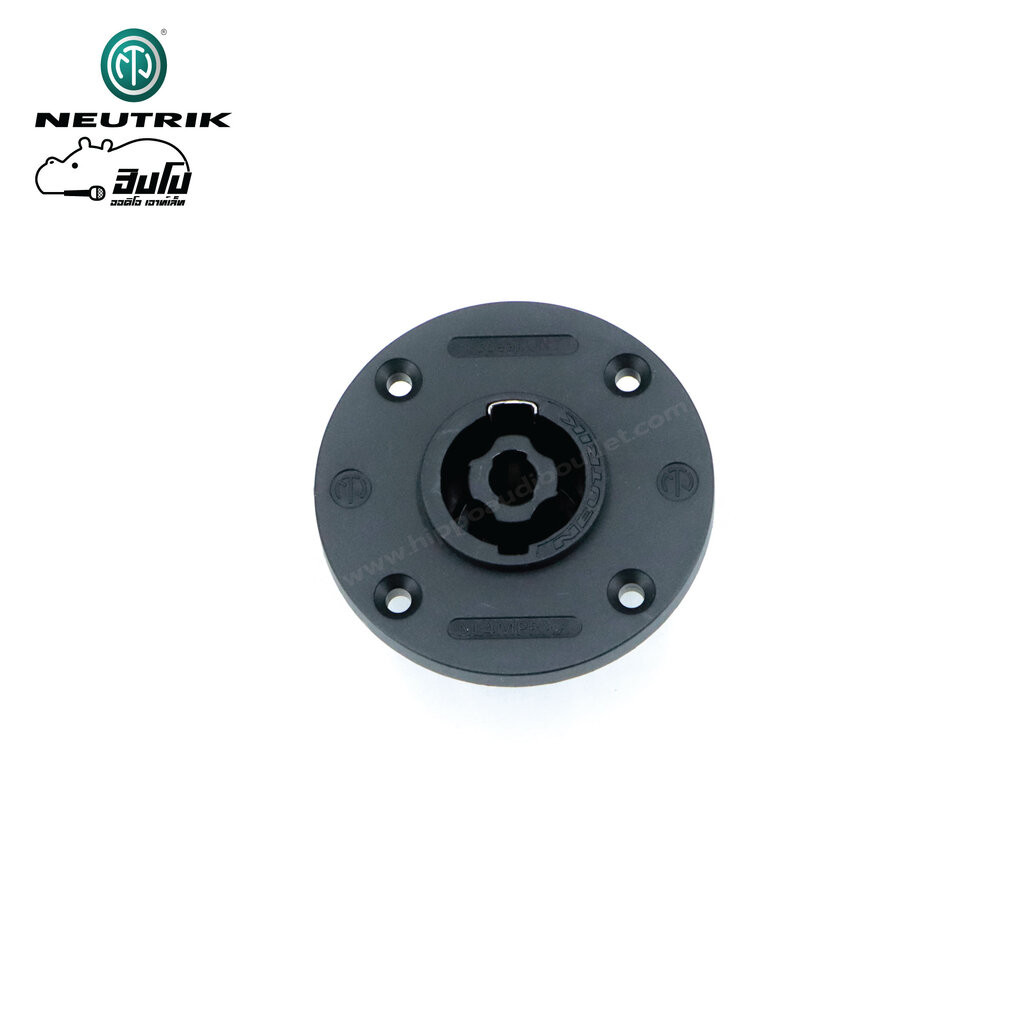

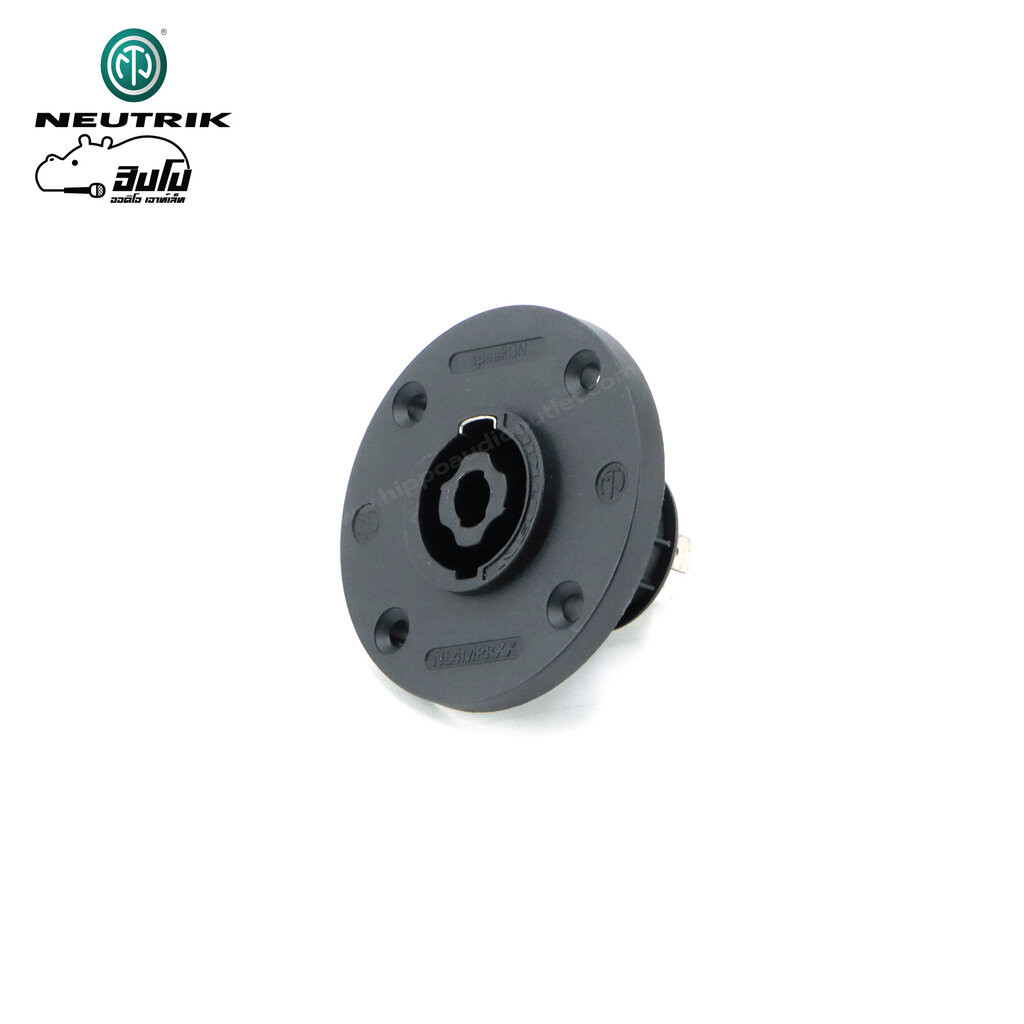

แจ็คสเปคคอนติดแท่น NEUTRIK แท้ กลม NL-4MPRXX NL4MPRXX This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. 4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate. Features Benefits - IEC 61984 certified IEC 62368-1 compliant - Glass reinforced V-0 materials make it extremely robust and dependable - Precise keyway for secure mating - Accurate twist lock latching systemMetal insert in locking area - Airtight design - optimized for speaker applications Technical Information Product Title NL4MPRXX Gender male Electrical Contact resistance 2 m Dielectric strength 2.8 kVac Insulation resistance 0.1 GΩ (after dampheat) Rated current per contact 25 A rms continuous (audio rating significantly higher, depending on signal) Rated voltage 250 V ac Attention speakON is NOT to be used as an AC mains or power supply connector! Mechanical Lifetime 5000 mating cycles Termination 3/16" flat tabs (e.g. NLFASTON) Locking device Quick Lock Chassis shape round G-size flange Layout four thru holes Material Contact plating Ag Locking element Stainless Steel Shell Polyamide (PA 6.6) Contacts Copper Alloy Environmental Flammability UL94 V-0 Temperature range -30 C to +80 C
