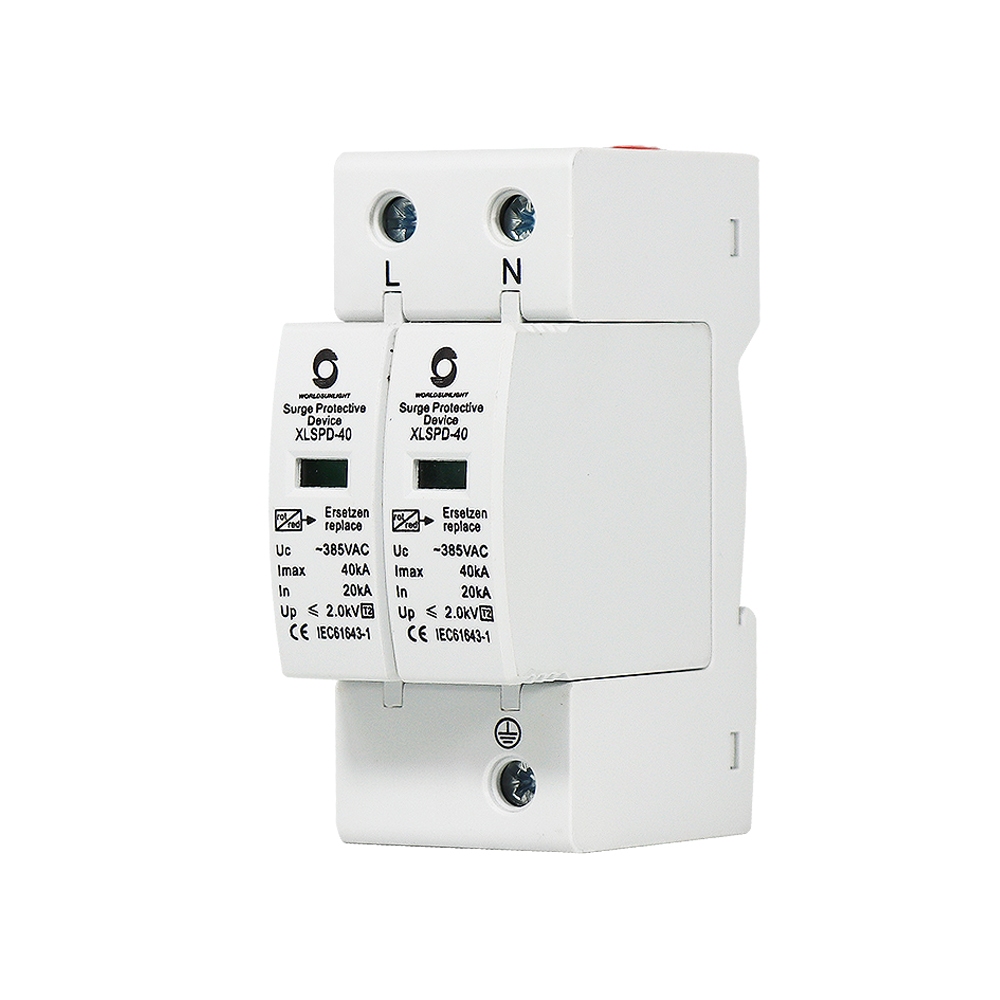

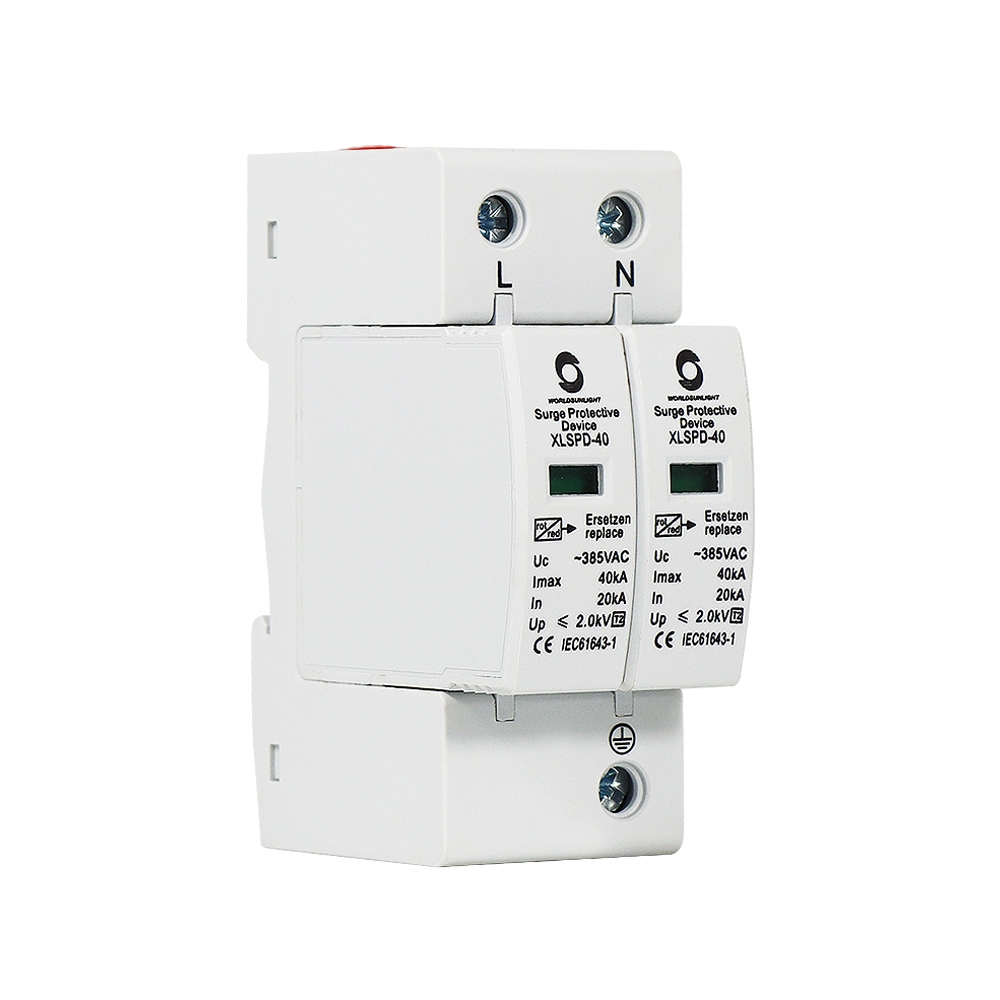

AC SPD ~385VAC WORLDSUNLIGHT (กันฟ้า) ใช้กับงานโซล่าเซลล์

Protection Level B.C.D Grade = D,C,B Rated Operating Voltage Un (V~) = 380V/220V Maximum Continuous Operating Voltage Un (V~) = 385V Voltage Protection Level Up (V~) kv = ≤ 1.8 ≤ 2.0 Nominal Discharge Current In jus kA = 20 30 Maximum Discharge Current Imax us kA = 40 60 Response Time (ns) = < 25 Test Standard = IEC61643-1 Operating Enviranment(centigrade) = -40*C ~+85*C Max Connection Line = 35mm' hard wire/35mm" strand wire copper line Recommended Connection Line = 16mm' hard wire/25mm' strand wire copper line Installation = Standard Rail 35mm Material of Outer Covering = Burning-proof Nylon
