I.Product Name:
Product Name in Package: SmallRig Foldable L-Shape Mount Plate for Canon EOS R8 4211
II.Key Features:

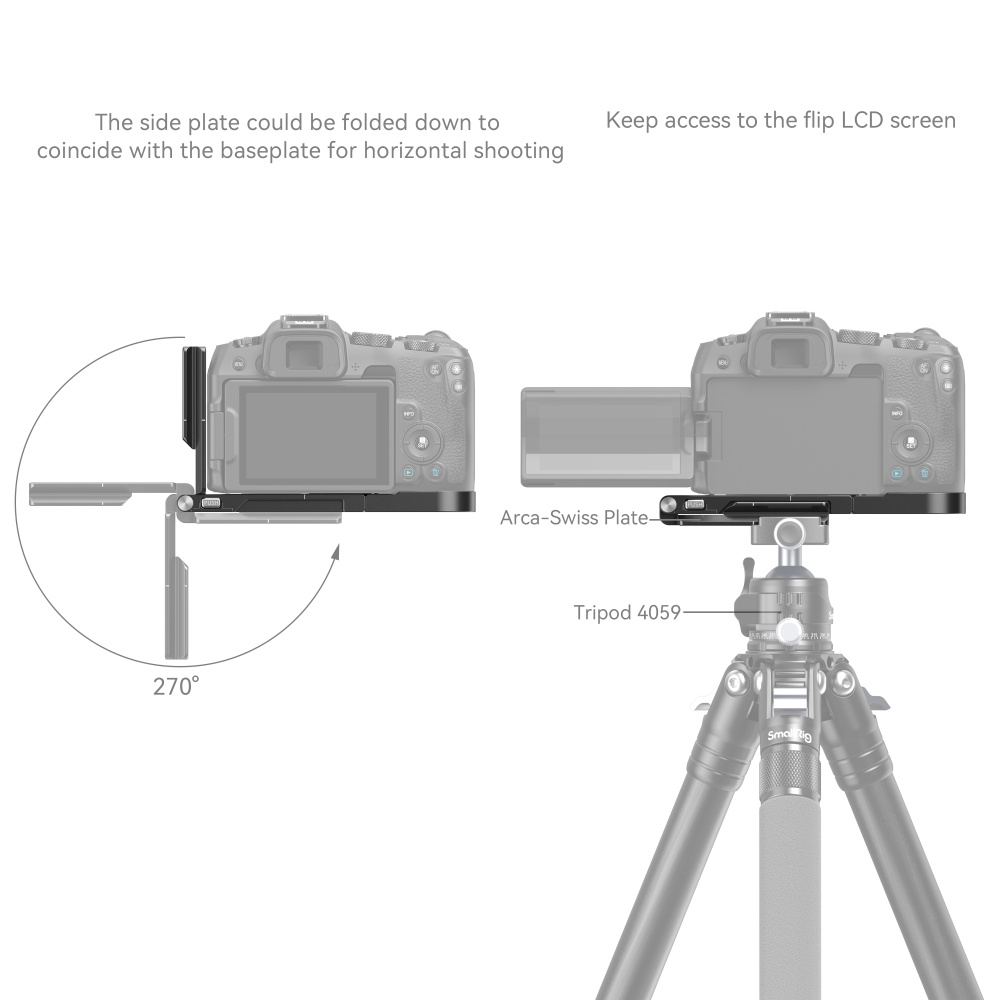

1. Arca-Swiss L-bracket, press-to-flip design makes the side plate fold quickly to the bottom for horizontal shooting
2. Under Horizontal shooting, the LCD screen can be smoothly turned on its side and flip
3. Folded and stored as one portable piece of accessory
4. Stretch the baseplate up to 20mm in vertical shooting to allow cables
5. The hinge arm at the battery door fits the camera curve and enhances the grip experience
III.Text

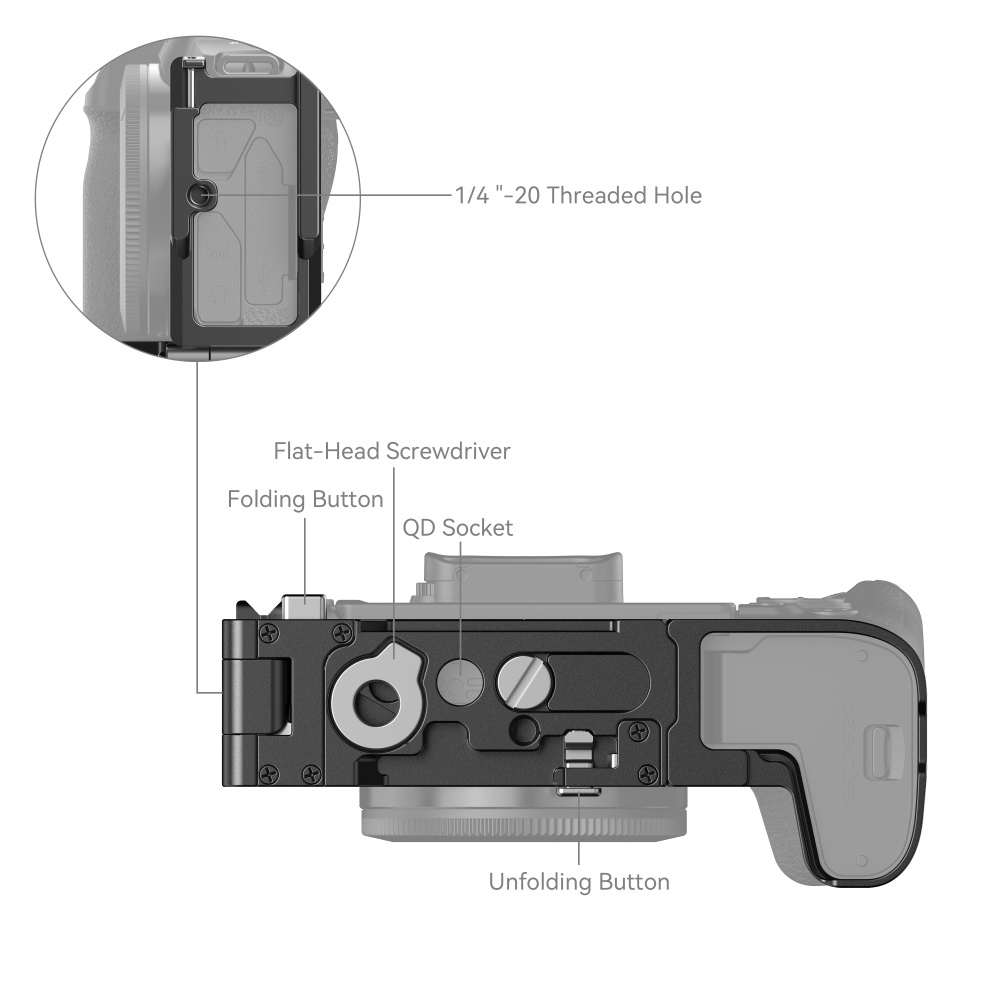

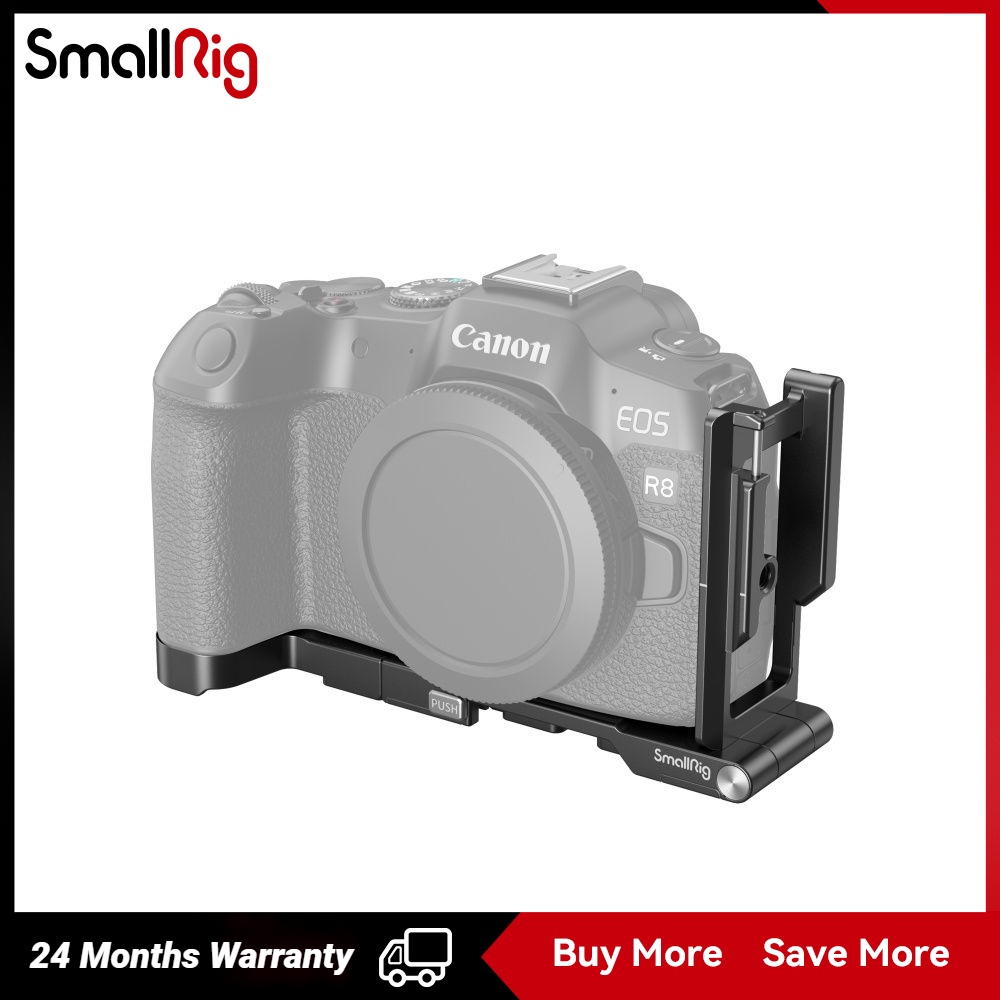

SmallRig Foldable L-Bracket for Canon EOS R8 4211 facilitates quick switch between horizontal and vertical shooting while maintaining access to LCD flip screen. The Arca-Swiss side plate is quickly folded onto the bottom via a folding press button for horizontal shooting and stored as one portable piece of accessory. The baseplate can be stretched up to 20mm during vertical shooting to allow cable access. Locking the camera via a 1/4"-20 screw and locating pins at the bottom, the L-bracket features cushions to prevent scratches and twisting as well as a hinge arm at the battery door that fits the camera curve and enhances the grip experience. In the baseplate and side plate, there is one 1/4"-20 threaded hole for Manfrotto Plate 1280C, Wireless Shooting Grip 3326; a strap hole for Hand Strap 3848; and a QD connector for quick attachment of QD shoulder strap and wrist strap. A slotted screwdriver is also available for disassembly and stretch.
Designer: Tracy Joy
Note:
1. Load capacity: 5kg
IV.Compatibility:
Canon EOS R8
Canon EOS RP
V.In the Box:

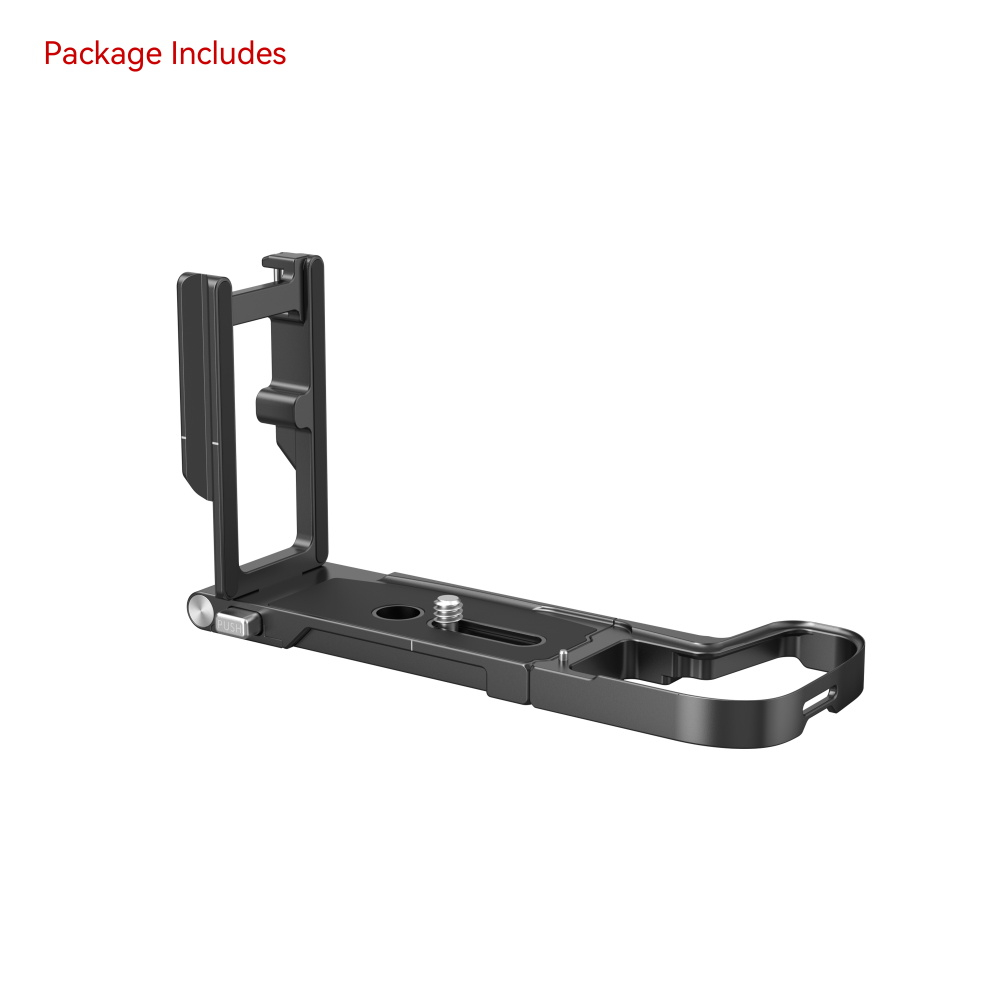

Foldable L-Shape Mount Plate x 1
VI.Specifications
Product Dimensions: 148.2 x 82.0 x 56.4 mm
Package Dimensions: 182.0 x 103.0 x 42.0 mm
Product Weight: 110.0 ± 5.0g
Package Weight: 155.0 ± 5.0g
Material(s): Aluminum Alloy, Stainless Steel, Silicone
VII.Related Products:
4212, 3848, 4059, 3326,4064
-----------------------------------------------------------------------------------------
I.Product Name:
Product Name in Package: SmallRig Cage for Canon EOS R8 4212
II.Key Features:
1. All-in-one cage protects camera;
2. Locks camera via one 1/4"-20 screw at the bottom and two side lock adapters on both sides;

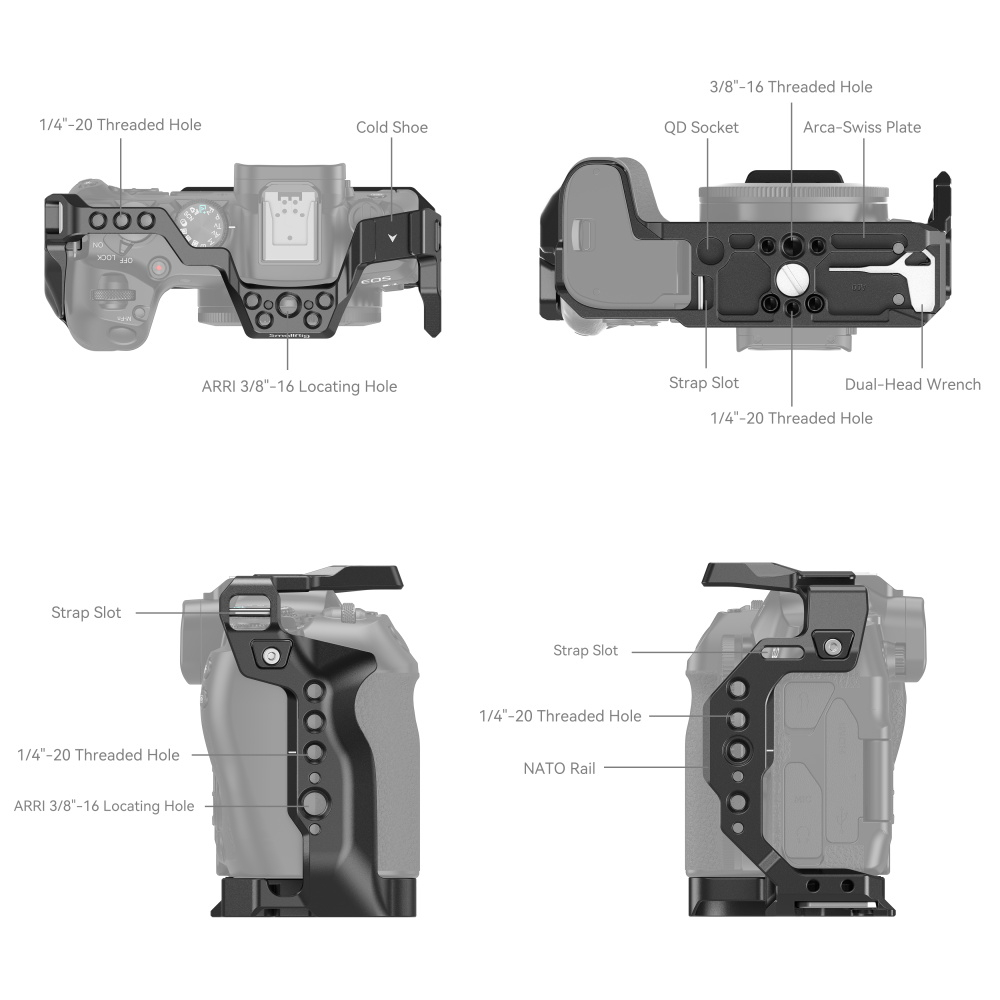

3. Accessory mounting points: 1/4"-20 threaded hole, 3/8"-16 threaded hole, ARRI 3/8"-16 locating hole, cold shoe mount, NATO rail, QD socket, strap hole, etc.;

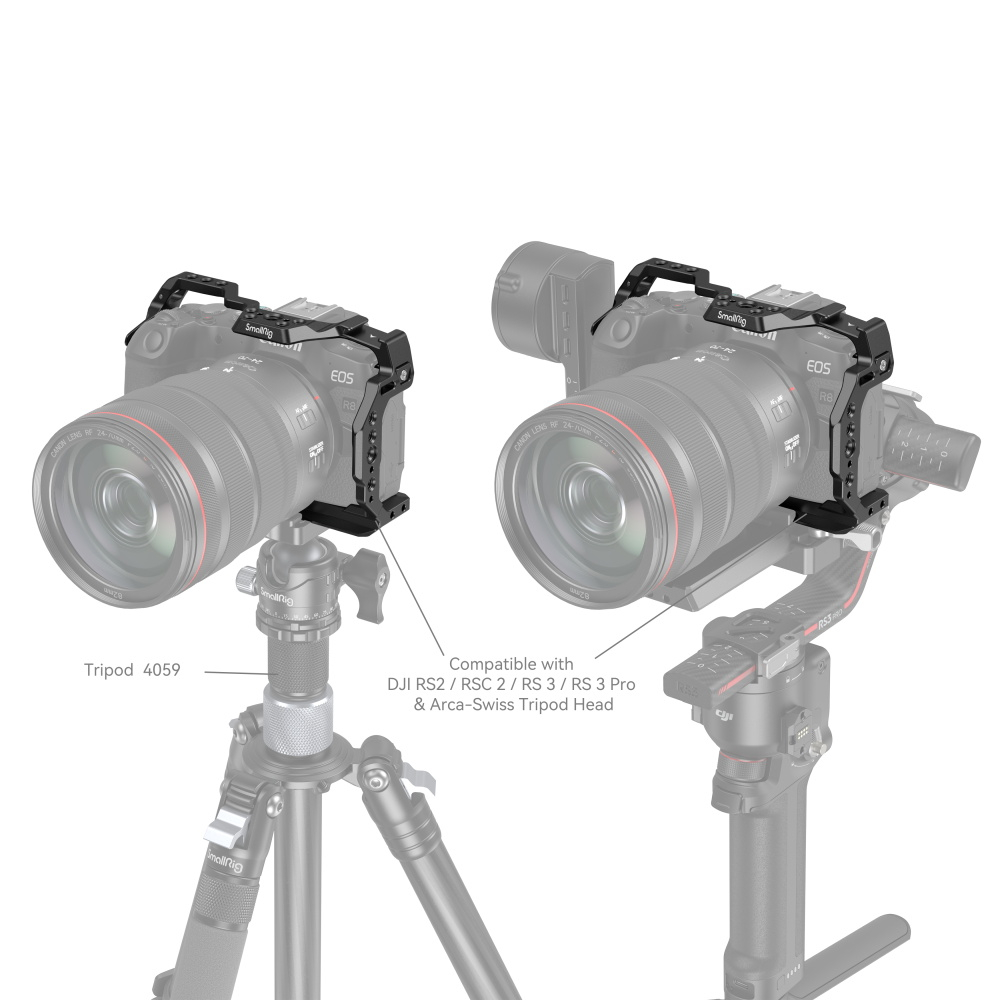

4. Arca Swiss quick-release plate supports Arca-type tripod or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbal;
III.Text

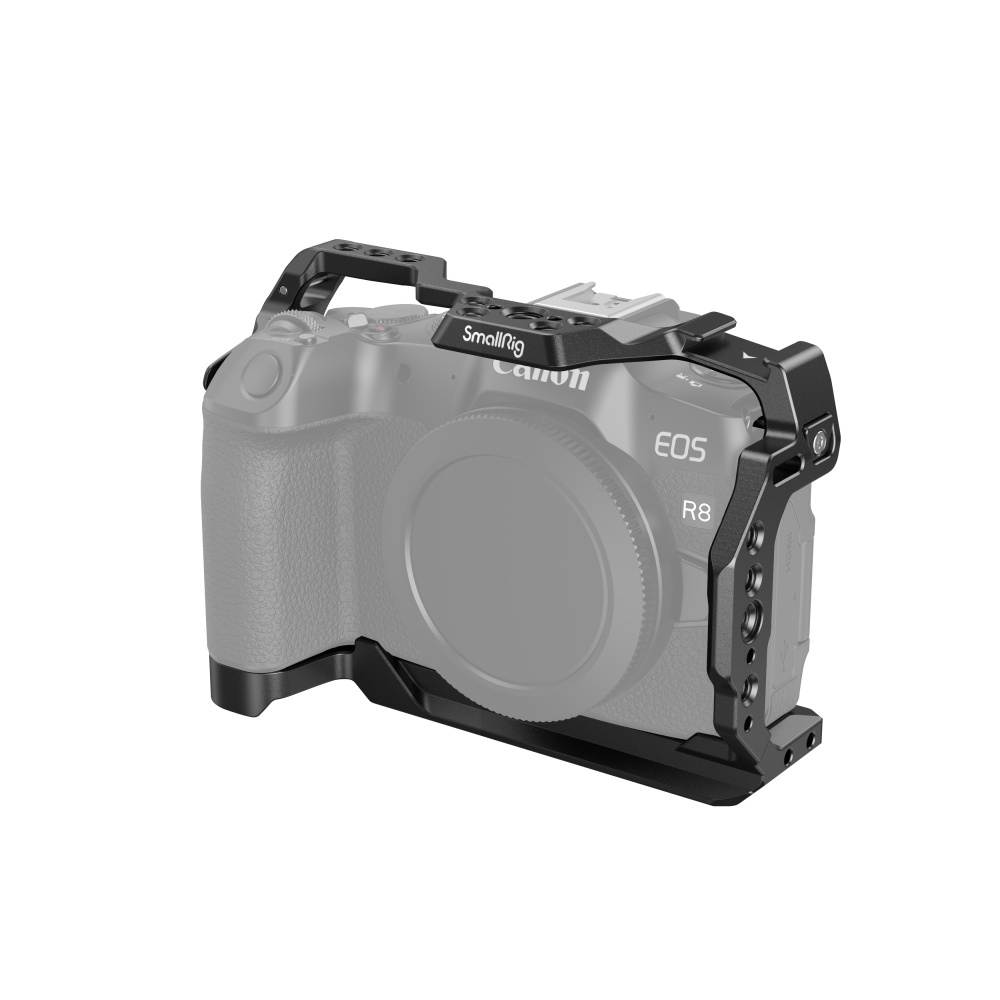

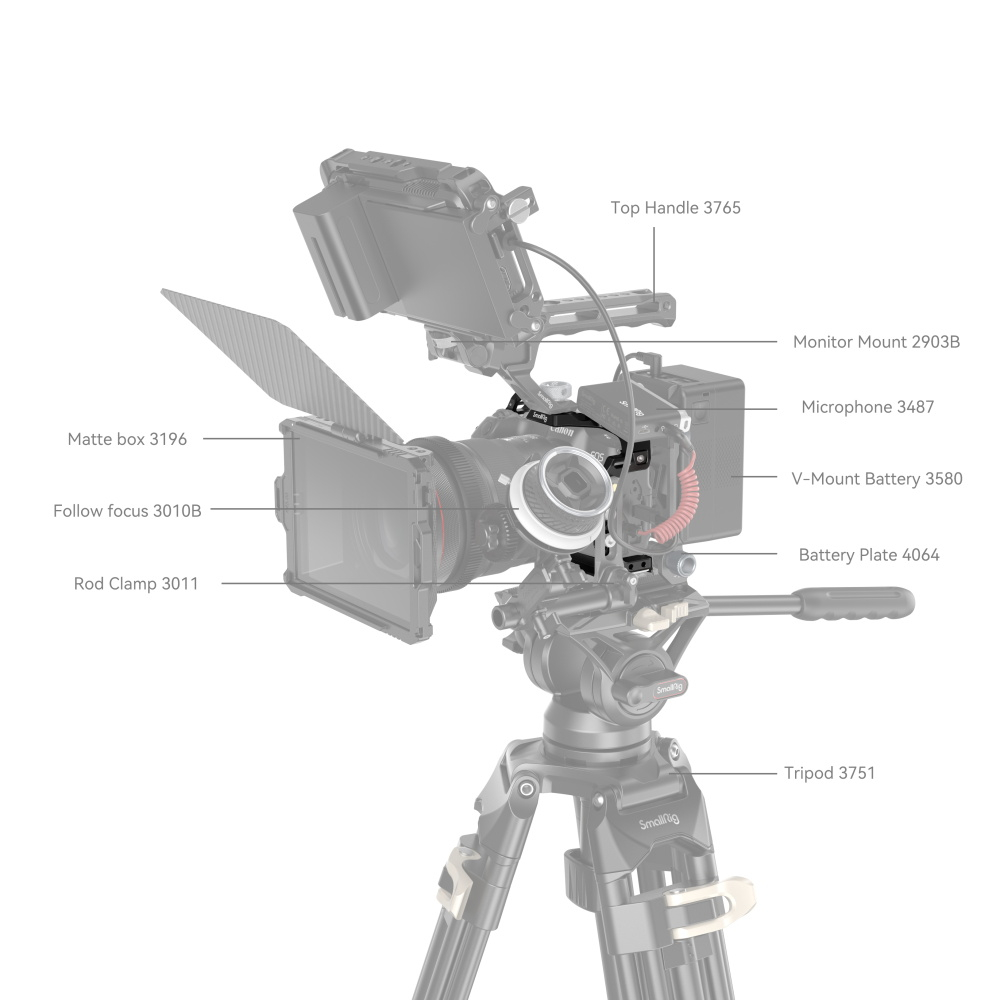

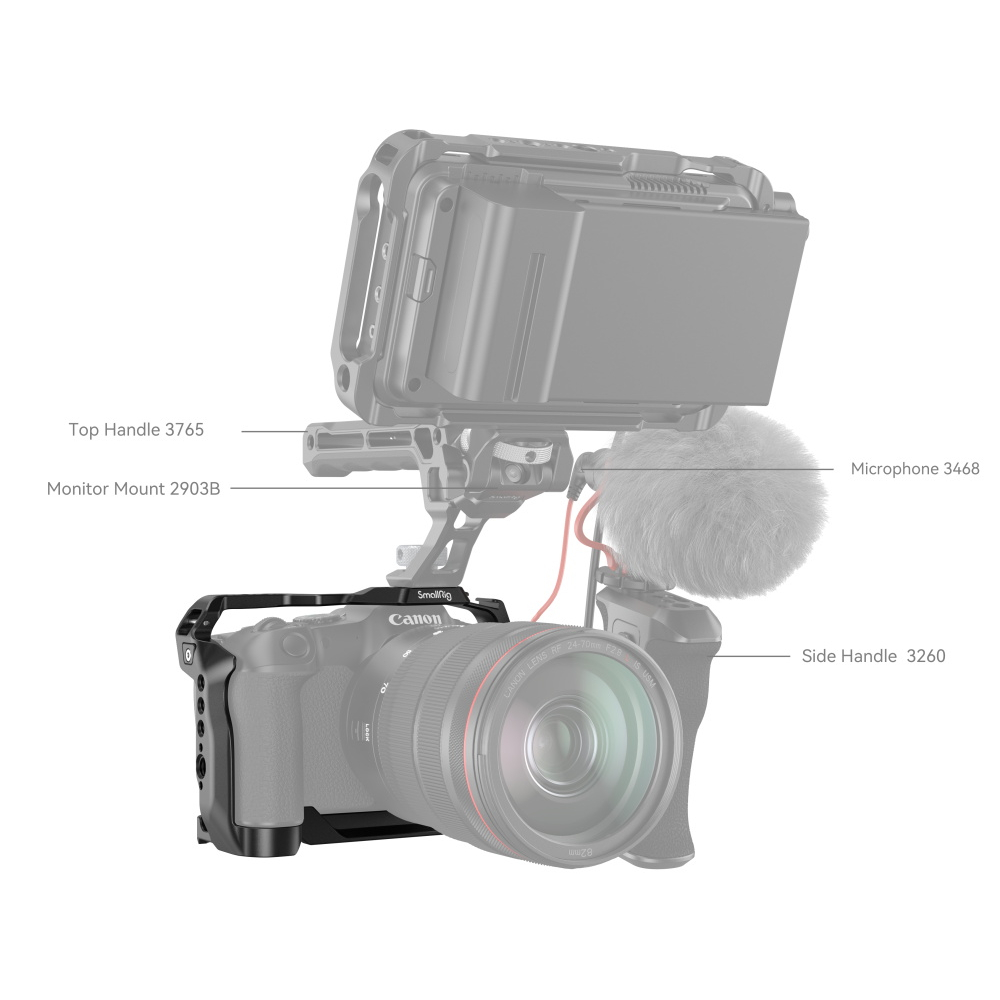

SmallRig Cage for Canon EOS R8 4212 is designed to protect the camera and attach accessories. Locking the camera via one bottom 1/4 "-20 screw and two side lock adapters, the cage comes with rubber pads that prevent scratches and gives full access to buttons, card slots, flip screen, and battery door. Among its accessory mounts, 1/4"-20 threaded holes, 3/8"-16 threaded holes, and ARRI 3/8"-16 locating holes support Top Handle 3765, Side Handle 2093C, Monitor Mount 2903B, and Magic Arm 3875; The top cold shoe mount attaches Microphone 3468, LED Video Light 3286B; and the left NATO rail fits Rotating Side Handle 3260 & 3813. Also, there is a QD socket for a quick-release shoulder strap buckle and a bottom Arca-Swiss quick-release plate for an Arca-type tripod or DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro gimbal for a quick switch between gimbal, handheld and tripod shooting. A screwdriver is included for easy assembly and disassembly.
Designer: Yetta White
IV.Compatibility:
Canon EOS R8
V.In the Box:
Cage x 1
VI.Specifications
Product Dimensions: 148.1 x 60.3 x 103.0mm
Package Dimensions: 181.0 x 130.0 x 76.0 mm
Product Weight: 140.0 ± 5.0g
Package Weight: 215.0 ± 5.0g
Material(s): Aluminum Alloy, Stainless Steel, Silicone
VII.Related Products
4211, 2093C, 3765, 2903B, 3260, 3010B, 3848, 3468, 4064
