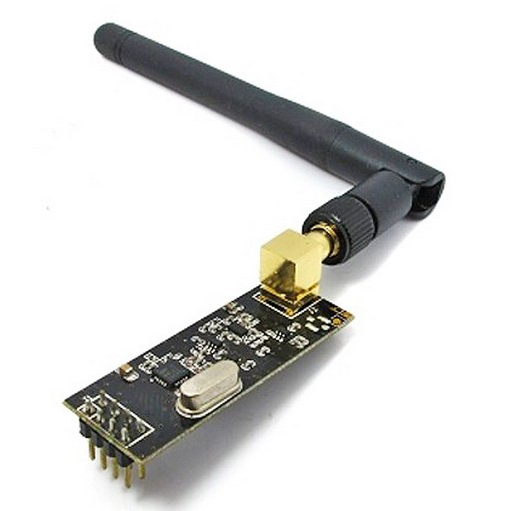

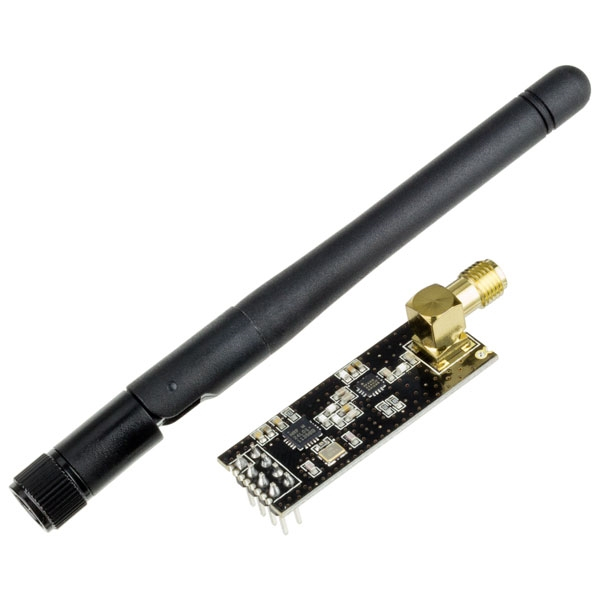

โมดูล WiFi ระยะไกล 1100 เมตร NRF24L01+PA+LNA LONG RANGE ANTENNA WIRELESS TRANSCEIVER MODULE

โมดูลไร้สาย 1100เมตร สำหรับ Arduino NRF24L01+PA+LNA Features Range upto 1100 meters Based on the popular nRF24L01 from Nordic Semiconductor Supports 126 RF channels Works at the 2.4 GHz frequency range High data rate of upto 1 - 2 Mbps Programmable output power : 0, -6, -12, or -18dBm Supports SPI interface, which allows easy interface with microcontrollers Onboard antenna for optimum performance Low-power 1.9 ~ 3.6V, only 1uA on Power down mode Transmision mode current(peak): 115mA Receiver Mode Current(peak): 45mA Power-down mode current: 4.2uA Sensitivity 2Mbps mode in received: -92dBm Standard DIP type pinout for easy Interface through jumper wires or breadboard Small size: 16.5mm*45.5mm. Applications: wireless peripherals, remote control systems such as RC vehicles and consumer remote electronics, wireless voice transmission such as VoIP, wireless sensor networks, wireless networks, home and commercial automation
