TAMIYA 58600 1/10 R/C Kit 4WD TT-02 Type-S Chassis Kit

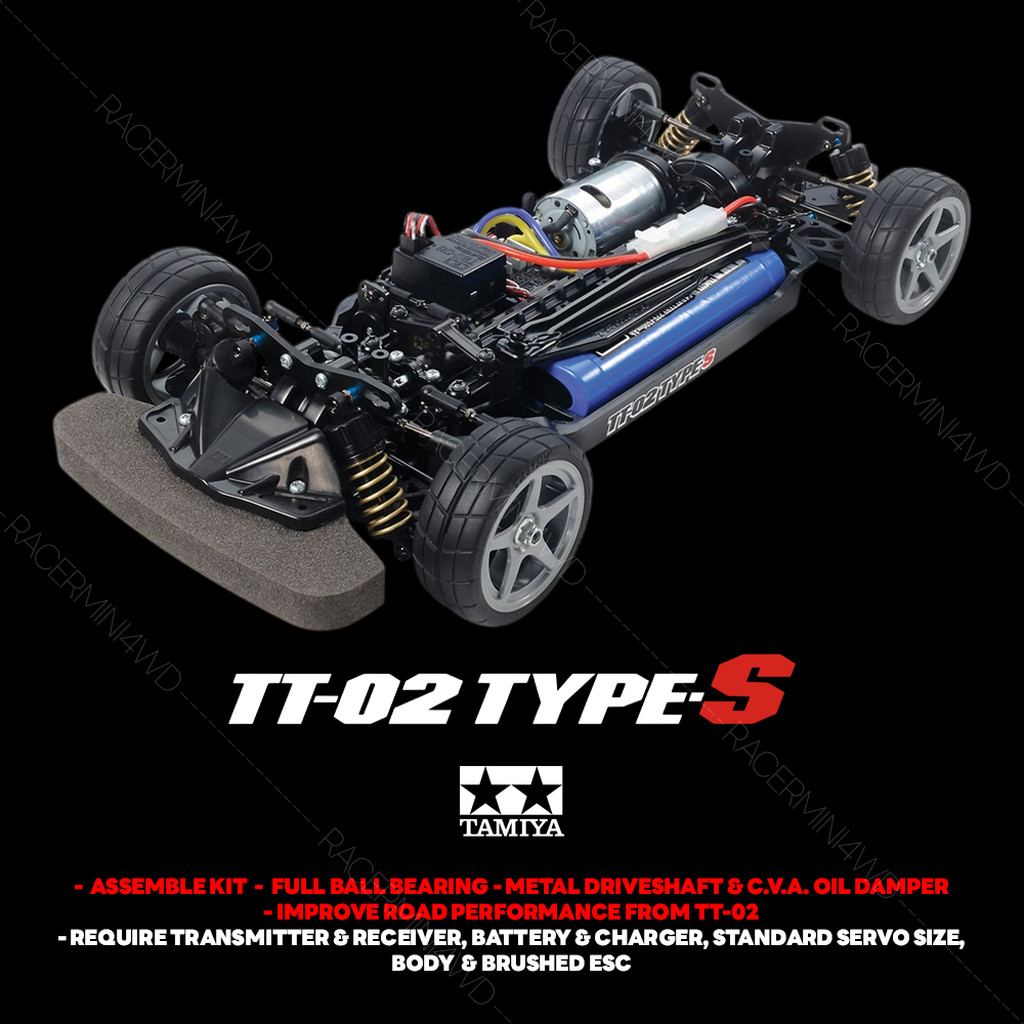

Overall length = 385mm The photo shows the assembled kit. [A step-up chassis for beginners looking to step up their game] An upgraded version of the TT-02, a basic shaft-driven 4WD chassis with excellent drive efficiency. Each part can be adjusted to make racing even more fun. The suspension employs reversible suspension arms. Highly rigid metal suspension mounts are used, and the rear toe-in is set at 3 degrees. CVA oil dampers are attached to special 3.0mm thick FRP damper stays. The damper mounting angle and rebound stroke have been optimized to improve performance over gaps. In addition, turnbuckle shafts are used for the upper arms and steering linkage. Camber angle and front toe angle can be adjusted. The drive system is equipped with full bearings, and the cup joints and drive shafts are all made of metal. This has further improved power transmission efficiency. [Major Equipment Parts] ● Reversible suspension arms ● CVA oil dampers ● Special FRP damper stays (front and rear) ● Metal suspension mounts (rear toe-in set to 3 degrees) ● Wheel axles, gearbox joints, and drive shafts are all made of metal ● Drive system is equipped with full bearings ● Turnbuckle shafts are used for the upper arms and steering linkage ● Metal die-cast hexagonal hubs [Basic Specifications] ● Chassis length 385mm, chassis width 187mm ● Wheelbase 257mm ● Tire width/diameter = front/rear 24/64mm ● Frame = bathtub-type with a ship's bottom shape ● Drive system = vertically-mounted motor and shaft drive 4WD ● Differential gear = front/rear 4-bevel type made of resin ● Steering = 3-piece tie-rod type ● Suspension = 4-wheel double wishbone ● Damper = CVA oil damper ● Gear ratio = kit standard 8.27:1 (10 gear ratios from 11.38:1 to 7.28:1 can be selected by combining with the separately sold pinion) ● Motor = torque-tuned ● Drive system uses full bearings ● Speed controller = ESC specification (sold separately) [Items to be purchased separately] ● Transmitter & Receiver (Required 2-Channel) ● Power Supply for Transmitter ● Servo ● ESC ● Battery & Charger for Car Kit (Check Compatible with ESC used) ● 1/10 R/C Touring Body (190mm Width)
