Mingsu Intel B75 D3 nvme LGA 1155 B75 D3 gold edition เดสก์ท็อปคอมพิวเตอร์เมนบอร์ดใหม่ในกล่อง 铭速B75M主板

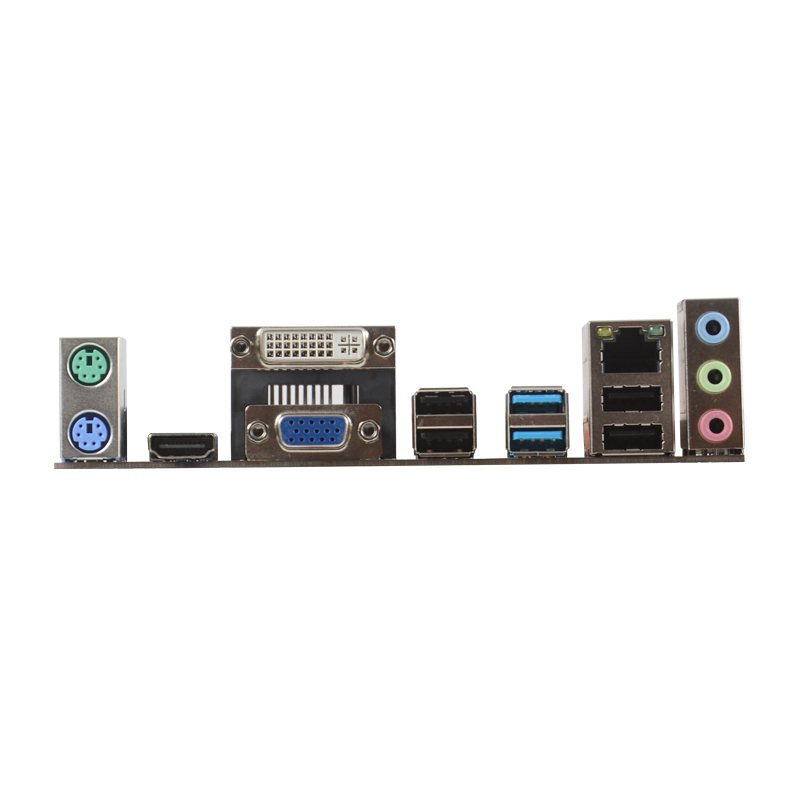

Mingsu Intel B75 D3 LGA 1155 B75 D3 gold edition เดสก์ท็อปคอมพิวเตอร์เมนบอร์ดใหม่ในกล่อง Motherboard chip Integrated chip sound card/network card Main chipset Intel BH61 Chipset description using Intel B61 chipset Display chip CPU built-in display chip (requires CPU support) Audio chip integrated with 5.1 channel sound effect chip Network card chip onboard 1000 Mbps network card Processor specifications CPU type Core i7/i5/i3/Pentium/Celeron CPU socket LGA 1155 Memory specifications Memory type 2 × DDR3 DIMM Maximum memory capacity 16GB Storage Expansion PCI-E standard PCI-E 3.0 2 PCI-E X16 slots 1 PCI-E X1 slot Storage interface 4 × SATA II interface I/O interface USB interface 2 × USB3.0 interface (backplane) four × USB2.0 interface (backplane) Video interface 1 × HDMI interface, 1 × VGA interface, 1 × DVI interface One 4-pin power interface and one 24-pin power interface Other interfaces 1 × PS/2 mouse interface, 1 × PS/2 keyboard interface, 1 × RJ45 network interface, 3 × audio interface Plate type Main board type Micro ATX board type Overall dimensions 22.0 × 18.0cm Motherboard accessories Packaging list motherboard x1 Blocking x1 Instructions x1 Serial port cable x1
