PH Sensor arduino Analog pH Meter เซ็นเซอร์วัดค่า PH ของน้ำ E-201-C

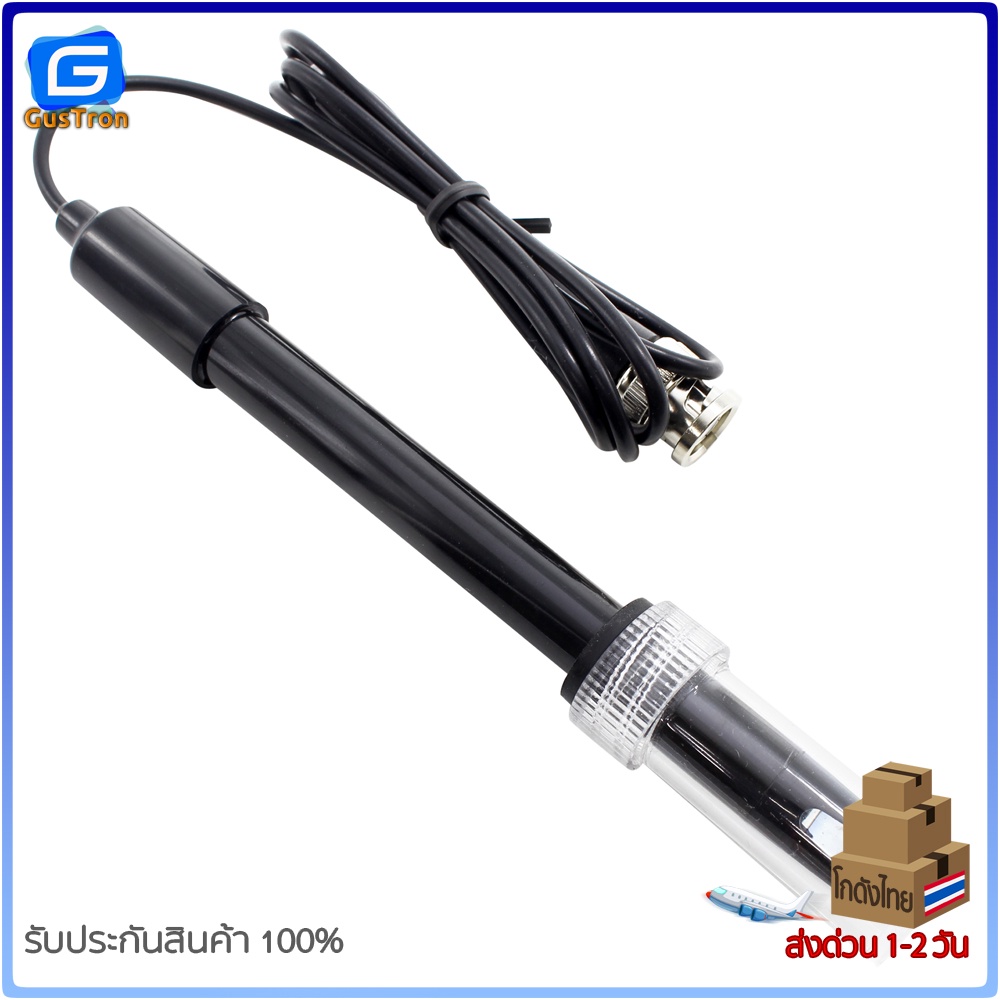

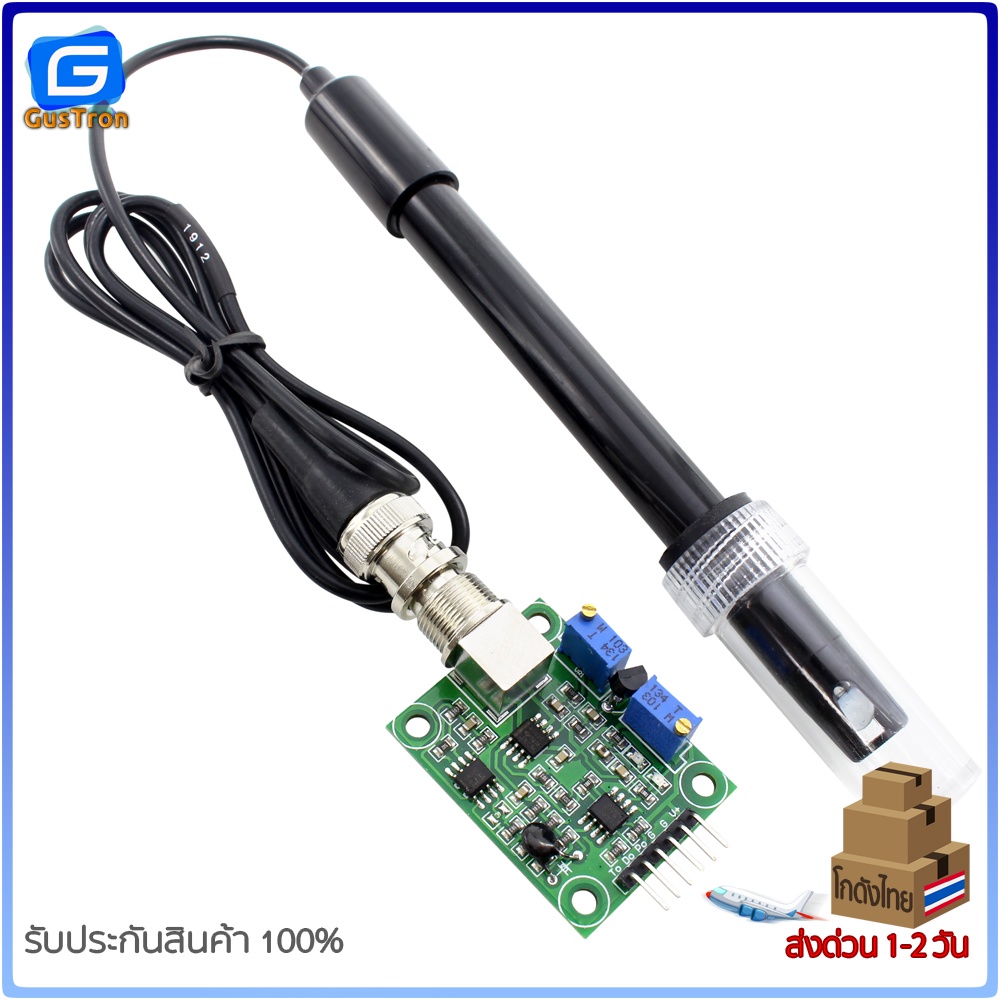

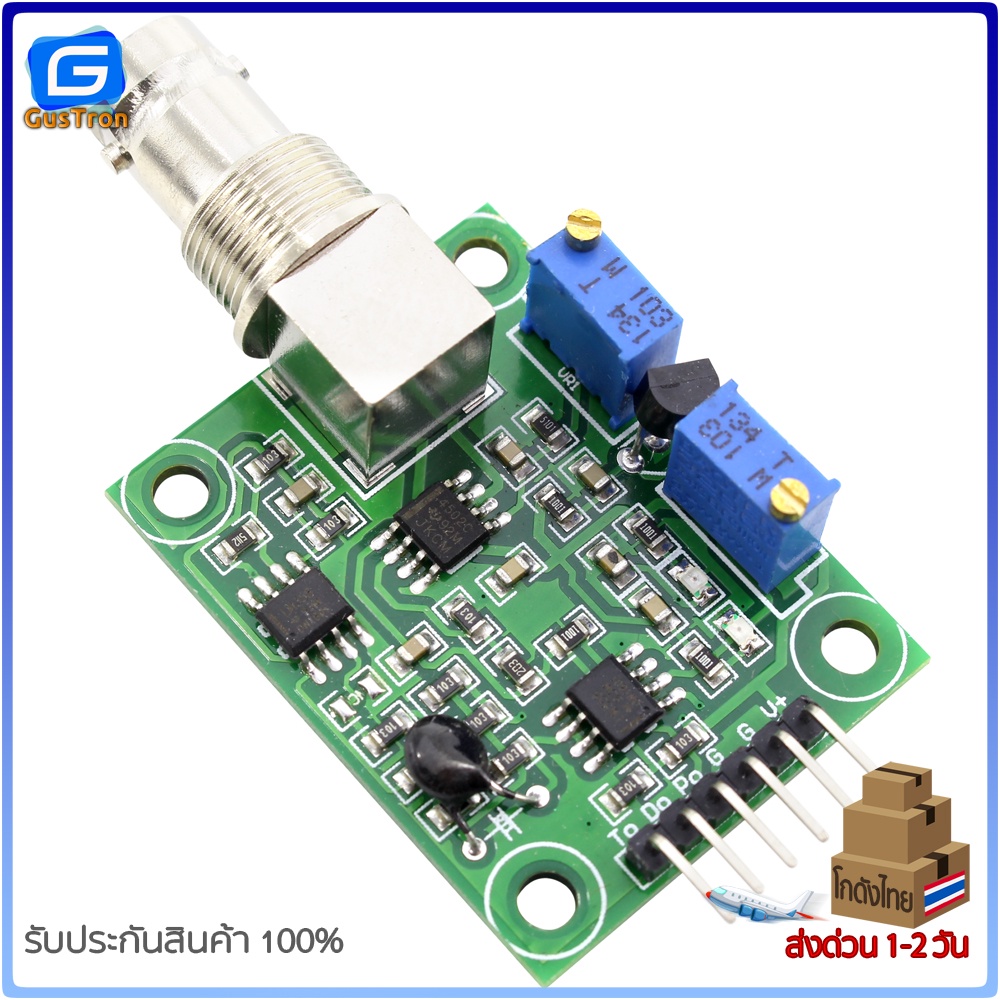

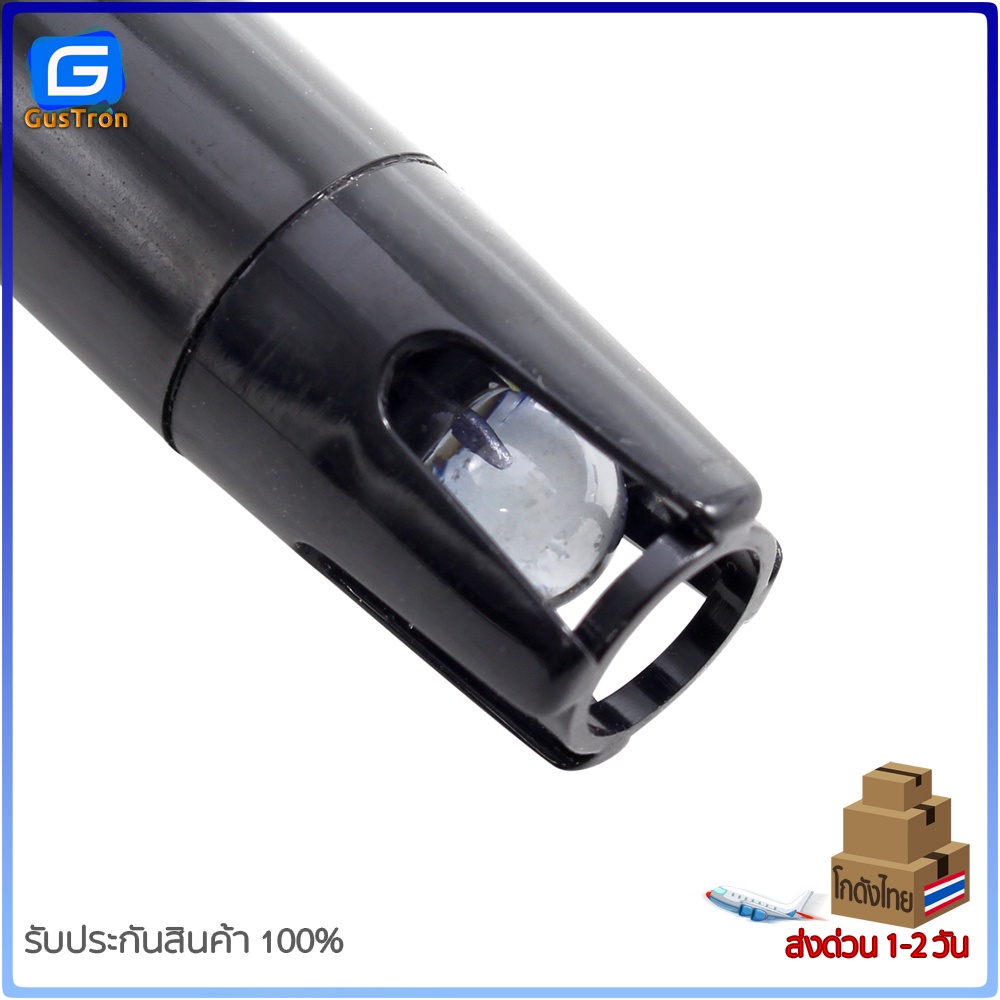

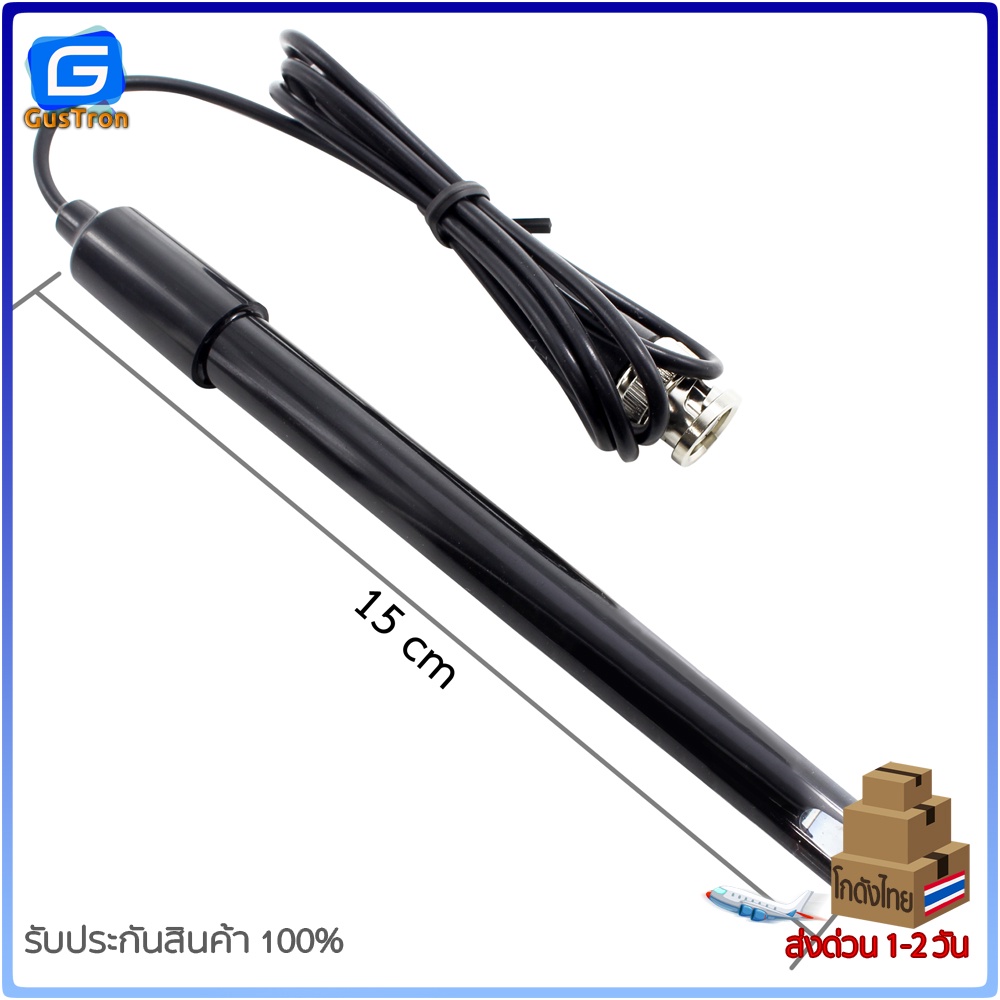

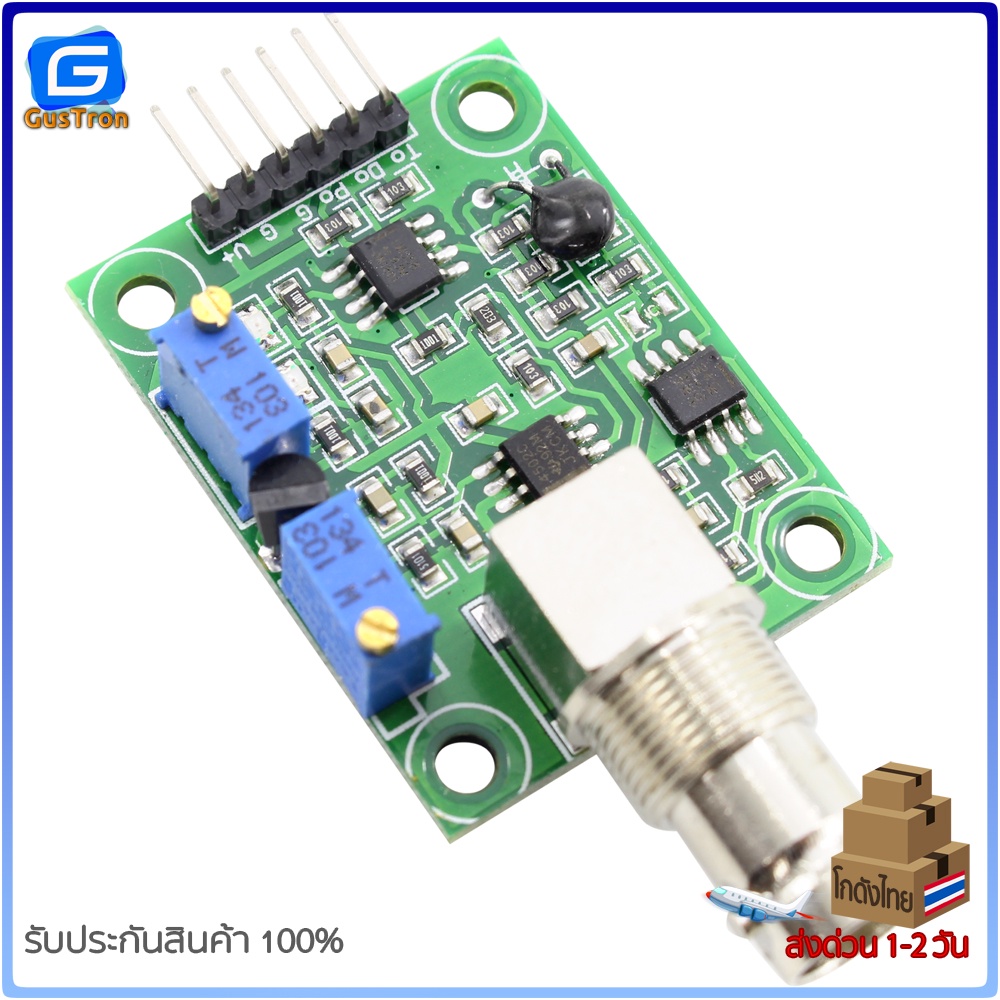

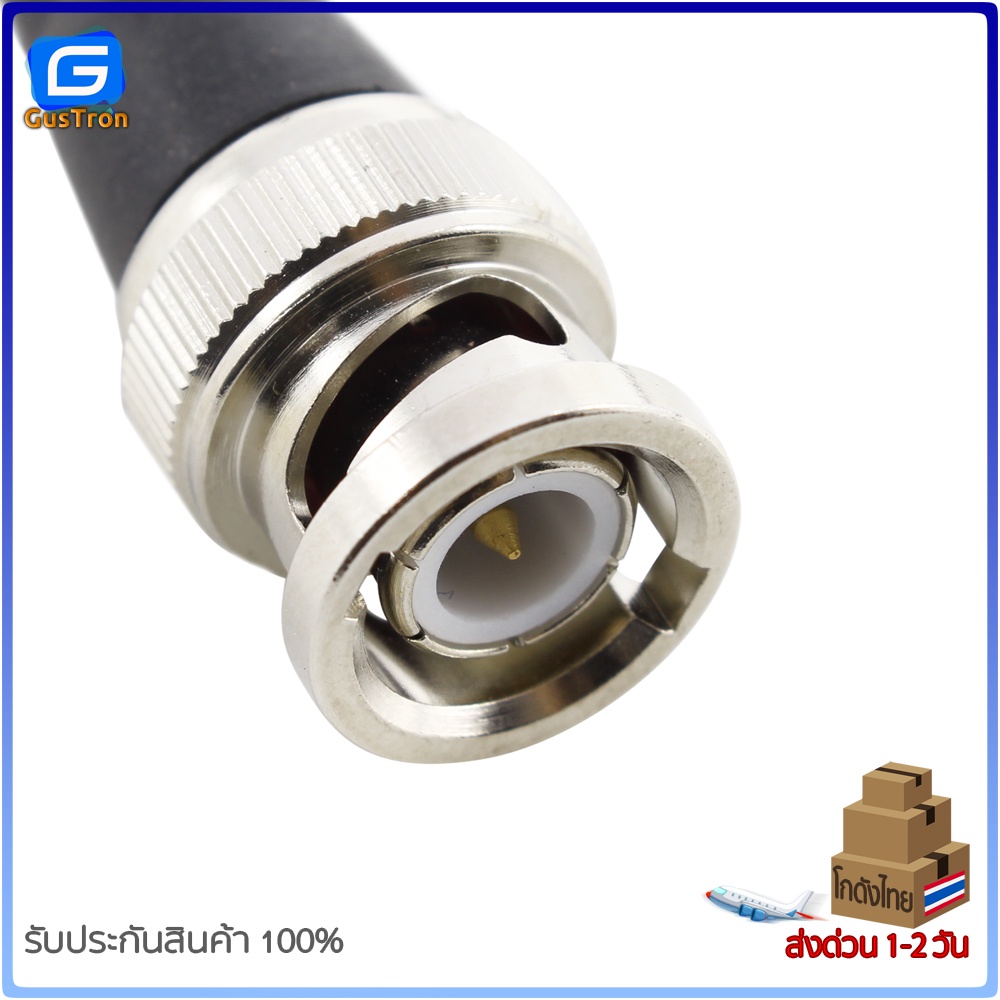

PH Sensor arduino Analog pH Meter เซ็นเซอร์วัดค่า PH ของน้ำ E-201-C Analog pH Meter (pH Sensor) เป็นเซ็นเซอร์ PH arduino สำหรับวัดความเป็น กรด-เบส ของสารละลายโดยค่าที่วัดได้จะอยู่ในช่วง 0 - 14pH output เป็นแบบ Analog (0-1023) ใช้ไฟเลี้ยง 5V PH SENSOR PRODUCT DESCRIPTION Need to measure water quality and other parameters but haven’t got any low cost pH meter? Find it difficult to use with Arduino? Our analog pH meter, specially designed for Arduino controllers and has convenient and practical connector and a bunch of features. Instant connection to your probe an your Arduino to get pH measurements at ± 0.1pH (25 ℃). For most hobbyist this great accuracy range and it’s low cost makes this a great tool for biorobotics and other projects! It has an LED which works as the Power Indicator, a BNC connector and PH2.0 sensor interface. To use it, just connect the pH sensor with BNC connector, and plug the PH2.0 interface into the analog input port of any Arduino controller. If pre-programmed, you will get the pH value easily. Comes in compact plastic box with foams for better mobile storage. Build your own PH meter gadget, or a water monitoring station for your water tanks. This and our other water sensor devices could make for the ultimate water control device. Use it for your aquaponics or fish tanks or other materials that need measurements. PH Sensor SPECIFICATION Module Power : 5.00V Module Size : 43 x 32mm Measuring Range :0 – 14PH Measuring Temperature: 0 – 60 ℃ Accuracy : ± 0.1pH (25 ℃) Response Time : ≤ 1min pH Sensor with BNC Connector pH2.0 Interface ( 3 foot patch ) Gain Adjustment Potentiometer Power Indicator LED โปรแกรมตัวอย่าง PH Sensor /* # This sample code is used to test the pH meter V1.0. # Editor : YouYou # Ver : 1.0 # Product: analog pH meter # SKU : SEN0161 */ #define SensorPin A0 //pH meter Analog output to Arduino Analog Input 0 #define Offset 0.00 //deviation compensate #define LED 13 #define samplingInterval 20 #define printInterval 800 #define ArrayLenth 40 //times of collection int pHArray[ArrayLenth]; //Store the average value of the sensor feedback int pHArrayIndex=0; void setup(void) { pinMode(LED,OUTPUT); Serial.begin(9600); Serial.println("pH meter experiment!"); //Test the serial monitor } void loop(void) { static unsigned long samplingTime = millis(); static unsigned long printTime = millis(); static float pHValue,voltage; if(millis()-samplingTime > samplingInterval) { pHArray[pHArrayIndex++]=analogRead(SensorPin); if(pHArrayIndex==ArrayLenth)pHArrayIndex=0; voltage = avergearray(pHArray, ArrayLenth)*5.0/1024; pHValue = 3.5*voltage+Offset; samplingTime=millis(); } if(millis() - printTime > printInterval) //Every 800 milliseconds, print a numerical, convert the state of the LED indicator { Serial.print("Voltage:"); Serial.print(voltage,2); Serial.print(" pH value: "); Serial.println(pHValue,2); digitalWrite(LED,digitalRead(LED)^1); printTime=millis(); } } double avergearray(int* arr, int number){ int i; int max,min; double avg; long amount=0; if(number<=0){ Serial.println("Error number for the array to avraging!/n"); return 0; } if(number<5){ //less than 5, calculated directly statistics for(i=0;imax max=arr[i]; }else{ amount+=arr[i]; //min<=arr<=max } }//if }//for avg = (double)amount/(number-2); }//if return avg; } 🚚 สินค้าพร้อมส่งโกดังไทย ไม่ต้องรอของนาน จัดส่งรวดเร็ว ทันใจ 🚚🔥 🚚 มีเก็บเงินปลายทาง 🚚 จัดส่งรวดเร็ววันจันทร์-เสาร์ ✅ สินค้าปรับประกัน 100% 14วันทุกกรณี มีปัญหา inbox เข้ามาได้เลยค่ะ 👍🏻👍🏻มั่นใจ 100% ได้รับสินค้าแน่นอน👍🏻👍🏻
