โมดูลตั้งเวลา หน่วงเวลา ปิดเปิดไฟผ่านรีเลย์ DC 12V

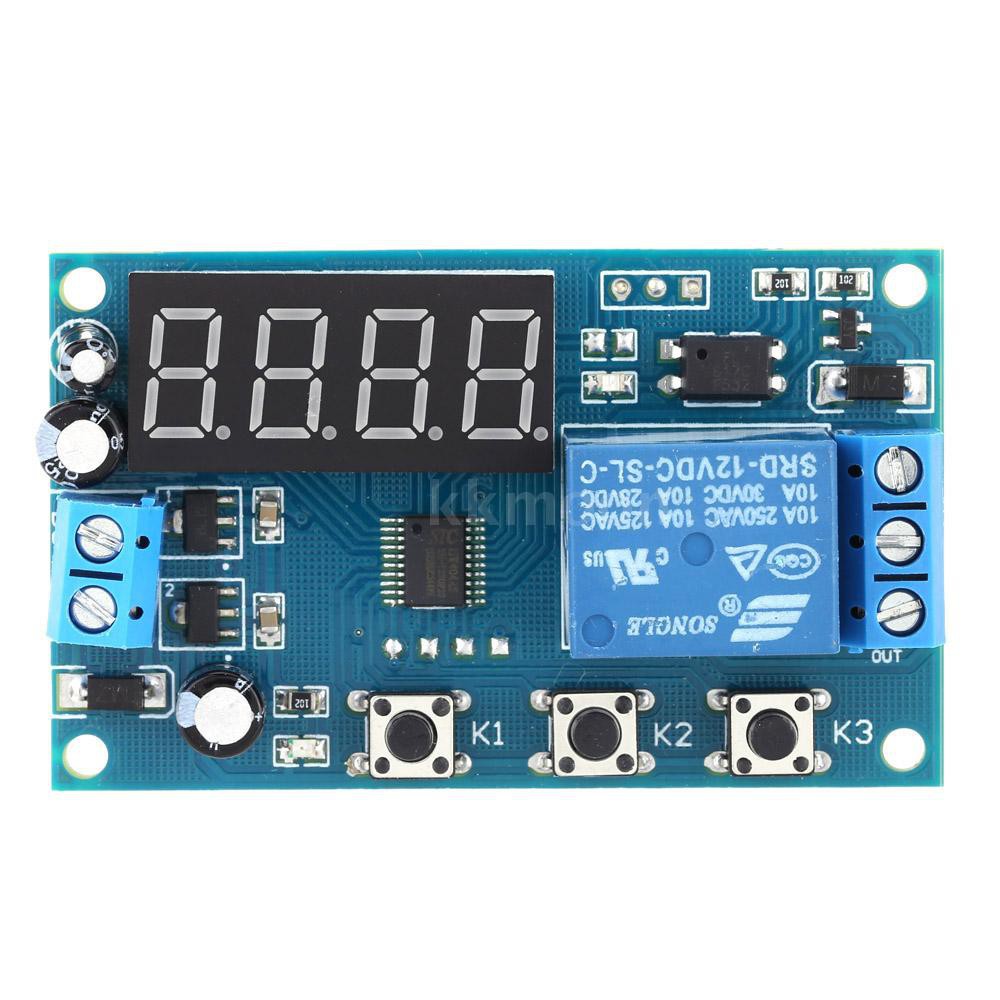

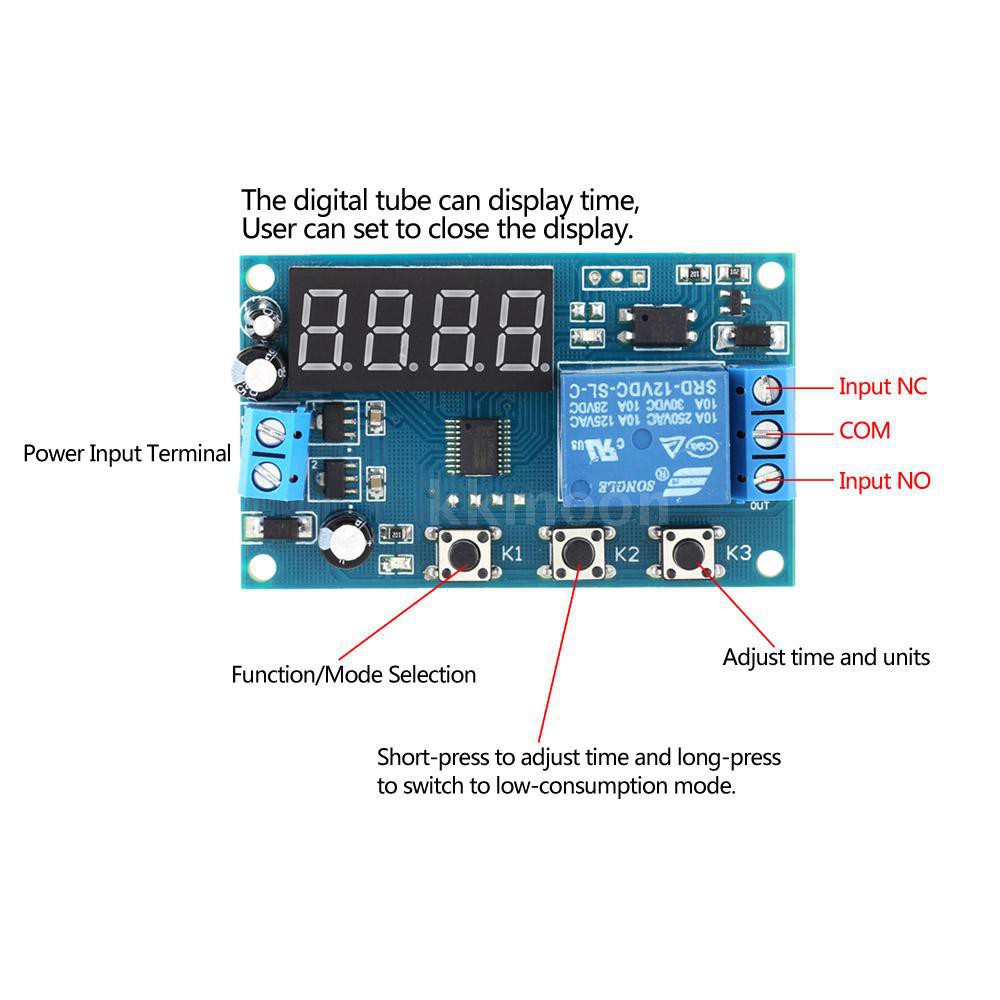

Multifunction Delay Time Module Switch Control Relay Cycle Timer DC 12V If you want to see more, please click #kkmoon Multifunction Delay Time Module Switch Control Relay Cycle Timer DC 12V If you want to see more, please click #kkmoon This is a delay timer module with high performance, which is convenient and practical for users. Features: New upgrades to simplify, meeting the users' needs. Increase the power supply anti-reverse function. LED digits display, intelligent control, time relay/delay function. The use of opto isolated input and output, enhanced anti-jamming capability and consumption. The last setting parameters can be memorized after power off. Power saving function, one-key switch, can turn off the display. To ensure stability, industrial grade PCB board.  Working modes selection: after power on, long press K1 for 2s, later into the selection of modes: P1~3. P-1: Monostable trigger delay, a signal to trigger relay, time is up, the relay disconnect; P-2: A signal trigger and countdown begins, T1 seconds after, the relay open T2 seconds, then close; P-3: Open T1 seconds, disconnect T2 seconds, infinite loop. Users can set the relay time T1 and T2; Specifications: Display: LED Digital Display Voltage: DC 12V Timing Range(Settable): 0~999.9 seconds; 0~9999 seconds; 0~9999 minutes Relay Specification: DC 5~30V 10A or AC 220V 10A Static Current: 20mA Working Current: 50mA Working Temperature: -40-85°C PCB Size: 65 * 38 * 18mm / 2.56 * 1.5 * 0.7in (L * W * H) PCB Weight: 26g / 0.93oz Package Size: 11.5 * 7.5 * 2cm / 4.53 * 2.95 * 0.8in (L * W * H) Package List: 1 * Delay Timer Module
