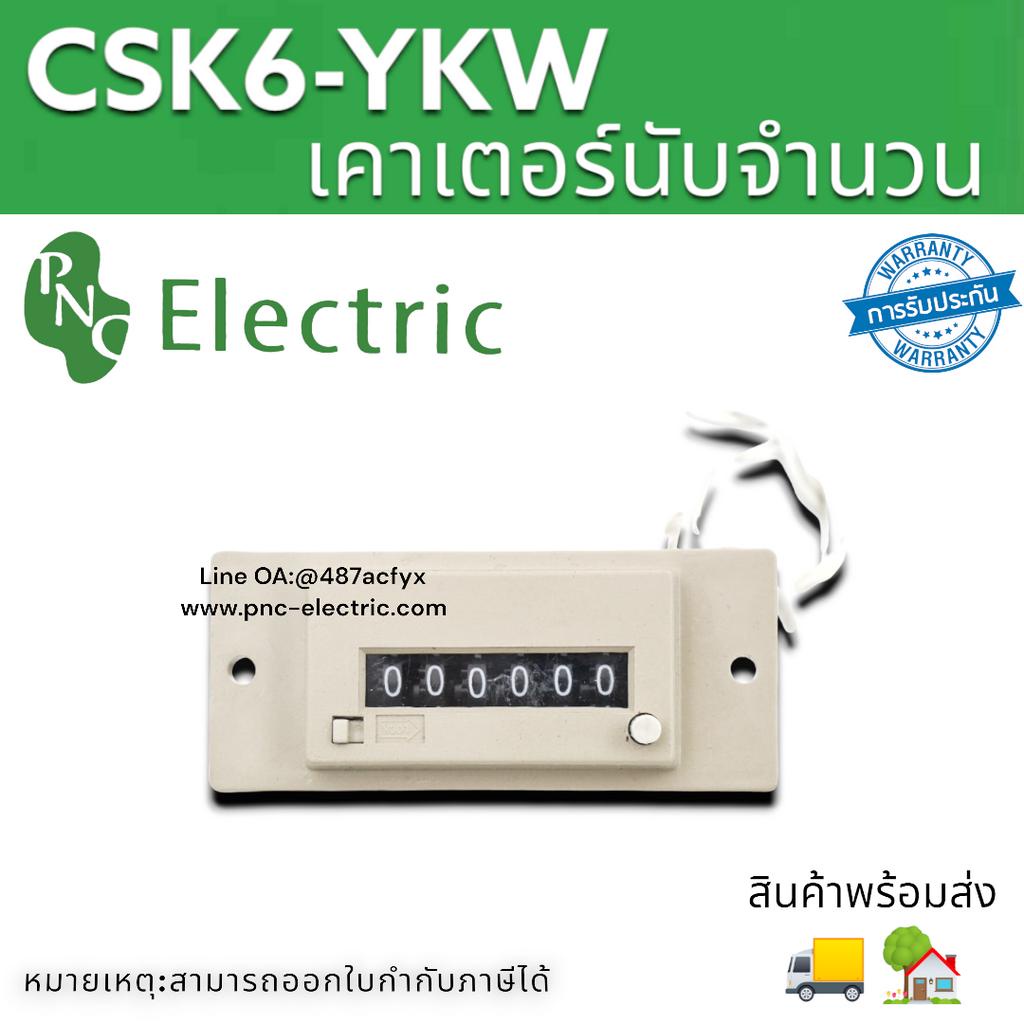

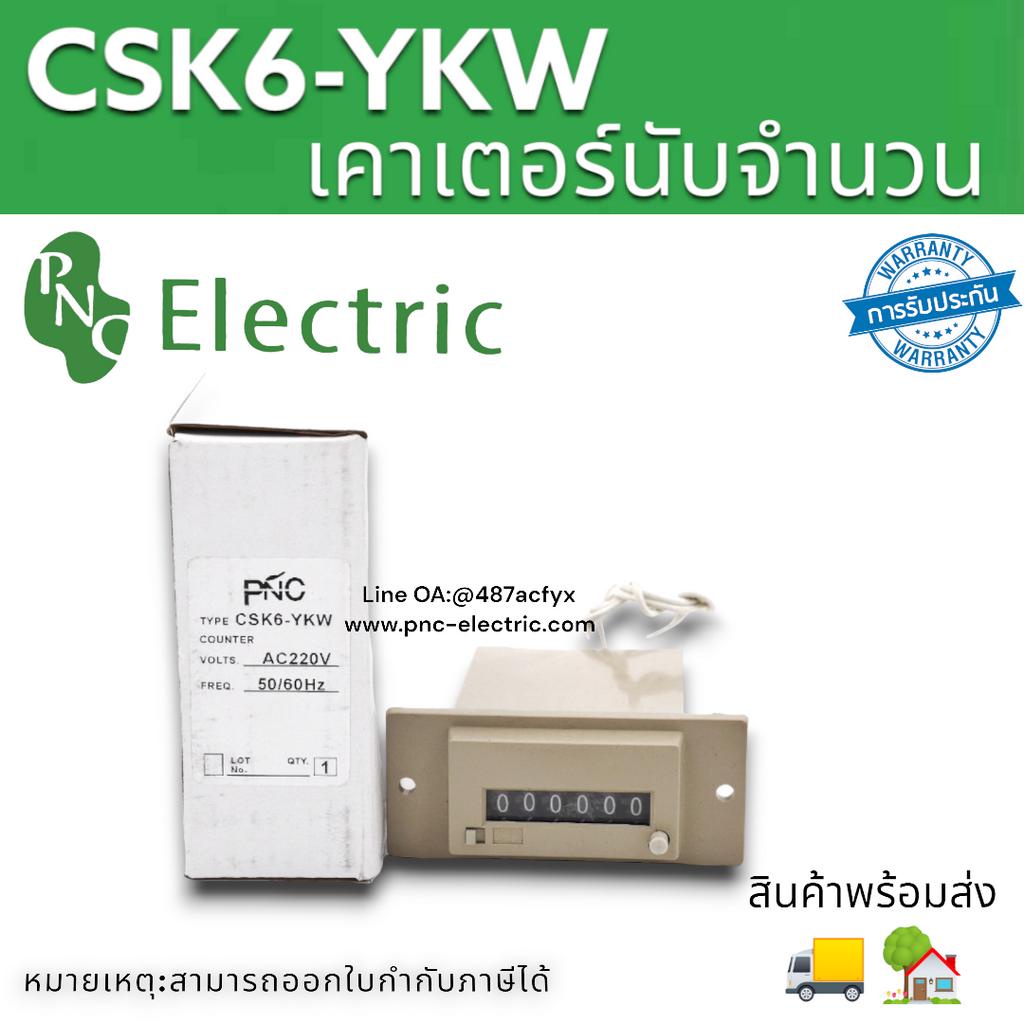

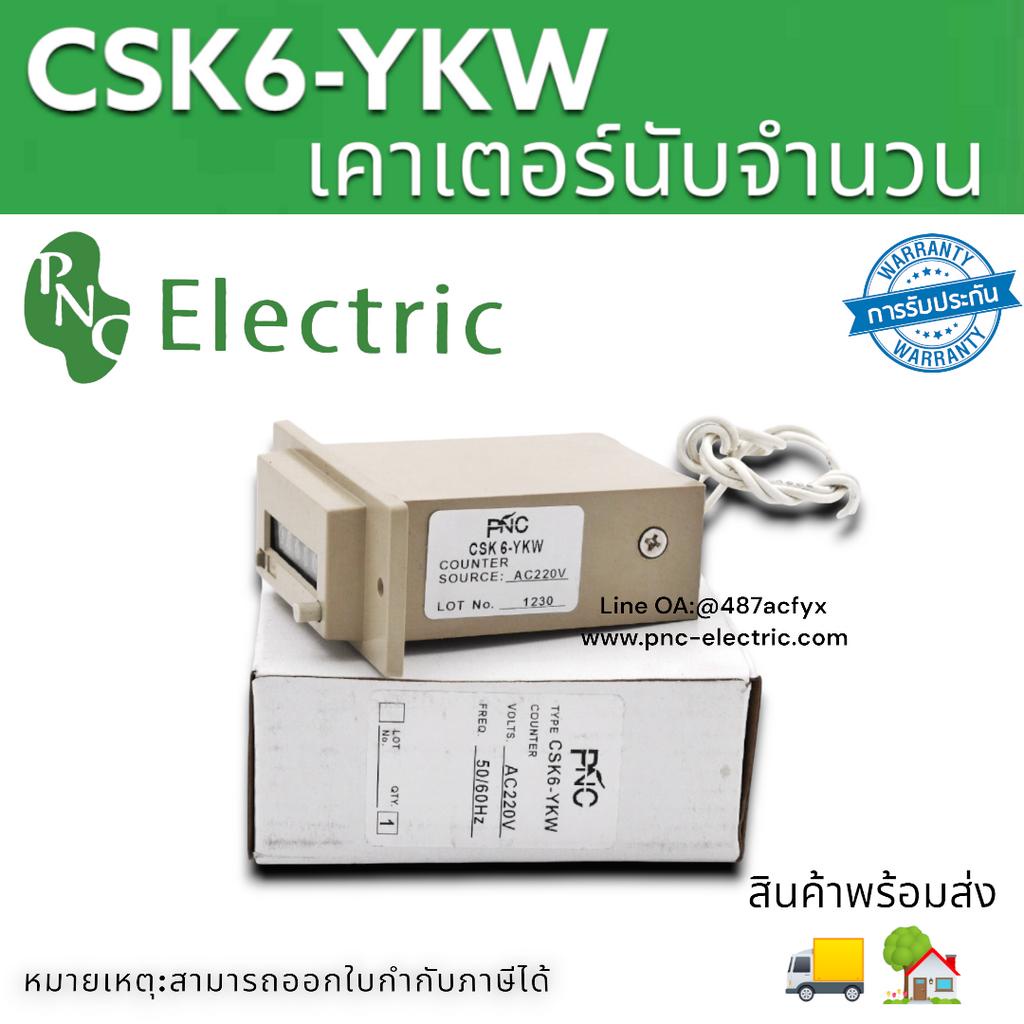

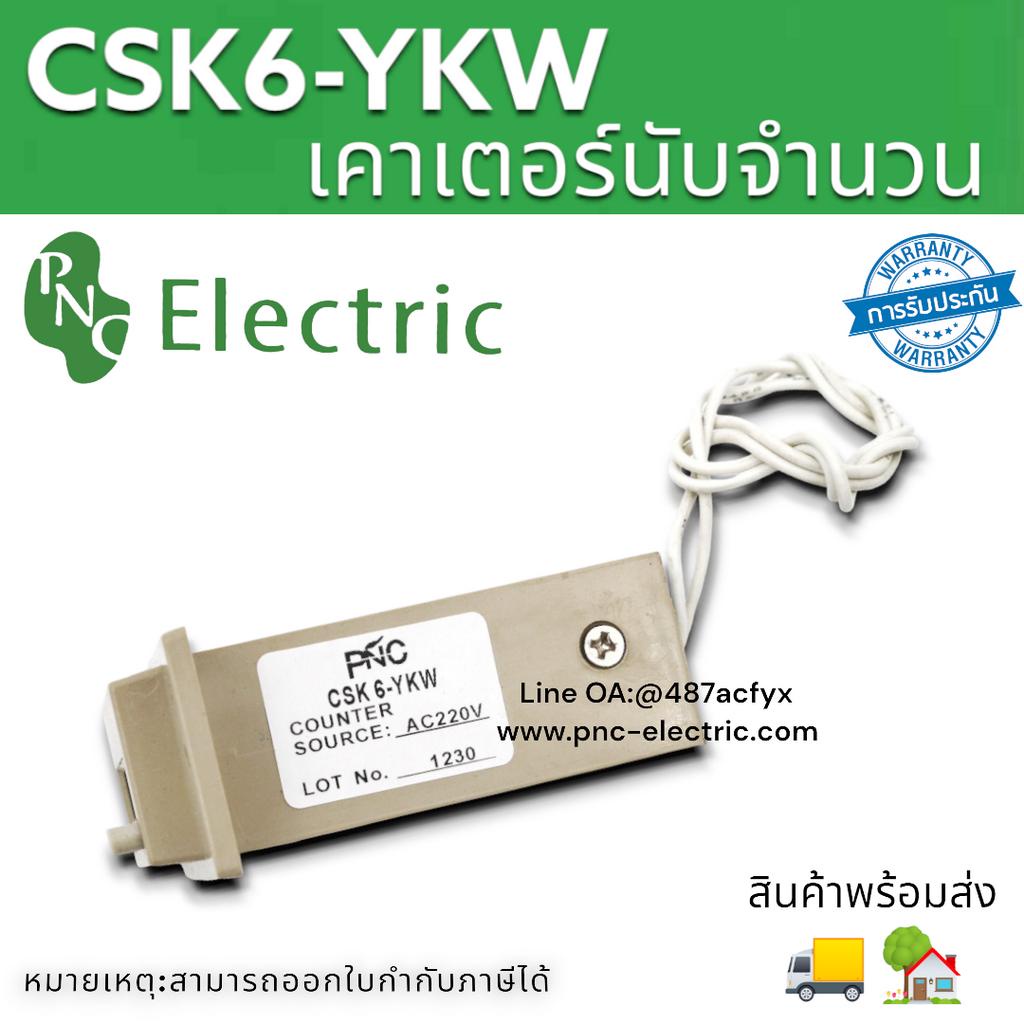

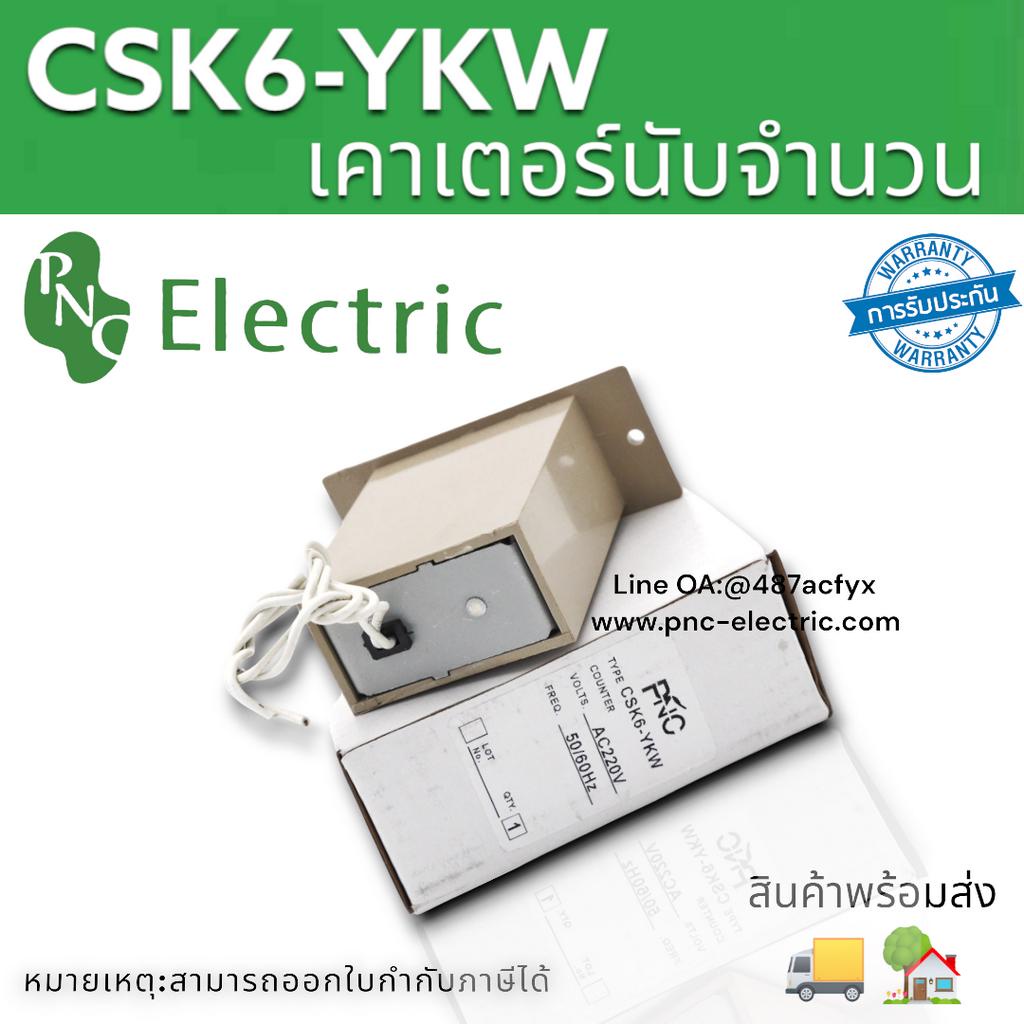

CSK6-YKW เคาท์เ่ตอร์นับจำนวนแบบ 6หลัก PNC จัดส่งสินค้า1-3วัน

MODEL : CSK6-YKW Supply voltage (see note) 100, 200 VAC, 50/60 Hz 6, 12, 24, 48, 100 VDC Operating voltage range 85% to 110% of rated voltage Power consumption AC: approx. 3 VA DC: approx. 3.5 W ON time rating Continuous rating Counting speed AC input: 15 cps (contact) (ON/OFF ratio: 1:1) DC input: 20 cps (contact) (ON/OFF ratio: 1:1) Character height 4 mm Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength 1,500 VAC, 50/60 Hz for 1 minute Vibration resistance Destruction: 16.7 Hz, 4 mm double amplitude Malfunction: 10 to 55 Hz, 0.5 mm double amplitude Shock resistance Destruction: 300 m/sec2 (approx. 30G) Malfunction: 50 m/sec2 (approx. 5G) Ambient temperature Operating: –10°C to 45°C Storage: –25°C to 65°C Ambient humidity 45% to 85% Life expectancy 50,000,000 counts Approved standards (see note) UL508 Weight 4-digit model: approx. 100 g 6-digit model: approx. 110 g
